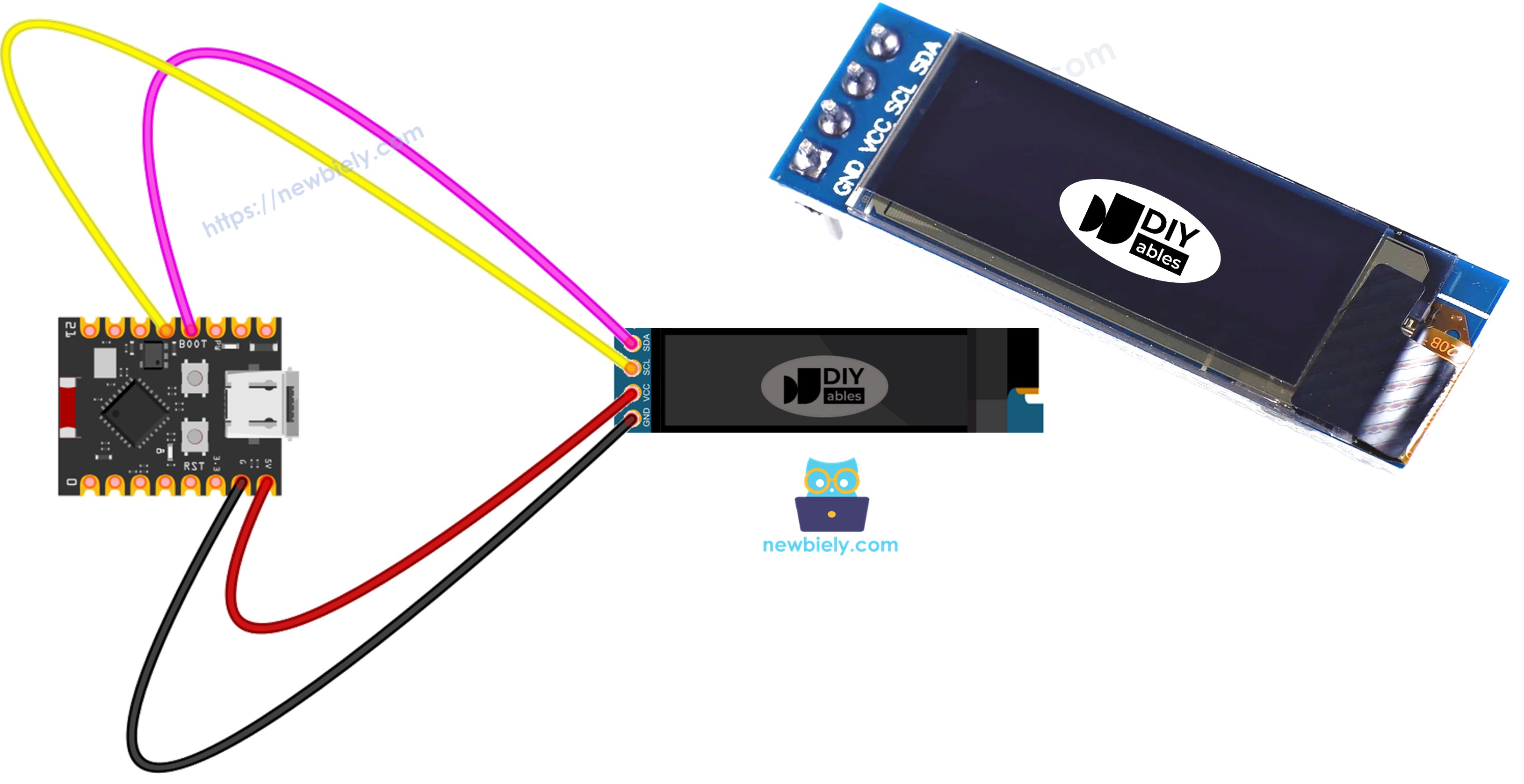

ESP32 C3 Super Mini - OLED 128x32 Display

Create custom displays and visualize data with the OLED 128x32 display! The compact SSD1306 OLED screen provides high-contrast visuals perfect for showing sensor readings, status information, and graphics. This beginner-friendly tutorial shows you how to connect an OLED 128x32 display to your ESP32 C3 Super Mini and program it to display text, numbers, shapes, and custom images using I2C communication.

What You'll Learn:

What the OLED 128x32 display is and how it works
How to wire the OLED display to ESP32 C3 Super Mini I2C pins
How to install and use the SSD1306 OLED library
How to display text, numbers, and sensor data on the screen
How to center text horizontally and vertically
How to draw shapes and graphics using ESP32 C3 Super Mini
How to display custom images and bitmaps
How to troubleshoot common OLED display issues

Real-World Applications:

Sensor displays showing temperature, humidity, and distance readings
Status indicators displaying system state and WiFi connection
Data loggers showing live sensor updates
Menu systems providing interactive user interfaces
Weather stations displaying forecasts and measurements
Digital clocks and countdown timers

Display Technology:

OLED (Organic Light-Emitting Diode) displays produce their own light, eliminating the need for a backlight. Each pixel emits light independently, providing perfect blacks, high contrast ratios, and wide viewing angles compared to traditional LCD displays.

Hardware Preparation

1	×	ESP32 C3 Super Mini
1	×	Micro USB Cable
1	×	SSD1306 I2C OLED Display 128x32
1	×	Jumper Wires

Or you can buy the following kits:

DIYables Sensor Kit (18 sensors/displays)

Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of OLED 128x32 Display

The OLED 128x32 is a compact monochrome display module using self-illuminating OLED technology with the SSD1306 driver chip.

Key Features:

Resolution: 128 pixels wide × 32 pixels tall (4,096 total pixels)
Screen size: Typically 0.91 inches diagonal
Technology: Organic Light-Emitting Diode (self-lit pixels)
Communication: I2C interface (2-wire connection)
Driver chip: SSD1306
Color: Monochrome (white or blue pixels on black background)
Voltage: 3.3V - 5V power supply
Current draw: 10-20mA (depends on pixels lit)
Contrast: Perfect blacks (pixels turn completely off)
Viewing angle: ~170 degrees
Response time: <1ms

Why Beginners Love It:

Simple I2C wiring (only 4 connections)
No backlight needed (self-illuminating)
High contrast makes text very readable
Large Arduino library support
Low power consumption
Compact size fits small projects

OLED vs LCD Comparison:

Feature	OLED	LCD
Backlight	None (self-lit)	Required
Contrast	Perfect (infinite)	Limited
Black Level	True black	Gray/lit
Viewing Angle	~170°	~120°
Power Usage	Low (black areas)	Constant
Thickness	Very thin	Thicker
Response Time	Fast (<1ms)	Slower

OLED Display Pinout

The OLED 128x32 display module typically has four pins for power and I2C communication.

VCC: Power supply pin (3.3V or 5V)
GND: Ground pin (0V reference)
SCL: I2C Serial Clock pin (connects to ESP32 C3 Super Mini pin 12)
SDA: I2C Serial Data pin (connects to ESP32 C3 Super Mini pin 11)

I2C Communication:

Uses only 2 wires (SCL + SDA) for data transfer
Default I2C address: 0x3C (some modules use 0x3D)
Built-in pull-up resistors (usually included on module)
Multiple devices can share same I2C bus

※ NOTE THAT:

Pin connections on OLED modules may vary by manufacturer - always check the labels on your specific module
This tutorial uses SSD1306 I2C driver OLED displays (tested with DIYables modules)
Pin order varies: some modules have GND-VCC-SCL-SDA, others have VCC-GND-SCL-SDA

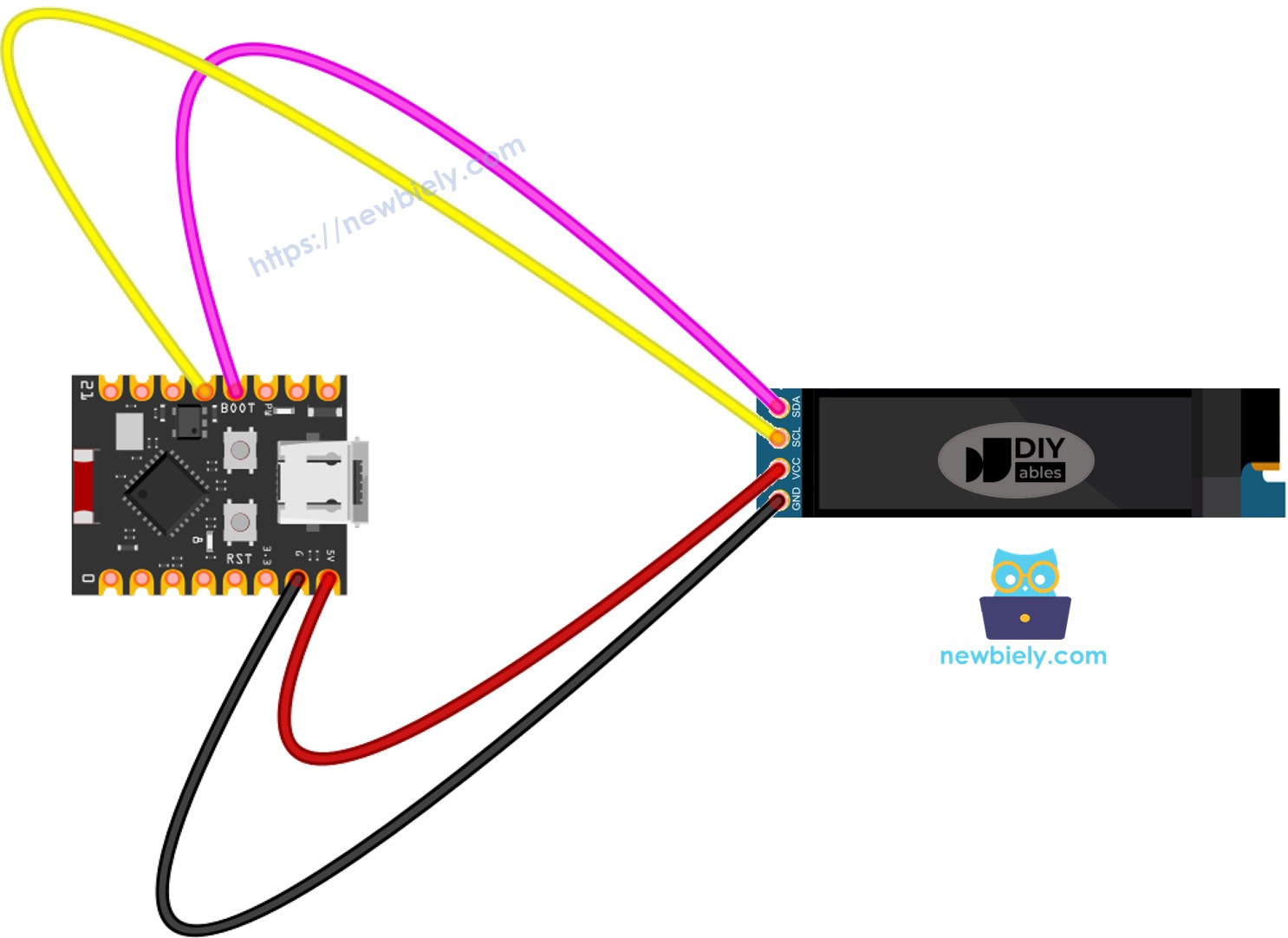

Wiring Diagram

Connect the OLED 128x32 display to your ESP32 C3 Super Mini following the I2C connections below.

This image is created using Fritzing. Click to enlarge image

Connection Table:

OLED Module	ESP32 C3 Super Mini
VCC	3.3V
GND	GND
SDA	SDA (pin 11)
SCL	SCL (pin 12)

Wiring Tips:

Double-check pin labels on your specific OLED module before connecting
Ensure SDA connects to pin 11 and SCL to pin 12 on ESP32 C3 Super Mini
Use short jumper wires to minimize signal noise
The ESP32 C3 Super Mini's USB power is sufficient (OLED draws only 10-20mA)

Programming ESP32 C3 Super Mini with OLED Display

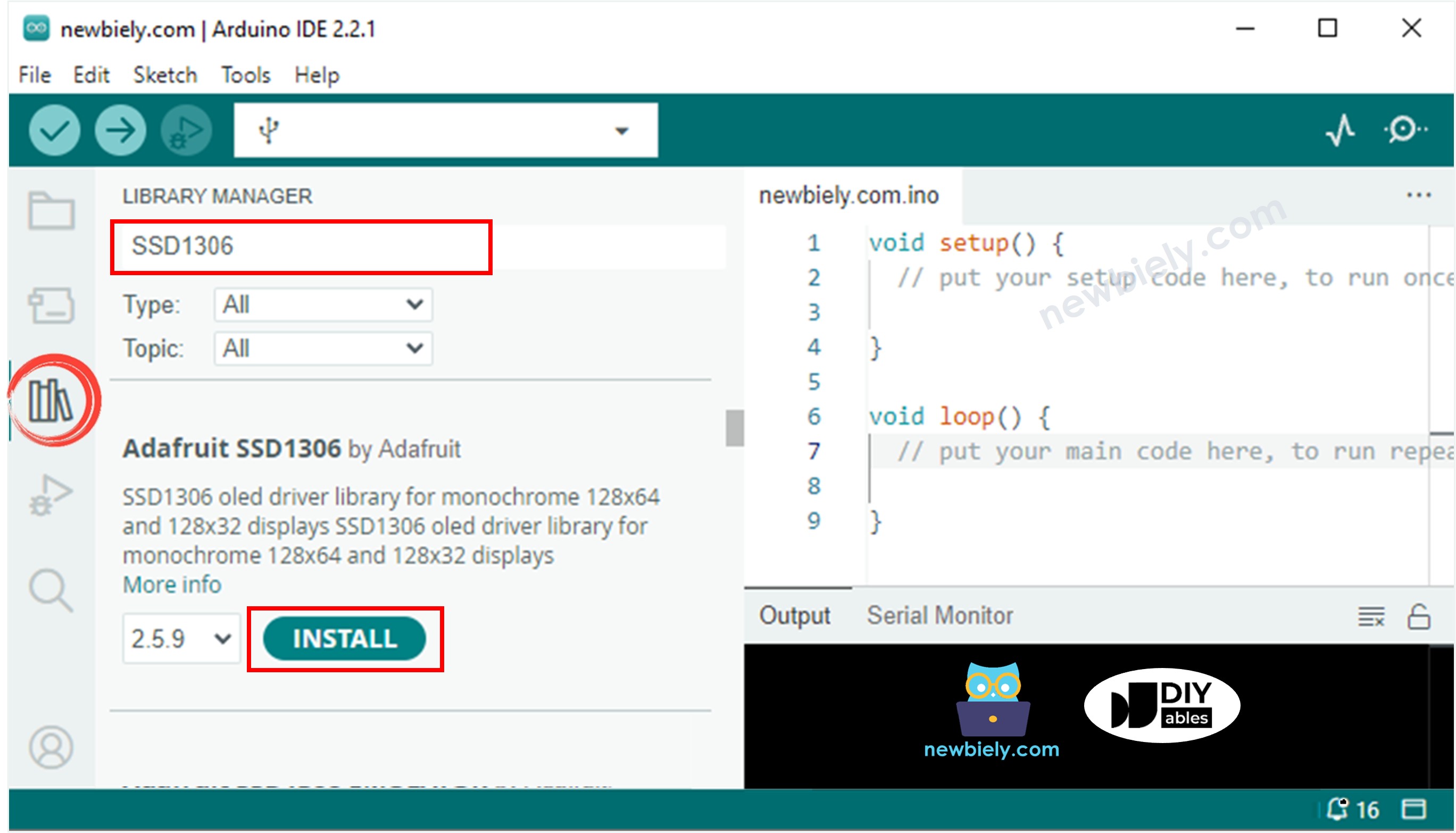

Install SSD1306 OLED Library

Click the Libraries icon on the left side of Arduino IDE
Search for SSD1306
Find the Adafruit SSD1306 library by Adafruit
Click Install to add the library

When prompted to install dependencies, click Install All to add required libraries (including Adafruit GFX)

ESP32 C3 Super Mini Adafruit GFX sensor library

Basic OLED Programming Steps

Include Required Libraries:

#include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h>

Define Display Dimensions:

#define OLED_WIDTH 128 // OLED display width in pixels #define OLED_HEIGHT 32 // OLED display height in pixels

Create Display Object:

// Create SSD1306 display object for I2C communication Adafruit_SSD1306 oled(OLED_WIDTH, OLED_HEIGHT, &Wire, -1);

Initialize Display in setup():

// Initialize OLED at I2C address 0x3C if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { Serial.println(F("SSD1306 allocation failed")); while (true); // Stop if display initialization fails }

Display Content:

Use drawing functions to add text, shapes, and images
Call oled.display() to show your content on screen

ESP32 C3 Super Mini Code - Display Text on OLED

Essential OLED Text Functions:

oled.clearDisplay() – Clears all pixels on screen
oled.setTextSize(n) – Sets text size (1-8, where 1 is smallest)
oled.setCursor(x, y) – Sets starting position for text
oled.setTextColor(WHITE) – Sets text color to white
oled.setTextColor(BLACK, WHITE) – Sets text color to black with white background
oled.print("text") – Prints text without newline
oled.println("text") – Prints text with newline
oled.println(number) – Prints number value
oled.println(number, HEX) – Prints number in hexadecimal format
oled.display() – Updates screen to show all changes

Scrolling Functions:

oled.startscrollright(start, stop) – Scrolls text left to right
oled.startscrollleft(start, stop) – Scrolls text right to left
oled.startscrolldiagright(start, stop) – Scrolls diagonally (bottom-left to top-right)
oled.startscrolldiagleft(start, stop) – Scrolls diagonally (bottom-right to top-left)
oled.stopscroll() – Stops scrolling animation

Text Size Reference for 128x32 Display:

Size 1: ~21 characters per line, 4 lines (6×8 pixels per character)
Size 2: ~10 characters per line, 2 lines (12×16 pixels per character)
Size 3: ~7 characters per line, 1 line (18×24 pixels per character)

Center Aligning Text on OLED Display

To learn how to center text and numbers both horizontally and vertically on the OLED 128x32 display using ESP32 C3 Super Mini, check out this detailed guide:

How to Vertical/Horizontal Center Align Text on OLED

Quick Centering Formula:

Horizontal center: x = (128 - textWidth) / 2
Vertical center: y = (32 - textHeight) / 2
Text width = characters × 6 × textSize
Text height = 8 × textSize

ESP32 C3 Super Mini Code - Drawing Shapes on OLED

Essential Drawing Functions:

oled.drawPixel(x, y, color) – Draws single pixel at position
oled.drawLine(x0, y0, x1, y1, color) – Draws line between two points
oled.drawRect(x, y, width, height, color) – Draws rectangle outline
oled.fillRect(x, y, width, height, color) – Draws filled rectangle
oled.drawCircle(x, y, radius, color) – Draws circle outline
oled.fillCircle(x, y, radius, color) – Draws filled circle
oled.drawTriangle(x0, y0, x1, y1, x2, y2, color) – Draws triangle outline
oled.fillTriangle(x0, y0, x1, y1, x2, y2, color) – Draws filled triangle
oled.drawRoundRect(x, y, width, height, radius, color) – Draws rounded rectangle
oled.fillRoundRect(x, y, width, height, radius, color) – Draws filled rounded rectangle

ESP32 C3 Super Mini Code - Display Images on OLED

To display custom images on the OLED 128x32 display, convert your image to a bitmap array using the online converter tool.

Image Conversion Steps:

Visit the Image to Bitmap Converter
Upload your image file (JPG, PNG, etc.)
Set width and height (max 128×32 for this display)
Select settings: Monochrome, Horizontal orientation
Click Convert and copy the generated bitmap array

Using Custom Images:

/* * This ESP32 C3 Super Mini code was developed by newbiely.com * * This ESP32 C3 Super Mini code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/esp32-c3/esp32-c3-super-mini-oled-128x32-display */ #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels // declare an SSD1306 display object connected to I2C Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1); // bitmap of DIYable-icon image int bitmap_width = 72; // MUST match to bitmap image size int bitmap_height = 32; // MUST match to bitmap image size const unsigned char bitmap_DIYables [] PROGMEM = { // 'DIYables Icon', 72x32 0x00, 0x0f, 0xff, 0xff, 0x8f, 0xf8, 0x07, 0x38, 0x07, 0x00, 0x0f, 0xff, 0xff, 0x8f, 0xfe, 0x07, 0x1c, 0x0e, 0x00, 0x0f, 0xff, 0xff, 0x8f, 0xff, 0x07, 0x1c, 0x1c, 0x00, 0x0f, 0xff, 0xff, 0x8e, 0x07, 0x87, 0x0e, 0x1c, 0x00, 0x0f, 0xff, 0xff, 0x8e, 0x03, 0xc7, 0x0f, 0x38, 0x00, 0x0f, 0xff, 0xff, 0x8e, 0x01, 0xc7, 0x07, 0x38, 0x00, 0x0f, 0xff, 0xff, 0x8e, 0x01, 0xc7, 0x03, 0xf0, 0xf0, 0x0f, 0xff, 0xff, 0x8e, 0x01, 0xc7, 0x03, 0xe0, 0xfc, 0x0f, 0xff, 0xff, 0x8e, 0x01, 0xc7, 0x01, 0xe0, 0xfe, 0x0f, 0xff, 0xff, 0x8e, 0x03, 0xc7, 0x01, 0xc0, 0xff, 0x8f, 0xff, 0xff, 0x8e, 0x03, 0x87, 0x01, 0xc0, 0xff, 0x8f, 0xff, 0xff, 0x8e, 0x0f, 0x87, 0x01, 0xc0, 0xff, 0xcf, 0xff, 0xff, 0x8f, 0xff, 0x07, 0x01, 0xc0, 0xff, 0xef, 0xff, 0xff, 0x8f, 0xfc, 0x07, 0x01, 0xc0, 0xff, 0xef, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xfc, 0xfd, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xfc, 0xfc, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x0f, 0xfc, 0xfc, 0xff, 0xff, 0xff, 0xef, 0xff, 0xff, 0x0e, 0x0c, 0x0c, 0xc3, 0x07, 0xff, 0xef, 0xff, 0xfe, 0x0f, 0xec, 0xec, 0x99, 0x7f, 0xff, 0xef, 0xff, 0xfe, 0x0f, 0x04, 0xe4, 0x81, 0x0f, 0xff, 0xcf, 0xff, 0xfc, 0x0e, 0x32, 0xe4, 0x9f, 0xc7, 0xff, 0x8f, 0xff, 0xf8, 0x0e, 0x32, 0x4c, 0x9b, 0x67, 0xff, 0x0f, 0xff, 0xf0, 0x0e, 0x04, 0x0c, 0xc3, 0x0f, 0xfe, 0x0f, 0xff, 0xe0, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x0f, 0xff, 0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x0f, 0xfc, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff }; void setup() { Serial.begin(9600); // initialize OLED display with address 0x3C for 128x32 if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { Serial.println(F("SSD1306 allocation failed")); while (true); } delay(2000); // wait for initializing } void loop() { oled.clearDisplay(); // display bitmap to the center int x = (SCREEN_WIDTH - bitmap_width) / 2; int y = (SCREEN_HEIGHT - bitmap_height) / 2; oled.drawBitmap(x, y, bitmap_DIYables, bitmap_width, bitmap_height, WHITE); oled.display(); delay(2000); }

Important Notes:

Image dimensions must not exceed 128×32 pixels
Resize images before conversion if too large
Update width and height parameters in oled.drawBitmap() function to match your image size
Replace the ArduinoIcon array with your converted bitmap array

Display Image Function:

oled.drawBitmap(x, y, bitmap_array, width, height, color) – Draws bitmap image at position

Detailed Instructions

New to ESP32 C3 Mini? Complete our Getting Started with ESP32 C3 Mini tutorial first to set up your development environment.
Connect OLED to ESP32: Wire VCC to 3.3V, GND to GND, SDA to pin 11, SCL to pin 12
Install libraries: Add Adafruit SSD1306 and Adafruit GFX libraries via Arduino IDE Library Manager
Copy code: Use one of the example codes above (text, drawing, or image display)
Verify I2C address: Most OLED modules use 0x3C (change to 0x3D if needed)
Upload code: Select correct ESP32 C3 Super Mini board and COM port, then upload
Check display: OLED should show text, graphics, or images based on your code
Modify content: Customize text, positions, and graphics to match your project needs
Pro Tip: Always call oled.clearDisplay() before updating content and oled.display() after to refresh the screen properly

Troubleshooting OLED Display Issues

Problem: Blank Screen (Nothing Displays)

Check wiring: Verify SDA to pin 11, SCL to pin 12, VCC to 3.3V, GND to GND
Test I2C address: Run I2C scanner code to detect actual address
Change address: Try 0x3D if 0x3C doesn't work in oled.begin() function
Check power: Ensure 3.3V or 5V properly connected to VCC pin
Verify connections: Push jumper wires firmly into breadboard holes
Test module: Try OLED on another Arduino to rule out faulty display

I2C Scanner Code:

#include <Wire.h> void setup() { Serial.begin(9600); Wire.begin(); Serial.println("Scanning I2C addresses..."); for (byte address = 1; address < 127; address++) { Wire.beginTransmission(address); if (Wire.endTransmission() == 0) { Serial.print("Device found at 0x"); if (address < 16) Serial.print("0"); Serial.println(address, HEX); } } Serial.println("Scan complete"); } void loop() {}

Problem: Garbled or Partial Display

Secure connections: Check for loose jumper wires
Verify resolution: Ensure code uses 128×32 (not 128×64)
Add initialization delay: Include delay(2000) after oled.begin()
Reset display: Call oled.clearDisplay() and oled.display() after initialization

Problem: Text Too Small or Too Large

Adjust text size: Use oled.setTextSize(1) for small, setTextSize(2) for medium
Size 1: Fits ~21 characters per line (6×8 pixels each)
Size 2: Fits ~10 characters per line (12×16 pixels each)
Size 3: Fits ~7 characters per line (only 1 line on 32-pixel height)

Problem: Display Flickers

Optimize refresh: Call oled.clearDisplay() once, then oled.display() once per update
Add delay: Include delay(100) in loop to limit update speed
Avoid rapid clearing: Don't repeatedly clear display unnecessarily

Problem: Only First Line Shows

Check coordinates: Ensure Y position within 0-31 range (32 pixels tall)
Set cursor properly: Use oled.setCursor(x, y) before each line
Text size overflow: Large text sizes may push content off screen

Project Ideas with OLED Display

Expand your ESP32 C3 Super Mini skills with these OLED display project ideas:

Temperature and humidity monitor: Display DHT11 or DHT22 sensor readings in real-time
Ultrasonic distance meter: Show HC-SR04 measurements with visual progress bar
WiFi signal strength indicator: Display RSSI values with bar graph
Scrolling message board: Create news ticker with scrolling text animation
Digital clock with RTC module: Show time and date from DS3231 real-time clock
Button-controlled menu system: Navigate settings using push buttons
Weather station display: Show temperature, humidity, pressure from BME280 sensor
Motion detector alert: Display PIR sensor status and trigger count
Battery voltage monitor: Show real-time battery level with percentage bar
Simple game console: Create Pong, Snake, or breakout games

Video Tutorial

Watch the video below for a visual walkthrough of this ESP32 C3 Super Mini OLED display project.

Challenge Yourself

Try these progressively challenging modifications to enhance your OLED display skills:

Easy: Change text size, color, and position to customize your display layout
Easy: Display sensor readings from a DHT11 temperature/humidity sensor on the OLED
Medium: Create an animated loading bar that fills from 0% to 100%
Medium: Build a scrolling text ticker that continuously loops your message
Medium: Design a multi-page menu system controlled by push buttons
Advanced: Plot real-time sensor data as a scrolling graph on the OLED
Advanced: Create a mini game (Pong or Snake) with button controls
Advanced: Build a WiFi-connected weather display showing live forecast data

Learn More

※ OUR MESSAGES

As freelancers, We are AVAILABLE for HIRE. See how to outsource your project to us
Please feel free to share the link of this tutorial. However, Please do not use our content on any other websites. We invested a lot of effort and time to create the content, please respect our work!
