ESP32 C3 Super Mini - Button

Learning to use a button with your ESP32 C3 Super Mini is one of the most important skills for any Arduino project. This tutorial makes it easy for beginners to understand button wiring, coding, and common troubleshooting.

In this tutorial, you'll learn:

What a push button is and how it works with ESP32 C3 Super Mini
How to wire buttons (PCB-mount and panel-mount) to your ESP32
How to write code to read button states and detect presses
How to avoid common beginner mistakes like floating inputs and debounce issues

※ NOTE THAT:

Before presenting about the button, We would like to notice that there are two common mistakes that newbies usually meet:

The floating input problem:

Symptom: When connecting a button to ESP32 C3 Super Mini input pin, the state of the input pin is random and not matched with the button's pressing state.
Cause: The button pin is NOT used a pull-down resistor or a pull-up resistor.
Solution: ⇒ Use a pull-down resistor or a pull-up resistor on the input pin. The detail will be described later in this tutorial.

The chattering phenomenon

Symptom: The code on ESP32 C3 Super Mini reads the state of the button and identifies the pressing event by detecting the state change (HIGH to LOW, or LOW to HIGH). When the button is actually pressed only one time, ESP32 C3 Super Mini code detects multiple presses rather than once.
Cause: Due to mechanical and physical characteristics, when you do a single press on a button, the state of the input pin is quickly toggled between LOW and HIGH several times rather than once
Solution: ⇒ Debounce. The detail will be described in ESP32 C3 Super Mini - Button - Debounce tutorial.

The chattering phenomenon causes the malfunction in only some kinds of application that needs to detect exactly number of the pressing. In some kind of application, it is harmless.

Hardware Preparation

1	×	ESP32 C3 Super Mini
1	×	USB Cable Type-A to Type-C (for USB-A PC)
1	×	USB Cable Type-C to Type-C (for USB-C PC)
1	×	Breadboard-mount Button with Cap
1	×	Breadboard-mount Button Kit
1	×	Panel-mount Push Button
1	×	Push Button Module
1	×	Breadboard
1	×	Jumper Wires
1	×	Optionally, DC Power Jack

Or you can buy the following kits:

DIYables Sensor Kit (18 sensors/displays)

Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of Button

A push button is a simple switch that closes when pressed and opens when released.

Common types of buttons:

PCB-mount push buttons (perfect for breadboards)
Panel-mount push buttons (for project enclosures)
Button modules (with built-in pull-down resistors)

Why buttons are useful:

Simple user input for ESP32 C3 Super Mini projects
Control LEDs, motors, and other outputs
Trigger actions and events in your code

Button Pinout

PCB-Mount Button (4 pins)

A PCB-mount button has four pins internally connected in pairs.

Key points:

Only two pins are needed (from different pairs)
Four wiring options exist, but they reduce to two practical methods
Four pins provide stability against pressing force

Panel-Mount Button (2 pins)

A panel-mount button has two simple pins.

image source: diyables.io

Button Module (3 pins)

The button module includes a built-in pull-down resistor for reliable operation.

GND: Connect to ground
VCC: Connect to 3.3V power supply
OUT: Connect to ESP32 C3 Super Mini digital input pin (outputs LOW when not pressed, HIGH when pressed)

How Button Works

The button connects or disconnects two pins based on its state.

When pressed: Pin A connects to Pin B
When released: Pin A disconnects from Pin B

ESP32 C3 Super Mini - Button

One button pin connects to an ESP32 C3 Super Mini digital input pin, the other connects to VCC or GND.

Reading button state:

Your ESP32 code reads the input pin state
The state tells you if the button is pressed or not

Input State and Pressing State

The relationship between input pin state and button pressing depends on your wiring configuration.

Two common wiring methods:

Button connected to VCC:

Requires a pull-down resistor
Button pressed = HIGH signal
Button released = LOW signal

Button connected to GND (recommended for beginners):

Requires a pull-up resistor
Button pressed = LOW signal
Button released = HIGH signal

※ NOTE THAT:

If neither a pull-down resistor nor a pull-up resistor is used, the state of the input pin is random between HIGH or LOW (unstable, unfixed) when the button is NOT pressed. This is called The "floating input problem". This results in the malfunction.

Beginner tip:

Use the ESP32's internal pull-up resistor (no external components needed)
Simplifies wiring and reduces hardware requirements

Wiring Diagram between Button and ESP32 C3 Super Mini

Here's how to wire different button types to your ESP32 C3 Super Mini.

Wiring with PCB-mount button:

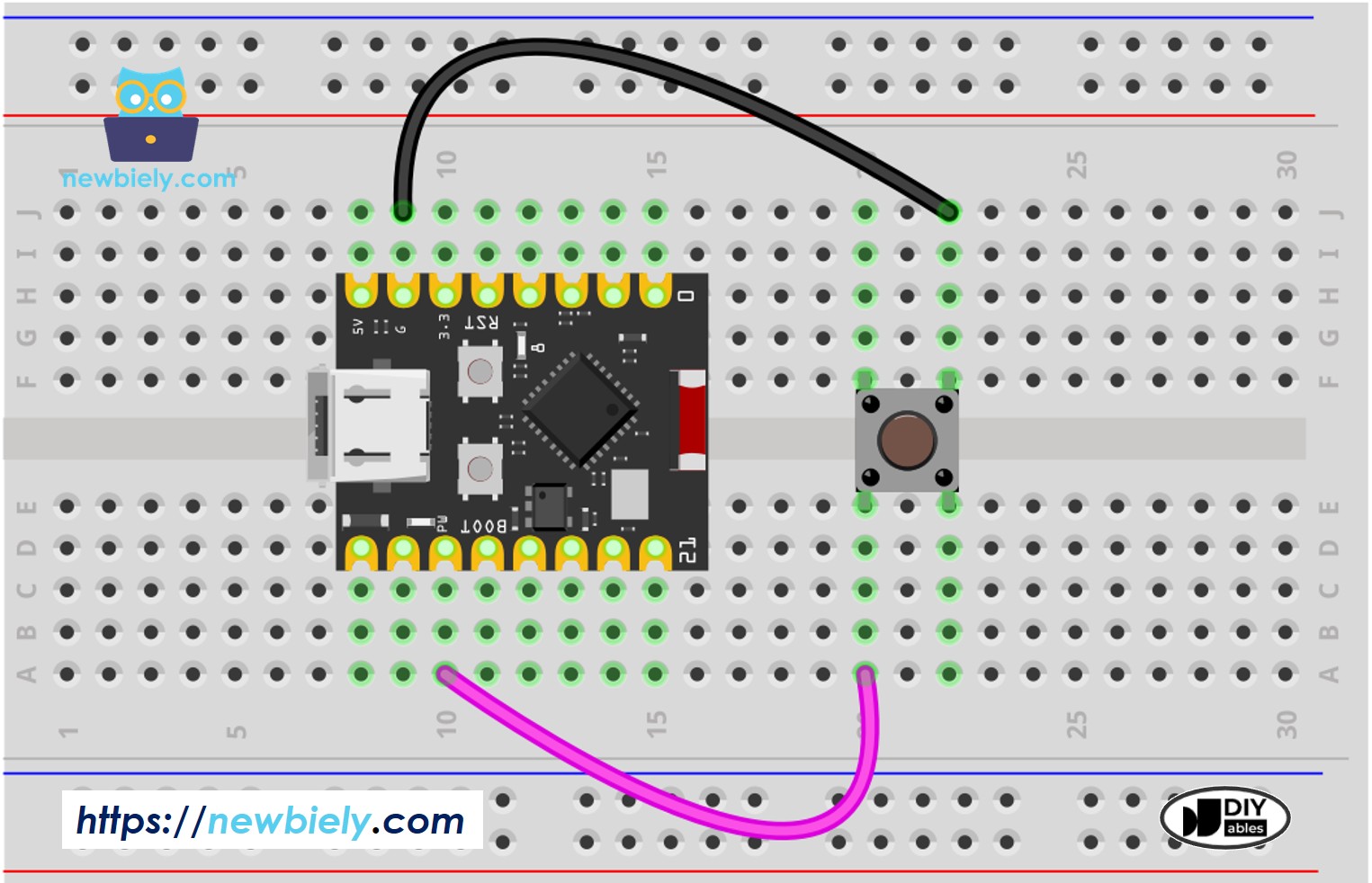

The wiring diagram between ESP32 C3 Super Mini Button

This image is created using Fritzing. Click to enlarge image

Button Pin	ESP32 C3 Super Mini Pin
Pin A	GPIO7
Pin B	GND

Wiring with panel-mount button:

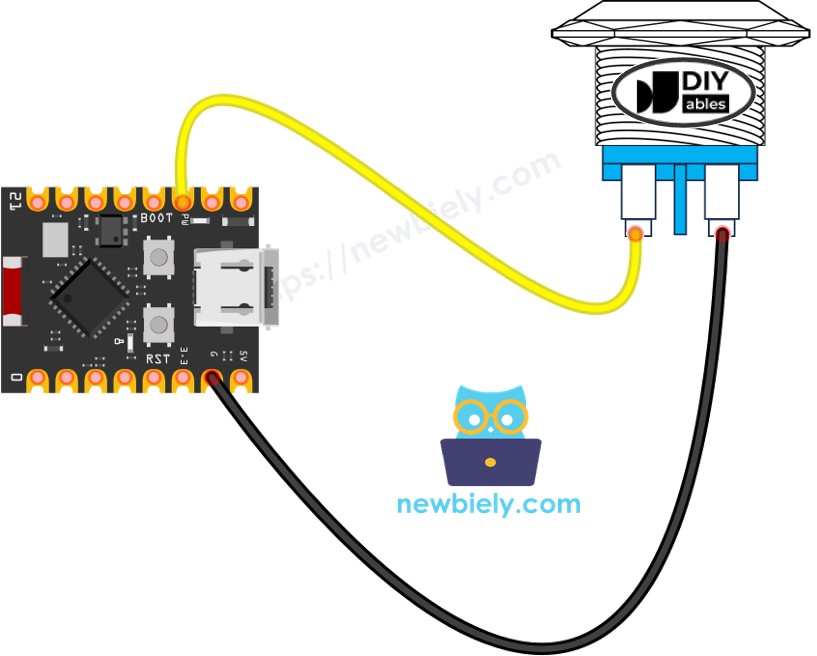

The wiring diagram between ESP32 C3 Super Mini two-pin push button

This image is created using Fritzing. Click to enlarge image

Button Pin	ESP32 C3 Super Mini Pin
Pin 1	GPIO7
Pin 2	GND

How To Program Button

Programming a button on ESP32 C3 Super Mini involves two simple steps.

Step 1: Initialize the pin with internal pull-up:

pinMode(D7, INPUT_PULLUP); // config GPIO7 as input pin and enable the internal pull-up resistor

Step 2: Read the button state:

int button_state = digitalRead(BUTTON_PIN);

Two common use cases:

※ NOTE THAT:

There are two wide-used use cases:

The first use case: If the input state is HIGH, do something. If the input state is LOW, do another thing.
The second use case: If the input state is changed from LOW to HIGH, do something. If the input state is changed from HIGH to LOW, do another thing.

Depending on the application, one of them is used. For example, in case of using a button to control an LED:

If we want to turn the LED ON when the button is pressed and turn it OFF when the button is NOT pressed, we SHOULD use the first case.
If we want to toggle the LED between ON and OFF each time the button is pressed, we SHOULD use the second case.

Example: Detecting state change from LOW to HIGH:

#define BUTTON_PIN D7 // GPIO7 pin connected to button int prev_state = HIGH; // the previous state from the input pin int button_state; // the current reading from the input pin void setup() { Serial.begin(9600); // initialize the pushbutton pin as an pull-up input pinMode(BUTTON_PIN, INPUT_PULLUP); } void loop() { // read the state of the switch/button: button_state = digitalRead(BUTTON_PIN); if(prev_state == LOW && button_state == HIGH) Serial.println("The state changed from LOW to HIGH"); // save the last state prev_state = button_state; }

ESP32 C3 Super Mini Code

This code reads and displays the button state on the Serial Monitor.

What the code does:

Configures pin D2 as an input with internal pull-up resistor
Continuously reads the button state
Prints the state (HIGH or LOW) to Serial Monitor
Updates every 100 milliseconds

Detailed Instructions

New to Arduino? Start with our ESP32 C3 Super Mini Getting Started guide first.
Wire the components: Follow the wiring diagram shown above.
Connect your board: Plug the ESP32 C3 Super Mini into your computer via USB cable.
Open Arduino IDE: Launch the software on your computer.
Select your board: Choose ESP32 C3 Super Mini and the correct COM port.
Upload the code: Copy the code below and paste it into Arduino IDE.

#define BUTTON_PIN D7 // The ESP32 C3 SuperMini pin GPIO7 pin connected to button void setup() { // Initialize the Serial to communicate with the Serial Monitor. Serial.begin(9600); // initialize the button pin as an pull-up input (HIGH when the switch is open and LOW when the switch is closed) pinMode(BUTTON_PIN, INPUT_PULLUP); } void loop() { // read the state of the switch/button: int button_state = digitalRead(BUTTON_PIN); // print out the button's state Serial.println(button_state); }

Compile and upload: Click the Upload button in Arduino IDE.

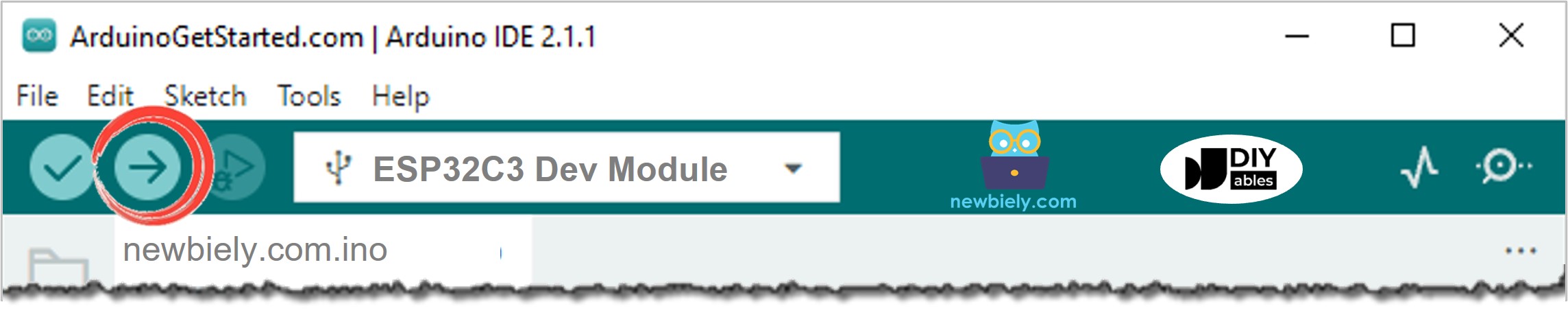

How to upload ESP32 C3 Super Mini code on Arduino IDE

Open Serial Monitor: Click the Serial Monitor icon in Arduino IDE.

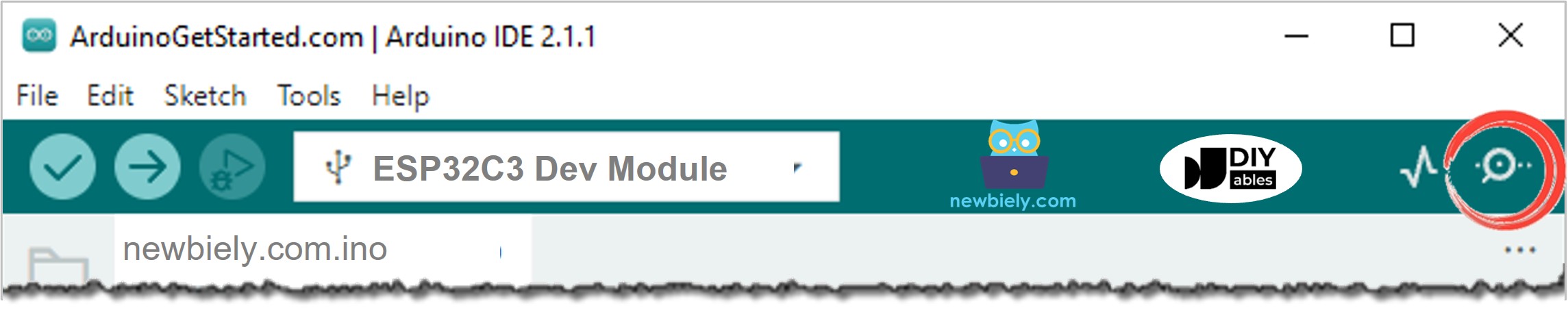

How to open serial monitor on Arduino IDE

Test the button: Press and release the button several times.
View results: Check the Serial Monitor output.
Pro Tip: Keep the Serial Monitor baud rate set to 9600 to match your code.

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

1 1 1 0 0 0 0 0 0 1 1 1 1 1 0 0

Ln 11, Col 1

ESP32C3 Dev Module on COM15

Note: 1 represents HIGH (button released), 0 represents LOW (button pressed).

Line-by-line Code Explanation

The above ESP32 C3 Super Mini code contains line-by-line explanation. Please read the comments in the code!

Modifying ESP32 C3 Super Mini Code

Let's enhance the code to detect press and release events instead of just reading states.

What this modified code does:

Detects when the button is pressed (state changes from HIGH to LOW)
Detects when the button is released (state changes from LOW to HIGH)
Prints clear messages for each event
Tracks previous state to identify changes

Detailed Instructions

Setup environment: If this is the first time you use ESP32 C3 Super Mini, see how to setup environment for ESP32 C3 Super Mini on Arduino IDE.
Modify the code: Replace your previous code with the code below.

/* * This ESP32 C3 Super Mini code was developed by newbiely.com * * This ESP32 C3 Super Mini code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/esp32-c3/esp32-c3-super-mini-button */ #define BUTTON_PIN D7 // The ESP32 C3 SuperMini pin GPIO7 pin connected to button int prev_state = LOW; // The previous state from the input pin int button_state; // The current reading from the input pin void setup() { // Initialize the Serial to communicate with the Serial Monitor. Serial.begin(9600); // initialize the button pin as an pull-up input (HIGH when the switch is open and LOW when the switch is closed) pinMode(BUTTON_PIN, INPUT_PULLUP); } void loop() { // read the state of the switch/button: button_state = digitalRead(BUTTON_PIN); if (prev_state == HIGH && button_state == LOW) Serial.println("The button is pressed"); else if (prev_state == LOW && button_state == HIGH) Serial.println("The button is released"); // save the the last state prev_state = button_state; }

Upload code: Compile and upload to your ESP32 C3 Super Mini board.
Open Serial Monitor: View the output window.
Test: Press and release the button.
Observe results: Check the Serial Monitor for event messages.

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

The button is pressed The button is released The button is pressed The button is pressed The button is released The button is pressed The button is released

Ln 11, Col 1

ESP32C3 Dev Module on COM15

※ NOTE THAT:

The Serial Monitor may print several pressed and released events even though you did only one press and release. This is a normal behavior of the button. This behavior is called the "chattering phenomenon". In some application, we need a method to eliminate it. You can learn more in ESP32 C3 Super Mini - Button Debounce tutorial.
To make it simple for beginners, especially when using multiple buttons, we created a library, called ezButton. You can learn about ezButton library here.
When using the button module, set the pin as pinMode(BUTTON_PIN, INPUT). The module outputs LOW when unpressed and HIGH when pressed.

Application/Project Ideas

Here are creative ways to use buttons with your ESP32 C3 Super Mini projects.

Control LED brightness or colors with button presses
Create a digital counter or scoreboard
Build a quiz buzzer system with multiple buttons
Design a security system with button-activated alarms
Make a music player controller (play, pause, skip)
Develop a smart home light switch replacement

Video Section

Watch the video below for a visual walkthrough of this project.

Challenge Yourself

Take your button skills to the next level with these challenges.

Easy: Add an LED that turns on when the button is pressed
Easy: Count how many times the button is pressed and display the count
Medium: Create a long-press detector that triggers different actions for short vs long presses
Medium: Implement proper debouncing to eliminate multiple press detections
Advanced: Build a combination lock using multiple buttons with a secret code sequence

Additional Knowledge

Understanding when to use pull-up or pull-down resistors is essential for reliable ESP32 C3 Super Mini projects.

When to use pull-up/pull-down resistors:

SHOULD use: Sensors with two states (open/closed) need resistors to create clear HIGH/LOW signals

Examples: push-button, switch, magnetic contact switch (door sensor)

SHOULD NOT use: Sensors that output voltage levels (LOW/HIGH) don't need resistors

Examples: motion sensor, touch sensor

Language References

Learn More
