ESP32 C3 Super Mini - Mini Mp3 Player Module

The ESP32 C3 Super Mini is a compact 3.3V development board perfect for audio projects. In this tutorial, you'll learn how to build a complete mp3 player system using the DIYables Mini Mp3 Player module with your ESP32 C3 Super Mini board.

What you'll learn:

What the Mini Mp3 Player module is and how it works
How to wire the mp3 module to ESP32 C3 Super Mini (no resistor needed)
How to prepare your SD card with properly named mp3 files
How to write code for playback, volume, looping, and folder control
How to read module status and control playback via serial commands

Hardware Preparation

1	×	ESP32 C3 Super Mini
1	×	USB Cable Type-A to Type-C (for USB-A PC)
1	×	USB Cable Type-C to Type-C (for USB-C PC)
1	×	DIYables Mini Mp3 Player module
1	×	Micro SD Card
1	×	Speaker
1	×	Breadboard
1	×	Jumper Wires

Or you can buy the following kits:

DIYables Sensor Kit (18 sensors/displays)

Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of the Mini Mp3 Player Module

The DIYables Mini Mp3 Player is a YX5200-24SS mp3 decoder module that plays audio files from a micro SD card through a built-in amplifier.

Key features:

Operates at 3.3V–5V (perfect for ESP32 C3 Super Mini's 3.3V logic)
Controls via UART serial at 9600 baud
Built-in 3W amplifier for direct speaker connection
Supports up to 255 tracks and 99 folders
31 volume levels (0–30)
6 equalizer presets (Normal, Pop, Rock, Jazz, Classic, Bass)
Multiple repeat and shuffle modes
Status query capabilities for volume, track number, and playback state
No external decoder or amplifier IC required
Beginner-friendly with simple serial commands

Pinout

The Mini Mp3 Player module has 11 pins for power, communication, audio output, and control.

VCC: Power supply (3.2V–5.0V)
GND: Ground connection
RX: UART receive (connect to ESP32 TX pin)
TX: UART transmit (connect to ESP32 RX pin)
SPK_1: Speaker positive terminal (built-in 3W amplifier)
SPK_2: Speaker negative terminal
DAC_R: Right channel line-level audio output
DAC_L: Left channel line-level audio output
BUSY: Status pin (LOW when playing, HIGH when idle)
IO_1: Button input (short press = previous, long press = volume down)
IO_2: Button input (short press = next, long press = volume up)

Wiring Diagram

Here's how to connect the Mini Mp3 Player to your ESP32 C3 Super Mini using hardware Serial1.

Important: The ESP32 C3 Super Mini uses 3.3V logic, matching the module perfectly—no resistor needed for TX/RX lines
Serial1 pins: TX1 is GPIO5 (D5), RX1 is GPIO4 (D4)
Power options: Use 3.3V pin or 5V (VBUS) depending on your speaker requirements

Mini Mp3 Player	ESP32 C3 Super Mini	Notes
VCC	3.3V	Module also accepts 5V from VBUS if needed
GND	GND	Common ground
RX	TX1 (D5)	Direct connection — no resistor needed
TX	RX1 (D4)	Direct connection — 3.3V logic compatible
SPK_1	Speaker +	Amplified output
SPK_2	Speaker −	Amplified output

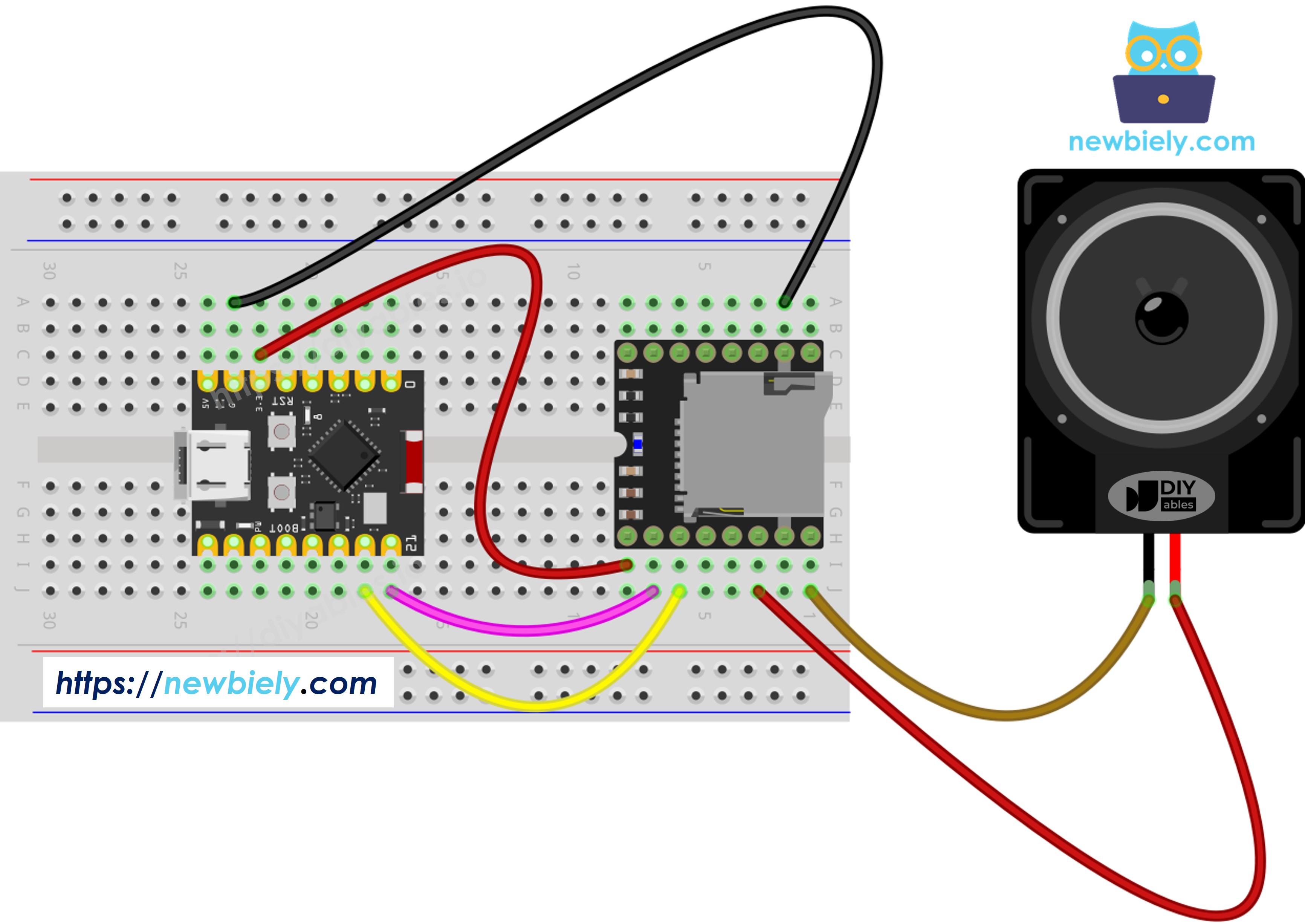

The wiring diagram between ESP32 C3 Super Mini Mini Mp3 Player

This image is created using Fritzing. Click to enlarge image

SD Card Setup

The Mini Mp3 Player requires properly formatted and named files on your micro SD card.

Formatting requirements:

File system: FAT16 or FAT32
Card size: Up to 32GB recommended

Basic file naming (root directory):

/001.mp3 /002.mp3 /003.mp3

Folder-based naming (organized playback):

/01/001.mp3 /01/002.mp3 /02/001.mp3

Critical naming rules:

Track numbering starts at 1 (not 0)
Root files: 3-digit zero-padded names (001–255)
Folder names: 2-digit zero-padded (01–99)
Files in folders: 3-digit zero-padded (001–255)
Copy order matters: The module determines playback order from the sequence files were copied, not alphabetical naming
Best practice: Format card first, then copy files one by one in your desired playback order

Library Installation

The DIYables_MiniMp3 library simplifies control of the mp3 module for ESP32 C3 Super Mini projects.

Connect your ESP32 C3 Super Mini to your computer via USB-C cable
Open the Arduino IDE
Select ESP32 C3 Super Mini as your board
Choose the correct COM port

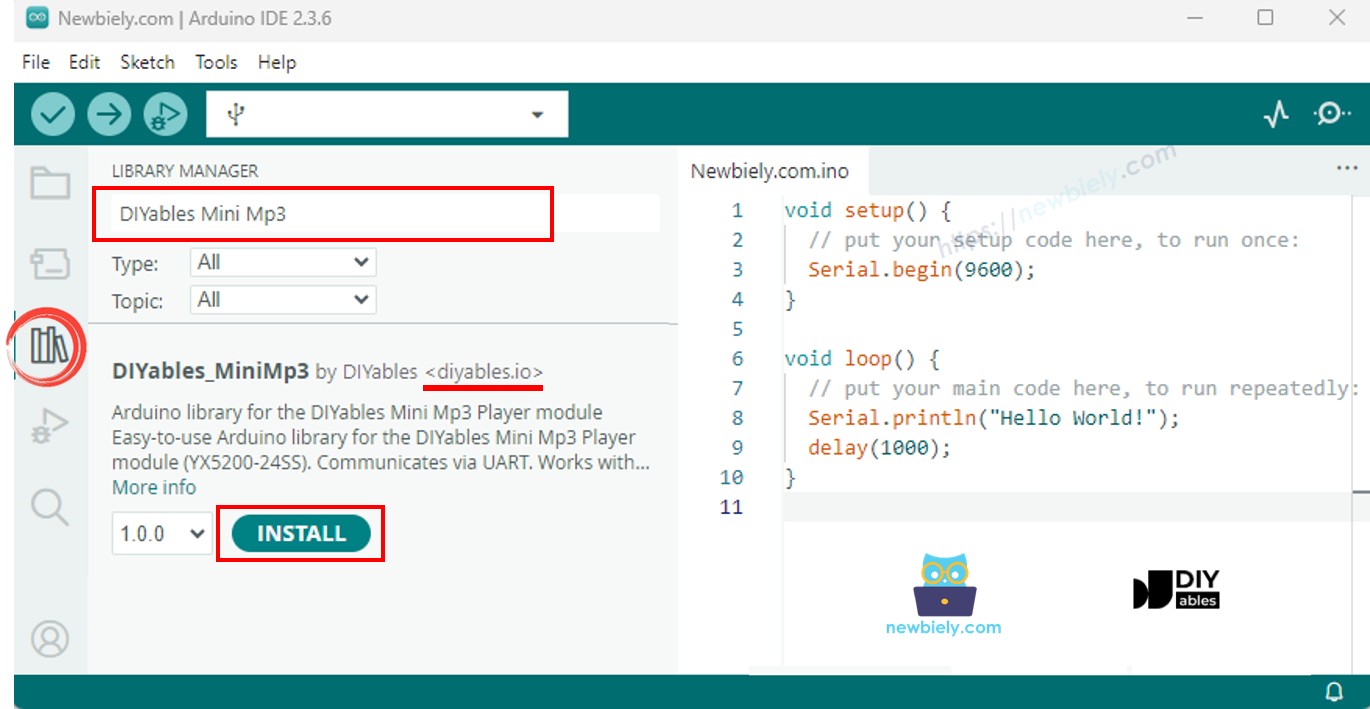

Click the Libraries icon in the left sidebar
Search for "DIYables_MiniMp3"
Find the library by DIYables
Click Install

ESP32 C3 Super Mini Mini Mp3 Player library

Library benefits:

Zero external dependencies
Simple command functions for all playback features
Works perfectly with ESP32 hardware serial

ESP32 C3 Super Mini Code — Basic Setup

This code shows the basic template for controlling the Mini Mp3 Player with ESP32 C3 Super Mini using hardware Serial1.

What this code does:

Initializes Serial1 for mp3 module communication at 9600 baud
Sets up the mp3 player object
Waits for module boot-up
Sets initial volume to level 25

#include <DIYables_MiniMp3.h> DIYables_MiniMp3 mp3; void setup() { Serial.begin(115200); Serial1.begin(9600); // Hardware serial for the mp3 module mp3.begin(Serial1); delay(1000); // Wait for the module to boot mp3.setVolume(25); } void loop() { // Your code here }

Why hardware serial?

ESP32 C3 Super Mini has dedicated UART hardware
More reliable than software serial
No timing issues at 9600 baud
Leaves USB serial free for debugging

ESP32 C3 Super Mini Code — Play a Single Track

/* * DIYables Mini Mp3 Player - Play One Track * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Plays track 001 once, then stops. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; void setup() { Serial.begin(9600); mp3Serial.begin(9600); mp3.begin(mp3Serial); delay(1000); // Wait for the module to initialize mp3.setVolume(25); // Set volume (0 to 30) Serial.println("Playing track 1..."); mp3.play(1); // Play track 001.mp3 } void loop() { // Nothing to do here }

Detailed Instructions

New to ESP32 C3 Mini? Complete our Getting Started with ESP32 C3 Mini tutorial first to set up your development environment.
Prepare SD card: Format as FAT32 and copy mp3 files with names 001.mp3, 002.mp3, etc.
Insert SD card: Place the micro SD card into the module's slot
Connect wiring: Follow the wiring diagram above (VCC, GND, TX1, RX1, speaker)
Connect speaker: Attach your speaker to SPK_1 and SPK_2 terminals
Open Arduino IDE: Launch the IDE on your computer
Select board: Choose ESP32 C3 Super Mini from the board menu
Select port: Choose the correct COM port for your board
Upload code: Copy the code above and upload to your ESP32 C3 Super Mini
Listen: Track 001.mp3 should play through the speaker
Pro Tip: If you hear no sound, check the SD card format and file naming—the module is very sensitive to naming conventions

Playback Commands

Method	Purpose	Example
play(trackNum)	Start a specific track	mp3.play(1)
playNext()	Advance to the next track	mp3.playNext()
playPrevious()	Go to the previous track	mp3.playPrevious()
pause()	Pause the active track	mp3.pause()
resume()	Unpause the track	mp3.resume()
stop()	Halt playback	mp3.stop()

ESP32 C3 Super Mini Code — Play Multiple Tracks

/* * DIYables Mini Mp3 Player - Play Multiple Tracks * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Plays tracks one after another with a delay between them. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, 003.mp3 */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; int currentTrack = 1; int totalTracks = 3; // Change this to match your SD card unsigned long lastTrackTime = 0; unsigned long trackDuration = 5000; // Wait 5 seconds between tracks (adjust as needed) void setup() { Serial.begin(9600); mp3Serial.begin(9600); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(20); Serial.println("Playing track 1..."); mp3.play(currentTrack); lastTrackTime = millis(); } void loop() { // After trackDuration, play the next track if (millis() - lastTrackTime >= trackDuration) { currentTrack++; if (currentTrack > totalTracks) currentTrack = 1; // Loop back to first track Serial.print("Playing track "); Serial.println(currentTrack); mp3.play(currentTrack); lastTrackTime = millis(); } }

Detailed Instructions

Prepare SD card: Ensure you have at least 3 mp3 files named 001.mp3, 002.mp3, 003.mp3
Wire module: Use the same wiring from the previous example
Upload code: Copy and upload the sketch above
Listen: Tracks will rotate every 5 seconds automatically
Watch serial: Open Serial Monitor at 115200 baud to see track changes
Pro Tip: Adjust the delay(5000) value to change how long each track plays before advancing

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

Playing track: 1 Playing track: 2 Playing track: 3 Playing track: 1 Playing track: 2 Playing track: 3

Ln 11, Col 1

ESP32C3 Dev Module on COM15

ESP32 C3 Super Mini Code — Volume Control

/* * DIYables Mini Mp3 Player - Volume Control * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Use two buttons to increase/decrease the volume. * Press button on pin D2 to volume up, pin D3 to volume down. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * Button UP -> Pin D2 (other leg to GND) * Button DOWN -> Pin D3 (other leg to GND) * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; const int BUTTON_VOL_UP = D2; const int BUTTON_VOL_DOWN = D3; int volume = 15; // Start at half volume void setup() { Serial.begin(9600); mp3Serial.begin(9600); pinMode(BUTTON_VOL_UP, INPUT_PULLUP); pinMode(BUTTON_VOL_DOWN, INPUT_PULLUP); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(volume); mp3.loopTrack(1); // Play track 1 on repeat Serial.print("Volume: "); Serial.println(volume); } void loop() { // Volume Up button (pressed = LOW because of INPUT_PULLUP) if (digitalRead(BUTTON_VOL_UP) == LOW) { if (volume < 30) { volume++; mp3.setVolume(volume); Serial.print("Volume: "); Serial.println(volume); } delay(200); // Simple debounce } // Volume Down button if (digitalRead(BUTTON_VOL_DOWN) == LOW) { if (volume > 0) { volume--; mp3.setVolume(volume); Serial.print("Volume: "); Serial.println(volume); } delay(200); // Simple debounce } }

Detailed Instructions

Add buttons: Wire two buttons to GPIO6 and GPIO7 (plus GND)
Upload code: Copy the sketch above to Arduino IDE and upload
Test buttons: Press the buttons while music plays to adjust volume
Watch serial: Serial Monitor displays current volume level
Pro Tip: Volume range is 0–30, with 15 being a good starting point for most speakers

Volume Commands

Method	Purpose	Example
setVolume(v)	Jump to a specific volume level	mp3.setVolume(20)
volumeUp()	Increase by 1 step	mp3.volumeUp()
volumeDown()	Decrease by 1 step	mp3.volumeDown()
getVolume()	Query the current level	mp3.getVolume()

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

Volume: 25 Volume: 26 Volume: 25 Volume: 24 Volume: 23

Ln 11, Col 1

ESP32C3 Dev Module on COM15

ESP32 C3 Super Mini Code — Next/Previous Buttons

/* * DIYables Mini Mp3 Player - Next/Previous with Buttons * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Use two buttons to play next/previous tracks. * Displays the current track number on the Serial Monitor. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * Button NEXT -> Pin D2 (other leg to GND) * Button PREV -> Pin D3 (other leg to GND) * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; const int BUTTON_NEXT = D2; const int BUTTON_PREV = D3; void setup() { Serial.begin(9600); mp3Serial.begin(9600); pinMode(BUTTON_NEXT, INPUT_PULLUP); pinMode(BUTTON_PREV, INPUT_PULLUP); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(20); mp3.play(1); // Start with track 1 Serial.println("Press NEXT or PREV button to change track"); } void loop() { if (digitalRead(BUTTON_NEXT) == LOW) { Serial.println("Next track"); mp3.playNext(); delay(300); // Simple debounce } if (digitalRead(BUTTON_PREV) == LOW) { Serial.println("Previous track"); mp3.playPrevious(); delay(300); // Simple debounce } }

Detailed Instructions

Wire buttons: Connect NEXT button to GPIO6 and PREV button to GPIO7
Connect ground: Wire the other button terminals to GND
Upload sketch: Load the code above to your ESP32 C3 Super Mini
Test navigation: Press buttons to skip forward or backward through tracks
Monitor output: Serial Monitor shows current track number
Pro Tip: Use pull-up resistors (10kΩ) for more reliable button operation in noisy environments

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

Current track: 1 Current track: 2 Current track: 3 Current track: 2 Current track: 1

Ln 11, Col 1

ESP32C3 Dev Module on COM15

ESP32 C3 Super Mini Code — Pause/Resume Toggle

/* * DIYables Mini Mp3 Player - Pause and Resume * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Demonstrates pausing and resuming playback using a single button. * Press the button to toggle between pause and resume. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * Button -> Pin D2 (other leg to GND) * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; const int BUTTON_PIN = D2; bool paused = false; void setup() { Serial.begin(9600); mp3Serial.begin(9600); pinMode(BUTTON_PIN, INPUT_PULLUP); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(20); mp3.play(1); Serial.println("Playing. Press button to pause/resume."); } void loop() { if (digitalRead(BUTTON_PIN) == LOW) { if (paused) { mp3.resume(); Serial.println("Resumed"); } else { mp3.pause(); Serial.println("Paused"); } paused = !paused; delay(300); // Simple debounce } }

Detailed Instructions

Wire button: Connect pause/resume button to GPIO6 and GND
Upload code: Load the sketch to your board
Start playback: Music begins automatically
Toggle pause: Press button to pause, press again to resume
Check status: Serial Monitor displays playback state
Pro Tip: The BUSY pin on the module can also indicate play/pause state for visual feedback with an LED

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

Playing track 1 Music paused Music resumed Music paused Music resumed

Ln 11, Col 1

ESP32C3 Dev Module on COM15

ESP32 C3 Super Mini Code — Loop a Track

/* * DIYables Mini Mp3 Player - Loop Track * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Loops (repeats) a track continuously with EQ setting. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * * SD Card file structure: * /001.mp3 * /002.mp3 * ... */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; void setup() { Serial.begin(9600); mp3Serial.begin(9600); mp3.begin(mp3Serial); delay(1000); // Wait for the module to initialize mp3.setVolume(25); // Volume: 0 to 30 mp3.setEQ(DIYables_MiniMp3::EQ_NORMAL); Serial.println("Playing track 1 on loop..."); mp3.loopTrack(1); } void loop() { // Your code here }

Detailed Instructions

Upload sketch: Load the code above
Listen: Track 1 will repeat continuously
Pro Tip: Use loopAll() for background music projects that need continuous playback

Repeat & Shuffle Commands

Method	Purpose	Example
loopTrack(t)	Keep replaying one track	mp3.loopTrack(1)
loopFolder(f)	Replay all tracks in a folder	mp3.loopFolder(1)
loopAll()	Replay everything on the card	mp3.loopAll()
stopLoop()	End the current repeat mode	mp3.stopLoop()
shuffle()	Randomize playback order	mp3.shuffle()

ESP32 C3 Super Mini Code — Play from Folder

/* * DIYables Mini Mp3 Player - Play from Folder * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Plays tracks from specific folders on the SD card. * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * * SD Card file structure: * /01/001.mp3 <- playFolder(1, 1) * /01/002.mp3 <- playFolder(1, 2) * /02/001.mp3 <- playFolder(2, 1) * /02/002.mp3 <- playFolder(2, 2) * * IMPORTANT: * - Numbering starts from 1, NOT 0 * - Folder names must be 2-digit zero-padded (01-99) * - Track names must be 3-digit zero-padded (001-255) * - Format SD card as FAT32, then copy files one by one in order * - Track order is determined by the order files were copied, * NOT by filename. So copy them in the correct sequence. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; void setup() { Serial.begin(9600); mp3Serial.begin(9600); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(20); // Play track 1 from folder 01 Serial.println("Playing folder 01, track 001..."); mp3.playFolder(1, 1); delay(5000); // Play track 2 from folder 01 Serial.println("Playing folder 01, track 002..."); mp3.playFolder(1, 2); delay(5000); // Play track 1 from folder 02 Serial.println("Playing folder 02, track 001..."); mp3.playFolder(2, 1); } void loop() { // Nothing to do here }

Detailed Instructions

Create folders: On your SD card, create folders named 01, 02, etc.
Add files: Place mp3 files in each folder (001.mp3, 002.mp3, etc.)
Upload code: Load the sketch to ESP32 C3 Super Mini
Test playback: Code plays the first track from folder 01
Pro Tip: Organize sound effects, music genres, or languages into separate folders for easy project organization

Folder Methods

Method	Purpose	Example
playFolder(f, t)	Select track t from folder f	mp3.playFolder(1, 1)
playLargeFolder(f, t)	Large folder mode (up to 3000 tracks)	mp3.playLargeFolder(1, 1500)
playFromMP3Folder(t)	Access the special /mp3 folder	mp3.playFromMP3Folder(1)

ESP32 C3 Super Mini Code — Serial Monitor Control

/* * DIYables Mini Mp3 Player - Serial Command Control * * Product: DIYables Mini Mp3 Player Module * https://diyables.io/products/mini-mp3-player-module * * Control the Mp3 player by typing commands in the Serial Monitor. * Great for testing all functions without extra hardware. * * Commands (type in Serial Monitor, then press Enter): * 1-9 Play track 1 to 9 * + Volume up * - Volume down * p Pause * r Resume * s Stop * n Next track * b Previous track (back) * ? Show current status * * Wiring Table: * Mini Mp3 RX -> Arduino Pin D11 * Mini Mp3 TX -> Arduino Pin D10 * Mini Mp3 VCC -> Vbus * Mini Mp3 GND -> GND * Speaker connected to SPK_1 and SPK_2 pins * * SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc. */ #include <DIYables_MiniMp3.h> #include <SoftwareSerial.h> SoftwareSerial mp3Serial(D10, D11); // RX, TX DIYables_MiniMp3 mp3; void setup() { Serial.begin(9600); mp3Serial.begin(9600); mp3.begin(mp3Serial); delay(1000); mp3.setVolume(20); Serial.println("=== DIYables Mini Mp3 Player ==="); Serial.println("Commands:"); Serial.println(" 1-9 Play track number"); Serial.println(" + Volume up"); Serial.println(" - Volume down"); Serial.println(" p Pause"); Serial.println(" r Resume"); Serial.println(" s Stop"); Serial.println(" n Next track"); Serial.println(" b Previous track"); Serial.println(" ? Show status"); Serial.println("================================"); } void loop() { if (Serial.available()) { char cmd = Serial.read(); switch (cmd) { case '1': case '2': case '3': case '4': case '5': case '6': case '7': case '8': case '9': Serial.print("Playing track "); Serial.println(cmd - '0'); mp3.play(cmd - '0'); break; case '+': Serial.println("Volume up"); mp3.volumeUp(); break; case '-': Serial.println("Volume down"); mp3.volumeDown(); break; case 'p': Serial.println("Paused"); mp3.pause(); break; case 'r': Serial.println("Resumed"); mp3.resume(); break; case 's': Serial.println("Stopped"); mp3.stop(); break; case 'n': Serial.println("Next track"); mp3.playNext(); break; case 'b': Serial.println("Previous track"); mp3.playPrevious(); break; case '?': { Serial.println("--- Status ---"); int16_t vol = mp3.getVolume(); Serial.print("Volume: "); Serial.println(vol); int16_t track = mp3.getCurrentTrack(); Serial.print("Current track: "); Serial.println(track); bool playing = mp3.isPlaying(); Serial.print("Playing: "); Serial.println(playing ? "Yes" : "No"); int16_t total = mp3.getTrackCount(); Serial.print("Total tracks: "); Serial.println(total); Serial.println("--------------"); break; } default: break; } } }

Detailed Instructions

Upload code: Load the sketch to your ESP32 C3 Super Mini
Open Serial Monitor: Set baud rate to 115200
Send commands: Type commands from the table below
Control playback: Use keyboard to test all mp3 player features
Pro Tip: This is perfect for testing your mp3 module before building it into a larger project

Serial Commands

Input	Result
1–9	Play that track
+ / −	Volume up / down
p	Pause
r	Resume
s	Stop
n	Next track
b	Previous track
?	Display status

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8

──

☐

Newbiely.ino

···

8 Serial.println("Hello World!");

Output

Serial Monitor

Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')

New Line

9600 baud

Mp3 Player Control Menu: 1-9: Play track, +/-: Volume, p: Pause, r: Resume, s: Stop, n: Next, b: Previous, ?: Status Command: 1 Playing track 1 Command: + Volume increased Command: n Next track

Ln 11, Col 1

ESP32C3 Dev Module on COM15

Equalizer Presets

The Mini Mp3 Player offers six built-in equalizer modes to enhance audio quality for different music genres.

Available EQ presets:

Constant	ID	Tone
DIYables_MiniMp3::EQ_NORMAL	0	Neutral
DIYables_MiniMp3::EQ_POP	1	Pop
DIYables_MiniMp3::EQ_ROCK	2	Rock
DIYables_MiniMp3::EQ_JAZZ	3	Jazz
DIYables_MiniMp3::EQ_CLASSIC	4	Classical
DIYables_MiniMp3::EQ_BASS	5	Bass boost

Example usage:

mp3.setEQ(DIYables_MiniMp3::EQ_POP);

Tips:

EQ_NORMAL works well for voice recordings and podcasts
EQ_BASS enhances small speakers with limited low-frequency response
Try different presets to match your speaker characteristics

Status Query Functions

The library provides functions to read the current state of the Mini Mp3 Player module in real-time.

Important notes:

Each query blocks execution for up to 100 milliseconds
Functions return −1 on timeout or communication error
Use these sparingly in time-critical applications

Available status functions:

Method	Returns	Info
isPlaying()	bool	Whether a track is active
getVolume()	int16_t	Volume (0–30)
getEQ()	int16_t	EQ preset (0–5)
getTrackCount()	int16_t	Total tracks on card
getCurrentTrack()	int16_t	Currently playing track
getFolderCount()	int16_t	Number of folders
getTrackCountInFolder(f)	int16_t	Tracks in folder f

Example code:

if (mp3.isPlaying()) { int currentTrack = mp3.getCurrentTrack(); int currentVolume = mp3.getVolume(); Serial.print("Playing track "); Serial.print(currentTrack); Serial.print(" at volume "); Serial.println(currentVolume); }

Application & Project Ideas

Here are some creative ways to use the ESP32 C3 Super Mini with the Mini Mp3 Player module in your projects.

Build a WiFi-controlled home audio player with web interface
Create a talking alarm clock with scheduled announcements
Design a museum exhibit guide with automatic audio descriptions
Make an interactive toy with sound effects triggered by sensors
Build a language learning device with folder-organized lessons
Create a doorbell with customizable mp3 chimes
Design a meditation timer with background music and voice prompts
Build a retail product demo with looping advertisement audio

Video Tutorial

Watch the video below for a visual walkthrough of this project.

Challenge Yourself

Test your skills with these progressively challenging ESP32 C3 Super Mini mp3 player modifications.

Easy: Add an LED that lights up when music is playing using the BUSY pin
Easy: Create a 3-button jukebox (play track 1, 2, or 3)
Medium: Build a web interface to control playback over WiFi
Medium: Add an LCD display showing current track name and volume
Advanced: Create a voice-activated mp3 player using a microphone module
Advanced: Build a multi-room audio system with multiple ESP32 boards synced over WiFi

Learn More

ESP32 C3 Super Mini - Buzzer

※ OUR MESSAGES

As freelancers, We are AVAILABLE for HIRE. See how to outsource your project to us
Please feel free to share the link of this tutorial. However, Please do not use our content on any other websites. We invested a lot of effort and time to create the content, please respect our work!
