ESP32 MicroPython SSD1309 OLED Display

The ESP32 is a powerful, Wi-Fi-enabled microcontroller widely used in IoT and embedded projects. Paired with MicroPython and the DIYables OLED SSD1309 library, you can easily add a crisp monochrome OLED display to your project.

This tutorial walks you through:

Connecting the OLED SSD1309 to an ESP32 — only 2 data pins needed (I2C).
Displaying text and numbers.
Drawing shapes: pixels, lines, rectangles, and bitmaps.
Using hardware scrolling.
Adjusting contrast and dimming the display.

Components Needed

1	×	38-pin ESP32 ESP-WROOM-32 Dev Module - Narrow
1	×	Alternatively, 38-pin ESP32 ESP-WROOM-32 Dev Module - Wide
1	×	Alternatively, 30-pin ESP32 ESP-WROOM-32 Dev Module - Wide
1	×	Alternatively, ESP32 Uno-form board
1	×	Alternatively, ESP32 S3 Uno-form board
1	×	USB Cable Type-A to Type-C (for USB-A PC)
1	×	USB Cable Type-C to Type-C (for USB-C PC)
1	×	SSD1309 I2C OLED Display 128x64 (2.42 inch)
1	×	Jumper Wires
1	×	Breadboard
1	×	Recommended: Screw Terminal Expansion Board for ESP32
1	×	Recommended: Breakout Expansion Board for ESP32
1	×	Recommended: Power Splitter for ESP32

Or you can buy the following kits:

1	×	DIYables ESP32 Starter Kit (ESP32 included)
1	×	DIYables ESP32 S3 Starter Kit (ESP32 S3 included)
1	×	DIYables Sensor Kit (18 sensors/displays)

Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

The OLED SSD1309

The SSD1309 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display systems. It connects to a microcontroller using the I2C (two-wire) protocol, making wiring minimal — only SDA and SCL lines are required in addition to power.

The display is self-luminous (no backlight needed), offers high contrast, a wide viewing angle, and is readable in both bright and dim environments. It is commonly available in 128×64 and 128×32 pixel variants.

Key features:

I2C interface (default address 0x3C)
128×64 pixel resolution (or 128×32, 96×16, 64×48, 64×32)
Built-in hardware scrolling in horizontal and diagonal directions
Adjustable contrast (0–255)
Extends framebuf.FrameBuffer — all MicroPython drawing primitives work out of the box

Pin Description

Pin	Purpose	ESP32 Connection
SDA	I2C data line	Connect to GPIO21
SCL	I2C clock line	Connect to GPIO22
VCC	3.3 V to 5 V power input	Connect to 3.3V
GND	Ground	Connect to GND

Wiring

The ESP32 operates at 3.3 V logic, which is compatible with the SSD1309 display.

OLED SSD1309	ESP32	Notes
SDA	GPIO21	I2C data
SCL	GPIO22	I2C clock
VCC	3.3V	Power
GND	GND	Ground

How to connect ESP32 to SSD1309 OLED 128x64 display using breadboard

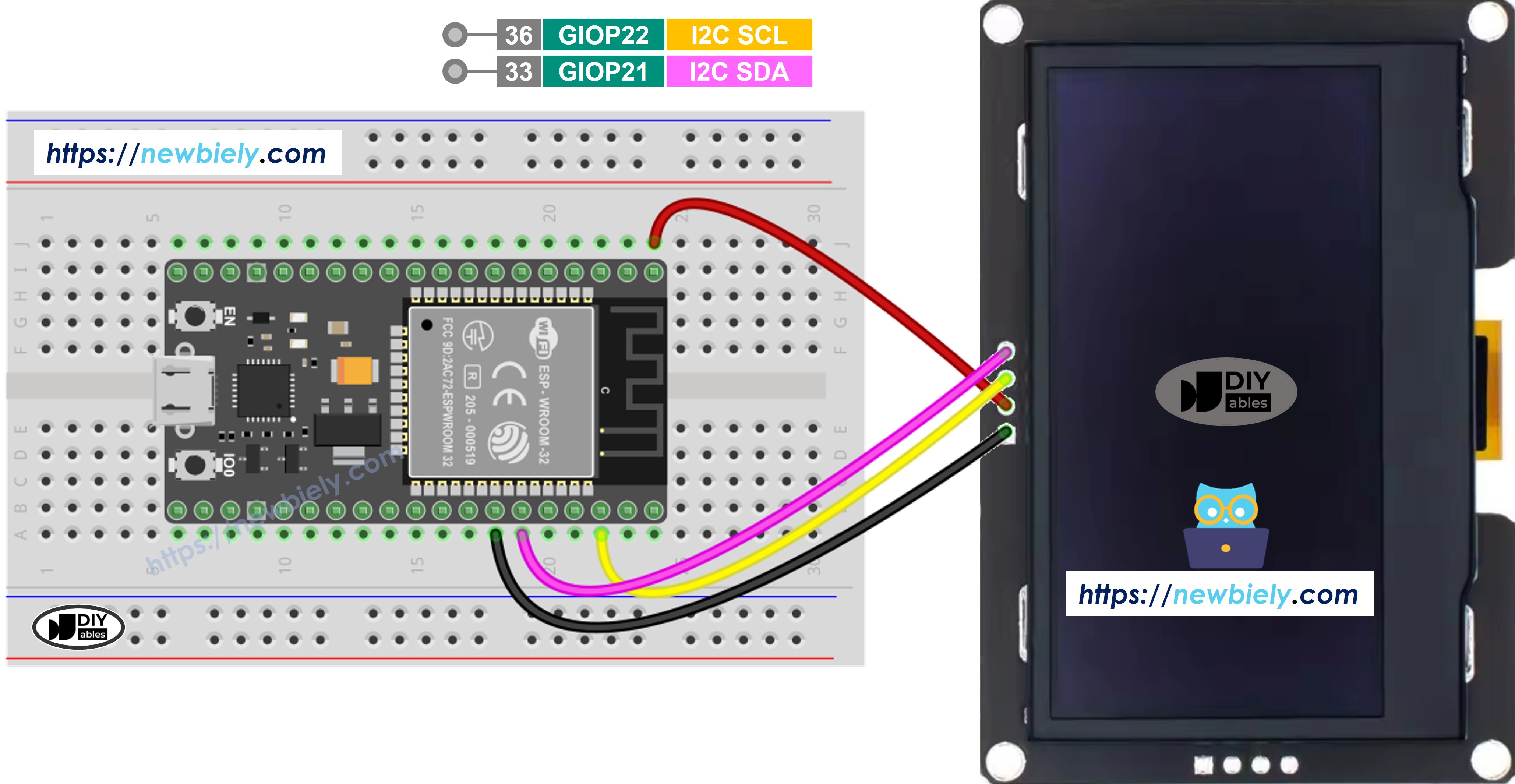

The wiring diagram between ESP32 SSD1309 OLED 128x64

This image is created using Fritzing. Click to enlarge image

No breadboard? The same circuit can be wired without one, as shown below:

The wiring diagram between ESP32 SSD1309 OLED 128x64 (No Breadboard)

This image is created using Fritzing. Click to enlarge image

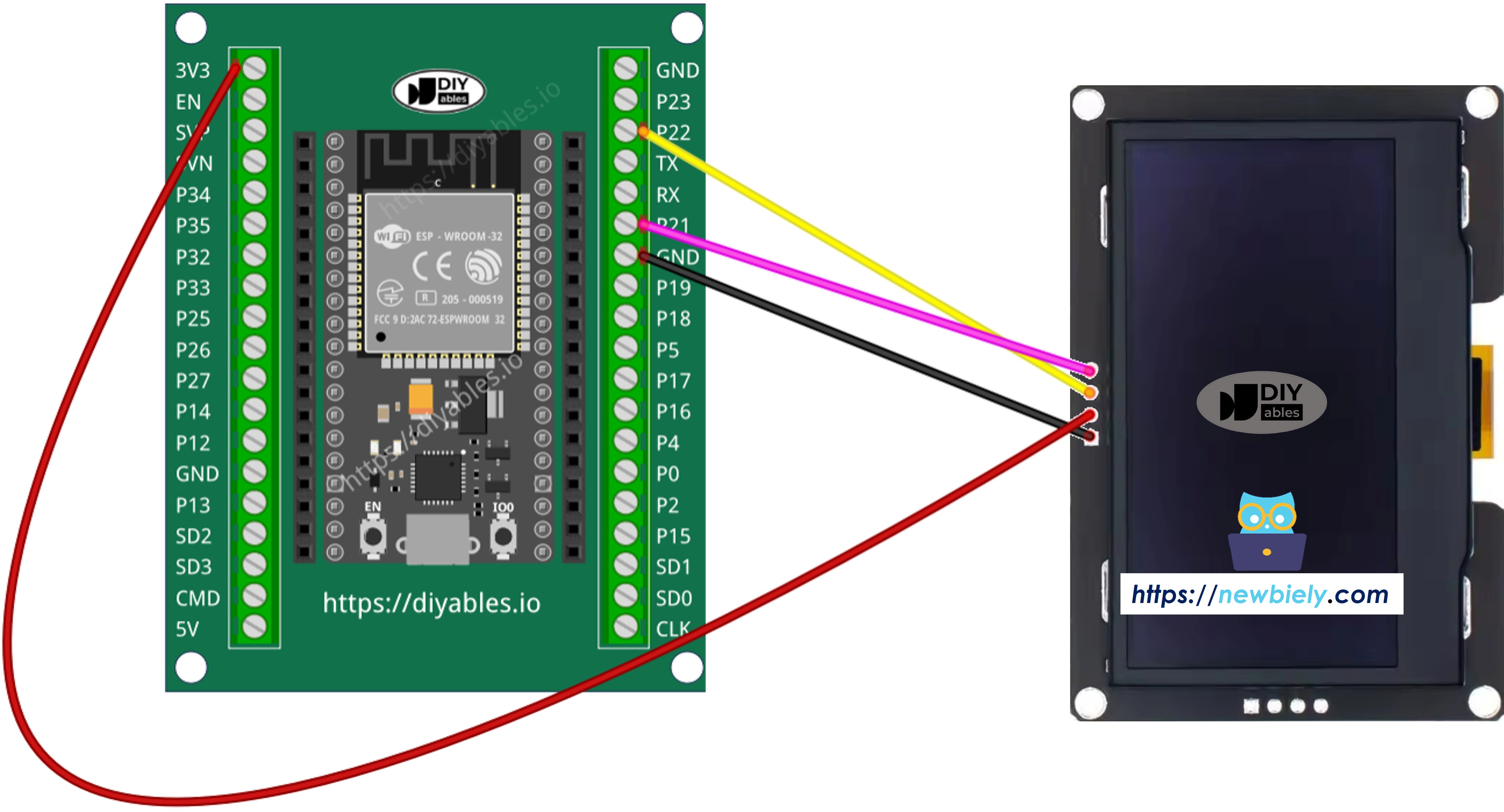

How to connect ESP32 to SSD1309 OLED 128x64 display using screw terminal block breakout board

This image is created using Fritzing. Click to enlarge image

Tip: You can use any available I2C-capable GPIO pins on the ESP32. Just update the SCL_PIN and SDA_PIN values in the code.

Detailed Instructions

Here's instructions on how to set up and run your MicroPython code on the ESP32 using Thonny IDE:

Make sure Thonny IDE is installed on your computer.
Confirm that MicroPython firmware is loaded on your ESP32 board.
If this is your first time using an ESP32 with MicroPython, check out the ESP32 MicroPython Getting Started guide for step-by-step instructions.
Connect the ESP32 board to the OLED SSD1309 according to the provided diagram.
Connect the ESP32 board to your computer with a USB cable.
Open Thonny IDE on your computer.
In Thonny IDE, go to Tools Options.
Under the Interpreter tab, choose MicroPython (ESP32) from the dropdown menu.
Make sure the correct port is selected. Thonny IDE usually detects it automatically, but you might need to select it manually (like COM3 on Windows or /dev/ttyUSB0 on Linux).

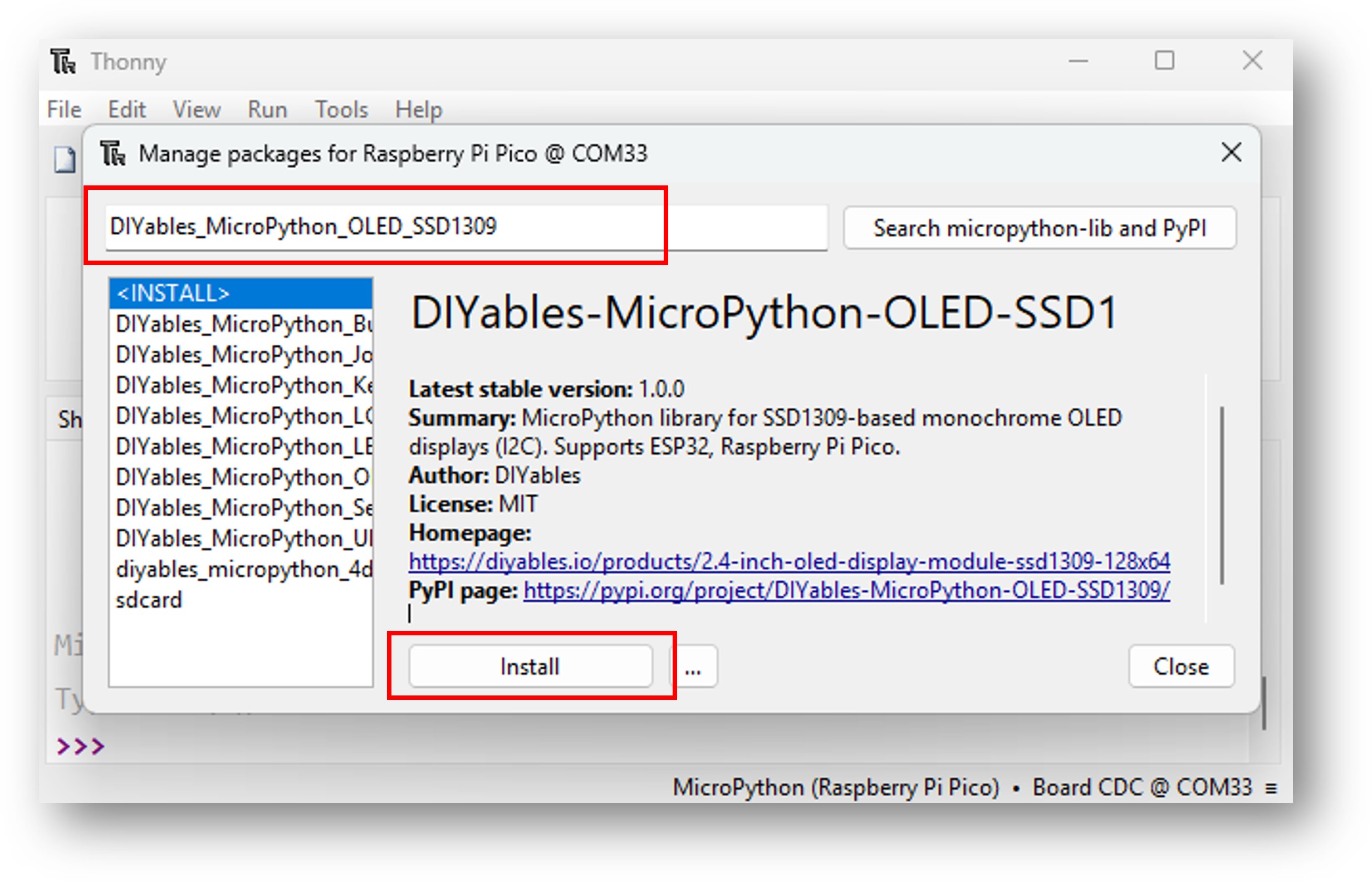

Navigate to the Tools Manage packages on the Thonny IDE.
Search "DIYables-MicroPython-OLED-SSD1309", then find the OLED SSD1309 library created by DIYables.
Click on DIYables-MicroPython-OLED-SSD1309, then click Install button to install the library.

Copy the provided MicroPython code and paste it into Thonny's editor.
Save the code to your ESP32 by:

Clicking the Save button or pressing Ctrl+S.
In the save dialog, choose MicroPython device.
Name the file main.py.

Click the green Run button (or press F5) to execute the script.
Observe the result — text and graphics should appear on the OLED display.

Starter Code Template

from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 # Pin configuration — change to match your wiring SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) # Clear the display, draw something, then push to screen oled.fill(0) oled.text("Hello, World!", 0, 0) oled.show()

ESP32 Code — Hello World

""" Example: Hello World – basic text on SSD1309 OLED Works with: ESP32 Product page: https://diyables.io/products/2.4-inch-oled-display-module-ssd1309-128x64 Wiring guide: ESP32: OLED SSD1309 ESP32 ──────────── ────────── SDA -> GPIO21 SCL -> GPIO22 VCC -> 3.3V GND -> GND """ from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 # ── Pin configuration ──────────────────────────────────────────────────────── SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C # ── Setup ──────────────────────────────────────────────────────────────────── i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) # ── Draw ───────────────────────────────────────────────────────────────────── oled.fill(0) # Line 1 – normal 8×8 font oled.text("Hello, World!", 0, 0) # Line 3 oled.text("DIYables", 0, 16) # Line 4 oled.text("SSD1309 OLED", 0, 32) oled.text("128 x 64", 0, 40) oled.show()

Try It

Wire the OLED SSD1309 to the ESP32 according to the diagram above.
Upload the code using Thonny IDE.
You should see "Hello, World!", "DIYables", and "SSD1309 OLED 128 x 64" displayed on screen.

Text Drawing Reference

Method Call	What It Does	Notes
oled.fill(0)	Clear the entire screen (all pixels off)	Always call before drawing a fresh frame
oled.text("Hello!", 0, 0)	Draw text at column 0, row 0	Built-in 8×8 pixel font; 16 chars per row, 8 rows on 64px display
oled.text("Line 2", 0, 16)	Draw text on the second line	Rows are 8 px tall; next line is y+8 or y+16 for spacing
oled.show()	Push framebuffer to the physical display	Nothing is visible until show() is called

ESP32 Code — Draw Shapes

""" Example: Draw Shapes – lines, rectangles, and circles on SSD1309 OLED Works with: ESP32 Product page: https://diyables.io/products/2.4-inch-oled-display-module-ssd1309-128x64 Wiring guide: ESP32: OLED SSD1309 ESP32 ──────────── ────────── SDA -> GPIO21 SCL -> GPIO22 VCC -> 3.3V GND -> GND Note: framebuf.FrameBuffer provides: pixel, fill, fill_rect, rect, line, hline, vline, text, blit, scroll, and (on newer MicroPython) ellipse & poly. Circles and triangles require manual drawing or the ellipse/poly helpers. """ from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 import time # ── Pin configuration ──────────────────────────────────────────────────────── SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C # ── Setup ──────────────────────────────────────────────────────────────────── i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) def demo_pixels(): """Scatter individual pixels diagonally.""" oled.fill(0) w, h = SCREEN_WIDTH, SCREEN_HEIGHT for i in range(0, w, 4): oled.pixel(i, i * h // w, 1) oled.show() time.sleep_ms(1500) def demo_lines(): """Fan of lines from the top-left corner. """ oled.fill(0) w, h = SCREEN_WIDTH, SCREEN_HEIGHT for i in range(0, w, 8): oled.line(0, 0, i, h - 1, 1) for i in range(0, h, 8): oled.line(0, 0, w - 1, i, 1) oled.show() time.sleep_ms(1500) def demo_h_v_lines(): """Horizontal and vertical lines.""" oled.fill(0) w, h = SCREEN_WIDTH, SCREEN_HEIGHT # horizontal lines for y in range(0, h, 8): oled.hline(0, y, w, 1) # vertical lines for x in range(0, w, 16): oled.vline(x, 0, h, 1) oled.show() time.sleep_ms(1500) def demo_rectangles(): """Nested rectangle outlines. """ oled.fill(0) w, h = SCREEN_WIDTH, SCREEN_HEIGHT for i in range(0, h // 2, 4): oled.rect(i, i, w - 2 * i, h - 2 * i, 1) oled.show() time.sleep_ms(1500) def demo_filled_rects(): """Alternating filled rectangles.""" oled.fill(0) w, h = SCREEN_WIDTH, SCREEN_HEIGHT for i in range(0, h // 2, 6): color = 1 if (i // 6) % 2 == 0 else 0 oled.fill_rect(i, i, w - 2 * i, h - 2 * i, color) oled.show() time.sleep_ms(1500) def demo_ellipse(): """Ellipses (requires MicroPython 1.20+ for framebuf.ellipse). """ oled.fill(0) cx, cy = SCREEN_WIDTH // 2, SCREEN_HEIGHT // 2 try: for r in range(4, min(cx, cy), 8): oled.ellipse(cx, cy, r, r, 1) # circle outline oled.show() except AttributeError: # ellipse not available; fall back to a manual Bresenham circle _draw_circle(cx, cy, 20, 1) oled.show() time.sleep_ms(1500) def _draw_circle(cx, cy, r, c): """Bresenham circle (fallback when framebuf.ellipse is unavailable).""" x, y, err = r, 0, 1 - r while x >= y: for dx, dy in [(x, y), (y, x), (-y, x), (-x, y), (-x, -y), (-y, -x), (y, -x), (x, -y)]: oled.pixel(cx + dx, cy + dy, c) y += 1 if err < 0: err += 2 * y + 1 else: x -= 1 err += 2 * (y - x) + 1 # ── Main loop ──────────────────────────────────────────────────────────────── while True: demo_pixels() demo_lines() demo_h_v_lines() demo_rectangles() demo_filled_rects() demo_ellipse() """

Try It

Upload the code using Thonny IDE.
The display cycles through demos: diagonal pixels, line fans, grid lines, rectangle outlines, and filled rectangles.

Drawing Methods Reference

Method Call	What It Draws	Notes
oled.pixel(x, y, 1)	Single pixel at (x, y)	0 = off, 1 = on
oled.line(x1, y1, x2, y2, 1)	Line between two points	Bresenham algorithm
oled.hline(x, y, w, 1)	Horizontal line of width w	Faster than line() for horizontal
oled.vline(x, y, h, 1)	Vertical line of height h	Faster than line() for vertical
oled.rect(x, y, w, h, 1)	Rectangle outline	Top-left corner at (x, y)
oled.fill_rect(x, y, w, h, 1)	Filled rectangle	Same parameters as rect()

ESP32 Code — Scroll Text

""" Example: Scroll Text – hardware scrolling on SSD1309 OLED Works with: ESP32 Product page: https://diyables.io/products/2.4-inch-oled-display-module-ssd1309-128x64 Wiring guide: ESP32: OLED SSD1309 ESP32 ──────────── ────────── SDA -> GPIO21 SCL -> GPIO22 VCC -> 3.3V GND -> GND """ from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 import time # ── Pin configuration ──────────────────────────────────────────────────────── SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C # ── Setup ──────────────────────────────────────────────────────────────────── i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) # ── Draw static content ─────────────────────────────────────────────────────── oled.fill(0) oled.text("DIYables", 20, 28) # centred-ish on 128×64 oled.show() time.sleep_ms(2000) # ── Scroll loop ─────────────────────────────────────────────────────────────── while True: # Scroll right across all pages (0–7) oled.scroll_right(0x00, 0x07) time.sleep_ms(3000) oled.stop_scroll() time.sleep_ms(500) # Scroll left oled.scroll_left(0x00, 0x07) time.sleep_ms(3000) oled.stop_scroll() time.sleep_ms(500) # Diagonal scroll right oled.scroll_diag_right(0x00, 0x07) time.sleep_ms(3000) oled.stop_scroll() time.sleep_ms(500) # Diagonal scroll left oled.scroll_diag_left(0x00, 0x07) time.sleep_ms(3000) oled.stop_scroll() time.sleep_ms(500)

Try It

Upload the code using Thonny IDE.
The display scrolls right, then left, then diagonally right, then diagonally left, and repeats.

Hardware Scroll Reference

Method Call	Scroll Direction	Notes
oled.scroll_right(0x00, 0x07)	Right	Pages 0–7 = all rows on a 64 px display
oled.scroll_left(0x00, 0x07)	Left	Pages 0–7 covers the full screen height
oled.scroll_diag_right(0x00, 0x07)	Diagonal right (right + down)	Combines horizontal and vertical scrolling
oled.scroll_diag_left(0x00, 0x07)	Diagonal left (left + down)	Combines horizontal and vertical scrolling
oled.stop_scroll()	Stop scrolling	Call before drawing new content

Note: Modify the framebuffer (e.g. call oled.fill() + oled.show()) before starting a new scroll to update the scrolling content. Always call stop_scroll() before sending new draw commands.

ESP32 Code — Contrast & Dim

""" Example: Contrast & Dim – contrast control on SSD1309 OLED Works with: ESP32 Product page: https://diyables.io/products/2.4-inch-oled-display-module-ssd1309-128x64 Wiring guide: ESP32: OLED SSD1309 ESP32 ──────────── ────────── SDA -> GPIO21 SCL -> GPIO22 VCC -> 3.3V GND -> GND """ from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 import time # ── Pin configuration ──────────────────────────────────────────────────────── SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C # ── Setup ──────────────────────────────────────────────────────────────────── i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) # ── Draw a test pattern ─────────────────────────────────────────────────────── oled.fill(0) oled.fill_rect(0, 0, 64, 32, 1) # top-left filled block oled.fill_rect(64, 32, 64, 32, 1) # bottom-right filled block oled.text("Contrast Demo", 8, 28) # label over the blocks oled.show() time.sleep_ms(2000) # ── Contrast / dim loop ─────────────────────────────────────────────────────── while True: # Gradually increase contrast 0 → 255 for c in range(0, 256, 5): oled.set_contrast(c) time.sleep_ms(30) time.sleep_ms(1000) # Gradually decrease contrast 255 → 0 for c in range(255, -1, -5): oled.set_contrast(c) time.sleep_ms(30) time.sleep_ms(1000) # Dim on / off toggle oled.dim(True) time.sleep_ms(2000) oled.dim(False) time.sleep_ms(2000)

Try It

Upload the code using Thonny IDE.
Watch the display brightness ramp up and down, then toggle between dimmed and full brightness.

Contrast & Dim Reference

Method Call	Effect	Notes
oled.set_contrast(0)	Minimum brightness	Value range 0–255
oled.set_contrast(128)	Medium brightness	Value is saved internally for dim/restore
oled.set_contrast(255)	Maximum brightness	Default after init is 0xCF (207)
oled.dim(True)	Drop contrast to 0 (dim)	Does not modify the saved contrast value
oled.dim(False)	Restore saved contrast	Restores the value set by set_contrast()
oled.invert(True)	Invert all pixels at hardware level	No framebuffer change
oled.invert(False)	Restore normal pixel polarity	—

ESP32 Code — Bitmap

""" Example: Bitmap – display a monochrome bitmap image on SSD1309 OLED Works with: ESP32 Product page: https://diyables.io/products/2.4-inch-oled-display-module-ssd1309-128x64 Wiring guide: ESP32: OLED SSD1309 ESP32 ──────────── ────────── SDA -> GPIO21 SCL -> GPIO22 VCC -> 3.3V GND -> GND How bitmap drawing works: framebuf.FrameBuffer.blit() copies one FrameBuffer onto another. Bitmap data must be stored row-by-row, MSB first → use framebuf.MONO_HMSB. The blit() call then handles the conversion into the display's MONO_VLSB layout automatically. """ import framebuf from machine import I2C, Pin from DIYables_MicroPython_OLED_SSD1309 import OLED_SSD1309 import time # ── Pin configuration ──────────────────────────────────────────────────────── SCL_PIN = 22 # GPIO22 SDA_PIN = 21 # GPIO21 SCREEN_WIDTH = 128 SCREEN_HEIGHT = 64 SCREEN_ADDRESS = 0x3C # ── Bitmap data – 16 × 16 heart, stored row-by-row MSB first ───────────────── # Each row uses 2 bytes (ceil(16 / 8) = 2). HEART_W = 16 HEART_H = 16 heart_data = bytearray([ 0x00, 0x00, # ................ 0x0C, 0x30, # ....##....##.... 0x1E, 0x78, # ...####..####... 0x3F, 0xFC, # ..############.. 0x7F, 0xFE, # .##############. 0x7F, 0xFE, # .##############. 0xFF, 0xFF, # ################ 0xFF, 0xFF, # ################ 0xFF, 0xFF, # ################ 0x7F, 0xFE, # .##############. 0x3F, 0xFC, # ..############.. 0x1F, 0xF8, # ...##########... 0x0F, 0xF0, # ....########.... 0x07, 0xE0, # .....######..... 0x03, 0xC0, # ......####...... 0x01, 0x80, # .......##....... ]) # ── Setup ──────────────────────────────────────────────────────────────────── i2c = I2C(0, scl=Pin(SCL_PIN), sda=Pin(SDA_PIN), freq=400_000) oled = OLED_SSD1309(SCREEN_WIDTH, SCREEN_HEIGHT, i2c, addr=SCREEN_ADDRESS) # Wrap the raw bytes in a FrameBuffer using MONO_HMSB (row-major, MSB first) heart_fb = framebuf.FrameBuffer(heart_data, HEART_W, HEART_H, framebuf.MONO_HMSB) # ── Draw and animate ────────────────────────────────────────────────────────── while True: # Draw the heart centred on the display x = (SCREEN_WIDTH - HEART_W) // 2 y = (SCREEN_HEIGHT - HEART_H) // 2 oled.fill(0) oled.blit(heart_fb, x, y) oled.text("DIYables", 24, 50) oled.show() time.sleep_ms(800) # Invert colours for a "pulse" effect oled.fill(1) oled.blit(heart_fb, x, y, 1) # key=1 → blit only pixels that are OFF in source oled.show() time.sleep_ms(400)

Try It

Upload the code using Thonny IDE.
A 16×16 heart icon appears centred on the display. It pulses by alternating normal and inverted frames.

Bitmap Drawing Reference

Method Call	Description	Notes
framebuf.FrameBuffer(data, w, h, framebuf.MONO_HMSB)	Wrap raw bytes as a bitmap FrameBuffer	Use MONO_HMSB for row-major MSB-first data
oled.blit(icon_fb, x, y)	Copy bitmap onto display framebuffer at (x, y)	All pixels are copied (no transparency)
oled.blit(icon_fb, x, y, 1)	Blit with key=1 — skip pixels with value 1	Useful for XOR-style effects on filled backgrounds

How bitmap data is stored: Each row is stored left-to-right, most-significant bit first (MONO_HMSB). The byte count per row is ceil(width / 8). For a 16-wide image that is 2 bytes per row.

Library Reference

See DIYables MicroPython OLED SSD1309 Library Reference for the complete API documentation including all constructors, methods, and constants.

Next Steps

Combine with a DHT11 or DHT22 sensor to display real-time temperature and humidity readings.
Add a button to cycle between multiple display screens.
Use framebuf.FrameBuffer.blit() to build an animated sprite display.
