Arduino Giga R1 WiFi 10 Segment LED Bar Graph

In this guide, we will learn how to use the 10 Segment LED Bar Graph with the Arduino GIGA R1 WiFi. In detail, we will learn:

Arduino GIGA R1 WiFi and 10 Segment LED Bar Graph
1×Arduino Giga R1 WiFi
1×USB Cable Type-A to Type-C (for USB-A PC)
1×USB Cable Type-C to Type-C (for USB-C PC)
1×10 Segment LED Bar Graph
10×220 Ω Resistor
1×Breadboard
1×Jumper Wires
1×Recommended: Screw Terminal Block Shield for Arduino Uno/Mega/Giga
1×Recommended: Sensors/Servo Expansion Shield for Arduino Mega/Giga
1×Recommended: Breadboard Shield for Arduino Mega/Giga
1×Recommended: Enclosure for Arduino Giga
1×Recommended: Power Splitter for Arduino Giga

Or you can buy the following kits:

1×DIYables Sensor Kit (18 sensors/displays)
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of 10 Segment LED Bar Graph

10 Segment LED Bar Graph
Number of Segments 10
LED Color Bright red
Forward Voltage ~2V per segment
Forward Current 20mA max per segment
Resistor Required 220Ω per segment

Pinout

10 Segment LED Bar Graph pinout
  • Anode pins (A1–A10): connect to GPIO pins via 220Ω resistors
  • Cathode pins (K1–K10): connect to GND

Wiring Diagram between 10 Segment LED Bar Graph and Arduino GIGA R1 WiFi

Connect each anode pin of the LED bar graph to an Arduino GIGA R1 WiFi GPIO pin through a 220Ω resistor, and connect all cathode pins to GND.

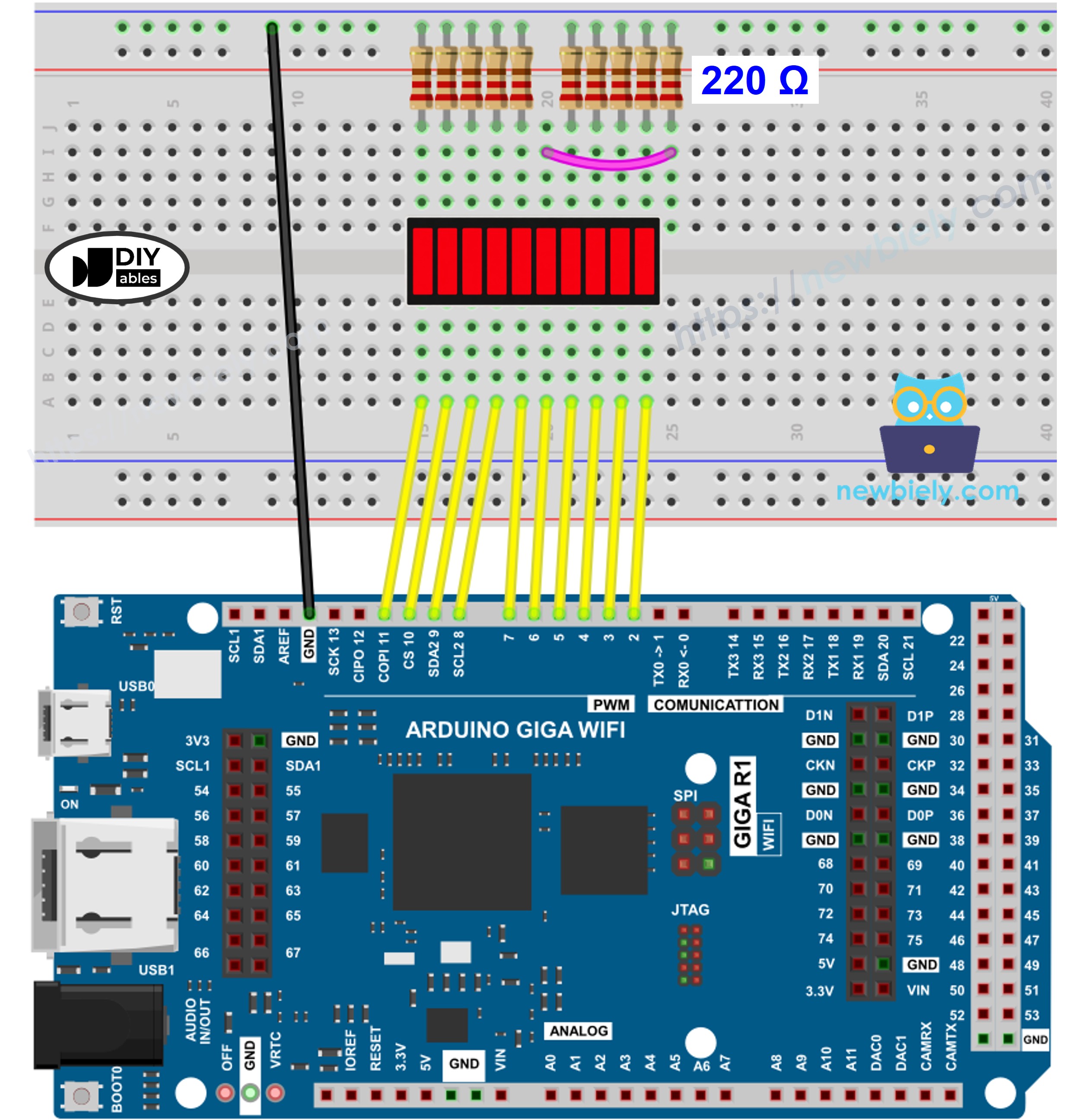

The wiring diagram between Arduino GIGA R1 WiFi and 10 Segment LED Bar Graph

This image is created using Fritzing. Click to enlarge image

LED Bar Graph Arduino GIGA R1 WiFi Pin
A1 (Anode 1) Pin 2 (via 220Ω)
A2 (Anode 2) Pin 3 (via 220Ω)
A3 (Anode 3) Pin 4 (via 220Ω)
A4 (Anode 4) Pin 5 (via 220Ω)
A5 (Anode 5) Pin 6 (via 220Ω)
A6 (Anode 6) Pin 7 (via 220Ω)
A7 (Anode 7) Pin 8 (via 220Ω)
A8 (Anode 8) Pin 9 (via 220Ω)
A9 (Anode 9) Pin 10 (via 220Ω)
A10 (Anode 10) Pin 11 (via 220Ω)
K1–K10 (Cathodes) GND

How To Program Arduino GIGA R1 WiFi for 10 Segment LED Bar Graph

  • No library needed for the LED Bar Graph.
  • Define an array of 10 pin numbers corresponding to the LED anodes.
  • Configure each pin as an output.
  • Turn a segment on: set the corresponding pin HIGH.
  • Turn a segment off: set the corresponding pin LOW.

Arduino GIGA R1 WiFi Code - 10 Segment LED Bar Graph

/* * This Arduino Giga R1 WiFi code was developed by newbiely.com * * This Arduino Giga R1 WiFi code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/arduino-giga/arduino-giga-r1-wifi-10-segment-led-bar-graph */ const int NUM_SEGMENTS = 10; const int ledPins[NUM_SEGMENTS] = {2, 3, 4, 5, 6, 7, 8, 9, 10, 11}; void printBar(int litCount) { Serial.print("Bar: ["); for (int i = 0; i < NUM_SEGMENTS; i++) { Serial.print(i < litCount ? "*" : " "); } Serial.println("]"); } void setup() { Serial.begin(9600); for (int i = 0; i < NUM_SEGMENTS; i++) { pinMode(ledPins[i], OUTPUT); digitalWrite(ledPins[i], LOW); } } void loop() { for (int i = 0; i < NUM_SEGMENTS; i++) { digitalWrite(ledPins[i], HIGH); printBar(i + 1); delay(100); } delay(500); for (int i = NUM_SEGMENTS - 1; i >= 0; i--) { digitalWrite(ledPins[i], LOW); printBar(i); delay(100); } delay(500); }

Detailed Instructions

Follow these instructions step by step:

  • LINK_GETTING_STARTED_ARDUINO_GIGA_R1_WIFI
  • Wire the components according to the provided diagram.
  • Launch the Arduino IDE on your computer.
  • Select the appropriate Arduino GIGA R1 WiFi board and COM port.
  • Copy the code above and paste it into the Arduino IDE.
  • Click the Upload button to upload the code to the Arduino GIGA R1 WiFi.
  • Open the Serial Monitor.
  • Observe the LED bar filling up and emptying repeatedly, and check the output in the Serial Monitor.

Serial Monitor Output

Newbiely | Arduino IDE 2.3.8
──
File
Edit
Sketch
Tools
Help
Arduino Giga R1
Newbiely.ino
···
8 Serial.println("Hello World!");
Output
Serial Monitor
Message (Enter to send message to 'Arduino Giga R1' on 'COM15')
New Line
9600 baud
Bar: [* ] Bar: [** ] Bar: [*** ] Bar: [**** ] Bar: [***** ] Bar: [****** ] Bar: [******* ] Bar: [******** ] Bar: [********* ] Bar: [**********] Bar: [********* ] Bar: [******** ] Bar: [******* ] Bar: [****** ] Bar: [***** ] Bar: [**** ] Bar: [*** ] Bar: [** ] Bar: [* ] Bar: [ ]
Ln 11, Col 1
Arduino Giga R1 on COM15
2

Video Tutorial
