Arduino MKR WiFi 1010 - DIYables Bluetooth App Rotator
Overview

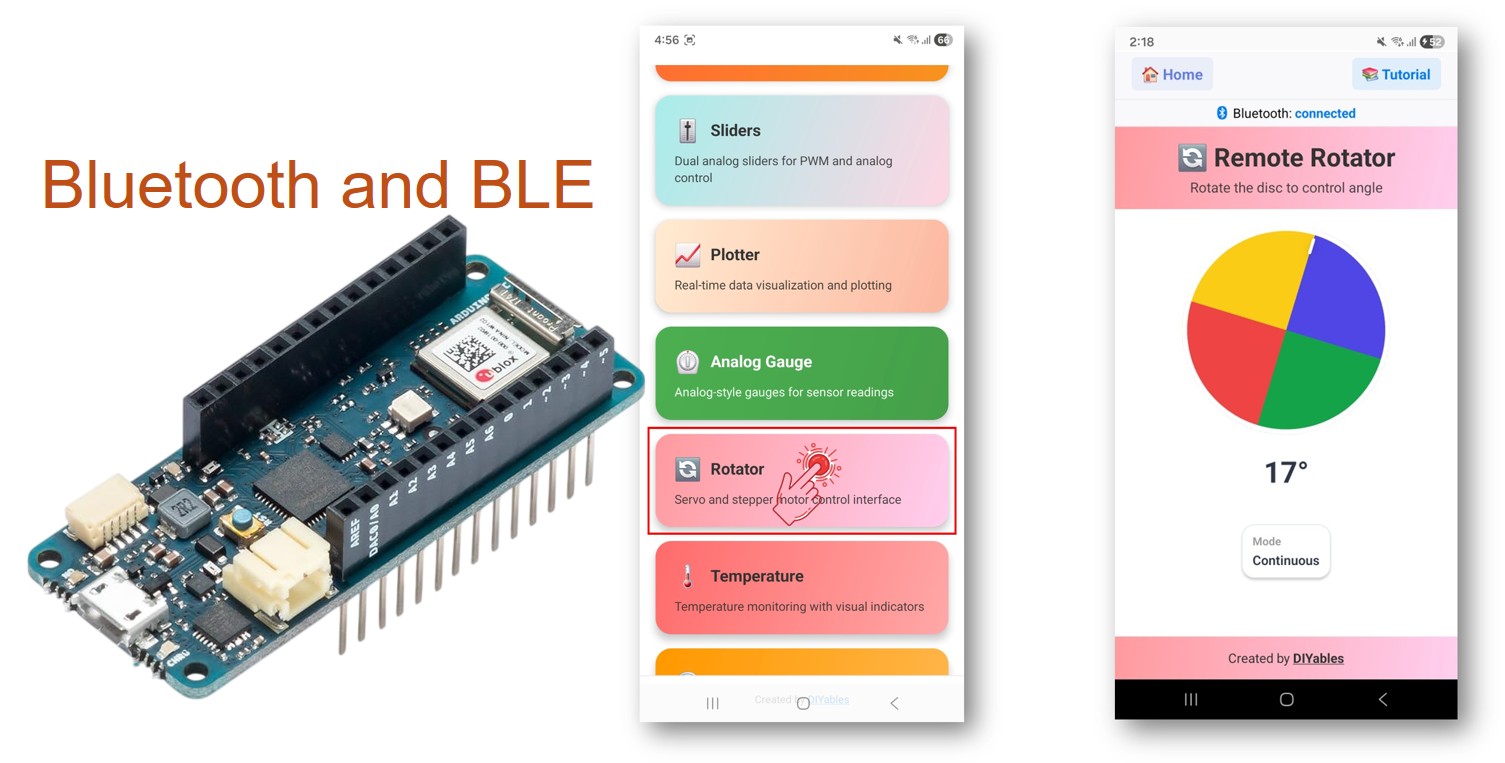

In this tutorial, we are going to learn how to use the Bluetooth Rotator feature with the Arduino MKR WiFi 1010. The rotator widget on the app looks like a dial that you turn with your finger, and the angle value is sent to your Arduino over BLE. The Arduino MKR WiFi 1010's BLE capability and MKR-compatible servo shield support make it an excellent choice for wirelessly controlling servo positions, pan-tilt mechanisms, and motor rotation from your phone. You can set a limited range (e.g. 0–180°) for servo control, or use continuous rotation mode for motors and camera rigs.
Note: The Arduino MKR WiFi 1010 only supports BLE (Bluetooth Low Energy) for this library. It does not use Classic Bluetooth with this library. The DIYables Bluetooth App supports both BLE and Classic Bluetooth on Android, and BLE on iOS. Since this board uses BLE, the app works on both Android and iOS.
Features
- Limited Mode: Set min/max angle range (e.g., 0° to 180°)
- Continuous Mode: Full 360° continuous rotation
- Real-Time Angle: Receive angle updates as user rotates
- Servo Integration: Direct servo motor control
- Initial Angle Sync: Send current position on connect
- Works on Android & iOS: BLE is supported on both platforms
- No Pairing Required: BLE auto-connects without manual pairing
Hardware Preparation
| 1 | × | Arduino MKR WiFi 1010 | |
| 1 | × | Micro USB Cable | |
| 1 | × | (optional) Servo Motor | |
| 1 | × | Breadboard | |
| 1 | × | Jumper Wires |
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (30 sensors/displays) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Buy Note: For controlling multiple servo motors, use the PCA9685 16 Channel PWM Servo Driver Module to save MCU pins and simplify wiring.
Arduino MKR WiFi 1010 Code
Detailed Instructions
Follow these instructions step by step:
- If this is your first time using the Arduino MKR WiFi 1010, refer to the Arduino MKR WiFi 1010 getting started guide.
- Connect the Arduino MKR WiFi 1010 board to your computer using a Micro USB cable.
- Launch the Arduino IDE on your computer.
- Select Arduino MKR WiFi 1010 board and the appropriate COM port.
- Navigate to the Libraries icon on the left bar of the Arduino IDE.
- Search "DIYables Bluetooth", then find the DIYables Bluetooth library by DIYables
- Click Install button to install the library.
- You will be asked for installing some other library dependencies
- Click Install All button to install all library dependencies.
BLE Code
- On Arduino IDE, Go to File Examples DIYables Bluetooth ArduinoBLE_Rotator example, or copy the above code and paste it to the editor of Arduino IDE
/*
* DIYables Bluetooth Library - Bluetooth Rotator Example
* Works with DIYables Bluetooth STEM app on Android and iOS
*
* This example demonstrates the Bluetooth Rotator feature:
* - Rotatable disc/knob control (0-360 degrees)
* - Continuous or limited angle range
* - Perfect for servo control, compass display, volume knobs
*
* Compatible Boards:
* - Arduino UNO R4 WiFi
* - Arduino Nano 33 BLE / BLE Sense
* - Arduino Nano 33 IoT
* - Arduino MKR WiFi 1010
* - Arduino Nano RP2040 Connect
* - Any board supporting the ArduinoBLE library
*
* Optional: Servo motor for visual feedback
*
* Setup:
* 1. Upload the sketch to your Arduino
* 2. Open Serial Monitor to see connection status
* 3. Use DIYables Bluetooth App to connect and rotate the knob
*
* Tutorial: https://diyables.io/bluetooth-app
* Author: DIYables
*/
#include <DIYables_BluetoothServer.h>
#include <DIYables_BluetoothRotator.h>
#include <platforms/DIYables_ArduinoBLE.h>
// BLE Configuration
const char* DEVICE_NAME = "Arduino_Rotator";
const char* SERVICE_UUID = "19B10000-E8F2-537E-4F6C-D104768A1214";
const char* TX_UUID = "19B10001-E8F2-537E-4F6C-D104768A1214";
const char* RX_UUID = "19B10002-E8F2-537E-4F6C-D104768A1214";
// Create Bluetooth instances
DIYables_ArduinoBLE bluetooth(DEVICE_NAME, SERVICE_UUID, TX_UUID, RX_UUID);
DIYables_BluetoothServer bluetoothServer(bluetooth);
// Create Rotator app instance
// Option 1: Continuous mode (0-360, wraps around)
// DIYables_BluetoothRotator bluetoothRotator(ROTATOR_MODE_CONTINUOUS);
// Option 2: Limited mode (constrained angle range)
DIYables_BluetoothRotator bluetoothRotator(ROTATOR_MODE_LIMITED, 0, 180);
// Variables to store current angle
float currentAngle = 0.0;
// Optional: Servo control (uncomment if using Servo library)
// #include <Servo.h>
// Servo myServo;
// const int SERVO_PIN = 9;
void setup() {
Serial.begin(9600);
while (!Serial);
Serial.println("DIYables Bluetooth - Rotator Example");
// Optional: Initialize servo
// myServo.attach(SERVO_PIN);
// myServo.write(0);
bluetoothServer.begin();
bluetoothServer.addApp(&bluetoothRotator);
bluetoothServer.setOnConnected([]() {
Serial.println("Bluetooth connected!");
bluetoothRotator.send(currentAngle);
});
bluetoothServer.setOnDisconnected([]() {
Serial.println("Bluetooth disconnected!");
});
bluetoothRotator.onRotatorAngle([](float angle) {
currentAngle = angle;
Serial.print("Rotator angle: ");
Serial.print(angle);
Serial.println("°");
// TODO: Add your control logic here based on angle
// Examples:
// - Servo control: servo.write(map(angle, 0, 360, 0, 180));
// - Stepper motor: stepper.moveTo(angleToSteps(angle));
// - LED ring: setLEDPosition(angle);
// - Volume control: setVolume(map(angle, 0, 360, 0, 100));
});
Serial.println("Waiting for Bluetooth connection...");
}
void loop() {
bluetoothServer.loop();
delay(10);
}
- Click Upload button on Arduino IDE to upload code to Arduino MKR WiFi 1010
- Open the Serial Monitor
- Check out the result on Serial Monitor. It looks like the below:
COM6
DIYables Bluetooth - Rotator Example
Waiting for Bluetooth connection...
Autoscroll
Clear output
9600 baud
Newline
Mobile App
Note: The DIYables Bluetooth App supports both BLE and Classic Bluetooth on Android, and BLE on iOS. Since the Arduino MKR WiFi 1010 uses BLE, the app works on both Android and iOS. No manual pairing is needed for BLE — just scan and connect.
- Open the DIYables Bluetooth App
- When opening the app for the first time, it will ask for permissions. Please grant the following:
- Nearby Devices permission (Android 12+) / Bluetooth permission (iOS) - required to scan and connect to Bluetooth devices
- Location permission (Android 11 and below only) - required by older Android versions to scan for BLE devices
- Make sure Bluetooth is turned on on your phone
- On the home screen, tap the Connect button. The app will scan for BLE devices.
- Find and tap "Arduino_Rotator" in the scan results to connect.
- Once connected, the app automatically goes back to the home screen. Select the Rotator app from the app menu.
Note: You can tap the settings icon on the home screen to hide/show apps on the home screen. For more details, see the DIYables Bluetooth App User Manual.
- You will see a rotary dial showing 0° to 180°
- Rotate the dial to send angle values to the Arduino
Now look back at the Serial Monitor on Arduino IDE. You will see:
COM6
Bluetooth connected!
Angle changed: 45.00°
Angle changed: 90.00°
Angle changed: 135.00°
Autoscroll
Clear output
9600 baud
Newline
Creative Customization - Adapt the Code to Your Project
Rotation Modes
// Limited mode: specify min and max angle
DIYables_BluetoothRotator bluetoothRotator(bluetoothServer, ROTATOR_MODE_LIMITED, 0, 180);
// Continuous mode: full 360° rotation
DIYables_BluetoothRotator bluetoothRotator(bluetoothServer, ROTATOR_MODE_CONTINUOUS);
Handle Angle Changes
bluetoothRotator.onRotatorAngle([](float angle) {
Serial.print("Angle: ");
Serial.println(angle);
// Control a servo motor
myServo.write((int)angle);
});
Send Current Angle
// Send current angle to the app (e.g., on connect)
bluetoothRotator.sendAngle(currentAngle);
Programming Examples
Servo Motor Control
#include <Servo.h>
Servo myServo;
float currentAngle = 90;
void setup() {
myServo.attach(9);
myServo.write(currentAngle);
bluetoothRotator.onRotatorAngle([](float angle) {
currentAngle = angle;
myServo.write((int)angle);
Serial.print("Servo: ");
Serial.println(angle);
});
}
void loop() {
bluetoothServer.loop();
}
Pan-Tilt Camera Mount
Servo panServo;
Servo tiltServo;
// Use two rotator instances for pan and tilt
// Or use a single rotator for one axis
// and a slider for the other
void setup() {
panServo.attach(9);
tiltServo.attach(10);
bluetoothRotator.onRotatorAngle([](float angle) {
panServo.write((int)angle);
Serial.print("Pan: ");
Serial.println(angle);
});
}
Troubleshooting
Common Issues
1. Cannot find the device in the app
- Make sure the Arduino MKR WiFi 1010 is powered on and the sketch is uploaded
- Ensure your phone's Bluetooth is enabled
- On Android 11 and below, also enable Location services
2. Servo not responding
- Verify the servo is wired to the correct pin
- Check that the servo library is included and attach() is called
- Ensure adequate power supply for the servo (servos may need external 5V)
3. Angle range seems wrong
- Check the min/max values in the constructor
- Make sure you're using ROTATOR_MODE_LIMITED for bounded range
4. Dial resets to 0 on reconnect
- Send the current angle using sendAngle() when the device reconnects
- The example code handles this in the onRotatorAngle callback
5. Upload fails or board not recognized
- Install the latest Arduino SAMD Boards package via Boards Manager (≥ 1.8.13)
- Try a different USB cable or port
Project Ideas
- Servo motor controller
- Pan-tilt camera mount
- Robotic arm joint control
- Dial-based thermostat control
- Compass/heading display
Next Steps
After mastering the Bluetooth Rotator example, try:
- Bluetooth Slider - For linear value control
- Bluetooth Joystick - For 2D position control
- Bluetooth Analog Gauge - For visual feedback
- Multiple Bluetooth Apps - Combining rotator with other apps
