Arduino MKR WiFi 1010 - Mini Mp3 Player Module
The Arduino MKR WiFi 1010 combines WiFi and BLE connectivity with a compact MKR form factor, all running at 3.3V. Its dedicated Serial1 port makes it straightforward to interface with UART peripherals such as the DIYables Mini Mp3 Player module.
This tutorial takes you through each step:
- Wiring the Mini Mp3 Player to the MKR WiFi 1010 — no resistor needed.
- Formatting the micro SD card and organizing mp3 files.
- Writing sketches to play, pause, resume, stop, and skip tracks.
- Adding volume control with physical buttons.
- Configuring looping, shuffling, and folder-based playback.
- Querying the module for playback status in real time.
Hardware Preparation
| 1 | × | Arduino MKR WiFi 1010 | |
| 1 | × | Micro USB Cable | |
| 1 | × | DIYables Mini Mp3 Player module | |
| 1 | × | Micro SD Card | |
| 1 | × | Speaker | |
| 1 | × | Breadboard | |
| 1 | × | Jumper Wires |
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (30 sensors/displays) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Because the MKR WiFi 1010 runs at 3.3V, no resistor is needed between the board and the module.
Mini Mp3 Player Module at a Glance
The DIYables Mini Mp3 Player module is a compact mp3 decoder board based on the YX5200-24SS chip. It reads mp3 files from a micro SD card and drives a small speaker (up to 3W) directly via its onboard amplifier — or you can route audio through the DAC pins to an external amp.
The module accepts commands over UART at 9600 baud and offers:
- Full transport: play, pause, resume, stop, next, previous
- Volume from 0 (silent) to 30 (loudest)
- Six EQ presets: Normal, Pop, Rock, Jazz, Classic, Bass
- Repeat modes: single track, folder, all tracks, or random shuffle
- Folder-based playback for organized audio libraries
- Advertisement interrupts (play a clip, then resume the original track)
- On-demand status queries (current track, volume, play state, etc.)
Module Pins
| Pin | Function |
|---|---|
| VCC | Power input (3.2V – 5.0V) |
| GND | Ground |
| RX | Serial data in (from MKR TX) |
| TX | Serial data out (to MKR RX) |
| SPK_1 | Speaker + (built-in amp, 3W max) |
| SPK_2 | Speaker − |
| DAC_R | Right channel line output |
| DAC_L | Left channel line output |
| BUSY | LOW during playback, HIGH when idle |
| IO_1 | Short press → previous track; long press → vol down |
| IO_2 | Short press → next track; long press → vol up |

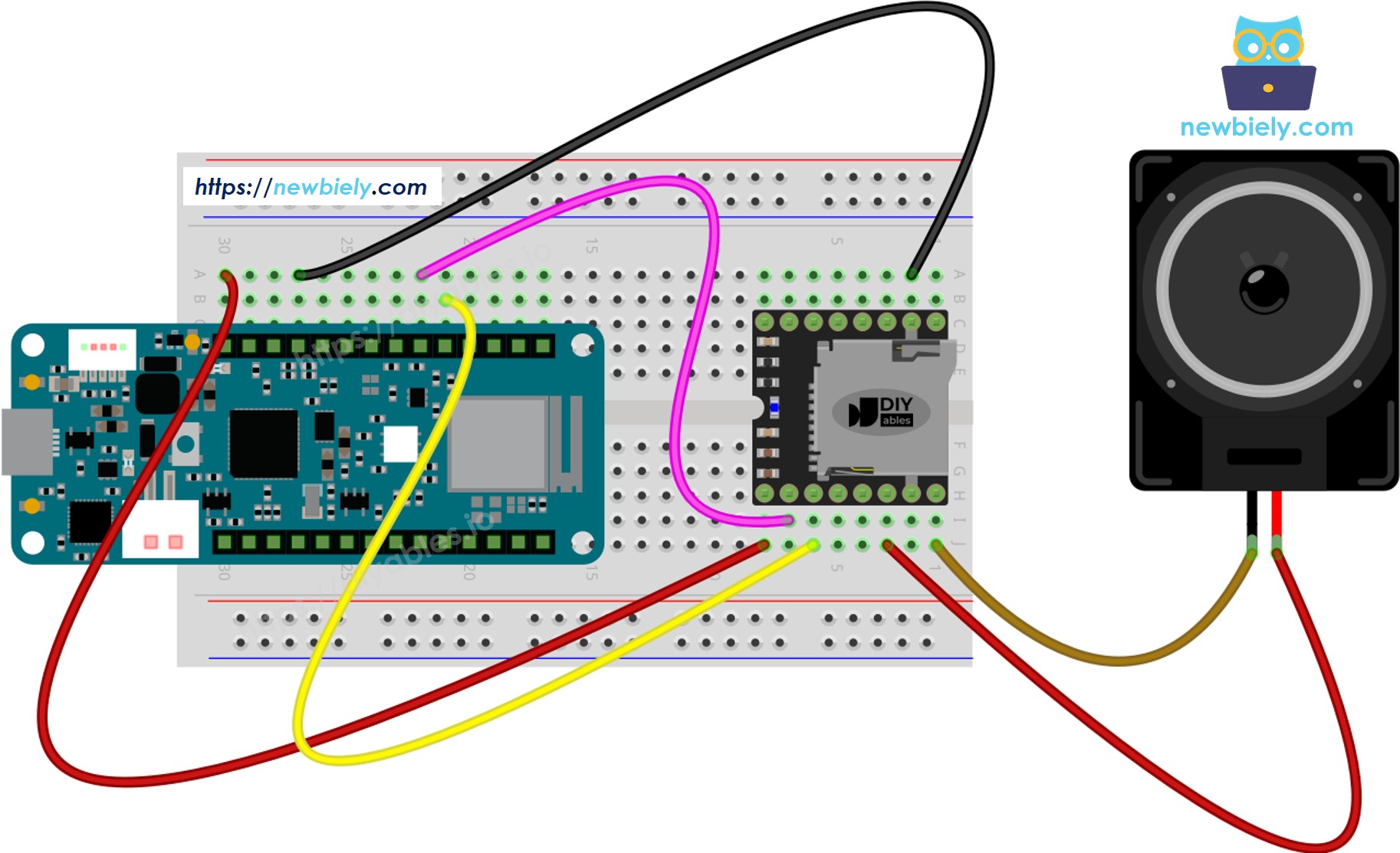

Wiring Diagram
The MKR WiFi 1010 has Serial1 on pin 13 (RX) and pin 14 (TX). Both run at 3.3V, matching the module's logic level — so you can connect the lines directly.
| Mini Mp3 Player | MKR WiFi 1010 | Notes |
|---|---|---|
| VCC | VCC (3.3V) | |
| GND | GND | |
| RX | Pin 14 (Serial1 TX) | Direct — 3.3V logic match |
| TX | Pin 13 (Serial1 RX) | Direct |
| SPK_1 | Speaker + | |
| SPK_2 | Speaker − |
This image is created using Fritzing. Click to enlarge image
Note: Do not supply 5V to the module from the MKR board's VCC pin — it outputs 3.3V. If you need 5V for louder speaker output, use an external 5V source for the module's VCC while keeping GND shared.
SD Card Setup
- Format the micro SD card as FAT16 or FAT32.
- Copy mp3 files to the root directory with zero-padded names:
/001.mp3
/002.mp3
/003.mp3
- For folder-organized playback:
/01/001.mp3
/01/002.mp3
/02/001.mp3
Keep in mind:
- Track numbering starts at 1, not 0.
- The module assigns track numbers by the order files are copied, not by filename. Format the card first, then copy each file individually in sequence.
- Folder names: 2 digits, zero-padded (01–99). Files inside: 3 digits (001–255).

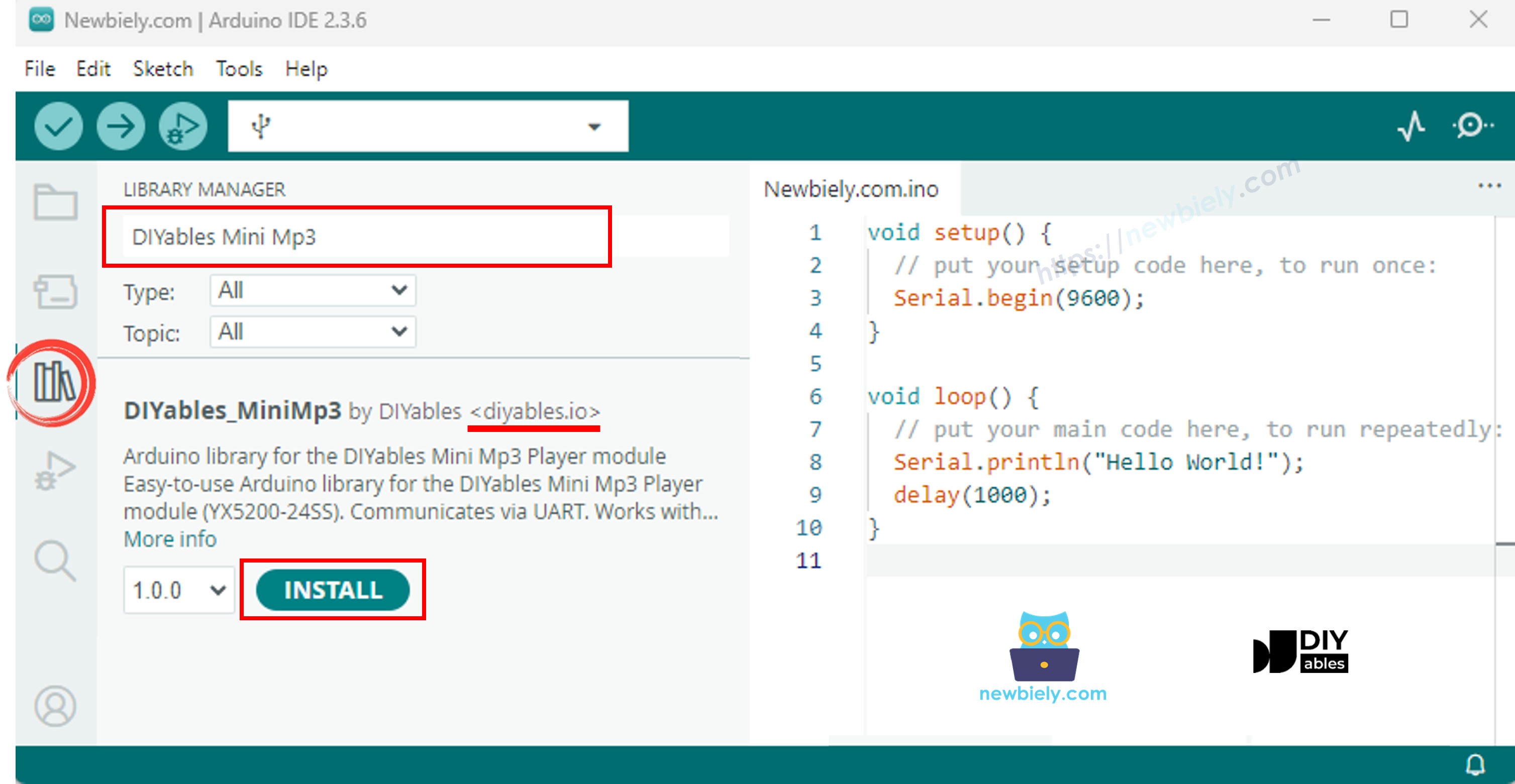

Installing the Library
- Connect the MKR WiFi 1010 to your computer via micro USB.
- In the Arduino IDE, select Arduino MKR WiFi 1010 and the correct port.
- Open the Libraries panel on the left sidebar.
- Search for "DIYables_MiniMp3" and install the library by DIYables.
No additional dependencies — the library is completely self-contained.
Base Code Template
The MKR WiFi 1010 provides hardware Serial1, so SoftwareSerial is not required:
#include <DIYables_MiniMp3.h>
DIYables_MiniMp3 mp3;
void setup() {
Serial.begin(115200); // USB debug output
Serial1.begin(9600); // Mp3 module on pins 13/14
mp3.begin(Serial1);
delay(1000); // Module boot time
mp3.setVolume(25); // Range: 0 to 30
}
void loop() {
// Your application code
}
MKR WiFi 1010 — Play One Track
/*
* DIYables Mini Mp3 Player - Play One Track
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Plays track 001 once, then stops.
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
*
* SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc.
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
mp3.begin(mp3Serial);
delay(1000); // Wait for the module to initialize
mp3.setVolume(25); // Set volume (0 to 30)
Serial.println("Playing track 1...");
mp3.play(1); // Play track 001.mp3
}
void loop()
{
// Nothing to do here
}
Getting It Running
- Load the SD card with mp3 files, insert it into the module, and wire as shown.
- Select Arduino MKR WiFi 1010 in the IDE and upload.
- Track 001.mp3 plays through the speaker.
Playback Methods Overview
| Method | Purpose | Usage |
|---|---|---|
| play(n) | Play a specific track | mp3.play(1) |
| playNext() | Jump to next track | mp3.playNext() |
| playPrevious() | Jump to previous track | mp3.playPrevious() |
| pause() | Pause the current track | mp3.pause() |
| resume() | Resume paused playback | mp3.resume() |
| stop() | Stop playback entirely | mp3.stop() |
MKR WiFi 1010 — Play Multiple Tracks
/*
* DIYables Mini Mp3 Player - Play Multiple Tracks
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Plays tracks one after another with a delay between them.
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
*
* SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, 003.mp3
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
int currentTrack = 1;
int totalTracks = 3; // Change this to match your SD card
unsigned long lastTrackTime = 0;
unsigned long trackDuration = 5000; // Wait 5 seconds between tracks (adjust as needed)
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
mp3.begin(mp3Serial);
delay(1000);
mp3.setVolume(20);
Serial.println("Playing track 1...");
mp3.play(currentTrack);
lastTrackTime = millis();
}
void loop()
{
// After trackDuration, play the next track
if (millis() - lastTrackTime >= trackDuration)
{
currentTrack++;
if (currentTrack > totalTracks)
currentTrack = 1; // Loop back to first track
Serial.print("Playing track ");
Serial.println(currentTrack);
mp3.play(currentTrack);
lastTrackTime = millis();
}
}
Getting It Running
- Make sure the SD card has at least 3 tracks. Upload and the board cycles through them every 5 seconds.
MKR WiFi 1010 — Pause/Resume Toggle
/*
* DIYables Mini Mp3 Player - Pause and Resume
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Demonstrates pausing and resuming playback using a single button.
* Press the button to toggle between pause and resume.
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
* Button -> Pin 2 (other leg to GND)
*
* SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc.
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
const int BUTTON_PIN = 2;
bool paused = false;
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
pinMode(BUTTON_PIN, INPUT_PULLUP);
mp3.begin(mp3Serial);
delay(1000);
mp3.setVolume(20);
mp3.play(1);
Serial.println("Playing. Press button to pause/resume.");
}
void loop()
{
if (digitalRead(BUTTON_PIN) == LOW)
{
if (paused)
{
mp3.resume();
Serial.println("Resumed");
}
else
{
mp3.pause();
Serial.println("Paused");
}
paused = !paused;
delay(300); // Simple debounce
}
}
MKR WiFi 1010 — Loop a Track
/*
* DIYables Mini Mp3 Player - Loop Track
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Loops (repeats) a track continuously with EQ setting.
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
*
* SD Card file structure:
* /001.mp3
* /002.mp3
* ...
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
mp3.begin(mp3Serial);
delay(1000); // Wait for the module to initialize
mp3.setVolume(25); // Volume: 0 to 30
mp3.setEQ(DIYables_MiniMp3::EQ_NORMAL);
Serial.println("Playing track 1 on loop...");
mp3.loopTrack(1);
}
void loop()
{
// Your code here
}
Repeat & Shuffle Methods
| Method | Behavior | Usage |
|---|---|---|
| loopTrack(n) | Repeat track n endlessly | mp3.loopTrack(1) |
| loopFolder(f) | Repeat every track in folder f | mp3.loopFolder(1) |
| loopAll() | Repeat all tracks on the card | mp3.loopAll() |
| stopLoop() | Cancel any active repeat mode | mp3.stopLoop() |
| shuffle() | Play all tracks in random order | mp3.shuffle() |
MKR WiFi 1010 — Folder Playback
/*
* DIYables Mini Mp3 Player - Play from Folder
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Plays tracks from specific folders on the SD card.
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
*
* SD Card file structure:
* /01/001.mp3 <- playFolder(1, 1)
* /01/002.mp3 <- playFolder(1, 2)
* /02/001.mp3 <- playFolder(2, 1)
* /02/002.mp3 <- playFolder(2, 2)
*
* IMPORTANT:
* - Numbering starts from 1, NOT 0
* - Folder names must be 2-digit zero-padded (01-99)
* - Track names must be 3-digit zero-padded (001-255)
* - Format SD card as FAT32, then copy files one by one in order
* - Track order is determined by the order files were copied,
* NOT by filename. So copy them in the correct sequence.
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
mp3.begin(mp3Serial);
delay(1000);
mp3.setVolume(20);
// Play track 1 from folder 01
Serial.println("Playing folder 01, track 001...");
mp3.playFolder(1, 1);
delay(5000);
// Play track 2 from folder 01
Serial.println("Playing folder 01, track 002...");
mp3.playFolder(1, 2);
delay(5000);
// Play track 1 from folder 02
Serial.println("Playing folder 02, track 001...");
mp3.playFolder(2, 1);
}
void loop()
{
// Nothing to do here
}
Folder Methods
| Method | Description | Usage |
|---|---|---|
| playFolder(f, t) | Play track t from folder f (up to 99 folders, 255 tracks) | mp3.playFolder(1, 1) |
| playLargeFolder(f, t) | Extended capacity (15 folders, 3000 tracks) | mp3.playLargeFolder(1, 1500) |
| playFromMP3Folder(t) | Play from the dedicated /mp3 folder | mp3.playFromMP3Folder(1) |
MKR WiFi 1010 — Serial Monitor Control
/*
* DIYables Mini Mp3 Player - Serial Command Control
*
* Product: DIYables Mini Mp3 Player Module
* https://diyables.io/products/mini-mp3-player-module
*
* Control the Mp3 player by typing commands in the Serial Monitor.
* Great for testing all functions without extra hardware.
*
* Commands (type in Serial Monitor, then press Enter):
* 1-9 Play track 1 to 9
* + Volume up
* - Volume down
* p Pause
* r Resume
* s Stop
* n Next track
* b Previous track (back)
* ? Show current status
*
* Wiring (Arduino MKR WiFi 1010):
* Mini Mp3 RX -> Arduino Pin 11
* Mini Mp3 TX -> Arduino Pin 10
* Mini Mp3 VCC -> 5V
* Mini Mp3 GND -> GND
* Speaker connected to SPK_1 and SPK_2 pins
*
* SD Card: Put mp3 files in root, named 001.mp3, 002.mp3, etc.
*/
#include <DIYables_MiniMp3.h>
#include <SoftwareSerial.h>
SoftwareSerial mp3Serial(10, 11); // RX, TX
DIYables_MiniMp3 mp3;
void setup()
{
Serial.begin(9600);
mp3Serial.begin(9600);
mp3.begin(mp3Serial);
delay(1000);
mp3.setVolume(20);
Serial.println("=== DIYables Mini Mp3 Player ===");
Serial.println("Commands:");
Serial.println(" 1-9 Play track number");
Serial.println(" + Volume up");
Serial.println(" - Volume down");
Serial.println(" p Pause");
Serial.println(" r Resume");
Serial.println(" s Stop");
Serial.println(" n Next track");
Serial.println(" b Previous track");
Serial.println(" ? Show status");
Serial.println("================================");
}
void loop()
{
if (Serial.available())
{
char cmd = Serial.read();
switch (cmd)
{
case '1': case '2': case '3':
case '4': case '5': case '6':
case '7': case '8': case '9':
Serial.print("Playing track ");
Serial.println(cmd - '0');
mp3.play(cmd - '0');
break;
case '+':
Serial.println("Volume up");
mp3.volumeUp();
break;
case '-':
Serial.println("Volume down");
mp3.volumeDown();
break;
case 'p':
Serial.println("Paused");
mp3.pause();
break;
case 'r':
Serial.println("Resumed");
mp3.resume();
break;
case 's':
Serial.println("Stopped");
mp3.stop();
break;
case 'n':
Serial.println("Next track");
mp3.playNext();
break;
case 'b':
Serial.println("Previous track");
mp3.playPrevious();
break;
case '?':
{
Serial.println("--- Status ---");
int16_t vol = mp3.getVolume();
Serial.print("Volume: ");
Serial.println(vol);
int16_t track = mp3.getCurrentTrack();
Serial.print("Current track: ");
Serial.println(track);
bool playing = mp3.isPlaying();
Serial.print("Playing: ");
Serial.println(playing ? "Yes" : "No");
int16_t total = mp3.getTrackCount();
Serial.print("Total tracks: ");
Serial.println(total);
Serial.println("--------------");
break;
}
default:
break;
}
}
}
| Input | Action |
|---|---|
| 1–9 | Play that track number |
| + / − | Adjust volume |
| p | Pause |
| r | Resume |
| s | Stop |
| n | Next track |
| b | Previous track |
| ? | Show current status |
EQ Presets
| Constant | Value | Character | ||
|---|---|---|---|---|
| DIYables_MiniMp3 | EQ_NORMAL | 0 | Flat / neutral | |
| DIYables_MiniMp3 | EQ_POP | 1 | Pop | |
| DIYables_MiniMp3 | EQ_ROCK | 2 | Rock | |
| DIYables_MiniMp3 | EQ_JAZZ | 3 | Jazz | |
| DIYables_MiniMp3 | EQ_CLASSIC | 4 | Classical | |
| DIYables_MiniMp3 | EQ_BASS | 5 | Bass emphasis |
mp3.setEQ(DIYables_MiniMp3::EQ_POP);
Status Queries
Each call blocks briefly (up to 100 ms) while waiting for the module's response. A return value of −1 means the module did not reply in time.
| Method | Returns | What You Learn |
|---|---|---|
| isPlaying() | bool | Whether audio is actively playing |
| getVolume() | int16_t | Current volume level (0–30) |
| getEQ() | int16_t | Active equalizer preset (0–5) |
| getTrackCount() | int16_t | Total mp3 files on the SD card |
| getCurrentTrack() | int16_t | Track number currently playing |
| getFolderCount() | int16_t | Number of folders on the card |
| getTrackCountInFolder(f) | int16_t | Number of tracks in folder f |
