Arduino MKR WiFi 1010 - TFT LCD Touch Display SPI
Think of this tutorial as a recipe: follow the ingredients list and the steps, and you will have a working SPI TFT display on your Arduino MKR WiFi 1010 by the end. The MKR WiFi 1010 runs a SAMD21 Cortex-M0+ at 48 MHz paired with a u-blox NINA-W102 module for Wi-Fi and Bluetooth. All I/O pins operate at 3.3V, which is perfect for most SPI TFT modules.
Ingredients in this recipe:
- Wiring an SPI TFT display to the MKR WiFi 1010 at 3.3V.
- Drawing shapes, lines, and areas of color.
- Rendering text and numbers at multiple sizes.
- Drawing bitmap images from program memory (PROGMEM).
- Drawing bitmap images loaded from an SD card.
- Rendering text with a custom external font.
- Reading raw touch coordinates from an XPT2046 touch controller.
- Drawing on screen by touch drag.
- Creating interactive touch buttons.
- Calibrating the touch screen.
- Using a secondary or custom SPI bus for the display.
This recipe covers both touch and non-touch SPI TFT LCD displays. It works with 1.3, 1.54, 2.2, 2.4, 2.8, 3.2, and 3.5 inch panels driven by ILI9341, ILI9488, or ST7789 controller chips.
Hardware Preparation
| 1 | × | Arduino MKR WiFi 1010 | |
| 1 | × | Micro USB Cable | |
| 1 | × | SPI TFT display module | |
| 1 | × | Jumper Wires |
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Ingredient: The SPI TFT Display
An SPI TFT module pairs a color LCD panel with a driver IC that accepts drawing commands over SPI. Three driver chips are supported:
- ILI9341 - 16-bit RGB565 color, up to 40 MHz SPI.
- ILI9488 - 18-bit RGB666 color over SPI, up to 24 MHz.
- ST7789 - 16-bit RGB565 color, up to 40 MHz SPI.
Recommendation: If you have not yet purchased a display, we recommend the ST7789 driver. It is widely available, runs at full 40 MHz SPI speed, and is the most straightforward choice for new projects.
The DIYables_TFT_SPI library wraps Adafruit GFX to give you shapes, text, fonts, and bitmap drawing out of the box.
Note: The MKR WiFi 1010 operates at 3.3V. Connect TFT VCC to the 3.3V pin. A 5V supply will damage the board.
Pinout
Most SPI TFT LCD displays have the following pins:
Display pins:
| Pin | Function |
|---|---|
| VCC | Power supply |
| GND | Ground |
| CS | Chip Select — pulled low to select the display on the SPI bus |
| DC / RS | Data / Command select — high for pixel data, low for commands |
| RST | Hardware reset — optional; tie to 3.3V if unused |
| MOSI / SDI / SDA | SPI data in (MCU → display) |
| SCK / CLK | SPI clock |
| MISO / SDO | SPI data out (display → MCU) — optional for display-only use |
| LED / BL / BLK | Backlight power — connect to 3.3V or a PWM pin for dimming |
SD card pins (if your application needs to access the SD card):
| Pin | Function |
|---|---|
| SD_CS / TF_CS | SD card Chip Select |
| MOSI / SDI | MOSI — data from MCU to SD card |
| SCK / CLK | SCK — SPI clock |
| MISO / SDO | MISO — data from SD card to MCU |
For TFT displays that support touch, there are additional touch pins (if your application uses the touch function and the display supports it):
| Pin | Function |
|---|---|
| T_CS | Touch controller Chip Select |
| T_CLK | SCK — SPI clock |
| T_DIN | MOSI — data from MCU to touch controller |
| T_DO | MISO — data from touch controller to MCU |
| T_IRQ | Touch interrupt — optional; signals when the screen is being touched |
Note: Some non-touch display modules also expose T_CS, T_CLK, T_DIN, T_DO, and T_IRQ pins. These are non-functional on those boards — the touch controller IC is not populated. They appear because the PCB reuses the same layout as the touch-enabled version to reduce manufacturing variants.
Wiring Diagram

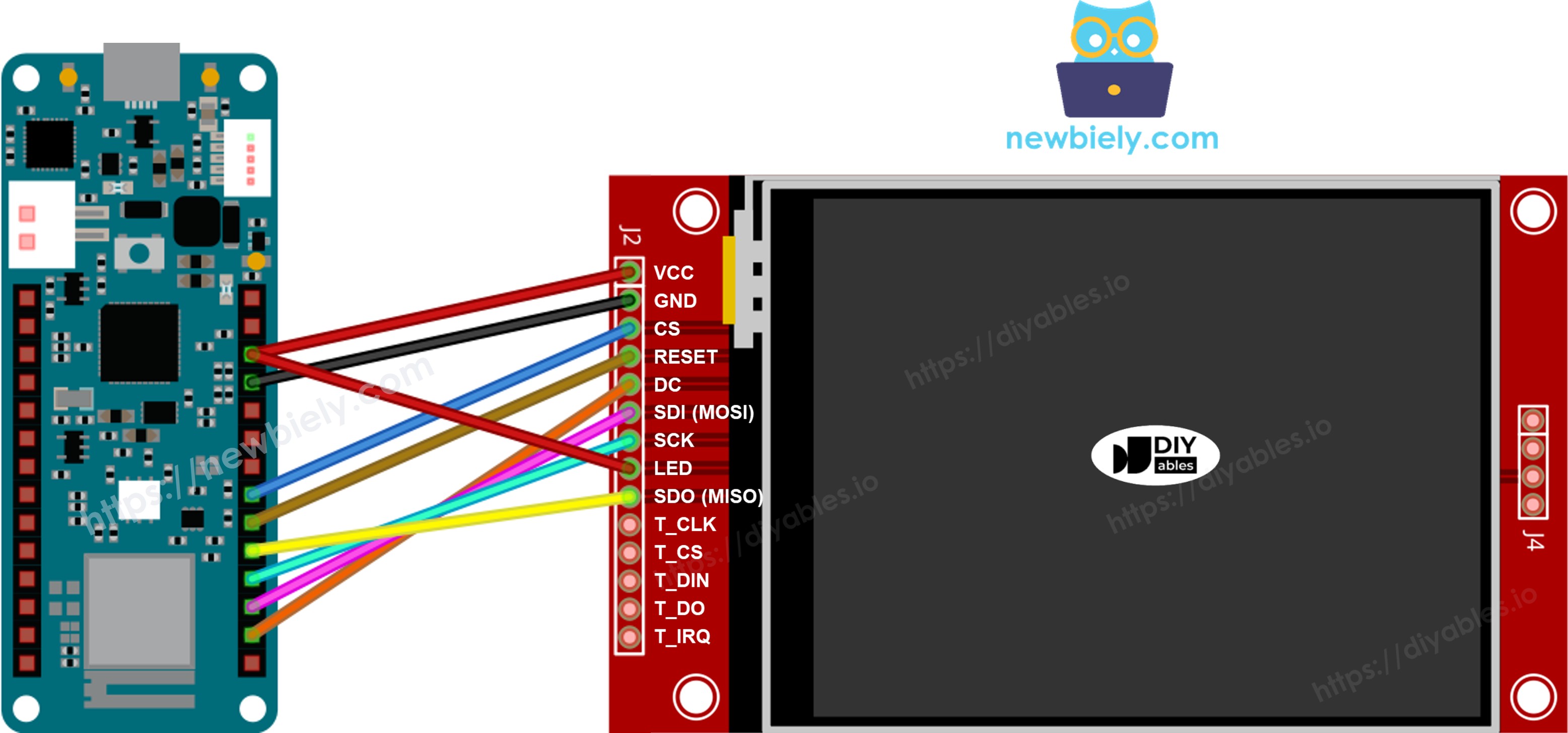

Without Touch
Connect MOSI to pin 8, SCK to pin 9, MISO to pin 10 on the MKR WiFi 1010. CS, DC, and RST can be any available GPIO — pins 7, 11, 12 are used in the examples because they sit on the same edge of the board as the SPI pins, which keeps all display wires on one side and simplifies wiring.
Display:
| TFT Pin | Arduino MKR WiFi 1010 Pin | Description |
|---|---|---|
| VCC | VCC (3.3V) | Power supply (3.3V only) |
| GND | GND | Ground |
| CS | 12 | Chip Select |
| DC / RS | 7 | Data / Command select |
| RST | 11 | Reset (optional) |
| MOSI / SDI | 8 | Hardware SPI MOSI |
| SCK | 9 | Hardware SPI clock |
| MISO / SDO | 10 | Hardware SPI MISO (optional) |
| LED / BL | VCC (3.3V) | Backlight power |
SD card (if your application needs to access the SD card):
| SD Pin | Arduino MKR WiFi 1010 Pin | Description |
|---|---|---|
| SD_CS / TF_CS | any free GPIO | SD card Chip Select |
| MOSI / SDI | 8 | Shared with display MOSI (pin 8) |
| SCK / CLK | 9 | Shared with display SCK (pin 9) |
| MISO / SDO | 10 | Shared with display MISO (pin 10) |
This image is created using Fritzing. Click to enlarge image

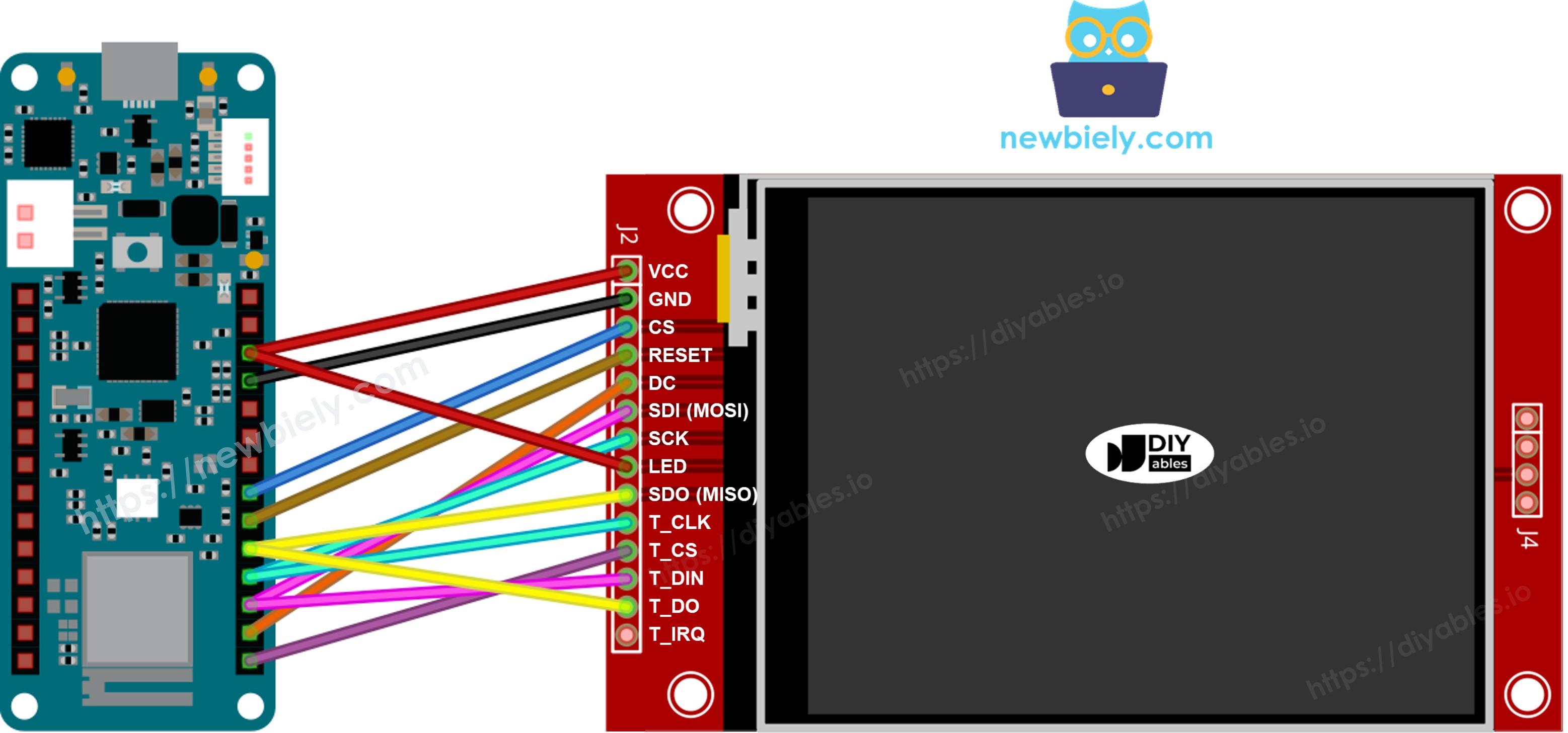

With Touch
Connect the XPT2046 touch controller to the MKR WiFi 1010 SPI bus, sharing pins 8, 9, and 10 with the display.
Display:
| TFT Pin | Arduino MKR WiFi 1010 Pin | Description |
|---|---|---|
| VCC | VCC (3.3V) | Power supply (3.3V only) |
| GND | GND | Ground |
| CS | 12 | Chip Select |
| DC / RS | 7 | Data / Command select |
| RST | 11 | Reset (optional) |
| MOSI / SDI | 8 | Hardware SPI MOSI |
| SCK | 9 | Hardware SPI clock |
| MISO / SDO | 10 | Hardware SPI MISO (optional) |
| LED / BL | VCC (3.3V) | Backlight power |
Touch controller (if your application uses the touch function and the display supports it):
| Touch Pin | Arduino MKR WiFi 1010 Pin | Description |
|---|---|---|
| T_CS | any free GPIO | Touch Chip Select |
| T_IRQ | any free GPIO | Touch interrupt (optional) |
| T_DIN | 8 | Shared with display MOSI (pin 8) |
| T_CLK | 9 | Shared with display SCK (pin 9) |
| T_DO | 10 | Shared with display MISO (pin 10) |
This image is created using Fritzing. Click to enlarge image
If your MCU has two or more hardware SPI interfaces, you can assign each peripheral (display, SD card, touch controller) to its own dedicated SPI bus. If your MCU has only one hardware SPI interface, all three peripherals share the same three data lines (MOSI, SCK, MISO) — on the MKR WiFi 1010 these are pins 8, 9, and 10. Each peripheral has its own CS pin, so only one is active at a time. The DIYables_TFT_SPI library manages both the display and the XPT2046 touch controller through a single API — no separate SPI library is needed for the touch side.
Prepare the Library
- Connect the Arduino MKR WiFi 1010 to your computer using a Micro-B USB cable.
- Open Arduino IDE. Under the board menu, select Arduino MKR WiFi 1010 and pick the correct port.
- Click the Libraries panel on the sidebar.
- Search for "DIYables_TFT_SPI" and find the DIYables listing.
- Click Install. Install all dependencies when prompted.
- Search for DIYables TFT SPI created by DIYables.io and click the Install button.
1
void setup() {
Note: If the board does not appear in the board manager, install the Arduino SAMD Boards core first.
Recipe Base
Before baking in any features, start with this template:
#include <DIYables_TFT_SPI.h>
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Uncomment the line that matches your driver chip:
// DIYables_ILI9341_SPI TFT_display(240, 320, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(320, 480, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(240, 320, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
void setup() {
TFT_display.begin();
TFT_display.setRotation(1);
}
void loop() {
// drawing code here
}
Make It Happen - Draw Shapes
The DrawShapes example shows how to draw circles, rectangles, triangles, rounded rectangles, and lines with the Adafruit GFX library.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// ---------------------------------------------
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// SDO / MISO -> 10 (only needed when reading from display)
// LED -> 3.3V (or any GPIO via initBacklight)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// MOSI and SCK use default hardware SPI pins
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define BLACK DIYables_TFT_SPI::colorRGB(0, 0, 0)
#define BLUE DIYables_TFT_SPI::colorRGB(0, 0, 255)
#define RED DIYables_TFT_SPI::colorRGB(255, 0, 0)
#define GREEN DIYables_TFT_SPI::colorRGB(0, 255, 0)
#define ORANGE DIYables_TFT_SPI::colorRGB(255, 165, 0)
#define PINK DIYables_TFT_SPI::colorRGB(255, 192, 203)
#define VIOLET DIYables_TFT_SPI::colorRGB(148, 0, 211)
#define TURQUOISE DIYables_TFT_SPI::colorRGB(64, 224, 208)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
// Helper to draw a filled diamond
void fillDiamond(int cx, int cy, int h, int v, uint16_t color) {
int x0 = cx, y0 = cy - v;
int x1 = cx + h, y1 = cy;
int x2 = cx, y2 = cy + v;
int x3 = cx - h, y3 = cy;
TFT_display.fillTriangle(x0, y0, x1, y1, x2, y2, color);
TFT_display.fillTriangle(x0, y0, x2, y2, x3, y3, color);
}
void setup() {
TFT_display.begin();
TFT_display.setRotation(1); // Landscape
}
void loop() {
TFT_display.fillScreen(WHITE);
uint16_t w = TFT_display.width();
uint16_t h = TFT_display.height();
// Scale positions relative to screen size with better spacing
int col1 = w / 8;
int col2 = w * 3 / 8;
int col3 = w * 5 / 8;
int col4 = w * 7 / 8;
int row1 = h / 4;
int row2 = h / 2;
int row3 = h * 3 / 4;
// Outlined circle
TFT_display.drawCircle(col1, row1, 30, RED);
// Filled circle
TFT_display.fillCircle(col2, row1, 30, RED);
// Outlined triangle
TFT_display.drawTriangle(col3 - 30, row1 + 25, col3 + 30, row1 + 25, col3, row1 - 25, BLUE);
// Filled triangle
TFT_display.fillTriangle(col4 - 30, row1 + 25, col4 + 30, row1 + 25, col4, row1 - 25, GREEN);
// Outlined rectangle
TFT_display.drawRect(col1 - 35, row2 - 20, 70, 40, ORANGE);
// Filled rectangle
TFT_display.fillRect(col2 - 35, row2 - 20, 70, 40, TURQUOISE);
// Outlined round rectangle
TFT_display.drawRoundRect(col3 - 35, row2 - 20, 70, 40, 10, VIOLET);
// Filled round rectangle
TFT_display.fillRoundRect(col4 - 35, row2 - 20, 70, 40, 10, PINK);
// Outlined diamond (centered between col1 and col2)
int diamond1_x = (col1 + col2) / 2;
TFT_display.drawLine(diamond1_x, row3 - 30, diamond1_x + 25, row3, GREEN);
TFT_display.drawLine(diamond1_x + 25, row3, diamond1_x, row3 + 30, GREEN);
TFT_display.drawLine(diamond1_x, row3 + 30, diamond1_x - 25, row3, GREEN);
TFT_display.drawLine(diamond1_x - 25, row3, diamond1_x, row3 - 30, GREEN);
// Filled diamond (centered between col3 and col4)
int diamond2_x = (col3 + col4) / 2;
fillDiamond(diamond2_x, row3, 25, 30, BLUE);
delay(10000);
}
Make It Happen
- Connect the TFT module to the MKR WiFi 1010 with the wiring table above. Use 3.3V for VCC.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select the board and port, paste the code, and click Upload.
- A continuously updating pattern of colored shapes appears on the display.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| begin() | Initialize the display controller. | TFT_display.begin(); |
| setRotation(r) | Set screen rotation 0-3. | TFT_display.setRotation(1); |
| fillScreen(color) | Fill screen with a solid color. | TFT_display.fillScreen(BLACK); |
| colorRGB(r,g,b) | Convert RGB values to 16-bit color. | colorRGB(0,0,255) |
| drawCircle(x,y,r,color) | Circle outline. | TFT_display.drawCircle(80,80,50,RED); |
| fillRect(x,y,w,h,color) | Solid rectangle. | TFT_display.fillRect(10,10,80,50,GREEN); |
| drawLine(x0,y0,x1,y1,color) | Straight colored line. | TFT_display.drawLine(0,0,320,240,WHITE); |
Make It Happen - Show Text and Number
The ShowTextAndNumber example prints strings and numeric values on screen using the GFX text engine.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// ---------------------------------------------
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// SDO / MISO -> 10 (only needed when reading from display)
// LED -> 3.3V (or any GPIO via initBacklight)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define MAGENTA DIYables_TFT_SPI::colorRGB(255, 0, 255)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
void setup() {
Serial.begin(9600);
Serial.println(F("TFT SPI Display - Show text and numbers"));
TFT_display.begin();
TFT_display.setRotation(1); // Landscape
TFT_display.fillScreen(WHITE);
// Set text color and size
TFT_display.setTextColor(MAGENTA);
TFT_display.setTextSize(3);
// Sample values
float temperature = 23.5;
float humidity = 78.6;
// Display temperature
TFT_display.setCursor(20, 20);
TFT_display.print("Temperature: ");
TFT_display.print(temperature, 1);
TFT_display.print(char(247));
TFT_display.println("C");
// Display humidity
TFT_display.setCursor(20, 60);
TFT_display.print("Humidity: ");
TFT_display.print(humidity, 1);
TFT_display.print("%");
}
void loop() {
}
Make It Happen
- Wire and upload as shown above.
- The display shows lines of text and numbers in various sizes and colors.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| setTextColor(color) | Sets the text foreground color. | TFT_display.setTextColor(WHITE); |
| setTextSize(size) | Scales text. Size 1 = 6×8 px, size 2 = 12×16 px. | TFT_display.setTextSize(2); |
| setCursor(x, y) | Moves the cursor to pixel position (x, y). | TFT_display.setCursor(10, 20); |
| print(value) | Prints a string or number at the cursor. | TFT_display.print("MKR!"); |
| println(value) | Prints and advances cursor to the next line. | TFT_display.println(3.14); |
Make It Happen - Draw Image
Ingredient: a PROGMEM bitmap image. The DrawImage example places a full-color RGB565 image on the display by reading pixel data directly from flash memory. The image is declared inside bitmap.h as a const uint16_t array marked PROGMEM. The MKR WiFi 1010 has 256 KB of flash available for your sketch, so storing a reasonably sized bitmap there is perfectly practical.
Add bitmap.h to the sketch folder before you compile.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
#include "bitmap.h"
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// ---------------------------------------------
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// LED -> 3.3V (or any GPIO via initBacklight)
// SDO / MISO -> 10 (only needed when reading from display)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
int img_width = 120;
int img_height = 53;
void setup() {
Serial.begin(9600);
Serial.println(F("TFT SPI Display - Draw Image"));
TFT_display.begin();
uint16_t SCREEN_WIDTH = TFT_display.width();
uint16_t SCREEN_HEIGHT = TFT_display.height();
int x = (SCREEN_WIDTH - img_width) / 2;
int y = (SCREEN_HEIGHT - img_height) / 2;
TFT_display.fillScreen(WHITE);
TFT_display.drawRGBBitmap(x, y, myBitmap, img_width, img_height);
}
void loop() {
delay(2000);
TFT_display.invertDisplay(true);
delay(2000);
TFT_display.invertDisplay(false);
}
Make It Happen
- Place bitmap.h in the same folder as the sketch.
- Connect the TFT module to the MKR WiFi 1010. Use 3.3V for VCC. CS→12, DC→7, RST→11, MOSI→8, SCK→9.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select the board and port, paste the code, and click Upload.
- The display shows the bitmap image from flash.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| drawRGBBitmap(x,y,bitmap,w,h) | Draws an RGB565 PROGMEM bitmap with its top-left at (x, y). | TFT_display.drawRGBBitmap(0, 0, myImage, 240, 320); |
| fillScreen(color) | Clears the screen before drawing the image. | TFT_display.fillScreen(BLACK); |
Make It Happen - Draw Image SD Card
Ingredient: an SD card with an image file. The DrawImageSDcard example streams a raw RGB565 binary image from a micro SD card to the display. The SD module plugs into the same SPI bus (pins 8/9/10) as the display. A separate CS pin for the SD module is defined as SD_CS_PIN in the sketch.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
#include <SD.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// =============================================
// TFT + SD module pins
// TFT + SD module Arduino MKR WiFi 1010
// ----------------------- ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// TFT CS -> 12 (TFT_CS_PIN)
// TFT DC / RS -> 7 (TFT_DC_PIN)
// TFT RESET -> 11 (TFT_RST_PIN)
// SD CS -> 4 (SD_CS)
// SDI / MOSI (shared) -> 8 (hardware SPI MOSI)
// SDO / MISO (shared) -> 10 (hardware SPI MISO)
// SCK (shared) -> 9 (hardware SPI SCK)
// LED -> 3.3V (or any GPIO via initBacklight)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
#define SD_CS 4 // SD card chip select (must differ from TFT_CS_PIN)
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
#define BUFFPIXEL 20
File bmpFile;
uint16_t SCREEN_WIDTH;
uint16_t SCREEN_HEIGHT;
// Helper functions to read BMP file header
uint16_t read16(File &f) {
uint16_t result;
result = f.read();
result |= (f.read() << 8);
return result;
}
uint32_t read32(File &f) {
uint32_t result;
result = f.read();
result |= ((uint32_t)f.read() << 8);
result |= ((uint32_t)f.read() << 16);
result |= ((uint32_t)f.read() << 24);
return result;
}
int32_t readS32(File &f) {
int32_t result;
result = f.read();
result |= ((uint32_t)f.read() << 8);
result |= ((uint32_t)f.read() << 16);
result |= ((uint32_t)f.read() << 24);
return result;
}
bool getBMPDimensions(const char *filename, uint32_t &w, uint32_t &h) {
File f = SD.open(filename);
if (!f) return false;
if (read16(f) != 0x4D42) { f.close(); return false; }
read32(f); // file size
read32(f); // reserved
read32(f); // image offset
read32(f); // DIB header size
w = read32(f);
int32_t sh = readS32(f);
h = (sh < 0) ? -sh : sh;
f.close();
return true;
}
void drawBMP(const char *filename, int x, int y) {
bmpFile = SD.open(filename);
if (!bmpFile) {
Serial.println("File not found");
return;
}
if (read16(bmpFile) != 0x4D42) {
Serial.println("Not a BMP file");
bmpFile.close();
return;
}
uint32_t fileSize = read32(bmpFile);
read32(bmpFile); // Reserved
uint32_t imageOffset = read32(bmpFile);
uint32_t dibHeaderSize = read32(bmpFile);
uint32_t bmpWidth = read32(bmpFile);
int32_t bmpHeight = readS32(bmpFile);
bool topDown = false;
if (bmpHeight < 0) {
bmpHeight = -bmpHeight;
topDown = true;
}
if (read16(bmpFile) != 1) {
Serial.println("Invalid BMP file");
bmpFile.close();
return;
}
uint16_t depth = read16(bmpFile);
if (depth != 24) {
Serial.println("Only 24-bit BMP is supported");
bmpFile.close();
return;
}
if (read32(bmpFile) != 0) {
Serial.println("Unsupported BMP compression");
bmpFile.close();
return;
}
bmpFile.seek(imageOffset);
uint8_t sdbuffer[3 * BUFFPIXEL];
uint16_t color;
uint32_t rowSize = (bmpWidth * 3 + 3) & ~3;
if (x >= SCREEN_WIDTH || y >= SCREEN_HEIGHT) return;
uint32_t maxRow = min((uint32_t)bmpHeight, (uint32_t)(SCREEN_HEIGHT - y));
uint32_t maxCol = min(bmpWidth, (uint32_t)(SCREEN_WIDTH - x));
for (uint32_t row = 0; row < maxRow; row++) {
int32_t rowPos = topDown ? row : bmpHeight - 1 - row;
uint32_t filePosition = imageOffset + rowPos * rowSize;
bmpFile.seek(filePosition);
for (uint32_t col = 0; col < maxCol; col += BUFFPIXEL) {
uint32_t pixelsToRead = min((uint32_t)BUFFPIXEL, maxCol - col);
bmpFile.read(sdbuffer, 3 * pixelsToRead);
for (uint32_t i = 0; i < pixelsToRead; i++) {
uint8_t b = sdbuffer[i * 3];
uint8_t g = sdbuffer[i * 3 + 1];
uint8_t r = sdbuffer[i * 3 + 2];
color = DIYables_TFT_SPI::colorRGB(r, g, b);
if ((x + col + i) < SCREEN_WIDTH && (y + row) < SCREEN_HEIGHT) {
TFT_display.drawPixel(x + col + i, y + row, color);
}
}
}
}
bmpFile.close();
Serial.println("BMP drawn");
}
void setup() {
Serial.begin(9600);
if (!SD.begin(SD_CS)) {
Serial.println("SD card initialization failed!");
return;
}
Serial.println("SD card initialized.");
TFT_display.begin();
TFT_display.setRotation(1); // Landscape
SCREEN_WIDTH = TFT_display.width();
SCREEN_HEIGHT = TFT_display.height();
TFT_display.fillScreen(WHITE);
uint32_t imgWidth, imgHeight;
if (getBMPDimensions("diyables.bmp", imgWidth, imgHeight)) {
int x = (SCREEN_WIDTH - imgWidth) / 2;
int y = (SCREEN_HEIGHT - imgHeight) / 2;
drawBMP("diyables.bmp", x, y);
} else {
Serial.println("Failed to get BMP dimensions");
}
}
void loop() {
}
Make It Happen
- Wire the SD module to the MKR WiFi 1010, sharing MOSI (pin 8), SCK (pin 9), MISO (pin 10) with the display. Connect SD CS to the pin defined as SD_CS_PIN.
- Copy a raw RGB565 binary image file to the root of the SD card. File dimensions must match your panel.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- The display shows the image streamed from the SD card.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| startWrite() | Opens a direct SPI write session, keeping the display CS asserted. | TFT_display.startWrite(); |
| setAddrWindow(x0,y0,x1,y1) | Sets the rectangular pixel write region. | TFT_display.setAddrWindow(0, 0, 239, 319); |
| pushColors(buf, len) | Sends a buffer of RGB565 pixel data to the display. | TFT_display.pushColors(buf, 512); |
| endWrite() | Closes the SPI session and releases CS. | TFT_display.endWrite(); |
Make It Happen - Use External Font
Ingredient: a custom Adafruit GFX font header. The UseExternalFont example upgrades the text output of the display from the built-in 5×7 raster font to a higher-quality GFX-compatible outline font. Select the font by calling setFont() with a pointer to the font descriptor.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
#include <Fonts/FreeSansBold12pt7b.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// ---------------------------------------------
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// LED -> 3.3V (or any GPIO via initBacklight)
// SDO / MISO -> 10 (only needed when reading from display)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define MAGENTA DIYables_TFT_SPI::colorRGB(255, 0, 255)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
void setup() {
Serial.begin(9600);
Serial.println(F("TFT SPI Display - Use external font"));
TFT_display.begin();
TFT_display.setFont(&FreeSansBold12pt7b);
TFT_display.setRotation(1); // Landscape
TFT_display.fillScreen(WHITE);
TFT_display.setTextColor(MAGENTA);
TFT_display.setTextSize(1);
float temperature = 23.5;
float humidity = 78.6;
TFT_display.setCursor(20, 30);
TFT_display.print("Temperature: ");
TFT_display.print(temperature, 1);
TFT_display.print(char(247));
TFT_display.println("C");
TFT_display.setCursor(20, 70);
TFT_display.print("Humidity: ");
TFT_display.print(humidity, 1);
TFT_display.print("%");
}
void loop() {
}
Make It Happen
- Wire the TFT module to the MKR WiFi 1010 as shown in the wiring table. Use 3.3V for VCC.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- The display renders text with the custom font. Compare it to the built-in font to see the difference.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| setFont(&FontName) | Activates a custom GFX-compatible font. Pass NULL to restore the built-in 5×7 font. | TFT_display.setFont(&FreeSans12pt7b); |
| setCursor(x, y) | Positions the text cursor at the given pixel coordinate. | TFT_display.setCursor(10, 40); |
| setTextColor(color) | Sets the text foreground color. | TFT_display.setTextColor(WHITE); |
| print(text) | Prints a string using the active font at the cursor position. | TFT_display.print("MKR WiFi 1010"); |
Make It Happen - Touch Get Point
Ingredient: an XPT2046 touch controller. The TouchGetPoint example reads raw ADC coordinates from the XPT2046 and prints them to the Serial Monitor. Run this recipe step before the calibration step so you know the raw numeric range your panel produces.
Wiring: T_CLK shares pin 9 (SCK), T_DIN shares pin 8 (MOSI), T_DO shares pin 10 (MISO). T_CS→pin 6. T_IRQ is not used (pass -1). All signals are at 3.3V.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Touch Get Point Example
-----------------------
This example demonstrates how to read and display touch coordinates
using a DIYables SPI TFT display with a 4-wire resistive touch panel.
When you touch the screen, the sketch prints the mapped (screen) X and Y
coordinates to the Serial Monitor and draws a red dot at the touched location.
NOTE:
Run the TouchCalibration example first and paste the calibration values
into setTouchCalibration() below if the touch coordinates are inaccurate.
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// =============================================
// TFT pins (always required)
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// SDO / MISO -> 10 (only needed when reading from display)
// LED -> 3.3V (or any GPIO via initBacklight)
//
// XPT2046 / ADS7843 SPI touch controller
// (modules with pins: T_CS, T_CLK, T_DIN, T_DO, T_IRQ)
// Touch pin Arduino MKR WiFi 1010
// ------------ ---------------------------------
// T_CS -> 6 (TOUCH_CS_PIN)
// T_IRQ -> -1 (TOUCH_IRQ_PIN, optional - use -1 to skip)
// T_CLK -> 9 (shared with display SCK)
// T_DIN -> 8 (shared with display MOSI)
// T_DO -> 10 (shared with display MISO)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// MOSI and SCK use default hardware SPI pins
// =============================================
// Touch pin definitions (XPT2046 SPI touch controller)
// =============================================
#define TOUCH_CS_PIN 6 // T_CS (any GPIO)
#define TOUCH_IRQ_PIN -1 // T_IRQ (any GPIO, or -1 if not connected)
// =============================================
// =============================================
// Calibration values.
// Run the TouchCalibration example and update these if touch is inaccurate.
// Typical raw ranges:
// - XPT2046 : ~200..3900 (default below)
// - 4-wire resistive : ~100..900
// =============================================
#define TOUCH_LEFT_X 300
#define TOUCH_RIGHT_X 3700
#define TOUCH_TOP_Y 300
#define TOUCH_BOT_Y 3700
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define RED DIYables_TFT_SPI::colorRGB(255, 0, 0)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
void setup() {
Serial.begin(9600);
TFT_display.begin();
TFT_display.setRotation(0);
TFT_display.fillScreen(WHITE);
TFT_display.initTouchSPI(TOUCH_CS_PIN, TOUCH_IRQ_PIN);
TFT_display.setTouchCalibration(TOUCH_LEFT_X, TOUCH_RIGHT_X,
TOUCH_TOP_Y, TOUCH_BOT_Y);
Serial.println("Touch the screen to see coordinates.");
}
void loop() {
int x, y;
if (TFT_display.getTouch(x, y)) {
Serial.print("Touch at: ");
Serial.print(x);
Serial.print(", ");
Serial.println(y);
TFT_display.fillCircle(x, y, 4, RED);
delay(200);
}
}
Make It Happen
- Wire the XPT2046 to the MKR WiFi 1010, sharing the SPI bus with the display. T_CS→pin 6. T_IRQ is not used (pass -1).
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- Open the Serial Monitor at 9600 baud. Touch the display to see raw X, Y, and Z pressure values.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| initTouchSPI(cs, irq) | Initializes the XPT2046 on the shared 3.3V SPI bus. Pass -1 for irq if that pin is not wired. | TFT_display.initTouchSPI(1, 0); |
| readTouchRaw(x, y, z) | Returns raw ADC values from the controller without applying calibration. Returns true when pressed. | TFT_display.readTouchRaw(x, y, z); |
Make It Happen - Touch Draw
Ingredient: calibrated touch coordinates. The TouchDraw example lets you paint on the MKR WiFi 1010's display using a finger. Each detected touch position draws a small colored dot, and dragging the finger produces a continuous brushstroke.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Touch Draw Lines Example
-------------------------
Draws lines on the screen following the pen.
- Touch and drag on the screen to draw.
- Lift the pen to stop drawing.
- Touch again to start a new line from the last point.
NOTE:
Run the TouchCalibration example and update setTouchCalibration() below
if the touch coordinates are inaccurate.
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// =============================================
// TFT pins (always required)
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// SDO / MISO -> 10 (only needed when reading from display)
// LED -> 3.3V (or any GPIO via initBacklight)
//
// XPT2046 / ADS7843 SPI touch controller
// (modules with pins: T_CS, T_CLK, T_DIN, T_DO, T_IRQ)
// Touch pin Arduino MKR WiFi 1010
// ------------ ---------------------------------
// T_CS -> 6 (TOUCH_CS_PIN)
// T_IRQ -> -1 (TOUCH_IRQ_PIN, optional - use -1 to skip)
// T_CLK -> 9 (shared with display SCK)
// T_DIN -> 8 (shared with display MOSI)
// T_DO -> 10 (shared with display MISO)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Touch pin definitions (XPT2046 SPI touch controller)
// =============================================
#define TOUCH_CS_PIN 6 // T_CS (any GPIO)
#define TOUCH_IRQ_PIN -1 // T_IRQ (any GPIO, or -1 if not connected)
// =============================================
// =============================================
// Calibration values.
// Run the TouchCalibration example and update these if touch is inaccurate.
// Typical raw ranges:
// - XPT2046 : ~200..3900 (default below)
// - 4-wire resistive : ~100..900
// =============================================
#define TOUCH_LEFT_X 300
#define TOUCH_RIGHT_X 3700
#define TOUCH_TOP_Y 300
#define TOUCH_BOT_Y 3700
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
#define RED DIYables_TFT_SPI::colorRGB(255, 0, 0)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
#define PEN_RADIUS 3
void setup() {
TFT_display.begin();
TFT_display.setRotation(0);
TFT_display.fillScreen(WHITE);
TFT_display.initTouchSPI(TOUCH_CS_PIN, TOUCH_IRQ_PIN);
TFT_display.setTouchCalibration(TOUCH_LEFT_X, TOUCH_RIGHT_X,
TOUCH_TOP_Y, TOUCH_BOT_Y);
}
void loop() {
int x, y;
if (TFT_display.getTouch(x, y)) {
TFT_display.fillCircle(x, y, PEN_RADIUS, RED);
}
}
Make It Happen
- Wire the XPT2046 to the MKR WiFi 1010 as described in the Touch Get Point step above.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- Drag a finger across the display to paint on screen.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| initTouchSPI(cs, irq) | Starts the XPT2046 on the shared SPI bus. | TFT_display.initTouchSPI(1, 0); |
| setTouchCalibration(minX,maxX,minY,maxY) | Maps raw ADC readings to screen pixel coordinates. Get the four values from the TouchCalibration recipe step. | TFT_display.setTouchCalibration(200, 3800, 300, 3700); |
| getTouch(x, y) | Returns calibrated touch coordinates in screen pixels. Returns true while touched. | if (TFT_display.getTouch(x, y)) { ... } |
| fillCircle(x, y, r, color) | Draws a dot at the touch point to build up the stroke. | TFT_display.fillCircle(x, y, 3, RED); |
Make It Happen - Touch Calibration
Ingredient: four calibration constants. The TouchCalibration example measures the raw ADC extremes of your XPT2046 panel. Touch each corner of the display as instructed and read the minimum and maximum X and Y values from the Serial Monitor. Those are the four numbers you will supply to setTouchCalibration() in every other touch recipe.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Touch Screen Calibration Example
---------------------------------
This example measures the raw touch coordinates at all four screen corners
and prints ready-to-use calibration values to the Serial Monitor.
It uses readTouchRaw() directly — it does NOT rely on getTouch() or any
existing calibration values, so it works even when touch is completely broken.
INSTRUCTIONS:
1. Upload this sketch to your board.
2. Open the Serial Monitor (Ctrl+Shift+M) and set baud rate to 9600.
3. The screen shows a blinking red dot in each corner, numbered 1-4:
1 = Top-left
2 = Top-right
3 = Bottom-right
4 = Bottom-left
4. Press and HOLD firmly on the blinking dot.
Keep holding until the Serial Monitor prints "Captured!" for that corner.
5. Release, then wait for the next dot to appear and repeat.
6. After all 4 corners, the Serial Monitor prints the calibration values and
a ready-to-use setTouchCalibration() call. Copy it into your sketch.
NOTE: While waiting, the Serial Monitor continuously prints the live raw
Z/X/Y readings so you can confirm that touch is being detected.
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010)
// =============================================
// TFT pins (always required)
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// SDO / MISO -> 10 (only needed when reading from display)
// LED -> 3.3V (or any GPIO via initBacklight)
//
// XPT2046 / ADS7843 SPI touch controller
// (modules with pins: T_CS, T_CLK, T_DIN, T_DO, T_IRQ)
// Touch pin Arduino MKR WiFi 1010
// ------------ ---------------------------------
// T_CS -> 6 (TOUCH_CS_PIN)
// T_IRQ -> -1 (TOUCH_IRQ_PIN, optional - use -1 to skip)
// T_CLK -> 9 (shared with display SCK)
// T_DIN -> 8 (shared with display MOSI)
// T_DO -> 10 (shared with display MISO)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Touch pin definitions (XPT2046 SPI touch controller)
// =============================================
#define TOUCH_CS_PIN 6 // T_CS (any GPIO)
#define TOUCH_IRQ_PIN -1 // T_IRQ (any GPIO, or -1 if not connected)
// =============================================
// =============================================
// Create display object (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN);
// Minimum pressure to count as a valid touch.
#define TOUCH_Z_MIN 10
// How many consecutive valid samples required before a corner is accepted.
#define SAMPLES_NEEDED 10
// Delay between samples (ms).
#define SAMPLE_DELAY_MS 30
#define DOT_RADIUS 12
#define BLACK DIYables_TFT_SPI::colorRGB( 0, 0, 0)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
#define RED DIYables_TFT_SPI::colorRGB(255, 0, 0)
// Corner pixel positions - filled in setup() once display size is known.
// Order: 0=top-left, 1=top-right, 2=bottom-right, 3=bottom-left
int cx[4], cy[4];
// Captured averaged raw values per corner.
int cap_x[4], cap_y[4];
// -----------------------------------------------------------------------
void drawDot(int corner, bool on) {
uint16_t color = on ? RED : WHITE;
TFT_display.fillCircle(cx[corner], cy[corner], DOT_RADIUS, color);
TFT_display.setTextSize(2);
TFT_display.setTextColor(BLACK, color);
TFT_display.setCursor(cx[corner] - 6, cy[corner] - 8);
TFT_display.print(corner + 1);
}
void captureCorner(int corner) {
const char* names[] = { "Top-left", "Top-right", "Bottom-right", "Bottom-left" };
Serial.println();
Serial.print("Corner "); Serial.print(corner + 1);
Serial.print(" ("); Serial.print(names[corner]); Serial.println(")");
Serial.println(" Press and HOLD firmly on the blinking dot.");
Serial.println(" Keep holding until you see 'Captured!'");
unsigned long lastBlink = 0;
unsigned long lastPrint = 0;
bool dotOn = false;
int goodSamples = 0;
long sumX = 0, sumY = 0;
while (true) {
// Blink the dot
if (millis() - lastBlink > 400) {
lastBlink = millis();
dotOn = !dotOn;
drawDot(corner, dotOn);
}
int raw_x, raw_y, z;
TFT_display.readTouchRaw(raw_x, raw_y, z);
// Print live readings every 500 ms
if (millis() - lastPrint > 500) {
lastPrint = millis();
Serial.print(" Z="); Serial.print(z);
Serial.print(" X="); Serial.print(raw_x);
Serial.print(" Y="); Serial.println(raw_y);
}
if (z >= TOUCH_Z_MIN) {
sumX += raw_x;
sumY += raw_y;
goodSamples++;
if (goodSamples >= SAMPLES_NEEDED) {
cap_x[corner] = sumX / goodSamples;
cap_y[corner] = sumY / goodSamples;
Serial.print(" Captured! raw_x="); Serial.print(cap_x[corner]);
Serial.print(" raw_y="); Serial.println(cap_y[corner]);
drawDot(corner, false);
delay(500);
return;
}
} else {
goodSamples = 0;
sumX = 0;
sumY = 0;
}
delay(SAMPLE_DELAY_MS);
}
}
// -----------------------------------------------------------------------
void setup() {
Serial.begin(9600);
TFT_display.begin();
TFT_display.setRotation(0); // Always calibrate in rotation 0
TFT_display.fillScreen(WHITE);
TFT_display.initTouchSPI(TOUCH_CS_PIN, TOUCH_IRQ_PIN);
int w = TFT_display.width();
int h = TFT_display.height();
int m = DOT_RADIUS + 4;
cx[0] = m; cy[0] = m;
cx[1] = w - m; cy[1] = m;
cx[2] = w - m; cy[2] = h - m;
cx[3] = m; cy[3] = h - m;
Serial.println("=== Touch Calibration ===");
for (int i = 0; i < 4; i++) {
captureCorner(i);
}
// Derive calibration values from the four corners
int min_x = (cap_x[0] + cap_x[3]) / 2; // left edge
int max_x = (cap_x[1] + cap_x[2]) / 2; // right edge
int min_y = (cap_y[0] + cap_y[1]) / 2; // top edge
int max_y = (cap_y[2] + cap_y[3]) / 2; // bottom edge
Serial.println();
Serial.println("=== Calibration Results ===");
Serial.print(" Left X (min_x): "); Serial.println(min_x);
Serial.print(" Right X (max_x): "); Serial.println(max_x);
Serial.print(" Top Y (min_y): "); Serial.println(min_y);
Serial.print(" Bot Y (max_y): "); Serial.println(max_y);
Serial.println();
Serial.println("Copy this line into your sketch:");
Serial.print(" TFT_display.setTouchCalibration(");
Serial.print(min_x); Serial.print(", ");
Serial.print(max_x); Serial.print(", ");
Serial.print(min_y); Serial.print(", ");
Serial.print(max_y); Serial.println(");");
TFT_display.fillScreen(WHITE);
TFT_display.setTextColor(BLACK);
TFT_display.setTextSize(2);
TFT_display.setCursor(10, 10);
TFT_display.println("Done! Check");
TFT_display.setCursor(10, 35);
TFT_display.println("Serial Monitor");
}
void loop() {}
Make It Happen
- Wire the XPT2046 to the MKR WiFi 1010 as described in the Touch Get Point step.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- Open the Serial Monitor at 9600 baud. Follow the prompts and touch each corner.
- Write down the printed minX, maxX, minY, maxY values for use in setTouchCalibration() elsewhere.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| initTouchSPI(cs, irq) | Initializes the XPT2046 touch controller. | TFT_display.initTouchSPI(1, 0); |
| readTouchRaw(x, y, z) | Reads raw ADC values to measure the calibration range. | TFT_display.readTouchRaw(x, y, z); |
| setTouchCalibration(minX,maxX,minY,maxY) | Stores the calibration constants so getTouch() maps correctly to pixel coordinates. | TFT_display.setTouchCalibration(200, 3800, 300, 3700); |
Make It Happen - Custom SPI
Ingredient: an explicit SPI bus configuration. The CustomSPI example shows how to pass a specific SPIClass instance to the display constructor. On the MKR WiFi 1010 there is one hardware SPI bus on pins 8/9/10. Passing &SPI explicitly gives you direct control over the SPI clock speed and settings, which is useful for long cables or when sharing the bus with a peripheral that has strict timing requirements.
/*
* This Arduino MKR WiFi 1010 code was developed by newbiely.com
*
* This Arduino MKR WiFi 1010 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-mkr/arduino-mkr-wifi-1010-tft-lcd-touch-display-spi
*/
/*
Created by DIYables
This example code is in the public domain
Product page: https://diyables.io
This example demonstrates how to use a custom (non-default) SPI bus
with the DIYables TFT SPI library. This is useful on boards that have
multiple SPI interfaces, such as:
- ESP32: HSPI / VSPI
- Arduino Giga / Portenta: SPI1
- Raspberry Pi Pico: SPI1
*/
// =============================================
// Single include brings in the base class plus all driver classes.
// =============================================
#include <DIYables_TFT_SPI.h>
// =============================================
// Wiring (Arduino MKR WiFi 1010 - default SPI bus)
// ---------------------------------------------
// NOTE: The Arduino MKR WiFi 1010 exposes one hardware SPI bus on the MKR
// header pins (8=MOSI, 9=SCK, 10=MISO). MY_SPI must remain &SPI
// and the wiring uses the standard hardware SPI mapping below.
//
// TFT module Arduino MKR WiFi 1010
// ------------ ---------------------------------
// VCC -> 3.3V (NOT 5V!)
// GND -> GND
// CS -> 12 (TFT_CS_PIN)
// DC / RS -> 7 (TFT_DC_PIN)
// RESET -> 11 (TFT_RST_PIN)
// SDI / MOSI -> 8 (hardware SPI MOSI)
// SCK -> 9 (hardware SPI SCK)
// LED -> 3.3V (or any GPIO via initBacklight)
// SDO / MISO -> 10 (only needed when reading from display)
// =============================================
// =============================================
// SPI pin definitions (adjust for your board)
// =============================================
#define TFT_CS_PIN 12
#define TFT_DC_PIN 7
#define TFT_RST_PIN 11
// Panel resolution in native (portrait) orientation - change to match your module
#define TFT_WIDTH 240
#define TFT_HEIGHT 320
// =============================================
// Select SPI bus
// =============================================
// --- Default SPI (8/9/10 on MKR WiFi 1010) ---
#define MY_SPI &SPI
// =============================================
// Create display object with custom SPI bus
// (uncomment matching driver)
// =============================================
// DIYables_ILI9341_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN, MY_SPI);
// DIYables_ILI9488_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN, MY_SPI);
DIYables_ST7789_SPI TFT_display(TFT_WIDTH, TFT_HEIGHT, TFT_CS_PIN, TFT_DC_PIN, TFT_RST_PIN, MY_SPI);
#define BLACK DIYables_TFT_SPI::colorRGB(0, 0, 0)
#define WHITE DIYables_TFT_SPI::colorRGB(255, 255, 255)
#define RED DIYables_TFT_SPI::colorRGB(255, 0, 0)
#define GREEN DIYables_TFT_SPI::colorRGB(0, 255, 0)
#define BLUE DIYables_TFT_SPI::colorRGB(0, 0, 255)
void setup() {
Serial.begin(9600);
TFT_display.begin();
TFT_display.setRotation(1); // Landscape
TFT_display.fillScreen(BLACK);
uint16_t w = TFT_display.width();
uint16_t h = TFT_display.height();
// Draw a simple test pattern
TFT_display.fillRect(0, 0, w / 3, h, RED);
TFT_display.fillRect(w / 3, 0, w / 3, h, GREEN);
TFT_display.fillRect(w * 2 / 3, 0, w / 3, h, BLUE);
TFT_display.setTextColor(WHITE);
TFT_display.setTextSize(2);
TFT_display.setCursor(10, h / 2 - 10);
TFT_display.print("Custom SPI bus OK");
}
void loop() {
// Nothing to do
}
Make It Happen
- Wire the TFT display to the MKR WiFi 1010 as described in the wiring section. Use 3.3V for VCC.
- Plug in the Micro-B USB cable.
- In Arduino IDE, select board and port, paste the code, and click Upload.
- The display starts on the explicitly configured SPI bus and shows a color-bar pattern.
Key Methods
| Method | What It Does | Example |
|---|---|---|
| DIYables_ILI9341_SPI(w,h,cs,dc,rst,spi) | Constructor that accepts a pointer to any SPIClass instance. Defaults to &SPI when the argument is omitted. | DIYables_ILI9341_SPI tft(240, 320, 12, 7, 11, &SPI); |
| begin() | Initializes the display on the configured SPI bus. | TFT_display.begin(); |
Troubleshoot
- Black screen -- Verify that VCC is connected to the 3.3V pin, not 5V. Check CS (pin 12), DC (pin 7), MOSI (pin 8), and SCK (pin 9).
- Garbage pixels -- Confirm only one driver constructor is active; comment out the other two.
- Image shifted -- The width and height in the constructor must match the physical panel.
- Touch not responding -- Run the TouchCalibration example and embed the resulting values in your sketch.
- MKR WiFi 1010 not in board list -- Install the Arduino SAMD Boards core from the Boards Manager.
Platform Support
The library uses only Arduino standard APIs and the architectures=* flag ensures it compiles on every Arduino-compatible platform.
