Arduino Mega - LED Matrix

This guide explains how to use the Arduino UNO R4 with external LED matrix displays. We'll learn:

Then you can easily change the code for other LED matrices, such as the 16x8 or 64x8 ones.

Arduino Mega LED Matrix

If you want to learn how to use the Arduino R4 with its built-in LED matrix, check out Arduino Mega - Built-in LED Matrix.

Hardware Preparation

1×Arduino Mega
1×USB 2.0 cable type A/B (for USB-A PC)
1×USB 2.0 cable type C/B (for USB-C PC)
1×FC-16 LED Matrix 32x8
1×FC-16 LED Matrix 8x8
1×Jumper Wires
1×DC Power Jack
1×5V Power Adapter for Arduino Mega

Or you can buy the following kits:

1×DIYables Sensor Kit (30 sensors/displays)
1×DIYables Sensor Kit (18 sensors/displays)
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of LED Matrix

LED Matrix display

There are many kinds of LED matrices. The MAX7219 LED matrix is often used with the Arduino Mega board. This LED matrix has several features:

  • The basic part of an LED matrix is called a block.
  • Each block has an 8 by 8 grid of LEDs, 64 LEDs in total, and is controlled by a MAX7219 chip.
  • There are two main block types: the generic module and the FC-16 module.
  • An LED matrix can have just one block or be made bigger by connecting many blocks together in a chain.
  • You can buy LED matrices that already have several blocks connected, such as 4-block or 8-block versions.
  • Or you can buy separate blocks and connect them yourself to make the size you need.
  • In your Arduino Mega program, you must tell the program the size of the LED matrix you are using.

Pinout

LED Matrix Pinout

An LED matrix is made from one or more blocks. Each block has two groups of pins:

  • Group of Input Pins:
  • VCC: Connect to 5V.
  • GND: Connect to GND.
  • DIN: Data pin. Connect to the SPI MOSI pin on the Arduino Mega.
  • CS: Chip Select. Connect to any digital pin on the Arduino Mega.
  • CLK: Clock pin. Connect to the SPI CLK pin on the Arduino Mega.
  • Group of Output Pins:
  • VCC: Connect to VCC on the next module.
  • GND: Connect to GND on the next module.
  • DOUT: Data Out. Connect to the DIN pin on the next module.
  • CS: Connect to CS on the next module.
  • CLK: Connect to CLK on the next module.

Wiring Diagram

If the LED grid has only one block:

  • Connect the input pin groups to the Arduino Mega.
  • Leave the output pin groups unconnected.

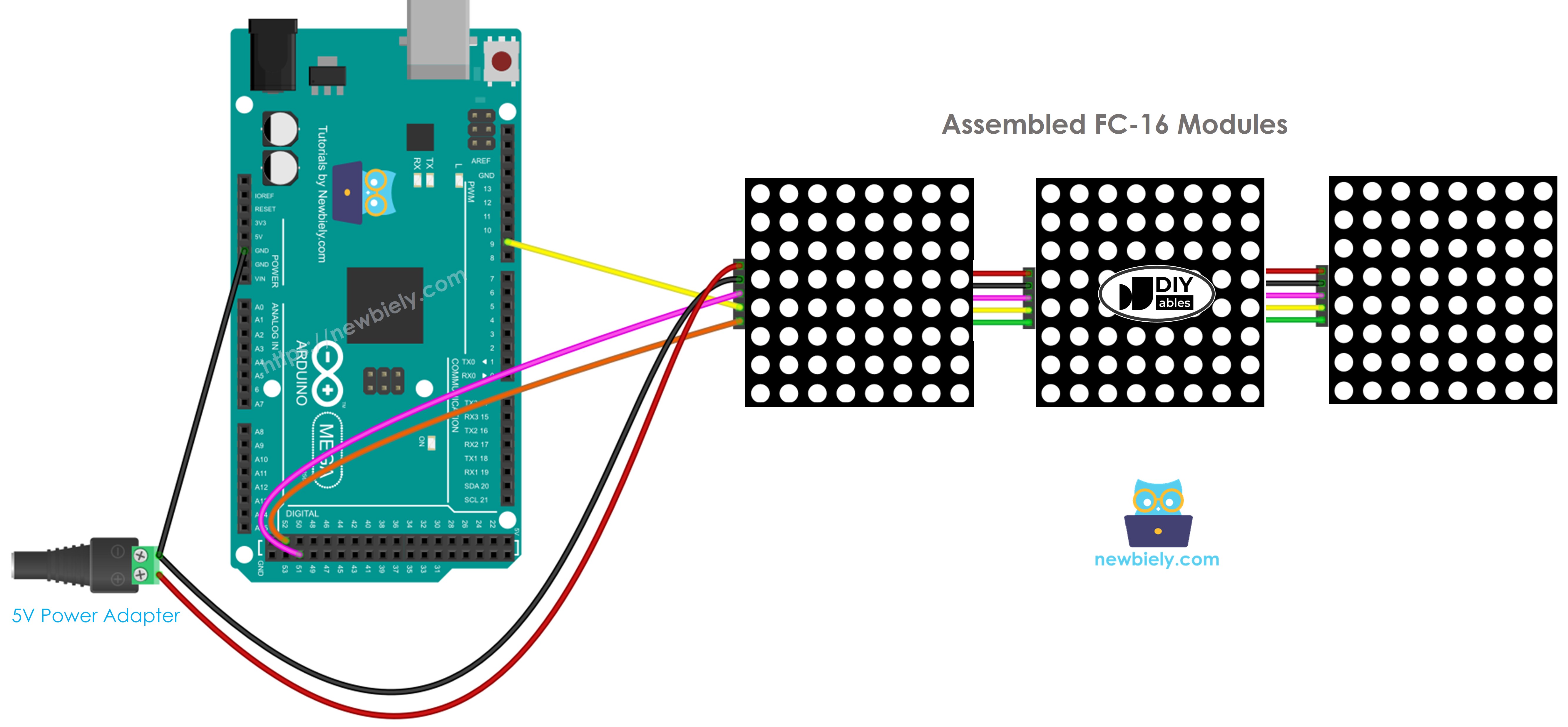

The wiring diagram between Arduino Mega 8x8 LED matrix FC-16

This image is created using Fritzing. Click to enlarge image

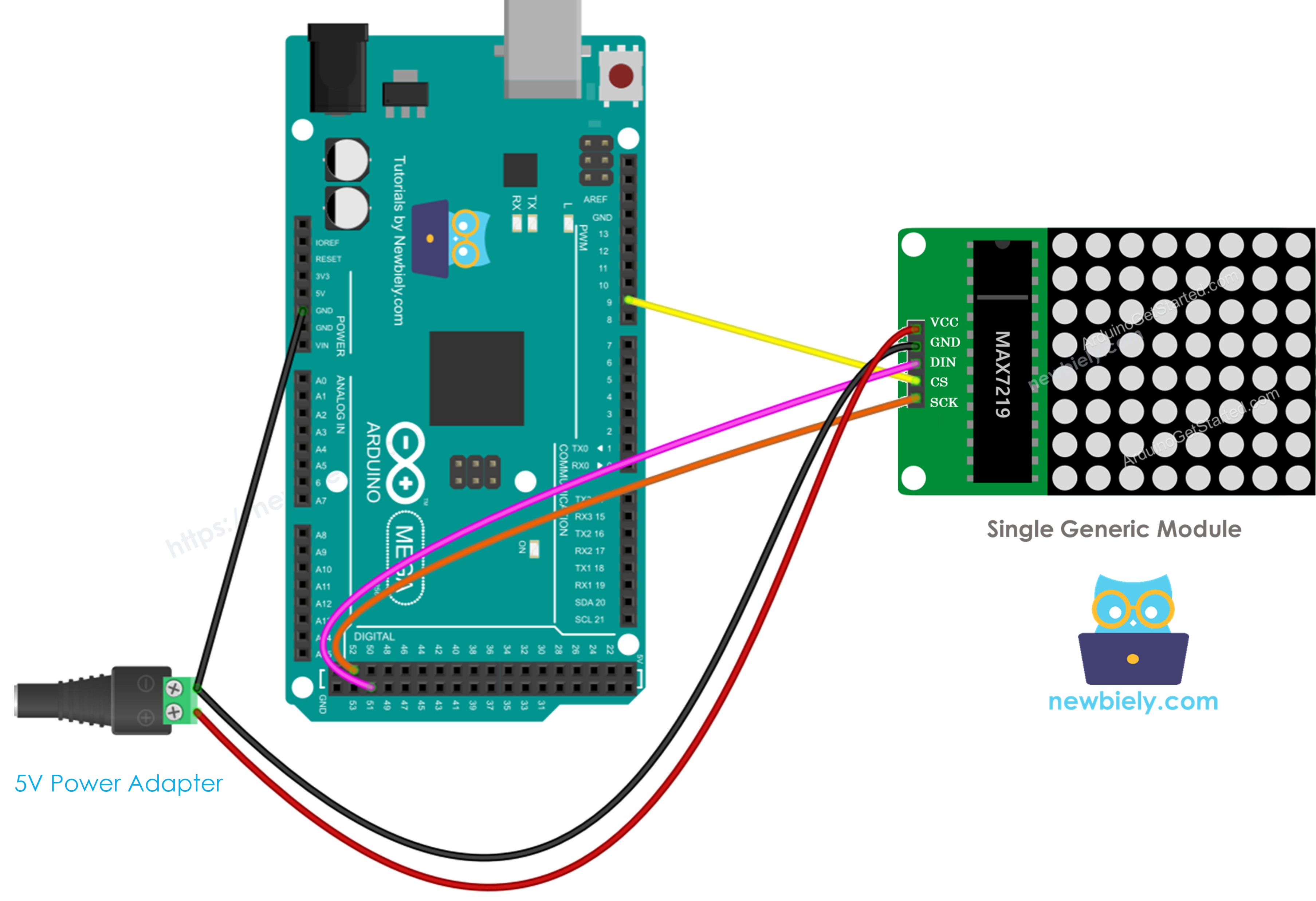

The wiring diagram between Arduino Mega 8x8 LED matrix generic

This image is created using Fritzing. Click to enlarge image

If the LED matrix is already put together in several blocks:

  • Connect the input pin group to the Arduino Mega board.
  • Leave the output pin group unconnected.

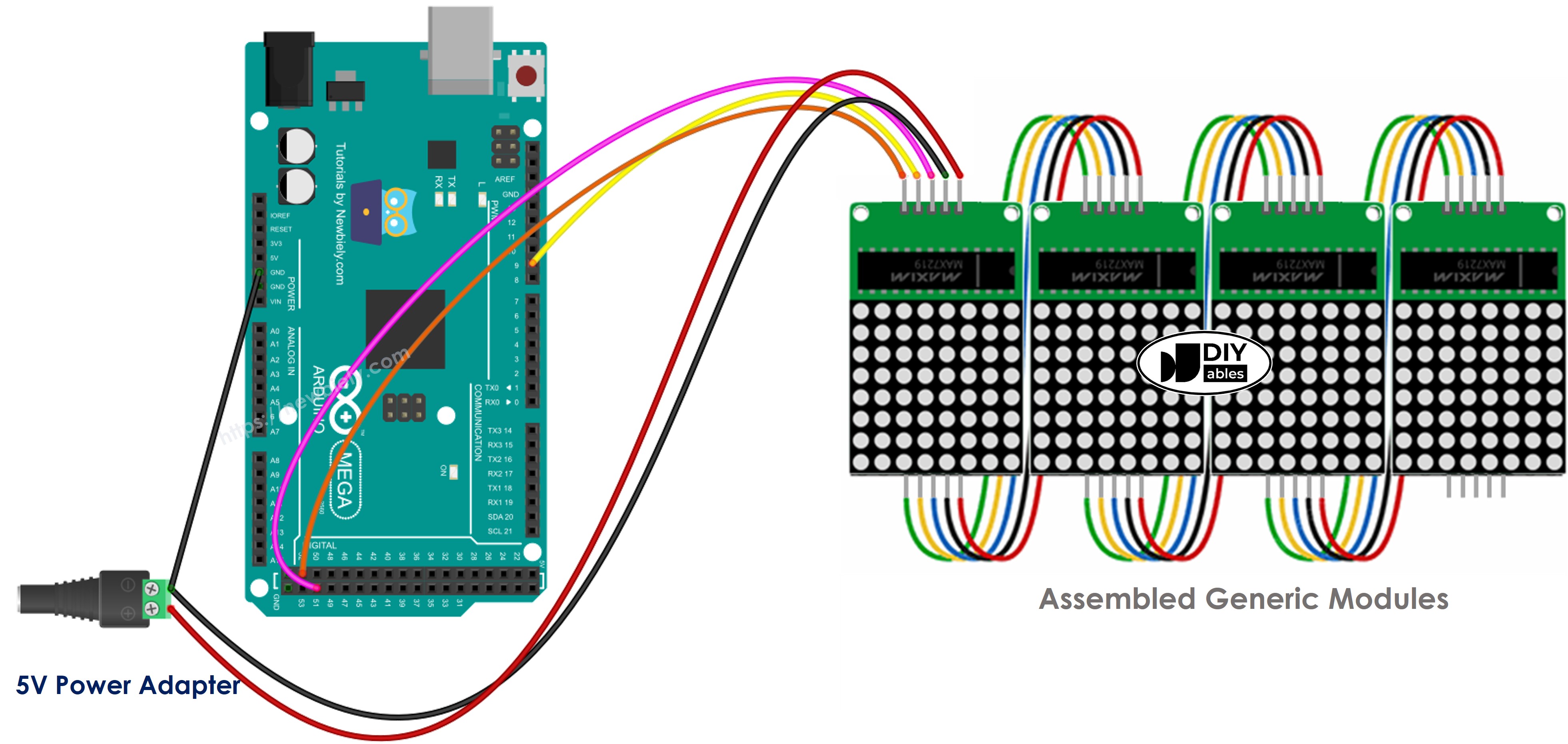

The wiring diagram between Arduino Mega LED matrix display

This image is created using Fritzing. Click to enlarge image

If you put together the LED matrix from several parts:

  • Connect the input pins of the first block to the Arduino Mega board.
  • Connect the output pins of each block to the input pins of the next block.
  • Leave the output pins of the last block unconnected.

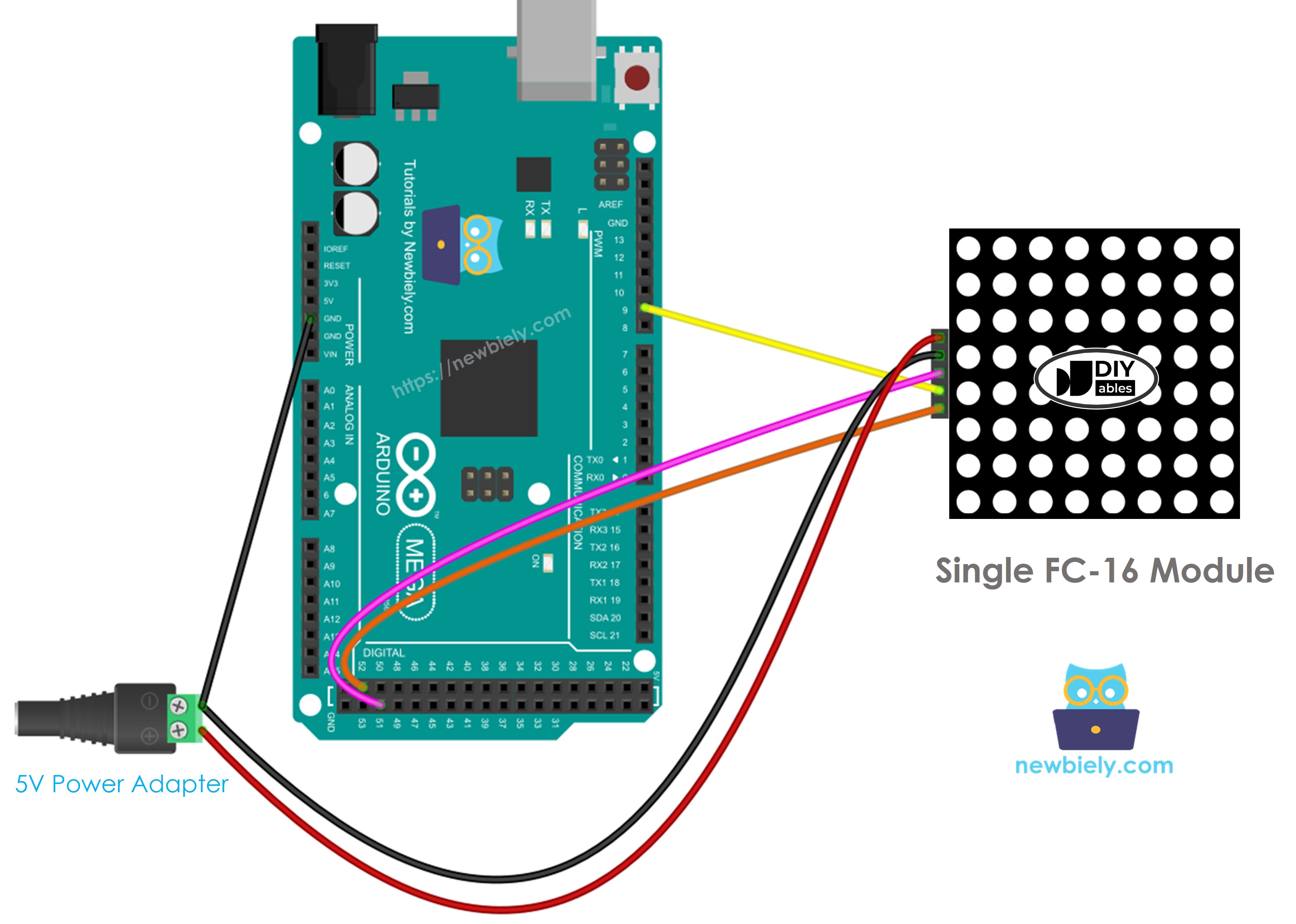

Arduino Mega 32x8 LED matrix wiring FC-16 diagram

This image is created using Fritzing. Click to enlarge image

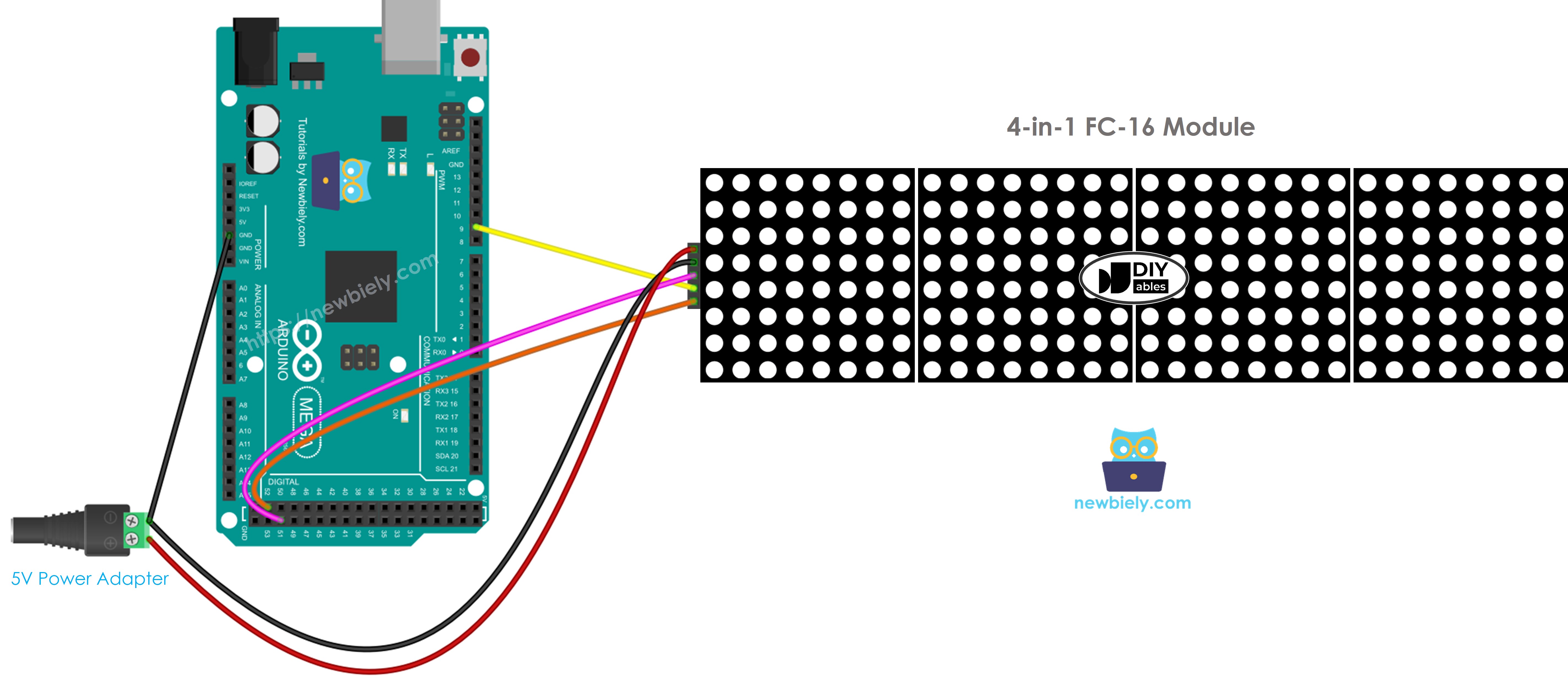

Arduino Mega 32x8 LED matrix wiring generic diagram

This image is created using Fritzing. Click to enlarge image

The screen uses a lot of power, up to 1 amp at full brightness.

  • Don’t power the Arduino Mega from its 5V pin.
  • Use an external 5V power supply. The Arduino Mega and the LED matrix can both be powered by the same 5V adapter.

The Arduino Mega uses SPI pins to connect to the LED matrix.

  • Use pin 13 for SCK and pin 11 for MOSI on Arduino Mega. If you have a different Mega board, see the official guide for the same SPI pins.
  • You can use any other pin for pin 3 (CS, chip select).

How To Program For LED Matrix

Controlling the LED matrix can be hard. Fortunately, there are libraries that make it easier. Here are the steps to program an Arduino Mega to control the LED matrix.

  • Add libraries:
#include <MD_Parola.h> #include <MD_MAX72xx.h>
  • Pick the kind of hardware you are using: GENERIC_HW or FC16_HW.
#define HARDWARE_TYPE MD_MAX72XX::FC16_HW
  • Find out how many LED blocks are used. For example, a 4-in-1 LED matrix has 4 blocks.
#define MAX_DEVICES 4
  • Set the pin that connects to the CS pin on the LED matrix. For example, use pin D9.
#define CS_PIN 9
  • Create a new version of the MD_Parola class for the LED matrix display.
MD_Parola ledMatrix = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);
  • Put the code in the setup() function.
void setup() { ledMatrix.begin(); // Initialize the LED matrix module ledMatrix.setIntensity(0); // Set brightness level (0-15) ledMatrix.displayClear(); // Clear the LED matrix display }
  • Show text, numbers, and animations: see the next part.

Arduino Mega - LED Matrix Code

The code shown is for a 32x8 FC-16 LED matrix display made of four blocks. You can change it for other sizes, such as 8x8, 16x8, 64x8, and so on.

/* * This Arduino Mega code was developed by newbiely.com * * This Arduino Mega code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/arduino-mega/arduino-mega-led-matrix */ #include <MD_Parola.h> #include <MD_MAX72xx.h> #define HARDWARE_TYPE MD_MAX72XX::FC16_HW #define MAX_DEVICES 4 // 4 blocks #define CS_PIN 9 // The Arduino UNO R4 pin connected to the CS pin of LED matrix // create an instance of the MD_Parola class MD_Parola ledMatrix = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES); void setup() { ledMatrix.begin(); // initialize the object ledMatrix.setIntensity(15); // set the brightness of the LED matrix display (from 0 to 15) ledMatrix.displayClear(); // clear LED matrix display } void loop() { ledMatrix.setTextAlignment(PA_LEFT); ledMatrix.print("Left"); // display text delay(2000); ledMatrix.setTextAlignment(PA_CENTER); ledMatrix.print("Center"); // display text delay(2000); ledMatrix.setTextAlignment(PA_RIGHT); ledMatrix.print("Right"); // display text delay(2000); ledMatrix.setTextAlignment(PA_CENTER); ledMatrix.setInvert(true); ledMatrix.print("Invert"); // display text inverted delay(2000); ledMatrix.setInvert(false); ledMatrix.print(1234); // display number delay(2000); }

Detailed Instructions

Follow these steps one by one.

  • Connect the Arduino Mega board to the LED matrix as shown in the diagram.
  • Connect the Arduino Mega board to your computer with a USB cable.
  • Open the Arduino IDE on your computer.
  • Select the correct board (Arduino Mega) and the COM port.

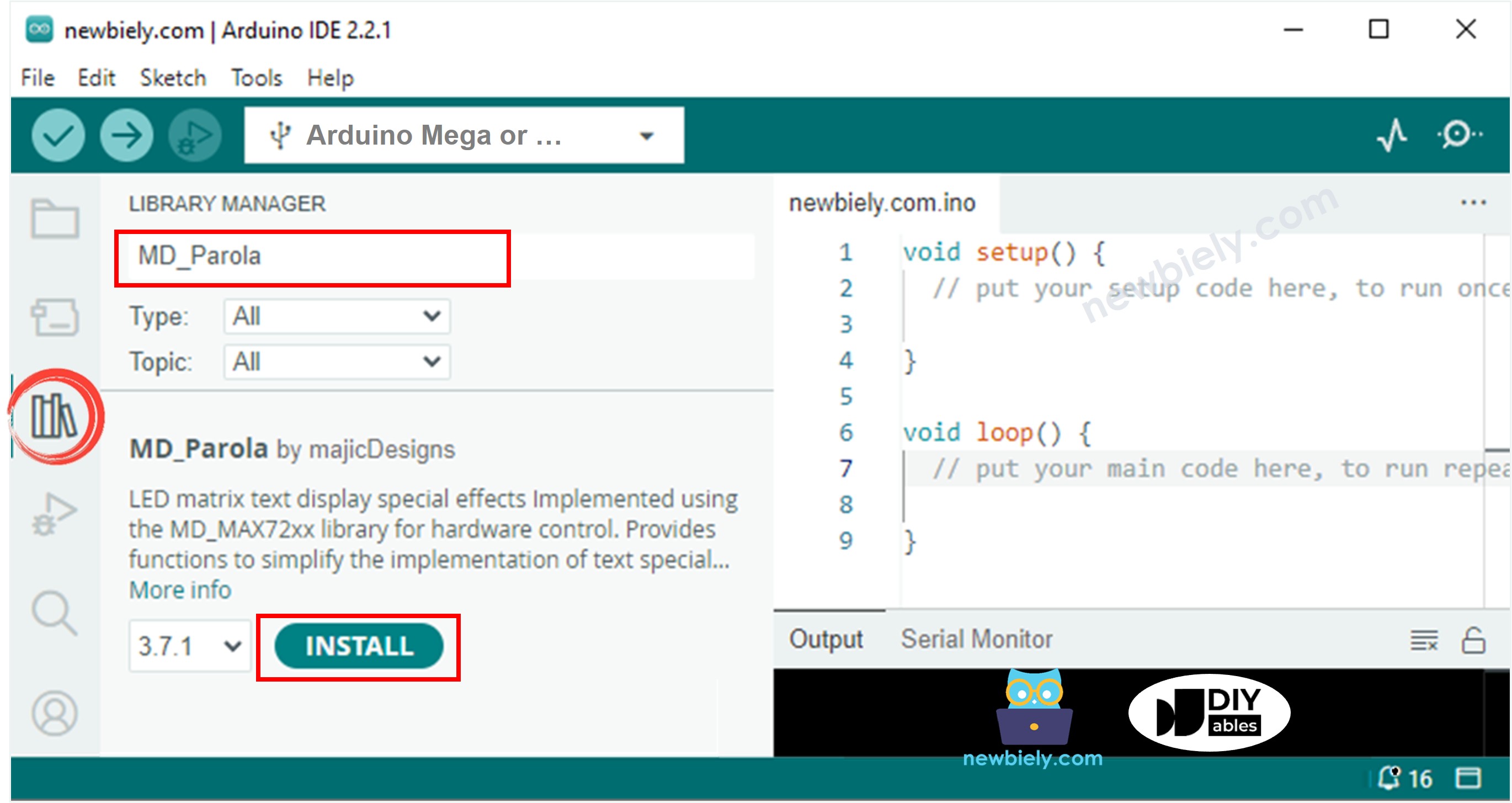

  • In the Arduino IDE, click the Libraries icon on the left side.
  • Search for "MD_Parola" and find the MD_Parola library.
  • Click the Install button.
Arduino Mega MD_Parola library
  • You need to install the MD_MAX72XX library. Click the Install All button.
Arduino Mega MD_MAX72XX library
  • Copy the code above and open it in the Arduino IDE.
  • Click the Upload button in the Arduino IDE to upload the code to the Arduino Mega.
  • See the LED matrix display.

Arduino Mega LED Matrix Code – Scrolling Text

If the message is too long to fit on a LED matrix display, you can use scrolling text.

This Arduino Mega program shows how to slide a message across the LED matrix.

/* * This Arduino Mega code was developed by newbiely.com * * This Arduino Mega code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/arduino-mega/arduino-mega-led-matrix */ #include <MD_Parola.h> #include <MD_MAX72xx.h> #define HARDWARE_TYPE MD_MAX72XX::FC16_HW #define MAX_DEVICES 4 // 4 blocks #define CS_PIN 9 // The Arduino UNO R4 pin connected to the CS pin of LED matrix // create an instance of the MD_Parola class MD_Parola ledMatrix = MD_Parola(HARDWARE_TYPE, CS_PIN, MAX_DEVICES); void setup() { ledMatrix.begin(); // initialize the object ledMatrix.setIntensity(15); // set the brightness of the LED matrix display (from 0 to 15) ledMatrix.displayClear(); // clear led matrix display ledMatrix.displayScroll("Hello, DIYables", PA_CENTER, PA_SCROLL_LEFT, 100); } void loop() { if (ledMatrix.displayAnimate()) { ledMatrix.displayReset(); } }

For more text effects, visit the MD_Parola Library Reference: https://github.com/MajicDesigns/MD_Parola.
