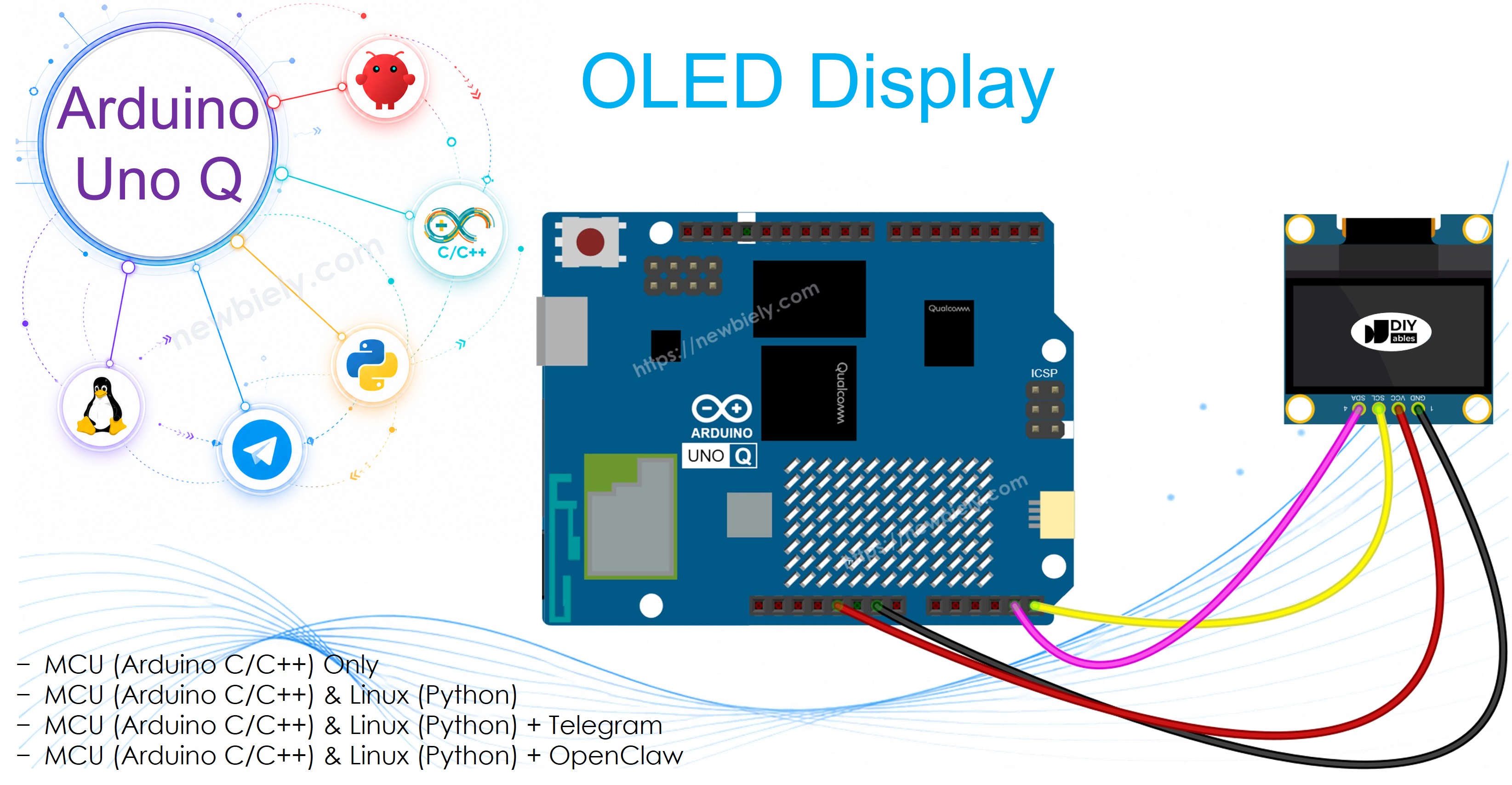

Arduino UNO Q - OLED 128x64
This tutorial shows you how to use an SSD1306 OLED 128x64 display with Arduino UNO Q — from basic text to shapes, images, and remote Telegram control.
- How to connect an SSD1306 OLED 128x64 to Arduino UNO Q
- How to display "Hello World" text in multiple sizes on the OLED
- How to display text, integers, floats, and hex numbers
- How to draw shapes: pixels, lines, rectangles, circles, and triangles
- How to use hardware scrolling (right, left, diagonal)
- How to display bitmap images on the OLED
- How to control display brightness and contrast
- How to use custom external fonts
- How to control the OLED remotely from Linux via Bridge programming
- How to control the OLED remotely from Telegram via Bridge programming
Hardware Preparation
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Buy Note: If you want a bigger OLED display, use the 2.42 inch OLED Display 128x64 .
Overview of OLED 128x64 Display
The SSD1306 OLED 128x64 is a compact monochrome display driven by the SSD1306 controller over I2C. It has 128×64 pixels and can show crisp text, icons, charts, and custom graphics.
OLED Pinout
- GND — connect to GND
- VCC — connect to 3.3V or 5V
- SCL — I2C clock signal
- SDA — I2C data signal
※ NOTE THAT:
The pin order may differ between manufacturers. Always refer to the labels printed on the OLED module itself. This tutorial uses an SSD1306-based OLED tested with DIYables modules.

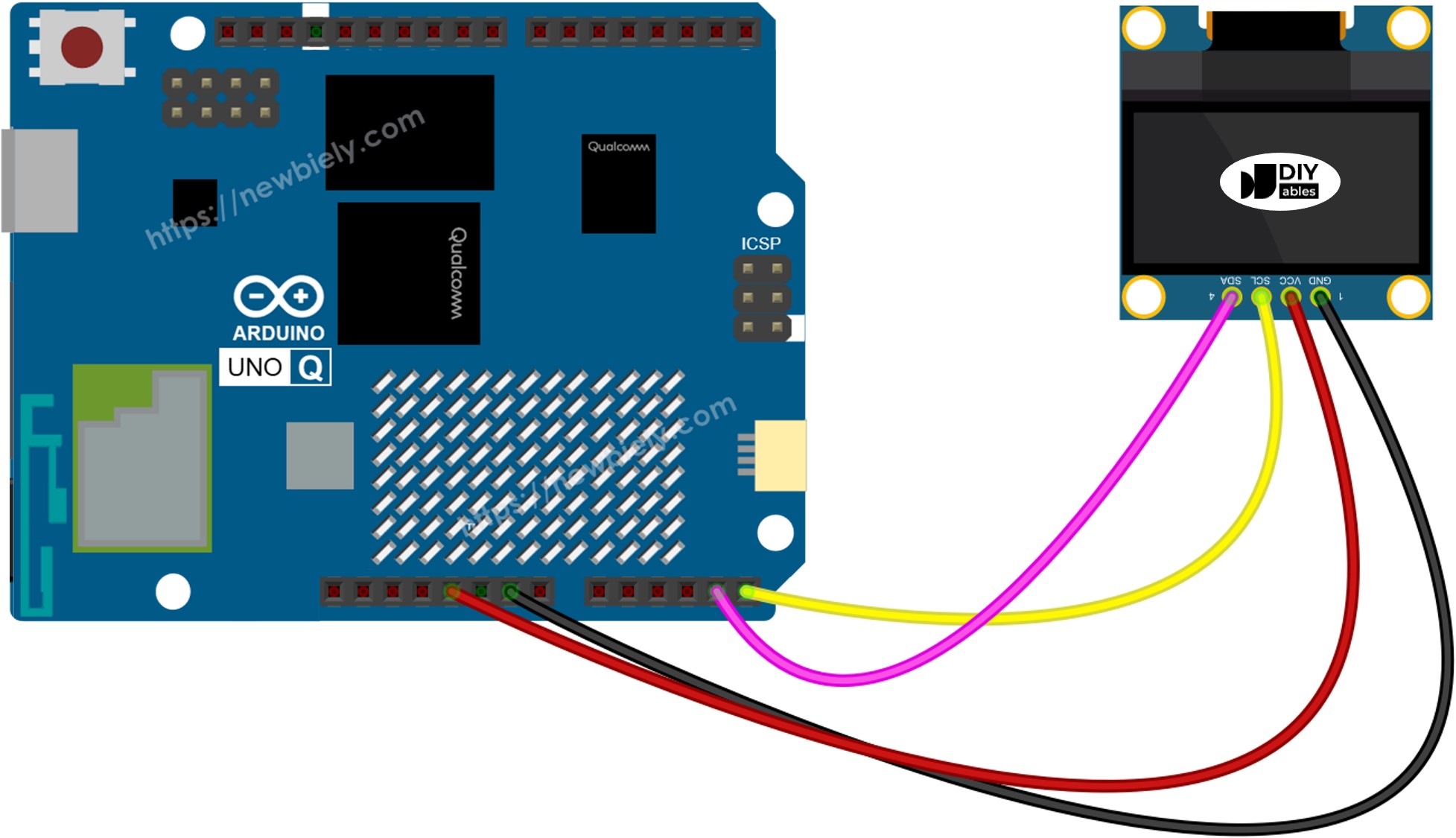

Wiring Diagram
This image is created using Fritzing. Click to enlarge image
| OLED Pin | Arduino UNO Q Pin |
|---|---|
| GND | GND |
| VCC | 3.3V |
| SCL | SCL |
| SDA | SDA |
How To Program the OLED
The Adafruit SSD1306 library provides all the functions needed to drive the OLED.
- Include the libraries:
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
- Create the OLED object (128x64):
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
- Initialize in setup():
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
while (true); // halt if OLED not found
}
oled.clearDisplay();
- Display text:
oled.setTextSize(1); // Font size (1–8)
oled.setTextColor(WHITE); // Text color
oled.setCursor(0, 0); // Cursor position (x, y)
oled.println("Hello!");
oled.display(); // Push buffer to screen — required!
※ NOTE THAT:
Always call oled.display() after drawing commands to push the buffer to the screen. Drawing commands alone do not update what is visible.
Arduino UNO Q Code — Hello World on SSD1306 OLED
The Arduino UNO Q has two processors: the STM32 MCU (handles real-time hardware control) and the Qualcomm MPU (runs Debian Linux). In this section, only the STM32 MCU is programmed — the Linux side stays idle. A later section will show how both processors work together.
The sketch below displays text in two different sizes on the OLED.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
oled.clearDisplay();
// Line 1 — size 1
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 0);
oled.println(F("Hello, World!"));
// Line 2 — size 2
oled.setTextSize(2);
oled.setCursor(0, 20);
oled.println(F("DIYables"));
// Line 3 — size 1
oled.setTextSize(1);
oled.setCursor(0, 50);
oled.println(F("OLED 128x64 SSD1306"));
oled.display();
}
void loop() {}
Detailed Instructions
- First time with Arduino UNO Q? Follow the Getting Started with Arduino UNO Q tutorial to get your development environment ready before proceeding.
- Wire the OLED: Connect GND→GND, VCC→3.3V, SCL→SCL, SDA→SDA.
- Connect: Plug the Arduino UNO Q into your computer with a USB-C cable.
- Open Arduino App Lab: Launch Arduino App Lab and wait until it detects your Arduino UNO Q.
- Create a new App: Click the Create New App button.
- Give the App a name, for example: DIYables_OLED_128x64
- Click Create to confirm.
- You will see a set of folders and files generated inside your new App.
- Find the sketch/sketch.ino file — this is where you will paste the MCU sketch.
Paste the sketch: Copy the MCU code above and paste it into the sketch file.
- Install the library: Click the Add sketch library button (the open book icon with a + sign) in the left sidebar.
- Search for Adafruit SSD1306 created by Adafruit and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Upload: Click the Run button in Arduino App Lab to compile and upload to the STM32.
Look at the OLED — it shows "Hello, World!", "DIYables", and "OLED 128x64 SSD1306"!
Arduino UNO Q Code — Display Text on SSD1306 OLED
This example demonstrates different text sizes and how to display integers, floats, and hexadecimal numbers on the OLED.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
// ── Text size demo ──
oled.clearDisplay();
oled.setTextColor(WHITE);
oled.setTextSize(1);
oled.setCursor(0, 0);
oled.println(F("Size 1: Arduino"));
oled.setTextSize(2);
oled.setCursor(0, 16);
oled.println(F("Size 2"));
oled.setTextSize(3);
oled.setCursor(0, 40);
oled.println(F("S3"));
oled.display();
delay(3000);
// ── Integer ──
oled.clearDisplay();
oled.setTextSize(2);
oled.setCursor(0, 0);
oled.print(F("Int: "));
oled.println(12345);
oled.display();
delay(3000);
// ── Float ──
oled.clearDisplay();
oled.setTextSize(2);
oled.setCursor(0, 0);
oled.print(F("Float:"));
oled.setCursor(0, 24);
oled.println(3.14);
oled.display();
delay(3000);
// ── Hexadecimal ──
oled.clearDisplay();
oled.setTextSize(2);
oled.setCursor(0, 0);
oled.print(F("Hex: "));
oled.println(255, HEX);
oled.display();
delay(3000);
}
void loop() {}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED cycles through text size demos, then shows an integer, a float, and a hex number.
Useful Display Functions Reference
Quick reference for commonly-used SSD1306 OLED functions:
- oled.clearDisplay() — erase the frame buffer (all pixels off)
- oled.display() — push the buffer to the screen — required after every drawing call
- oled.drawPixel(x, y, color) — set or clear a single pixel
- oled.setTextSize(n) — scale the font by factor *n* (1 = 6×8 px, 2 = 12×16 px, …)
- oled.setCursor(x, y) — move the text cursor to pixel coordinates *(x, y)*
- oled.setTextColor(WHITE) — text foreground only (transparent background)
- oled.setTextColor(BLACK, WHITE) — text with explicit background
- oled.println("message") — print a string and advance to the next line
- oled.println(number) — print an integer in decimal
- oled.println(number, HEX) — print an integer in hexadecimal
- oled.startscrollright(start, stop) — hardware-scroll right between pages
- oled.startscrollleft(start, stop) — hardware-scroll left
- oled.startscrolldiagright(start, stop) — diagonal scroll right
- oled.startscrolldiagleft(start, stop) — diagonal scroll left
- oled.stopscroll() — stop any active hardware scroll
- oled.setContrast(value) — adjust brightness (0–255)
- oled.dim(true/false) — quick dim toggle
- oled.invertDisplay(true/false) — hardware-level color inversion
Arduino UNO Q Code — Draw Shapes on SSD1306 OLED
The Adafruit SSD1306 library inherits from Adafruit_GFX, giving you pixels, lines, rectangles, circles, triangles, and rounded rectangles. The sketch below cycles through all of them.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
oled.clearDisplay();
oled.display();
}
void loop() {
// ── Single pixel ──
oled.clearDisplay();
for (int i = 0; i < SCREEN_WIDTH; i += 4)
oled.drawPixel(i, SCREEN_HEIGHT / 2, WHITE);
oled.display();
delay(2000);
// ── Lines ──
oled.clearDisplay();
oled.drawLine(0, 0, SCREEN_WIDTH - 1, SCREEN_HEIGHT - 1, WHITE);
oled.drawLine(SCREEN_WIDTH - 1, 0, 0, SCREEN_HEIGHT - 1, WHITE);
oled.display();
delay(2000);
// ── Rectangle ──
oled.clearDisplay();
oled.drawRect(10, 10, 108, 44, WHITE);
oled.display();
delay(2000);
// ── Filled rectangle ──
oled.clearDisplay();
oled.fillRect(10, 10, 108, 44, WHITE);
oled.display();
delay(2000);
// ── Rounded rectangle ──
oled.clearDisplay();
oled.drawRoundRect(10, 10, 108, 44, 8, WHITE);
oled.display();
delay(2000);
// ── Filled rounded rectangle ──
oled.clearDisplay();
oled.fillRoundRect(10, 10, 108, 44, 8, WHITE);
oled.display();
delay(2000);
// ── Circle ──
oled.clearDisplay();
oled.drawCircle(SCREEN_WIDTH / 2, SCREEN_HEIGHT / 2, 28, WHITE);
oled.display();
delay(2000);
// ── Filled circle ──
oled.clearDisplay();
oled.fillCircle(SCREEN_WIDTH / 2, SCREEN_HEIGHT / 2, 28, WHITE);
oled.display();
delay(2000);
// ── Triangle ──
oled.clearDisplay();
oled.drawTriangle(64, 4, 10, 60, 118, 60, WHITE);
oled.display();
delay(2000);
// ── Filled triangle ──
oled.clearDisplay();
oled.fillTriangle(64, 4, 10, 60, 118, 60, WHITE);
oled.display();
delay(2000);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
Watch the OLED cycle through every shape — pixels, lines, rectangles, circles, rounded rectangles, and triangles!
Arduino UNO Q Code — Hardware Scrolling on SSD1306 OLED
The SSD1306 has a built-in hardware scrolling engine that moves content without any CPU work. The library provides four scroll directions: right, left, diagonal-right, and diagonal-left.
※ NOTE THAT:
Always call oled.display() to transfer your content to the OLED before starting a scroll. Call stopscroll() before drawing new content.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
oled.clearDisplay();
oled.setTextSize(2);
oled.setTextColor(WHITE);
oled.setCursor(10, 24);
oled.println(F("DIYables"));
oled.display();
}
void loop() {
// Scroll right
oled.startscrollright(0x00, 0x07);
delay(3000);
oled.stopscroll();
delay(500);
// Scroll left
oled.startscrollleft(0x00, 0x07);
delay(3000);
oled.stopscroll();
delay(500);
// Diagonal scroll right
oled.startscrolldiagright(0x00, 0x07);
delay(3000);
oled.stopscroll();
delay(500);
// Diagonal scroll left
oled.startscrolldiagleft(0x00, 0x07);
delay(3000);
oled.stopscroll();
delay(500);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED scrolls "DIYables" right, left, diagonal-right, and diagonal-left, repeating forever.
Arduino UNO Q Code — Display Bitmap Image on SSD1306 OLED
To display a bitmap on the SSD1306 OLED, you must first convert your image into a C byte array. Use the free Image to Bitmap Converter tool:
- Upload your image file (PNG, JPG, BMP, etc.).
- Set the canvas size to 128×64 (or smaller).
- Select Arduino code as the output format.
- Copy the generated array into your sketch.
The sketch below shows a 16×16 heart icon then switches to the full 128×64 Arduino icon — both stored as byte arrays in the code:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
// 16x16 heart bitmap
const unsigned char heart16x16[] PROGMEM = {
0x00, 0x00, 0x03, 0xc0, 0x0f, 0xf0, 0x1f, 0xf8, 0x3f, 0xfc, 0x7f, 0xfe,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x7f, 0xfe, 0x3f, 0xfc,
0x1f, 0xf8, 0x0f, 0xf0, 0x03, 0xc0, 0x00, 0x00
};
// 128x64 Arduino icon bitmap
const unsigned char ArduinoIcon[] PROGMEM = {
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff,
0xff, 0xff, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xff, 0xff,
0xff, 0xff, 0x80, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x07, 0xff, 0xff,
0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x01, 0xff, 0xff,
0xff, 0xfc, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff,
0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff,
0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff,
0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff,
0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff,
0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff,
0xfc, 0x00, 0x00, 0xff, 0xf0, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x00, 0x00, 0xff,
0xfc, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x00, 0x7f, 0xf8, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0xff,
0xf8, 0x00, 0x0f, 0xff, 0xff, 0x00, 0x00, 0x3f, 0xf0, 0x00, 0x03, 0xff, 0xff, 0xc0, 0x00, 0x7f,
0xf0, 0x00, 0x1f, 0xff, 0xff, 0xc0, 0x00, 0x1f, 0xe0, 0x00, 0x0f, 0xff, 0xff, 0xe0, 0x00, 0x7f,
0xf0, 0x00, 0x7f, 0xff, 0xff, 0xe0, 0x00, 0x0f, 0xc0, 0x00, 0x1f, 0xff, 0xff, 0xf8, 0x00, 0x3f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x07, 0x80, 0x00, 0x7f, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x03, 0x80, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xc0, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x03, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x1f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x07, 0xff, 0xf0, 0x7f, 0xff, 0x00, 0x0f,
0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x0f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x0f,
0x80, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x03, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xfe, 0x00, 0x01, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x01, 0xff, 0xff, 0xe0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0x80, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x80, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xe0, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x03, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x1f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x07, 0x80, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xe0, 0x00, 0x7f, 0xff, 0xff, 0xf0, 0x00, 0x0f, 0xc0, 0x00, 0x3f, 0xff, 0xff, 0xf8, 0x00, 0x3f,
0xf0, 0x00, 0x3f, 0xff, 0xff, 0xe0, 0x00, 0x1f, 0xe0, 0x00, 0x1f, 0xff, 0xff, 0xf0, 0x00, 0x3f,
0xf8, 0x00, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x3f, 0xe0, 0x00, 0x07, 0xff, 0xff, 0xe0, 0x00, 0x7f,
0xf8, 0x00, 0x0f, 0xff, 0xff, 0x00, 0x00, 0x7f, 0xf8, 0x00, 0x03, 0xff, 0xff, 0xc0, 0x00, 0x7f,
0xfc, 0x00, 0x03, 0xff, 0xf8, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0xff,
0xfe, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x01, 0xff,
0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff,
0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff,
0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff,
0xff, 0xf8, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff,
0xff, 0xfc, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff,
0xff, 0xff, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x03, 0xff, 0xff,
0xff, 0xff, 0xc0, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x0f, 0xff, 0xff,
0xff, 0xff, 0xf0, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x3f, 0xff, 0xff,
0xff, 0xff, 0xff, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff
};
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
// Show heart icon centered
oled.clearDisplay();
oled.drawBitmap(
(SCREEN_WIDTH - 16) / 2,
(SCREEN_HEIGHT - 16) / 2,
heart16x16, 16, 16, WHITE);
oled.display();
delay(3000);
// Show full Arduino icon
oled.clearDisplay();
oled.drawBitmap(0, 0, ArduinoIcon, SCREEN_WIDTH, SCREEN_HEIGHT, WHITE);
oled.display();
}
void loop() {}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED shows the heart icon for 3 seconds, then switches to the Arduino icon.
※ NOTE THAT:
Bitmap dimensions must not exceed the screen resolution (128×64).
Arduino UNO Q Code — Contrast and Dim on SSD1306 OLED
The SSD1306 supports 256 contrast levels (0–255). Use setContrast() for fine control and dim() for a quick brightness toggle.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
// Draw a checkerboard test pattern
oled.clearDisplay();
for (int x = 0; x < SCREEN_WIDTH; x += 8)
for (int y = 0; y < SCREEN_HEIGHT; y += 8)
if ((x / 8 + y / 8) % 2 == 0)
oled.fillRect(x, y, 8, 8, WHITE);
oled.display();
delay(2000);
}
void loop() {
// Ramp up: 0 → 255
for (int c = 0; c <= 255; c += 5) {
oled.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Ramp down: 255 → 0
for (int c = 255; c >= 0; c -= 5) {
oled.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Quick dim toggle
oled.dim(true); // minimum brightness
delay(2000);
oled.dim(false); // restore
delay(2000);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
Watch the OLED brightness ramp up then down, followed by a dim-on/dim-off cycle.
Arduino UNO Q Code — Custom External Fonts on SSD1306 OLED
The Adafruit GFX library includes many FreeFont typefaces (Serif, Sans, Mono — in multiple sizes). Use them by including the font header and calling setFont().
※ NOTE THAT:
When an external font is active, the cursor Y coordinate refers to the text baseline, not the top-left corner. This differs from the built-in 5×7 font.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <Fonts/FreeSerif9pt7b.h>
#include <Fonts/FreeSansBold12pt7b.h>
#include <Fonts/FreeMono9pt7b.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
void setup() {
Monitor.begin(9600);
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println(F("SSD1306 allocation failed"));
for (;;);
}
delay(2000);
oled.clearDisplay();
oled.display();
}
void loop() {
// ── Built-in 5×7 font ──
oled.clearDisplay();
oled.setFont(NULL);
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 0);
oled.println(F("Built-in 5x7 font"));
oled.println();
oled.setTextSize(2);
oled.println(F("DIYables"));
oled.display();
delay(3000);
// ── FreeSerif 9pt ──
oled.clearDisplay();
oled.setFont(&FreeSerif9pt7b);
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 14); // Y = baseline
oled.println(F("FreeSerif 9pt"));
oled.setCursor(0, 38);
oled.println(F("DIYables OLED"));
oled.setCursor(0, 58);
oled.println(F("Hello World!"));
oled.display();
delay(3000);
// ── FreeSansBold 12pt ──
oled.clearDisplay();
oled.setFont(&FreeSansBold12pt7b);
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 20);
oled.println(F("SansBold"));
oled.setCursor(0, 52);
oled.println(F("DIYables"));
oled.display();
delay(3000);
// ── FreeMono 9pt ──
oled.clearDisplay();
oled.setFont(&FreeMono9pt7b);
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 14);
oled.println(F("FreeMono 9pt"));
oled.setCursor(0, 34);
oled.println(F("0123456789"));
oled.setCursor(0, 54);
oled.println(F("!@#$%^&*()"));
oled.display();
delay(3000);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED cycles through the built-in font, FreeSerif 9pt, FreeSansBold 12pt, and FreeMono 9pt.
Linux + MCU Bridge Programming
The Arduino UNO Q has two processors that work together: the MPU (Qualcomm, runs Debian Linux) and the MCU (STM32, runs Zephyr OS with your Arduino sketch). They communicate using RPC via the Arduino_RouterBridge library — never via raw serial ports.
- The OLED is connected to the MCU (STM32) — via I2C (SCL/SDA). Only the MCU can directly drive it.
- The MPU cannot control the OLED directly — it calls Bridge.call("display_text", "text") on the MCU, which updates the display and prints the result to Monitor.
- The MPU has Wi-Fi — because the MPU runs full Debian Linux with Wi-Fi, it can receive Telegram commands and display any message on the OLED remotely.
- Communication: Bridge.call() on the Linux side invokes Bridge.provide_safe() functions on the MCU side (since OLED display writes are hardware API calls).
- ⚠️ Reserved: /dev/ttyHS1 (Linux) and Serial1 (MCU) are used by the Arduino Router — never open them directly.
In short: MPU sends text via Bridge → MCU updates OLED → MCU prints result to Monitor.
MCU sketch — OLED 128x64 with Bridge and Monitor output:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
#include "Arduino_RouterBridge.h"
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 oled(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);
String current_text = "";
void display_text(String text) {
current_text = text;
oled.clearDisplay();
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 0);
oled.println(text);
oled.display();
Monitor.println("OLED: " + text);
}
void clear_oled() {
current_text = "";
oled.clearDisplay();
oled.display();
Monitor.println("OLED cleared");
}
void get_status() {
Monitor.println("Text: " + current_text);
}
void setup() {
Bridge.begin();
Monitor.begin();
if (!oled.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Monitor.println("OLED init failed");
while (true);
}
delay(1000);
oled.clearDisplay();
oled.setTextSize(1);
oled.setTextColor(WHITE);
oled.setCursor(0, 0);
oled.println("Bridge Ready");
oled.display();
Bridge.provide_safe("display_text", display_text);
Bridge.provide_safe("clear_oled", clear_oled);
Bridge.provide("get_status", get_status);
Monitor.println("OLED 128x64 Bridge ready");
}
void loop() {}
Python script (Arduino App Lab) — display text on OLED from Linux:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
from arduino.app_utils import *
import time
def loop():
result = Bridge.call("display_text", "Hello UNO Q\nOLED 128x64\nPython Bridge")
print(result)
time.sleep(3)
result = Bridge.call("clear_oled")
print(result)
time.sleep(1)
result = Bridge.call("display_text", "DIYables.io")
print(result)
time.sleep(3)
App.run(user_loop=loop)
Detailed Instructions
- Create a new App: Open Arduino App Lab, click Create New App, name it DIYables_OLED_128x64_Bridge, and click Create.
- Paste the MCU sketch: Copy the Bridge MCU code above and paste it into sketch/sketch.ino.
- Paste the Python script: Copy the Python code above and paste it into the Python file in the App.
- Install the library: Click the Add sketch library button (the open book icon with a + sign) in the left sidebar.
- Search for Adafruit SSD1306 created by Adafruit and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Search for Arduino_RouterBridge created by Arduino and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Run the App: Click the Run button — the Python side cycles through messages on the OLED.
App Lab Console Output
sketch.ino
1#include "Arduino_RouterBridge.h"
Serial Monitor
Python
OLED 128x64 Bridge ready
OLED: Hello UNO Q
OLED cleared
OLED: DIYables.io
Telegram Integration
Display any text on your OLED remotely from anywhere via Telegram.
If you do not have a Telegram bot yet, see How to Create a Telegram Bot to get your bot token before continuing.
MCU sketch: Keep the same MCU sketch from the previous Bridge section — no changes needed. Make sure it is already uploaded and running on the STM32 before proceeding.
Python script (Arduino App Lab) — Telegram bot for OLED 128x64:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-oled-128x64
*/
from arduino.app_utils import *
import requests
import time
BOT_TOKEN = "YOUR_BOT_TOKEN"
API_URL = f"https://api.telegram.org/bot{BOT_TOKEN}"
last_update_id = 0
def send_message(chat_id, text):
requests.post(f"{API_URL}/sendMessage", json={"chat_id": chat_id, "text": text})
def get_updates():
global last_update_id
resp = requests.get(f"{API_URL}/getUpdates", params={"offset": last_update_id + 1, "timeout": 5})
return resp.json().get("result", [])
def loop():
global last_update_id
updates = get_updates()
for update in updates:
last_update_id = update["update_id"]
msg = update.get("message", {})
chat_id = msg.get("chat", {}).get("id")
text = msg.get("text", "").strip()
if text.startswith("/display "):
content = text[9:]
result = Bridge.call("display_text", content)
print(f"[Telegram] /display: {content}")
send_message(chat_id, result)
elif text == "/clear":
result = Bridge.call("clear_oled")
print(f"[Telegram] /clear")
send_message(chat_id, result)
elif text == "/status":
result = Bridge.call("get_status")
print(f"[Telegram] /status: {result}")
send_message(chat_id, result)
else:
send_message(chat_id, "Commands:\n/display <text> — show text on OLED\n/clear — clear the OLED\n/status — show current OLED content")
App.run(user_loop=loop)
- Note: Replace YOUR_BOT_TOKEN with the token obtained from @BotFather on Telegram.
- Send /display Hello World — the text appears on the OLED.
- Send /clear — the OLED screen is cleared.
- Send /status — the bot replies with the current OLED content.
Detailed Instructions
- Upload the MCU sketch: Use the Bridge MCU sketch from the previous section.
- Paste the Telegram script: Copy the Python code above into the Python tab.
- Set your token: Replace YOUR_BOT_TOKEN with your actual bot token.
- Run the App: Click Run — the bot starts listening for Telegram commands.
- Test it: Send /display Arduino UNO Q — the text should appear on the OLED.
App Lab Console Output
sketch.ino
1#include "Arduino_RouterBridge.h"
Serial Monitor
Python
[2026-04-29 12:00:01] Telegram: /display Arduino UNO Q
[2026-04-29 12:00:01] OLED: Arduino UNO Q
[2026-04-29 12:05:10] Telegram: /status
[2026-04-29 12:05:10] Text: Arduino UNO Q
[2026-04-29 12:10:20] Telegram: /clear
[2026-04-29 12:10:20] OLED cleared
Telegram
12:45
Welcome to Telegram!
ArduinoBot
10:19
Chatting with Arduino...
BotFather
Yesterday
Your bot has been created.
ArduinoBot
bot
OpenClaw Integration
OpenClaw integration for Arduino UNO Q OLED 128x64 is coming soon.
- Coming Soon: OpenClaw support for OLED 128x64 on Arduino UNO Q will be covered in a future update.
Application/Project Ideas
- Compact sensor display: Show temperature, humidity, or distance readings in a small footprint for wearable or embedded projects
- Remote status board: Push alert messages to the OLED via Telegram when a sensor threshold is exceeded
- Wi-Fi signal meter: Display the MPU's Wi-Fi signal strength and connected network name on the OLED
- Stopwatch / timer: Use the OLED to display a millisecond-accurate timer controlled via Telegram start/stop commands
- Custom icon display: Draw a battery icon or signal bars on the OLED using drawRect, fillRect, and drawBitmap
Challenge Yourself
- Easy: Modify the Telegram bot to support /big <text> which displays text at font size 2 (larger characters)
- Medium: Add center-alignment: calculate (SCREEN_WIDTH - textWidth) / 2 and use that as the x cursor position
- Advanced: Display a real-time clock on the OLED — fetch current time from the MPU's Linux clock via Bridge and update every second
