Arduino UNO Q - SSD1309 OLED Display
This tutorial shows you how to use a 2.42-inch SSD1309 OLED 128x64 display with Arduino UNO Q — from basic text and graphics all the way to remote control via Telegram.
- How to connect an SSD1309 OLED 128x64 to Arduino UNO Q
- How to display text and numbers using the DIYables_OLED_SSD1309 library
- How to draw shapes (lines, rectangles, circles, triangles) on the OLED
- How to use hardware scrolling in multiple directions
- How to display bitmap images on the OLED
- How to control brightness and contrast
- How to use custom external fonts
- How to control the OLED remotely from Telegram via Bridge programming
Hardware Preparation
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Overview of the SSD1309 2.42-Inch OLED Display
The SSD1309 is a 128×64 OLED driver IC commonly found on 2.42-inch (sometimes labeled 2.4-inch) I2C OLED modules. It is register-compatible with the SSD1306, but uses an external VCC rail (handled transparently by the breakout board's onboard boost converter). Key characteristics:
- Resolution: 128 × 64 pixels
- Interface: I2C (only 4 wires needed)
- Display color: White, blue, or yellow depending on the OLED material — not software-controllable
- Viewing angle: Wide, self-emitting pixels — deep blacks, no backlight needed
- Library: Uses DIYables_OLED_SSD1309 (extends Adafruit GFX)
SSD1309 OLED Pinout
- GND — connect to GND
- VCC — connect to 5V
- SCL — I2C clock signal
- SDA — I2C data signal
※ NOTE THAT:
Pin order may differ between manufacturers. Always use the labels printed on the OLED module.

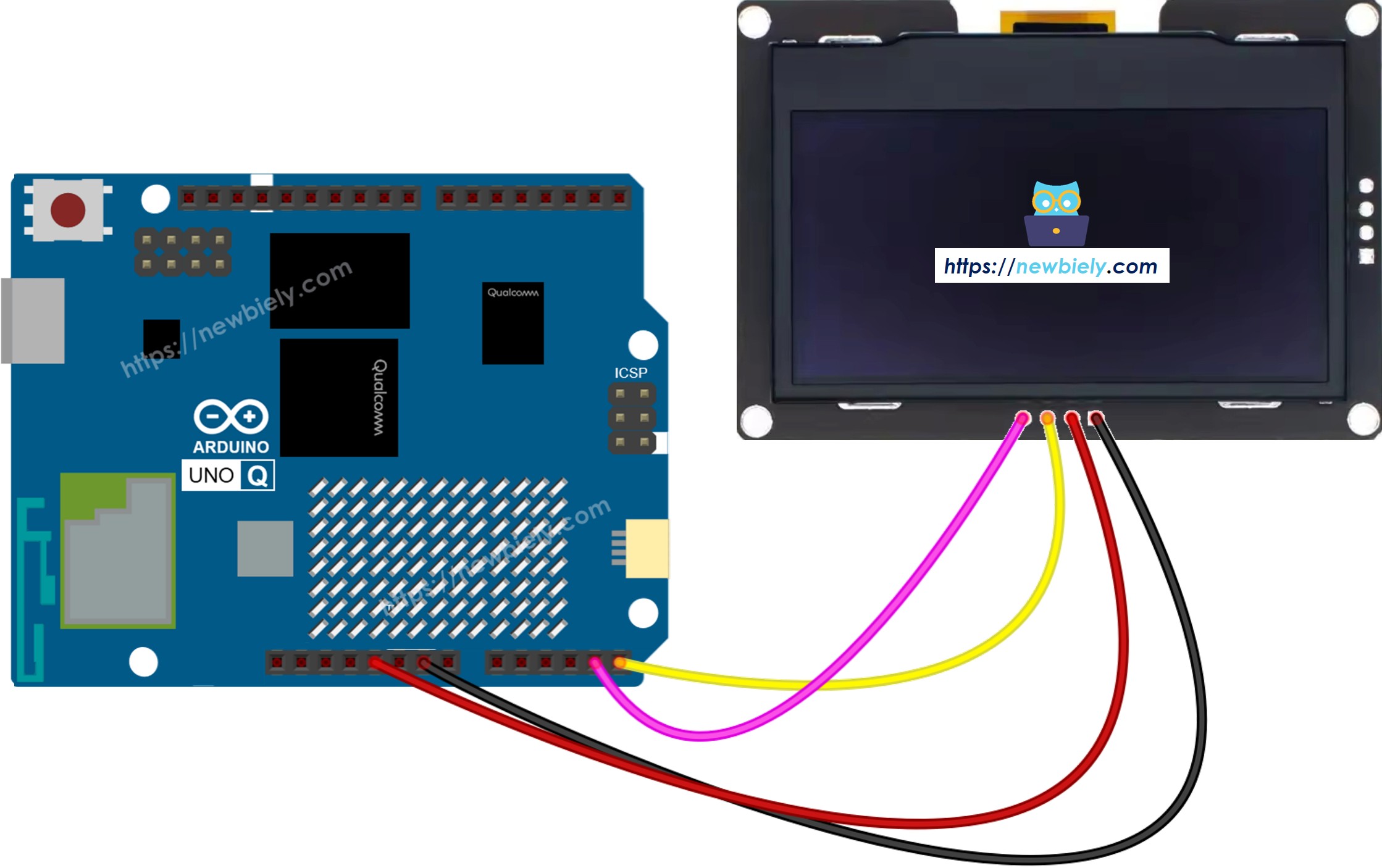

Wiring Diagram
This image is created using Fritzing. Click to enlarge image
| OLED Pin | Arduino UNO Q Pin |
|---|---|
| GND | GND |
| VCC | 5V |
| SCL | SCL |
| SDA | SDA |
How To Program the SSD1309 OLED
- Include the libraries:
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
- Create the display object:
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
- Initialize in setup():
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
while (true); // halt if display not found
}
display.clearDisplay();
- Display text:
display.setTextSize(2);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println("Hello!");
display.display(); // push buffer to screen — required!
※ NOTE THAT:
Always call display.display() after drawing commands to push the buffer to the physical screen.
Arduino UNO Q Code — Hello World on SSD1309 OLED
The Arduino UNO Q has two processors: the STM32 MCU (handles real-time hardware control) and the Qualcomm MPU (runs Debian Linux). In this section, only the STM32 MCU is programmed — the Linux side stays idle. A later section will show how both processors work together.
The sketch below displays text in two different sizes on the OLED.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.setTextSize(1); // 6x8 pixels per character
display.setTextColor(SSD1309_PIXEL_ON); // turn pixels on
display.setCursor(0, 0);
display.println(F("Hello, World!"));
display.println();
display.setTextSize(2); // 12x16 pixels per character
display.println(F("DIYables"));
display.setTextSize(1);
display.println();
display.println(F("SSD1309 OLED 128x64"));
display.display(); // push buffer to screen
}
void loop() {}
Detailed Instructions
- First time with Arduino UNO Q? Follow the Getting Started with Arduino UNO Q tutorial to get your development environment ready before proceeding.
- Wire the OLED: Connect GND→GND, VCC→5V, SCL→SCL, SDA→SDA.
- Connect: Plug the Arduino UNO Q into your computer with a USB-C cable.
- Open Arduino App Lab: Launch Arduino App Lab and wait until it detects your Arduino UNO Q.
- Create a new App: Click the Create New App button.
- Give the App a name, for example: DIYables_SSD1309
- Click Create to confirm.
- You will see a set of folders and files generated inside your new App.
- Find the sketch/sketch.ino file — this is where you will paste the MCU sketch.
Paste the sketch: Copy the MCU code above and paste it into the sketch file.
- Install the library: Click the Add sketch library button (the open book icon with a + sign) in the left sidebar.
- Search for DIYables_OLED_SSD1309 created by DIYables and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Upload: Click the Run button in Arduino App Lab to compile and upload to the STM32.
Look at the OLED — it shows "Hello, World!", "DIYables", and "SSD1309 OLED 128x64"!
Arduino UNO Q Code — Display Text on SSD1309 OLED
This example demonstrates different text sizes and how to display integers, floats, and hexadecimal numbers on the OLED.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
delay(2000);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 10);
display.println(F("Text size = 1"));
display.display();
delay(2000);
display.setTextSize(2);
display.setCursor(0, 30);
display.println(F("Size = 2"));
display.display();
delay(2000);
display.clearDisplay();
display.setTextSize(1);
display.setCursor(0, 0);
display.println(F("Display integer:"));
display.println(12345);
display.println();
display.println(F("Display float:"));
display.println(1.2345);
display.println();
display.println(F("Display HEX:"));
display.println(0xABCD, HEX);
display.display();
}
void loop() {}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED cycles through text size demos, then shows an integer, a float, and a hex number.
Useful Display Functions Reference
Quick reference for commonly-used SSD1309 OLED functions:
- display.clearDisplay() — erase the frame buffer (all pixels off)
- display.display() — push the buffer to the screen — required after every drawing call
- display.drawPixel(x, y, color) — set or clear a single pixel
- display.setTextSize(n) — scale the font by factor *n* (1 = 6×8 px, 2 = 12×16 px, …)
- display.setCursor(x, y) — move the text cursor to pixel coordinates *(x, y)*
- display.setTextColor(SSD1309_PIXEL_ON) — text foreground only (transparent background)
- display.setTextColor(SSD1309_PIXEL_OFF, SSD1309_PIXEL_ON) — text with explicit background
- display.println("message") — print a string and advance to the next line
- display.println(number) — print an integer in decimal
- display.println(number, HEX) — print an integer in hexadecimal
- display.startscrollright(start, stop) — hardware-scroll right between pages
- display.startscrollleft(start, stop) — hardware-scroll left
- display.startscrolldiagright(start, stop) — diagonal scroll right
- display.startscrolldiagleft(start, stop) — diagonal scroll left
- display.stopscroll() — stop any active hardware scroll
- display.setContrast(value) — adjust brightness (0–255)
- display.dim(true/false) — quick dim toggle
- display.invertDisplay(true/false) — hardware-level color inversion
Arduino UNO Q Code — Draw Shapes on SSD1309 OLED
The DIYables_OLED_SSD1309 library inherits from Adafruit_GFX, giving you pixels, lines, rectangles, filled rectangles, circles, filled circles, triangles, filled triangles, and rounded rectangles. The sketch below cycles through all of them.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
}
void loop() {
// --- Pixels ---
display.clearDisplay();
for (int16_t i = 0; i < display.width(); i += 4) {
display.drawPixel(i, i * display.height() / display.width(), SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Lines ---
display.clearDisplay();
for (int16_t i = 0; i < display.width(); i += 8) {
display.drawLine(0, 0, i, display.height() - 1, SSD1309_PIXEL_ON);
}
for (int16_t i = 0; i < display.height(); i += 8) {
display.drawLine(0, 0, display.width() - 1, i, SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Rectangles ---
display.clearDisplay();
for (int16_t i = 0; i < display.height() / 2; i += 4) {
display.drawRect(i, i, display.width() - 2 * i, display.height() - 2 * i,
SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Filled rectangles (inverse) ---
display.clearDisplay();
for (int16_t i = 0; i < display.height() / 2; i += 6) {
display.fillRect(i, i, display.width() - 2 * i, display.height() - 2 * i,
SSD1309_PIXEL_INVERSE);
}
display.display();
delay(1500);
// --- Circles ---
display.clearDisplay();
for (int16_t i = max(display.width(), display.height()) / 2; i > 0; i -= 5) {
display.drawCircle(display.width() / 2, display.height() / 2, i,
SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Filled circles (inverse) ---
display.clearDisplay();
for (int16_t i = max(display.width(), display.height()) / 2; i > 0; i -= 6) {
display.fillCircle(display.width() / 2, display.height() / 2, i,
SSD1309_PIXEL_INVERSE);
}
display.display();
delay(1500);
// --- Rounded rectangles ---
display.clearDisplay();
for (int16_t i = 0; i < display.height() / 2 - 2; i += 4) {
display.drawRoundRect(i, i, display.width() - 2 * i,
display.height() - 2 * i, display.height() / 4,
SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Filled rounded rectangles (inverse) ---
display.clearDisplay();
for (int16_t i = 0; i < display.height() / 2 - 2; i += 4) {
display.fillRoundRect(i, i, display.width() - 2 * i,
display.height() - 2 * i, display.height() / 4,
SSD1309_PIXEL_INVERSE);
}
display.display();
delay(1500);
// --- Triangles ---
display.clearDisplay();
for (int16_t i = 0; i < max(display.width(), display.height()) / 2; i += 5) {
display.drawTriangle(
display.width() / 2, display.height() / 2 - i,
display.width() / 2 - i, display.height() / 2 + i,
display.width() / 2 + i, display.height() / 2 + i, SSD1309_PIXEL_ON);
}
display.display();
delay(1500);
// --- Filled triangles (inverse) ---
display.clearDisplay();
for (int16_t i = max(display.width(), display.height()) / 2; i > 0; i -= 6) {
display.fillTriangle(
display.width() / 2, display.height() / 2 - i,
display.width() / 2 - i, display.height() / 2 + i,
display.width() / 2 + i, display.height() / 2 + i, SSD1309_PIXEL_INVERSE);
}
display.display();
delay(1500);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
Watch the OLED cycle through every shape — pixels, lines, rectangles, circles, rounded rectangles, and triangles!
Arduino UNO Q Code — Hardware Scrolling on SSD1309 OLED
The SSD1309 has a built-in hardware scrolling engine that moves content without any CPU work. The library provides four scroll directions: right, left, diagonal-right, and diagonal-left.
※ NOTE THAT:
Always call display.display() to transfer your content to the OLED before starting a scroll. Call stopscroll() before drawing new content.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.setTextSize(2);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(10, 24);
display.println(F("DIYables"));
display.display();
delay(2000);
}
void loop() {
// Scroll right across all pages
display.startscrollright(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Scroll left
display.startscrollleft(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Diagonal scroll right
display.startscrolldiagright(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Diagonal scroll left
display.startscrolldiagleft(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED scrolls "DIYables" right, left, diagonal-right, and diagonal-left, repeating forever.
Arduino UNO Q Code — Display Bitmap Image on SSD1309 OLED
To display a bitmap on the SSD1309 OLED, you must first convert your image into a C byte array. Use the free Image to Bitmap Converter tool:
- Upload your image file (PNG, JPG, BMP, etc.).
- Set the canvas size to 128×64 (or smaller).
- Select Arduino code as the output format.
- Copy the generated array into your sketch.
The sketch below shows a 16×16 heart icon then switches to the full 128×64 DIYables logo — both stored as byte arrays in the code:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
// 16x16 heart bitmap
const unsigned char heart16x16[] PROGMEM = {
0x00, 0x00, 0x03, 0xc0, 0x0f, 0xf0, 0x1f, 0xf8, 0x3f, 0xfc, 0x7f, 0xfe,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x7f, 0xfe, 0x3f, 0xfc,
0x1f, 0xf8, 0x0f, 0xf0, 0x03, 0xc0, 0x00, 0x00
};
// 128x64 DIYables logo bitmap
const unsigned char diyablesLogo[] PROGMEM = {
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x01, 0xff, 0xff, 0xff,
0xff, 0xff, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xff, 0xff,
0xff, 0xff, 0x80, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x07, 0xff, 0xff,
0xff, 0xfe, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x01, 0xff, 0xff,
0xff, 0xfc, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff,
0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff,
0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff,
0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff,
0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff,
0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff,
0xfc, 0x00, 0x00, 0xff, 0xf0, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x00, 0x00, 0xff,
0xfc, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x00, 0x7f, 0xf8, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0xff,
0xf8, 0x00, 0x0f, 0xff, 0xff, 0x00, 0x00, 0x3f, 0xf0, 0x00, 0x03, 0xff, 0xff, 0xc0, 0x00, 0x7f,
0xf0, 0x00, 0x1f, 0xff, 0xff, 0xc0, 0x00, 0x1f, 0xe0, 0x00, 0x0f, 0xff, 0xff, 0xe0, 0x00, 0x7f,
0xf0, 0x00, 0x7f, 0xff, 0xff, 0xe0, 0x00, 0x0f, 0xc0, 0x00, 0x1f, 0xff, 0xff, 0xf8, 0x00, 0x3f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x07, 0x80, 0x00, 0x7f, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x03, 0x80, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xc0, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x03, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x1f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x07, 0xff, 0xf0, 0x7f, 0xff, 0x00, 0x0f,
0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x0f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x0f,
0x80, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x03, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xfe, 0x00, 0x01, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xfe, 0x00, 0x00, 0xff, 0xff, 0x00, 0x03, 0xff, 0xfc, 0x00, 0x01, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x01, 0xff, 0xff, 0xe0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x7f, 0xff, 0xf0, 0x7f, 0xff, 0xc0, 0x07,
0x80, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x3f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0x80, 0x07, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x1f, 0xff, 0xf0, 0x7f, 0xff, 0x80, 0x07,
0xc0, 0x07, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x80, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xc0, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0x00, 0x0f,
0xe0, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x03, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x1f,
0xe0, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x07, 0x80, 0x00, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x1f,
0xe0, 0x00, 0x7f, 0xff, 0xff, 0xf0, 0x00, 0x0f, 0xc0, 0x00, 0x3f, 0xff, 0xff, 0xf8, 0x00, 0x3f,
0xf0, 0x00, 0x3f, 0xff, 0xff, 0xe0, 0x00, 0x1f, 0xe0, 0x00, 0x1f, 0xff, 0xff, 0xf0, 0x00, 0x3f,
0xf8, 0x00, 0x1f, 0xff, 0xff, 0x80, 0x00, 0x3f, 0xe0, 0x00, 0x07, 0xff, 0xff, 0xe0, 0x00, 0x7f,
0xf8, 0x00, 0x0f, 0xff, 0xff, 0x00, 0x00, 0x7f, 0xf8, 0x00, 0x03, 0xff, 0xff, 0xc0, 0x00, 0x7f,
0xfc, 0x00, 0x03, 0xff, 0xf8, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0x00, 0x00, 0xff,
0xfe, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x01, 0xff, 0xfe, 0x00, 0x00, 0x1f, 0xf8, 0x00, 0x01, 0xff,
0xfe, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x03, 0xff,
0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x07, 0xff,
0xff, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff,
0xff, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xff,
0xff, 0xf8, 0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x7f, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff
};
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
// Show heart icon centered
display.clearDisplay();
display.drawBitmap(
(SCREEN_WIDTH - 16) / 2,
(SCREEN_HEIGHT - 16) / 2,
heart16x16, 16, 16, SSD1309_PIXEL_ON);
display.display();
delay(3000);
// Show full DIYables logo
display.clearDisplay();
display.drawBitmap(0, 0, diyablesLogo, SCREEN_WIDTH, SCREEN_HEIGHT, SSD1309_PIXEL_ON);
display.display();
}
void loop() {}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED shows the heart icon for 3 seconds, then switches to the DIYables logo.
※ NOTE THAT:
Bitmap dimensions must not exceed the screen resolution (128×64).
Arduino UNO Q Code — Contrast and Dim on SSD1309 OLED
The SSD1309 supports 256 contrast levels (0–255). Use setContrast() for fine control and dim() for a quick brightness toggle.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
// Draw a test pattern so the contrast change is visible
display.clearDisplay();
display.fillRect(0, 0, 64, 32, SSD1309_PIXEL_ON);
display.fillRect(64, 32, 64, 32, SSD1309_PIXEL_ON);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_INVERSE);
display.setCursor(16, 28);
display.println(F("Contrast Demo"));
display.display();
delay(2000);
}
void loop() {
// Ramp up
for (int c = 0; c <= 255; c += 5) {
display.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Ramp down
for (int c = 255; c >= 0; c -= 5) {
display.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Quick dim toggle
display.dim(true); // minimum brightness
delay(2000);
display.dim(false); // restore
delay(2000);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
Watch the OLED brightness ramp up then down, followed by a dim-on/dim-off cycle.
Arduino UNO Q Code — Custom External Fonts on SSD1309 OLED
The Adafruit GFX library includes many FreeFont typefaces (Serif, Sans, Mono — in multiple sizes). Use them by including the font header and calling setFont().
※ NOTE THAT:
When an external font is active, the cursor Y coordinate refers to the text baseline, not the top-left corner. This differs from the built-in 5×7 font.
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
// COPYRIGHT newbiely.com
// AUTHOR: newbiely
// This code is made available for public use without restriction.
// For complete instructions, tutorials, and further information, visit:
// https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#include <Fonts/FreeSerif9pt7b.h>
#include <Fonts/FreeSansBold12pt7b.h>
#include <Fonts/FreeMono9pt7b.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Monitor.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.display();
}
void loop() {
// ── Built-in 5×7 font ──
display.clearDisplay();
display.setFont(NULL);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println(F("Built-in 5x7 font"));
display.println();
display.setTextSize(2);
display.println(F("DIYables"));
display.display();
delay(3000);
// ── FreeSerif 9pt ──
display.clearDisplay();
display.setFont(&FreeSerif9pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 14); // Y = baseline
display.println(F("FreeSerif 9pt"));
display.setCursor(0, 38);
display.println(F("DIYables OLED"));
display.setCursor(0, 58);
display.println(F("Hello World!"));
display.display();
delay(3000);
// ── FreeSansBold 12pt ──
display.clearDisplay();
display.setFont(&FreeSansBold12pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 20);
display.println(F("SansBold"));
display.setCursor(0, 52);
display.println(F("DIYables"));
display.display();
delay(3000);
// ── FreeMono 9pt ──
display.clearDisplay();
display.setFont(&FreeMono9pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 14);
display.println(F("FreeMono 9pt"));
display.setCursor(0, 34);
display.println(F("0123456789"));
display.setCursor(0, 54);
display.println(F("!@#$%^&*()"));
display.display();
delay(3000);
}
Detailed Instructions
- Copy the code above and paste it into sketch/sketch.ino.
- Click the Run button in Arduino App Lab.
The OLED cycles through the built-in font, FreeSerif 9pt, FreeSansBold 12pt, and FreeMono 9pt.
Linux + MCU Bridge Programming
The Arduino UNO Q has two processors that work together: the MPU (Qualcomm, runs Debian Linux) and the MCU (STM32, runs Zephyr OS with your Arduino sketch). They communicate using RPC via the Arduino_RouterBridge library — never via raw serial ports.
- The SSD1309 OLED is connected to the MCU (STM32) — via I2C (SCL/SDA). Only the MCU can directly drive it.
- The MPU cannot control the OLED directly — it calls Bridge.call("display_text", "text") which updates the display and prints the result to Monitor.
- The MPU has Wi-Fi — because the MPU runs full Debian Linux with Wi-Fi, it can receive Telegram commands and display any message on the OLED remotely.
- Communication: Bridge.call() on the Linux side invokes Bridge.provide_safe() functions on the MCU side (since OLED writes are hardware API calls).
- ⚠️ Reserved: /dev/ttyHS1 (Linux) and Serial1 (MCU) are used by the Arduino Router — never open them directly.
MCU sketch — SSD1309 OLED with Bridge and Monitor output:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
#include "Arduino_RouterBridge.h"
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
String current_text = "";
void display_text(String text) {
current_text = text;
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println(text);
display.display();
Monitor.println("OLED: " + text);
}
void clear_oled() {
current_text = "";
display.clearDisplay();
display.display();
Monitor.println("OLED cleared");
}
void get_status() {
Monitor.println("Text: " + current_text);
}
void setup() {
Bridge.begin();
Monitor.begin();
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Monitor.println("SSD1309 init failed");
while (true);
}
delay(1000);
display.clearDisplay();
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println("Bridge Ready");
display.display();
Bridge.provide_safe("display_text", display_text);
Bridge.provide_safe("clear_oled", clear_oled);
Bridge.provide("get_status", get_status);
Monitor.println("SSD1309 OLED Bridge ready");
}
void loop() {}
Python script (Arduino App Lab) — display text on SSD1309 OLED from Linux:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
from arduino.app_utils import *
import time
def loop():
result = Bridge.call("display_text", "Hello UNO Q\nSSD1309 OLED\n2.42 inch")
print(result)
time.sleep(3)
result = Bridge.call("clear_oled")
print(result)
time.sleep(1)
result = Bridge.call("display_text", "DIYables.io")
print(result)
time.sleep(3)
App.run(user_loop=loop)
Detailed Instructions
- Create a new App: Open Arduino App Lab, click Create New App, name it DIYables_SSD1309_Bridge, and click Create.
- Paste the MCU sketch: Copy the Bridge MCU code above and paste it into sketch/sketch.ino.
- Paste the Python script: Copy the Python code above and paste it into the Python file in the App.
- Install the library: Click the Add sketch library button (the open book icon with a + sign) in the left sidebar.
- Search for DIYables_OLED_SSD1309 created by DIYables and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Search for Arduino_RouterBridge created by Arduino and click the Install button.
Bricks
No bricks added...
Sketch Libraries
No sketch libra...
Files
python
sketch
.gitignore
README.md
app.yaml
sketch.ino
- Run the App: Click the Run button — the Python side cycles through messages on the OLED.
App Lab Console Output
sketch.ino
1#include "Arduino_RouterBridge.h"
Serial Monitor
Python
SSD1309 OLED Bridge ready
OLED: Hello UNO Q
OLED cleared
OLED: DIYables.io
Telegram Integration
Display any text on your SSD1309 OLED from anywhere via Telegram.
If you do not have a Telegram bot yet, see How to Create a Telegram Bot to get your bot token before continuing.
MCU sketch: Keep the same MCU sketch from the previous Bridge section — no changes needed. Make sure it is already uploaded and running on the STM32 before proceeding.
Python script (Arduino App Lab) — Telegram bot for SSD1309 OLED:
/*
* This Arduino UNO Q code was developed by newbiely.com
*
* This Arduino UNO Q code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-q/arduino-uno-q-ssd1309-oled-display
*/
from arduino.app_utils import *
import requests
import time
BOT_TOKEN = "YOUR_BOT_TOKEN"
API_URL = f"https://api.telegram.org/bot{BOT_TOKEN}"
last_update_id = 0
def send_message(chat_id, text):
requests.post(f"{API_URL}/sendMessage", json={"chat_id": chat_id, "text": text})
def get_updates():
global last_update_id
resp = requests.get(f"{API_URL}/getUpdates", params={"offset": last_update_id + 1, "timeout": 5})
return resp.json().get("result", [])
def loop():
global last_update_id
updates = get_updates()
for update in updates:
last_update_id = update["update_id"]
msg = update.get("message", {})
chat_id = msg.get("chat", {}).get("id")
text = msg.get("text", "").strip()
if text.startswith("/display "):
content = text[9:]
result = Bridge.call("display_text", content)
print(f"[Telegram] /display: {content}")
send_message(chat_id, result)
elif text == "/clear":
result = Bridge.call("clear_oled")
print(f"[Telegram] /clear")
send_message(chat_id, result)
elif text == "/status":
result = Bridge.call("get_status")
print(f"[Telegram] /status: {result}")
send_message(chat_id, result)
else:
send_message(chat_id, "Commands:\n/display <text> — show text on OLED\n/clear — clear the OLED\n/status — show current OLED content")
App.run(user_loop=loop)
- Note: Replace YOUR_BOT_TOKEN with the token from @BotFather on Telegram.
- Send /display Hello — appears on the OLED.
- Send /clear — clears the OLED.
- Send /status — bot replies with the current text.
App Lab Console Output
sketch.ino
1#include "Arduino_RouterBridge.h"
Serial Monitor
Python
[2026-04-29 12:00:01] Telegram: /display Arduino UNO Q
[2026-04-29 12:00:01] OLED: Arduino UNO Q
[2026-04-29 12:05:10] Telegram: /status
[2026-04-29 12:05:10] Text: Arduino UNO Q
[2026-04-29 12:10:20] Telegram: /clear
[2026-04-29 12:10:20] OLED cleared
Telegram
12:45
Welcome to Telegram!
ArduinoBot
10:19
Chatting with Arduino...
BotFather
Yesterday
Your bot has been created.
ArduinoBot
bot
OpenClaw Integration
OpenClaw integration for Arduino UNO Q SSD1309 OLED is coming soon.
- Coming Soon: OpenClaw support for SSD1309 OLED on Arduino UNO Q will be covered in a future update.
Application/Project Ideas
- Large-text alert display: Use text size 3 or 4 to show a single critical value (temperature, voltage) across the entire 2.42-inch screen
- Remote info board: Push messages to the OLED from a Telegram group to display team announcements
- Data logger status: Show the last record timestamp and row count on the OLED when the MPU writes to a CSV file
- Wi-Fi signal meter: Display MPU Wi-Fi SSID and RSSI strength on the large 2.42-inch screen
- Custom icon rendering: Use drawBitmap() to display logos or warning icons stored as byte arrays in the MCU sketch
Challenge Yourself
- Easy: Modify the sketch to use setTextSize(2) for the first line and setTextSize(1) for subsequent lines to create a title/body layout
- Medium: Add a /contrast <0-255> Telegram command that calls display.ssd1309_command(SSD1309_SETCONTRAST) followed by the value to adjust screen brightness
- Advanced: Display a real-time bar chart on the OLED using fillRect() that updates from sensor data sent from the MPU via Bridge
