Arduino Nano ESP32 - Buzzer

In this tutorial, we are going to learn how to program Arduino Nano ESP32 to control a 12V active buzzer to produce a loud sound. If you want to control 5V active/passive buzzer, please check out this Arduino Nano ESP32 Piezo Buzzer tutorial

There are two ways to drive the 12V buzzer. A relay is simple, but it clicks every time it switches. A MOSFET module does the same job with no sound, and it can switch very fast. This is good for alarm beeps. We will try both ways in this tutorial.

Hardware Preparation

1×Arduino Nano ESP32
1×USB Cable Type-A to Type-C (for USB-A PC)
1×USB Cable Type-C to Type-C (for USB-C PC)
1×Relay
1×Alternatively, MOSFET Module (AOD4184, LR7843 or FR120N)
1×12V Active Buzzer
1×12V Power Adapter
1×Optionally, DC Power Jack
1×Breadboard
1×Jumper Wires
1×Recommended: Screw Terminal Expansion Board for Arduino Nano
1×Recommended: Breakout Expansion Board for Arduino Nano
1×Recommended: Power Splitter for Arduino Nano ESP32

Or you can buy the following kits:

1×DIYables Sensor Kit (18 sensors/displays)
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .

Overview of 12V Active Buzzer

The 12V Active Buzzer can produce a loud sound, which is suitable for the alarming system.

Pinout

Arduino Nano ESP32 12V Active Buzzer Pinout

12V Active Buzzer usually has two pins:

  • Negative (-) pin (black): needs to be connected to GND of DC power supply
  • Positive (+) pin (red): needs to be connected to 12V of DC power supply

How to Control 12V Active Buzzer

If 12V active buzzer is powered by 12V power supply, it makes sound. To control a 12V active buzzer, we need to use a relay in between Arduino Nano ESP32 and 12V active buzzer. Arduino Nano ESP32 can control the 12V active buzzer via the relay. If you do not know about relay (pinout, how it works, how to program ...), learn about relay in the Arduino Nano ESP32 - Relay tutorial

The MOSFET module is the second choice. The pins, the inside and the code of the module are explained in the Arduino Nano ESP32 - MOSFET Module tutorial.

Relay vs MOSFET Module for a 12V Buzzer

Relay MOSFET Module
What it can do turn the buzzer on or off turn the buzzer on or off
Noise when switching a click every time, mixed with the beep no sound, you hear only the beep
How fast it switches slow, a few milliseconds very fast
Fast beeps the relay clicks loudly and wears out fast no problem
Life the contacts wear out after many switches nothing moves, so it lasts long
Type of power AC or DC DC only
Buzzer power supply any voltage the relay is rated for about 6V or more
Isolation from the Arduino yes, between coil and contacts yes, by the PC817 optocoupler
Good for slow ON/OFF, like ON for a few seconds alarm patterns with many short beeps

If the buzzer beeps slowly, the relay is fine. If you want an alarm with many short beeps, the MOSFET module is the better pick.

Wiring Diagram

The wiring diagram between Arduino Nano ESP32 and 12V Active Buzzer

This image is created using Fritzing. Click to enlarge image

Arduino Nano ESP32 Code

The below code repeatedly turns the 12V active buzzer ON in one seconds and OFF in two seconds,

/* * This Arduino Nano ESP32 code was developed by newbiely.com * * This Arduino Nano ESP32 code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/arduino-nano-esp32/arduino-nano-esp32-buzzer */ #define RELAY_PIN D2 // The Arduino Nano ESP32 that connects to relay to control the 12V buzzer // The setup function runs once on reset or power-up void setup() { // initialize digital pin as an output. pinMode(RELAY_PIN, OUTPUT); } void loop() { digitalWrite(RELAY_PIN, HIGH); delay(1000); digitalWrite(RELAY_PIN, LOW); delay(2000); }

Detailed Instructions

  • If this is the first time you use Arduino Nano ESP32, see how to setup environment for Arduino Nano ESP32 on Arduino IDE
  • Connect Arduino Nano ESP32 to PC via USB cable
  • Open Arduino IDE, select the right board and port
  • Copy the above code and open with Arduino IDE
  • Click Upload button on Arduino IDE to upload code to Arduino Nano ESP32
  • See the 12V active buzzer's state

Code Explanation

Read the line-by-line explanation in comment lines of code!

How to Make Alarm Beeps with MOSFET Module

Now let's replace the relay with a MOSFET module. The buzzer works the same, but there is no click, so it can beep fast like a real alarm.

Wiring Diagram

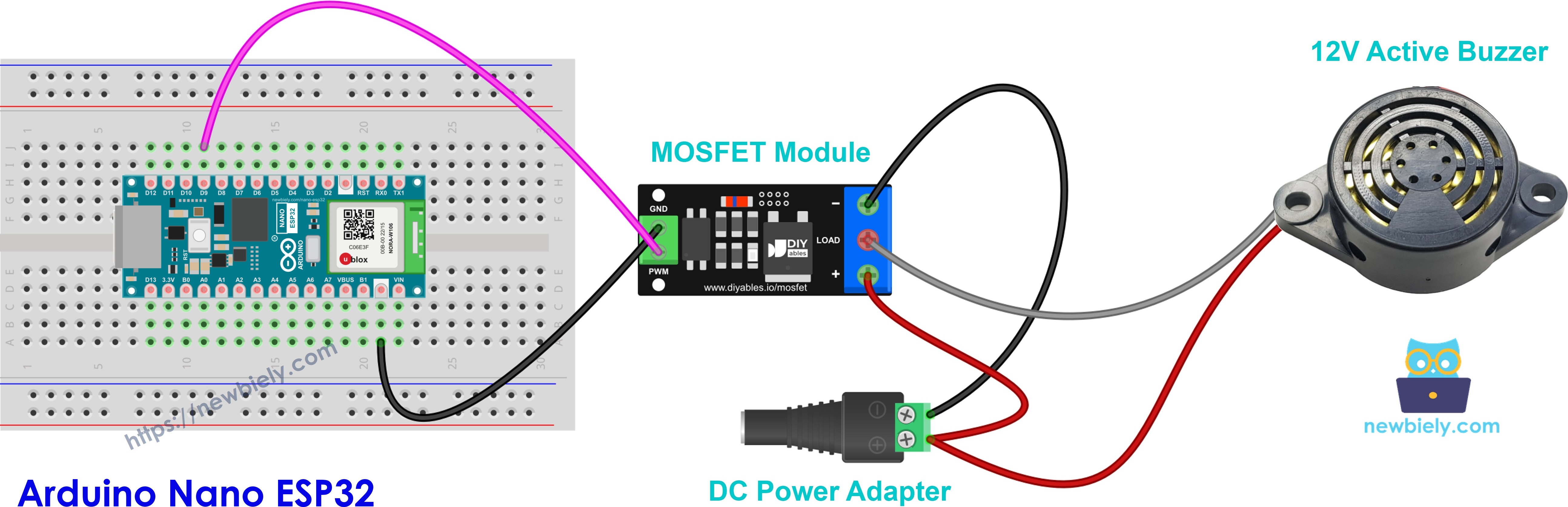

The wiring diagram between Arduino Nano ESP32 and 12V active buzzer MOSFET module

This image is created using Fritzing. Click to enlarge image

From To
Arduino Nano ESP32 pin D9 MOSFET module PWM
Arduino Nano ESP32 GND MOSFET module GND
12V adapter + MOSFET module +
Buzzer red wire (+) MOSFET module + (same terminal as the adapter +)
Buzzer black wire (−) MOSFET module LOAD
12V adapter − MOSFET module −

Most 12V active buzzers have a small circuit inside and do not need a flyback diode. If your buzzer is a magnetic type (it has a coil inside), add a 1N4007 or 1N5819 diode across it. The side with the stripe (cathode) goes to the buzzer +, the other side goes to the buzzer −.

The Arduino Nano ESP32 pin gives only 3.3V, but this is enough for the MOSFET module. No level shifter is needed. Never connect the 12V to any pin of the Arduino Nano ESP32.

Arduino Nano ESP32 Code

/* * This Arduino Nano ESP32 code was developed by newbiely.com * * This Arduino Nano ESP32 code is made available for public use without any restriction * * For comprehensive instructions and wiring diagrams, please visit: * https://newbiely.com/tutorials/arduino-nano-esp32/arduino-nano-esp32-buzzer */ #define MOSFET_PIN D9 // The Arduino Nano ESP32 pin connected to the PWM pin of the MOSFET module void setup() { Serial.begin(9600); pinMode(MOSFET_PIN, OUTPUT); digitalWrite(MOSFET_PIN, LOW); // start with the buzzer OFF } void loop() { // fast alarm beeps: 10 short beeps Serial.println("Alarm: fast beeps"); for (int i = 0; i < 10; i++) { digitalWrite(MOSFET_PIN, HIGH); // turn on buzzer delay(100); digitalWrite(MOSFET_PIN, LOW); // turn off buzzer delay(100); } // one long beep Serial.println("Alarm: long beep"); digitalWrite(MOSFET_PIN, HIGH); delay(1000); digitalWrite(MOSFET_PIN, LOW); // quiet time Serial.println("Quiet"); delay(3000); }

What the buzzer does: it beeps 10 times fast, then makes one long beep, then stays quiet for 3 seconds. Then it starts again.

An active buzzer makes its own sound. Only turn it fully ON or fully OFF with digitalWrite(). Do not use analogWrite() (PWM) to change the volume, because the sound will be weak or strange.

Detailed Instructions

  • Do the same setup as in the Quick Steps of the relay part above.
  • Wire the buzzer and the MOSFET module as shown in the diagram. Keep the 12V adapter unplugged.
  • Upload the code above to the Arduino Nano ESP32.
  • Plug in the 12V adapter.
  • Open the Serial Monitor at 9600 baud.
  • Listen to the buzzer: you hear the fast beeps with no relay click.
∞
Newbiely | Arduino IDE 2.3.8
──
☐
✕
File
Edit
Sketch
Tools
Help
Arduino Nano ESP32
Newbiely.ino
···
8 Serial.println("Hello World!");
Output
Serial Monitor
Message (Enter to send message to 'Arduino Nano ESP32' on 'COM15')
New Line
9600 baud
Alarm: fast beeps Alarm: long beep Quiet Alarm: fast beeps Alarm: long beep Quiet
Ln 11, Col 1
Arduino Nano ESP32 on COM15
2

※ NOTE THAT:

The MOSFET module works with DC only, and the buzzer power supply must be about 6V or more. For a 5V buzzer, see the Arduino Nano ESP32 Piezo Buzzer tutorial. For an AC buzzer or siren, use the relay.
