Arduino Nano ESP32 - DIYables Bluetooth App Monitor
Overview

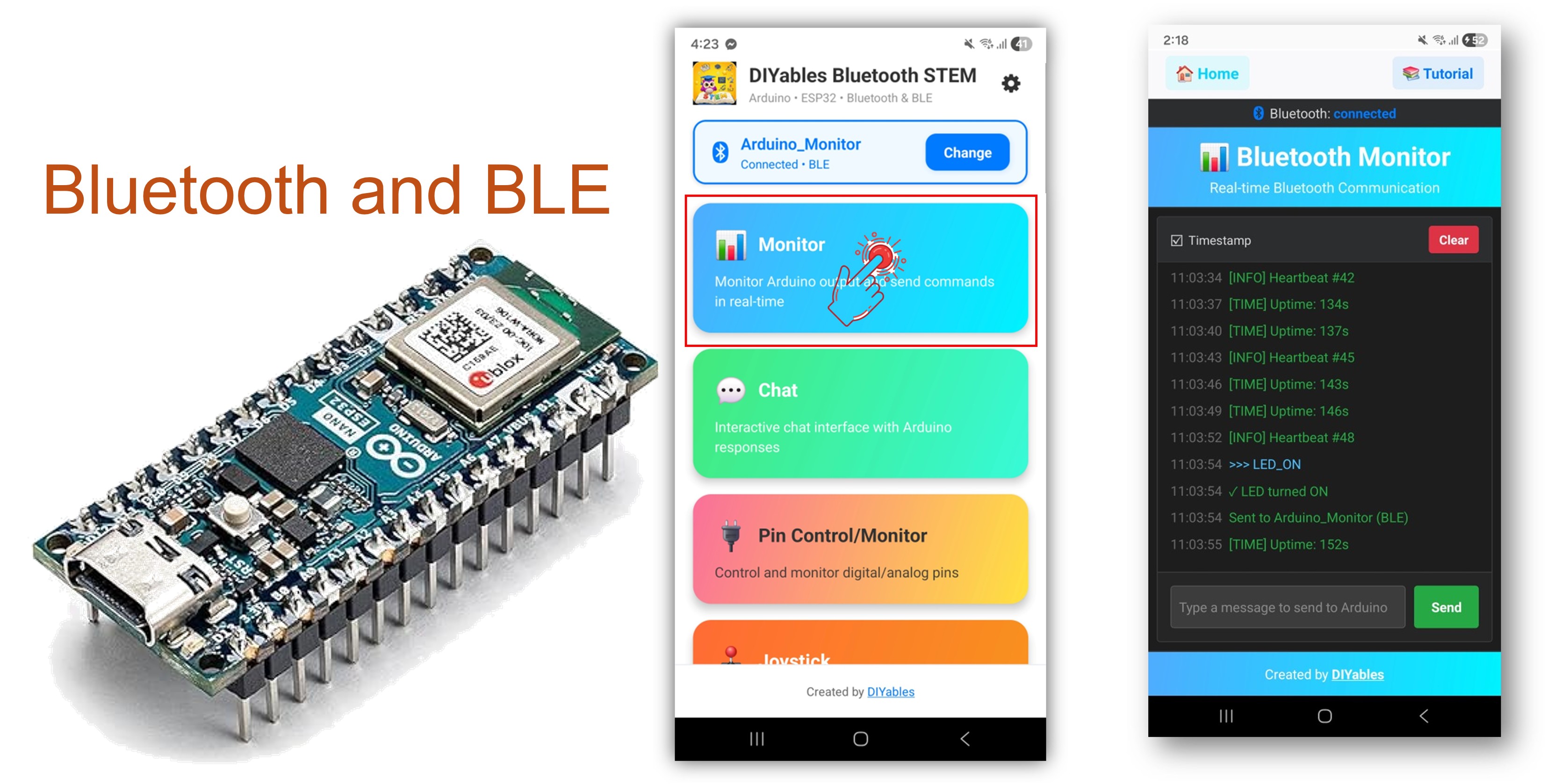

This example implements a wireless serial monitor on the Arduino Nano ESP32 using BLE (Bluetooth Low Energy) via the DIYables Bluetooth STEM app. Stream real-time status messages, debug output, and sensor readings wirelessly to a smartphone, and receive text commands from the app. Suitable for wireless debugging, remote monitoring, and system logging.
Note: The Arduino Nano ESP32 supports BLE only — Classic Bluetooth is not supported. The DIYables Bluetooth App works on both Android and iOS with BLE.
Features
- Wireless Serial Monitor: Stream text messages to your smartphone
- Two-Way Communication: Send commands from the app to the Arduino
- Real-Time Streaming: Continuous output, similar to a wired Serial Monitor
- Command Handling: Process text commands received from the app
- Android & iOS Support: BLE is compatible with both platforms
- No Pairing Required: BLE connects without manual pairing
- Low Power: BLE consumes less power than Classic Bluetooth
Hardware Preparation
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (30 sensors/displays) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Arduino Nano ESP32 Code
Detailed Instructions
- New to the Arduino Nano ESP32? Start with the Arduino Nano ESP32 getting started guide.
- Connect the Arduino Nano ESP32 to your computer via USB.
- Open Arduino IDE.
- Select the Arduino Nano ESP32 board and the correct COM port.
- Click the Libraries icon in the left sidebar.
- Search for "DIYables Bluetooth" and select the DIYables Bluetooth library by DIYables.
- Click Install.
- When prompted to install dependencies, click Install All.
BLE Code
- In Arduino IDE, open File Examples DIYables Bluetooth ArduinoBLE_Monitor, or paste the code into the editor.
/*
* DIYables Bluetooth Library - ESP32 BLE Monitor Example
* Works with DIYables Bluetooth STEM app on Android and iOS
*
* Tutorial: https://diyables.io/bluetooth-app
* Author: DIYables
*/
#include <DIYables_BluetoothServer.h>
#include <DIYables_BluetoothMonitor.h>
#include <platforms/DIYables_Esp32BLE.h>
// BLE Configuration
const char* DEVICE_NAME = "ESP32BLE_Monitor";
const char* SERVICE_UUID = "19B10000-E8F2-537E-4F6C-D104768A1214";
const char* TX_UUID = "19B10001-E8F2-537E-4F6C-D104768A1214";
const char* RX_UUID = "19B10002-E8F2-537E-4F6C-D104768A1214";
// Create Bluetooth instances
DIYables_Esp32BLE bluetooth(DEVICE_NAME, SERVICE_UUID, TX_UUID, RX_UUID);
DIYables_BluetoothServer bluetoothServer(bluetooth);
// Create Monitor app instance
DIYables_BluetoothMonitor bluetoothMonitor;
// Variables for demo
unsigned long lastUpdate = 0;
const unsigned long UPDATE_INTERVAL = 3000;
int messageCount = 0;
bool ledState = false;
void setup() {
Serial.begin(115200);
delay(1000);
Serial.println("DIYables Bluetooth - ESP32 BLE Monitor Example");
// Initialize built-in LED
pinMode(2, OUTPUT); // ESP32 built-in LED is usually on GPIO 2
digitalWrite(2, LOW);
// Initialize Bluetooth server with platform-specific implementation
bluetoothServer.begin();
// Add monitor app to server
bluetoothServer.addApp(&bluetoothMonitor);
// Set up connection event callbacks
bluetoothServer.setOnConnected([]() {
Serial.println("Bluetooth connected!");
bluetoothMonitor.send("=== ESP32 BLE Monitor Connected ===");
bluetoothMonitor.send("System Ready");
bluetoothMonitor.send("Type HELP for available commands");
bluetoothMonitor.send("");
});
bluetoothServer.setOnDisconnected([]() {
Serial.println("Bluetooth disconnected!");
});
// Set up message handler for incoming commands
bluetoothMonitor.onMonitorMessage([](const String& message) {
Serial.print("Received command: ");
Serial.println(message);
handleCommand(message);
});
Serial.println("Waiting for Bluetooth connection...");
}
void handleCommand(const String& cmd) {
if (cmd == "HELP") {
bluetoothMonitor.send("Available Commands:");
bluetoothMonitor.send(" LED_ON - Turn LED on");
bluetoothMonitor.send(" LED_OFF - Turn LED off");
bluetoothMonitor.send(" STATUS - Show system status");
bluetoothMonitor.send(" HEAP - Show free heap memory");
bluetoothMonitor.send(" HELP - Show this help");
}
else if (cmd == "LED_ON") {
digitalWrite(2, HIGH);
ledState = true;
bluetoothMonitor.send("LED turned ON");
}
else if (cmd == "LED_OFF") {
digitalWrite(2, LOW);
ledState = false;
bluetoothMonitor.send("LED turned OFF");
}
else if (cmd == "STATUS") {
showStatus();
}
else if (cmd == "HEAP") {
bluetoothMonitor.send("Free heap: " + String(ESP.getFreeHeap()) + " bytes");
}
else {
bluetoothMonitor.send("Unknown command: " + cmd);
bluetoothMonitor.send("Type HELP for available commands");
}
}
void showStatus() {
bluetoothMonitor.send("=== System Status ===");
bluetoothMonitor.send("LED State: " + String(ledState ? "ON" : "OFF"));
unsigned long uptime = millis() / 1000;
bluetoothMonitor.send("Uptime: " + String(uptime / 3600) + "h " + String((uptime % 3600) / 60) + "m " + String(uptime % 60) + "s");
bluetoothMonitor.send("Free Heap: " + String(ESP.getFreeHeap()) + " bytes");
bluetoothMonitor.send("Messages Sent: " + String(messageCount));
bluetoothMonitor.send("====================");
}
void sendPeriodicUpdate() {
messageCount++;
if (messageCount % 3 == 0) {
bluetoothMonitor.send("[INFO] Heartbeat #" + String(messageCount));
}
else if (messageCount % 5 == 0) {
bluetoothMonitor.send("[HEAP] Free: " + String(ESP.getFreeHeap()) + " bytes");
}
else {
bluetoothMonitor.send("[TIME] Uptime: " + String(millis() / 1000) + "s");
}
Serial.print("Sent update #");
Serial.println(messageCount);
}
void loop() {
bluetoothServer.loop();
if (bluetooth.isConnected() && millis() - lastUpdate >= UPDATE_INTERVAL) {
lastUpdate = millis();
sendPeriodicUpdate();
}
delay(10);
}
- Click Upload to flash the sketch to the board.
- Open the Serial Monitor.
- The Serial Monitor output should look like:
COM6
DIYables Bluetooth - Monitor Example
Waiting for Bluetooth connection...
Autoscroll
Clear output
9600 baud
Newline
Mobile App
Note: The DIYables Bluetooth App works on both Android and iOS with BLE. No manual pairing is required.
- Launch the DIYables Bluetooth App.
- On first launch, grant the following permissions:
- Nearby Devices (Android 12+) / Bluetooth (iOS) — required to scan and connect to Bluetooth devices
- Location (Android 11 and below only) — required by older Android versions to scan for BLE
- Ensure Bluetooth is enabled on your device.
- Tap Connect on the home screen. The app will scan for BLE devices.
- Tap "Arduino_Monitor" in the scan results.
- After connecting, return to the home screen and open the Monitor app.
Tap the settings icon on the home screen to show or hide apps. See the DIYables Bluetooth App User Manual for details.
- Status messages will stream in the monitor display.
- Type LED_ON in the input field and tap Send — the built-in LED on the Arduino Nano ESP32 will turn on, and the monitor will display a confirmation.
Now look back at the Serial Monitor on Arduino IDE. You will see:
COM6
Bluetooth connected!
Sent update #1
Sent update #2
Sent update #3
Autoscroll
Clear output
9600 baud
Newline
Creative Customization - Adapt the Code to Your Project
Send Messages
// Send text messages to the app
bluetoothMonitor.send("System started");
bluetoothMonitor.send("Temperature: " + String(temp, 1) + " °C");
bluetoothMonitor.send("[ERROR] Sensor disconnected!");
Handle Incoming Commands
Use the onMonitorMessage() callback to receive and process commands typed in the Monitor app:
bluetoothMonitor.onMonitorMessage([](const String& message) {
Serial.print("Received: ");
Serial.println(message);
if (message == "HELP") {
bluetoothMonitor.send("Commands: LED_ON, LED_OFF, STATUS, HELP");
} else if (message == "LED_ON") {
digitalWrite(LED_BUILTIN, HIGH);
bluetoothMonitor.send("LED turned ON");
} else if (message == "LED_OFF") {
digitalWrite(LED_BUILTIN, LOW);
bluetoothMonitor.send("LED turned OFF");
} else if (message == "STATUS") {
bluetoothMonitor.send("Uptime: " + String(millis() / 1000) + "s");
bluetoothMonitor.send("LED: " + String(digitalRead(LED_BUILTIN) ? "ON" : "OFF"));
} else {
bluetoothMonitor.send("Unknown command: " + message);
}
});
Add additional else if blocks for each command. For example, use RELAY_ON / RELAY_OFF to control a relay, or READ to trigger a sensor reading.
Programming Examples
Sensor Status Streaming
void loop() {
bluetoothServer.loop();
static unsigned long lastUpdate = 0;
if (bluetooth.isConnected() && millis() - lastUpdate >= 3000) {
lastUpdate = millis();
int light = analogRead(A0);
float voltage = analogRead(A1) * 5.0 / 1023.0;
bluetoothMonitor.send("[SENSOR] Light: " + String(map(light, 0, 1023, 0, 100)) + "%");
bluetoothMonitor.send("[SENSOR] Voltage: " + String(voltage, 2) + "V");
bluetoothMonitor.send("[INFO] Uptime: " + String(millis() / 1000) + "s");
}
delay(10);
}
Event-Based Logging
const int BUTTON_PIN = 7;
int lastButtonState = HIGH;
void loop() {
bluetoothServer.loop();
int buttonState = digitalRead(BUTTON_PIN);
if (buttonState != lastButtonState) {
lastButtonState = buttonState;
if (buttonState == LOW) {
bluetoothMonitor.send("[EVENT] Button pressed!");
} else {
bluetoothMonitor.send("[EVENT] Button released");
}
}
delay(10);
}
Troubleshooting
Common Issues
1. Device not visible in the app
- Confirm the board is powered on and the sketch is uploaded
- Verify Bluetooth is enabled on your phone
- On Android 11 and below, enable Location services as well
2. No messages appearing in the app
- Confirm bluetoothMonitor.send() is being called
- Verify bluetoothServer.loop() is present in the main loop
- Check the connection in Serial Monitor
3. Messages are delayed
- Reduce the update interval for more frequent messages
- Avoid sending too many messages in rapid succession (BLE has bandwidth limits)
4. Commands from the app not received
- Confirm the onMonitorMessage callback is registered
- Check Serial Monitor for received command output
5. Connection drops frequently
- Reduce distance to the Arduino
- Ensure a stable USB power supply
6. Upload fails or board not recognized
- Install the latest Arduino Nano ESP32 board package via Board Manager
- Try a different USB cable or port
Project Ideas
- Wireless debug console
- Sensor data logger
- System health monitor
- Event notification system
- Remote command interface
Next Steps
After completing the Bluetooth Monitor example, explore:
- Bluetooth Chat — Interactive two-way messaging
- Bluetooth Table — Structured data display
- Bluetooth Plotter — Data visualization
- Multiple Bluetooth Apps — Combine monitor with other app widgets
