ESP32 C3 Super Mini - Smart Weather Station
Build a pocket-sized weather station using the ESP32 C3 Super Mini and a round TFT display. The board fetches real weather data from the Internet, so no temperature sensor is needed.
In this tutorial, you'll learn:
- How to wire a 1.28 inch round GC9A01 TFT display to ESP32 C3 Super Mini
- How to call the free Open-Meteo weather API over HTTPS
- How to read the JSON answer using the ArduinoJson library
- How to draw eight weather pages on a 240x240 circular screen
- How to use one button for three different actions
Hardware Preparation
Pick either the push button or the button module. The wiring section covers both.
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Overview of the Smart Weather Station
A smart weather station reads weather values from an online service instead of measuring them with a sensor. The ESP32 C3 Super Mini joins your WiFi, sends one HTTPS request, and draws the answer on a round screen.
Key Features:
- Live temperature, humidity, wind, pressure, and rain chance
- Hourly outlook for the next 12 hours
- Three-day forecast with high and low temperatures
- NTP clock on the home page
- Automatic refresh every 10 minutes
- Eight pages driven by a single push button
Why the ESP32 C3 Super Mini is Great for This Project:
- WiFi is built into the chip, so no extra network module is needed
- 4 MB of flash holds the whole graphical interface
- 400 KB of SRAM leaves plenty of room for HTTPS and JSON parsing
- The tiny board fits behind a 1.28 inch round display
- USB Type-C makes uploading and powering simple
The Eight Pages
| Page | What it shows |
|---|---|
| HOME | Weather icon, temperature, sky description, clock |
| TEMP | Temperature and apparent "feels like" temperature |
| HUMIDITY | Humidity ring plus the exact percentage |
| WIND | Wind speed and a compass showing the direction |
| RAIN | Rain chance with an animated rain effect |
| NEXT HOURS | Temperature and rain chance, hour by hour |
| FORECAST | High and low temperature for the next 3 days |
| SYSTEM | WiFi state, signal strength, API state, location |
About the Open-Meteo API
Open-Meteo is the weather service used here. It needs no API key and no sign-up, which keeps the code short. One request returns the current weather, the hourly values, and a daily summary as plain JSON. The timezone parameter tells the service to answer with local times instead of UTC.
Wiring Diagram between Round TFT Display and ESP32 C3 Super Mini
The display uses the SPI bus. On the ESP32 C3 Super Mini, GPIO4 carries the clock and GPIO6 carries the data. The button sits on GPIO1, which is a plain input pin on the ESP32 C3, not one of the strapping pins, so a button on it cannot disturb the boot process.
| TFT LCD Pin | ESP32 C3 Super Mini | Description |
|---|---|---|
| VCC | 3.3V | Power supply |
| GND | GND | Ground |
| SCL | GPIO4 | SPI Clock (SCK) |
| SDA | GPIO6 | SPI MOSI |
| DC | GPIO9 | Data/Command |
| CS | GPIO10 | Chip Select |
| RST | GPIO8 | Reset |
Two kinds of button fit this project. Pick the one you have, wire it as shown, and set the matching line in the code.
Wiring a Push Button
A bare push button has two pins and nothing else. It shorts GPIO1 to ground while held, and the ESP32 C3 provides the pull-up from inside the chip.
This image is created using Fritzing. Click to enlarge image
| Button Pin | ESP32 C3 Super Mini | Description |
|---|---|---|
| Pin 1 | GPIO1 | Button input with internal pull-up |
| Pin 2 | GND | Ground |
Code for this wiring:
ezButton button(PIN_BUTTON);

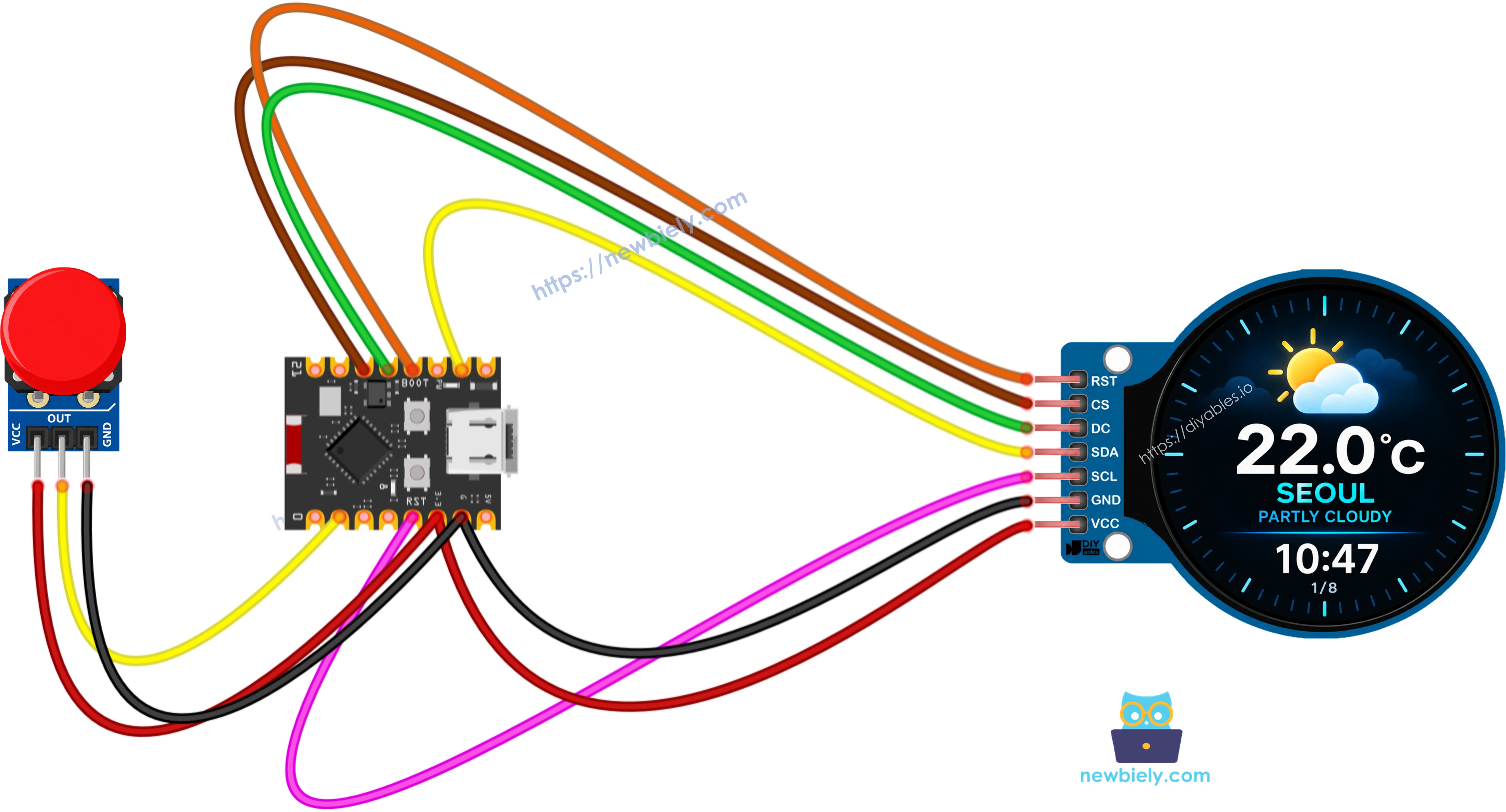

Wiring a Button Module
A button module has three pins and a pull-down resistor soldered on the board. It needs 3.3V and ground, and its OUT pin drives GPIO1 HIGH on a press.
This image is created using Fritzing. Click to enlarge image
| Button Module Pin | ESP32 C3 Super Mini | Description |
|---|---|---|
| VCC | 3.3V | Power supply |
| GND | GND | Ground |
| OUT | GPIO1 | Signal, LOW at rest, HIGH when pressed |
Code for this wiring: the module carries its own resistor, so the internal pull-up must be switched off.
ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
IMPORTANT: Power the GC9A01 module from the 3.3V pin. The ESP32 C3 Super Mini is a 3.3V board, and feeding the display from 5V while its data pins sit at 3.3V can shorten the life of the module.
ESP32 C3 Super Mini Code
The following code connects to WiFi, downloads the weather, and paints the round screen:
What the code does:
- Joins your WiFi network and lowers the radio power for a stable link
- Syncs the clock through NTP so the home page shows real time
- Requests weather data from Open-Meteo over HTTPS
- Parses the JSON answer with ArduinoJson
- Draws eight pages with icons, rings, a compass, and a rain animation
- Reads the button and picks an action from how long it is held
- Refreshes the weather automatically every 10 minutes
/*
* This ESP32 C3 Super Mini code was developed by newbiely.com
*
* This ESP32 C3 Super Mini code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/esp32-c3/esp32-c3-super-mini-smart-weather-station
*/
/*
============================================================
SMART WEATHER STATION
ESP32 C3 Super Mini + GC9A01 Round TFT + Push Button
Location:
Seoul, South Korea (change it in USER CONFIGURATION)
Weather API:
Open-Meteo (free, no API key needed)
------------------------------------------------------------
GC9A01 Round TFT -> ESP32 C3 Super Mini
VCC -> 3.3V
GND -> GND
SCL -> GPIO4 (SPI clock)
SDA -> GPIO6 (SPI MOSI)
RST -> GPIO8
DC -> GPIO9
CS -> GPIO10
Button
GPIO1 -> BUTTON -> GND
------------------------------------------------------------
BUTTON
Short press -> Next page
Long press -> Refresh weather
Very long press -> Back to home page
============================================================
*/
#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <time.h>
#include <DIYables_TFT_Round.h>
#include <ezButton.h>
// ===== USER CONFIGURATION =====
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
// Time zone name for the API, URL-encoded.
// "/" must be written as "%2F".
#define TIMEZONE "Asia%2FSeoul"
// Offset from UTC in seconds, used by the NTP clock.
// Seoul is UTC+9, so 9 * 3600.
#define GMT_OFFSET_SEC (9 * 3600)
// Extra offset for summer time. Use 3600 where it applies.
#define DST_OFFSET_SEC 0
// ===== PIN CONFIGURATION =====
#define PIN_SCK 4
#define PIN_MOSI 6
#define PIN_BUTTON 1
#define PIN_RST 8
#define PIN_DC 9
#define PIN_CS 10
// ===== TIMING =====
const unsigned long API_UPDATE_INTERVAL = 10UL * 60UL * 1000UL;
const unsigned long WIFI_RETRY_INTERVAL = 10UL * 1000UL;
const unsigned long WIFI_CONNECT_TIMEOUT = 15UL * 1000UL;
const unsigned long BUTTON_DEBOUNCE = 40;
const unsigned long LONG_PRESS_TIME = 600;
const unsigned long VERY_LONG_PRESS_TIME = 2000;
const unsigned long RAIN_ANIMATION_INTERVAL = 90;
const unsigned long CLOCK_UPDATE_INTERVAL = 1000;
// ===== TFT =====
DIYables_TFT_GC9A01_Round tft(PIN_RST, PIN_DC, PIN_CS);
// ===== SCREEN =====
const int SCREEN_W = 240;
const int SCREEN_H = 240;
const int CENTER_X = 120;
const int CENTER_Y = 120;
// ===== COLORS =====
#define BLACK DIYables_TFT::colorRGB(0, 0, 0)
#define WHITE DIYables_TFT::colorRGB(255, 255, 255)
#define CYAN DIYables_TFT::colorRGB(0, 220, 255)
#define BLUE DIYables_TFT::colorRGB(40, 120, 255)
#define LIGHT_BLUE DIYables_TFT::colorRGB(90, 190, 255)
#define GREEN DIYables_TFT::colorRGB(60, 230, 130)
#define YELLOW DIYables_TFT::colorRGB(255, 210, 60)
#define ORANGE DIYables_TFT::colorRGB(255, 150, 40)
#define RED DIYables_TFT::colorRGB(255, 70, 70)
#define PURPLE DIYables_TFT::colorRGB(180, 100, 255)
#define GRAY DIYables_TFT::colorRGB(125, 125, 135)
#define DARK_GRAY DIYables_TFT::colorRGB(42, 42, 52)
#define DARK_BLUE DIYables_TFT::colorRGB(12, 18, 48)
// ===== PAGE =====
enum Page {
PAGE_HOME = 0,
PAGE_TEMP,
PAGE_HUMIDITY,
PAGE_WIND,
PAGE_RAIN,
PAGE_HOURLY,
PAGE_FORECAST,
PAGE_SYSTEM,
PAGE_COUNT
};
Page currentPage = PAGE_HOME;
// ===== WEATHER DATA =====
struct WeatherData {
bool valid = false;
float temperature = 0;
float humidity = 0;
float feelsLike = 0;
float windSpeed = 0;
float windDirection = 0;
float pressure = 0;
int weatherCode = 0;
bool isDay = true;
int currentRainChance = 0;
float uvIndex = 0;
String sunrise;
String sunset;
// NEXT HOURS
float hourlyTemp[12];
int hourlyRainChance[12];
int hourlyWeatherCode[12];
String hourlyTime[12];
// DAILY
String dailyDate[3];
float dailyTempMax[3];
float dailyTempMin[3];
int dailyRainChance[3];
int dailyWeatherCode[3];
float dailyUV[3];
};
WeatherData weather;
// ===== SYSTEM STATE =====
bool apiOnline = false;
bool wifiOnline = false;
bool screenDirty = true;
bool isFetching = false;
bool pendingRefresh = false;
unsigned long lastApiUpdate = 0;
unsigned long lastWifiRetry = 0;
unsigned long wifiConnectStart = 0;
unsigned long lastRainAnimation = 0;
unsigned long lastClockUpdate = 0;
bool wifiConnecting = false;
// ===== BUTTON =====
// ezButton handles the debouncing, so the sketch only has to
// measure how long the button was held down.
//
// The line below is for a BARE push button wired to GND. ezButton then
// uses the internal pull-up resistor of the board, and the pin reads LOW
// while the button is held down.
ezButton button(PIN_BUTTON);
// If you use a BUTTON MODULE instead, the module carries its own resistor
// on the board, so the internal one must not be used. Comment the line
// above and use this line instead:
// ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
unsigned long buttonPressStart = 0;
// ===== RAIN ANIMATION =====
const int RAIN_DROP_COUNT = 16;
int rainX[RAIN_DROP_COUNT];
int rainY[RAIN_DROP_COUNT];
bool rainInitialized = false;
const int RAIN_AREA_X = 30;
const int RAIN_AREA_Y = 125;
const int RAIN_AREA_W = 180;
const int RAIN_AREA_H = 78;
// ===== WEATHER DESCRIPTION =====
String weatherDescription(int code) {
switch (code) {
case 0:
return "CLEAR";
case 1:
return "MAINLY CLEAR";
case 2:
return "PARTLY CLOUDY";
case 3:
return "OVERCAST";
case 45:
case 48:
return "FOG";
case 51:
case 53:
case 55:
return "DRIZZLE";
case 56:
case 57:
return "FREEZING DRIZZLE";
case 61:
case 63:
case 65:
return "RAIN";
case 66:
case 67:
return "FREEZING RAIN";
case 71:
case 73:
case 75:
return "SNOW";
case 77:
return "SNOW GRAINS";
case 80:
case 81:
case 82:
return "SHOWERS";
case 85:
case 86:
return "SNOW SHOWERS";
case 95:
return "THUNDERSTORM";
case 96:
case 99:
return "STORM";
default:
return "UNKNOWN";
}
}
// ===== WEATHER COLOR =====
uint16_t weatherColor(int code) {
if (code == 0) return YELLOW;
if (code == 1 || code == 2) return CYAN;
if (code == 3) return GRAY;
if (code >= 51 && code <= 67) return BLUE;
if (code >= 80 && code <= 82) return LIGHT_BLUE;
if (code >= 95) return RED;
return WHITE;
}
// ===== WIND DIRECTION =====
String windDirectionText(float degrees) {
const char* directions[] = {
"N",
"NE",
"E",
"SE",
"S",
"SW",
"W",
"NW"
};
int index = (int)((degrees + 22.5) / 45.0);
index %= 8;
return directions[index];
}
// ===== CENTER TEXT =====
void drawCenteredText(String text, int y, int size, uint16_t color) {
tft.setTextSize(size);
tft.setTextColor(color);
int width = text.length() * 6 * size;
int x = CENTER_X - width / 2;
if (x < 0) x = 0;
tft.setCursor(x, y);
tft.print(text);
}
// ===== HEADER =====
void drawHeader(String title, uint16_t color) {
// Safe radius from screen center (slightly less than the
// physical 120px radius, to keep a small margin from the
// round bezel).
const float SAFE_RADIUS = 116.0;
int size = 2;
int width = title.length() * 6 * size;
int half = width / 2;
int y;
if (half >= SAFE_RADIUS) {
// Too wide even at the lowest safe position -> use a
// smaller font instead of clipping.
size = 1;
width = title.length() * 6 * size;
half = width / 2;
y = 14;
} else {
// Compute the minimum y (top of text) so the top corners
// of the text stay inside the round visible area.
float insideSpan = sqrt((SAFE_RADIUS * SAFE_RADIUS) - ((float)half * (float)half));
int minY = (int)(120.0 - insideSpan);
y = (minY > 14) ? minY : 14;
}
drawCenteredText(title, y, size, color);
int lineY = y + (size == 2 ? 16 : 8) + 6;
tft.drawLine(45, lineY, 195, lineY, DARK_GRAY);
}
// ===== FOOTER =====
void drawFooter() {
tft.drawLine(55, 214, 185, 214, DARK_GRAY);
drawCenteredText(String(currentPage + 1) + "/" + String(PAGE_COUNT), 220, 1, GRAY);
}
// ===== SUN ICON =====
void drawSun(int x, int y, int radius) {
tft.fillCircle(x, y, radius, YELLOW);
for (int i = 0; i < 8; i++) {
float angle = i * PI / 4.0;
int x1 = x + cos(angle) * (radius + 7);
int y1 = y + sin(angle) * (radius + 7);
int x2 = x + cos(angle) * (radius + 14);
int y2 = y + sin(angle) * (radius + 14);
tft.drawLine(x1, y1, x2, y2, YELLOW);
}
}
// ===== CLOUD ICON =====
void drawCloud(int x, int y) {
tft.fillCircle(x - 20, y, 15, LIGHT_BLUE);
tft.fillCircle(x, y - 8, 20, LIGHT_BLUE);
tft.fillCircle(x + 20, y, 15, LIGHT_BLUE);
tft.fillRoundRect(x - 35, y, 70, 20, 10, LIGHT_BLUE);
}
// ===== STATIC RAIN ICON =====
void drawRainIcon(int x, int y) {
drawCloud(x, y);
for (int i = 0; i < 5; i++) {
int dx = -24 + i * 12;
int dy = 28;
tft.drawLine(x + dx, y + dy, x + dx - 4, y + dy + 10, BLUE);
}
}
// ===== WEATHER ICON =====
void drawWeatherIcon(int code, int x, int y) {
if (code == 0) {
drawSun(x, y, 18);
}
else if (code <= 2) {
drawSun(x - 12, y - 7, 13);
drawCloud(x + 10, y + 10);
}
else if (code == 3) {
drawCloud(x, y);
}
else if ((code >= 51 && code <= 67) || (code >= 80 && code <= 82)) {
drawRainIcon(x, y);
}
else if (code >= 95) {
drawCloud(x, y);
tft.drawLine(x - 5, y + 28, x - 12, y + 43, YELLOW);
tft.drawLine(x + 10, y + 28, x + 3, y + 43, YELLOW);
} else {
drawCloud(x, y);
}
}
void drawWifiIcon(int cx, int cy, int level) {
const int radii[3] = { 14, 27, 40 };
for (int arc = 0; arc < 3; arc++) {
uint16_t color = (arc < level) ? CYAN : DARK_GRAY;
for (int deg = -150; deg <= -30; deg += 5) {
float angle = deg * PI / 180.0;
int x = cx + (int)(cos(angle) * radii[arc]);
int y = cy + (int)(sin(angle) * radii[arc]);
tft.fillCircle(x, y, 2, color);
}
}
// Base dot (the "device")
tft.fillCircle(cx, cy, 5, CYAN);
}
// ===== PAGE 1 - HOME =====
void drawHome() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
tft.fillScreen(bg);
if (!weather.valid) {
drawCenteredText("NO DATA", 90, 3, RED);
drawCenteredText("CHECK CONNECTION", 135, 1, WHITE);
drawFooter();
return;
}
// Weather icon
drawWeatherIcon(weather.weatherCode, CENTER_X, 65);
// Temperature
drawCenteredText(String(weather.temperature, 1) + " C", 112, 3, WHITE);
// Location
drawCenteredText(LOCATION_NAME, 153, 2, CYAN);
// Weather condition
drawCenteredText(weatherDescription(weather.weatherCode), 178, 1, weatherColor(weather.weatherCode));
// Clock area
drawHomeClock();
drawFooter();
}
// ===== HOME CLOCK =====
void drawHomeClock() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
// Only clear a small region.
// This prevents full-screen flicker.
tft.fillRect(82, 196, 76, 12, bg);
drawCenteredText(getTimeString(), 197, 1, GRAY);
}
// ===== PAGE 2 - TEMPERATURE =====
void drawTemperature() {
tft.fillScreen(BLACK);
drawHeader("TEMPERATURE", ORANGE);
int cx = 120;
int cy = 125;
int radius = 68;
int value = constrain((int)weather.temperature, 0, 40);
int filled = map(value, 0, 40, 0, 240);
// Temperature gauge
for (int i = 0; i < 240; i += 4) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? ORANGE : DARK_GRAY;
tft.fillCircle(x, y, 2, color);
}
// Main value
drawCenteredText(String(weather.temperature, 1), 101, 3, WHITE);
drawCenteredText("C", 138, 2, ORANGE);
drawCenteredText("FEELS " + String(weather.feelsLike, 1) + " C", 168, 1, CYAN);
drawFooter();
}
// ===== PAGE 3 - HUMIDITY =====
void drawHumidity() {
tft.fillScreen(BLACK);
drawHeader("HUMIDITY", BLUE);
int cx = 120;
int cy = 125;
int radius = 68;
int progress = constrain((int)weather.humidity, 0, 100);
int filled = map(progress, 0, 100, 0, 270);
for (int i = 0; i < 270; i += 3) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? BLUE : DARK_GRAY;
tft.fillCircle(x, y, 3, color);
}
drawCenteredText(String((int)weather.humidity) + "%", 105, 3, WHITE);
String comfort;
if (weather.humidity < 40) comfort = "DRY";
else if (weather.humidity < 70) comfort = "COMFORTABLE";
else if (weather.humidity < 85) comfort = "HUMID";
else
comfort = "VERY HUMID";
drawCenteredText(comfort, 153, 1, CYAN);
drawFooter();
}
// ===== PAGE 4 - WIND =====
void drawWind() {
tft.fillScreen(BLACK);
drawHeader("WIND", GREEN);
int cx = 120;
int cy = 104;
int radius = 49;
// Compass
tft.drawCircle(cx, cy, radius, DARK_GRAY);
drawCenteredText("N", 43, 1, WHITE);
drawCenteredText("S", 157, 1, WHITE);
tft.setCursor(62, 101);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("W");
tft.setCursor(172, 101);
tft.print("E");
// Direction arrow
float angle = weather.windDirection * PI / 180.0;
int x2 = cx + sin(angle) * 38;
int y2 = cy - cos(angle) * 38;
tft.drawLine(cx, cy, x2, y2, GREEN);
tft.fillCircle(cx, cy, 5, GREEN);
// Wind speed
drawCenteredText(String(weather.windSpeed, 1) + " km/h", 174, 2, WHITE);
drawCenteredText(windDirectionText(weather.windDirection), 198, 1, CYAN);
drawFooter();
}
// ===== PAGE 5 - RAIN =====
void drawRain() {
tft.fillScreen(BLACK);
drawHeader("RAIN", LIGHT_BLUE);
int rain = weather.currentRainChance;
// Static weather icon
if (rain >= 60) {
drawRainIcon(CENTER_X, 68);
} else {
drawCloud(CENTER_X, 73);
}
// Rain percentage
drawCenteredText(String(rain) + "%", 105, 3, WHITE);
drawCenteredText("RAIN CHANCE", 140, 1, LIGHT_BLUE);
// Status
if (rain >= 60) {
drawCenteredText("HIGH", 158, 1, RED);
}
else if (rain >= 30) {
drawCenteredText("MODERATE", 158, 1, YELLOW);
} else {
drawCenteredText("LOW", 158, 1, GREEN);
}
// Animation area
if (rain >= 20) {
initializeRainAnimation();
}
drawFooter();
}
// ===== INITIALIZE RAIN ANIMATION =====
void initializeRainAnimation() {
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y + random(RAIN_AREA_H);
}
rainInitialized = true;
}
// ===== UPDATE RAIN ANIMATION =====
void updateRainAnimation() {
if (currentPage != PAGE_RAIN) return;
if (weather.currentRainChance < 20) return;
if (millis() - lastRainAnimation < RAIN_ANIMATION_INTERVAL) {
return;
}
lastRainAnimation = millis();
uint16_t bg = BLACK;
// Erase old drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, bg);
}
// Move drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainY[i] += 5;
if (rainY[i] > RAIN_AREA_Y + RAIN_AREA_H) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y;
}
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, BLUE);
}
}
// ===== PAGE 6 - NEXT HOURS =====
void drawHourly() {
tft.fillScreen(BLACK);
drawHeader("NEXT HOURS", PURPLE);
for (int i = 0; i < 5; i++) {
int y = 52 + i * 31;
// Row separator
if (i > 0) {
tft.drawLine(25, y - 8, 215, y - 8, DARK_GRAY);
}
// Time
tft.setCursor(25, y);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTime[i]);
// Weather
int code = weather.hourlyWeatherCode[i];
String condition;
if (code == 0) condition = "SUN";
else if (code <= 3) condition = "CLOUD";
else if (code >= 95) condition = "STORM";
else
condition = "RAIN";
tft.setCursor(75, y);
tft.setTextColor(weatherColor(code));
tft.print(condition);
// Temperature
tft.setCursor(142, y);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTemp[i], 0);
tft.print("C");
// Rain
tft.setCursor(180, y);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.hourlyRainChance[i]);
tft.print("%");
}
drawFooter();
}
// ===== PAGE 7 - FORECAST =====
// UI FIX:
// The card border (drawRoundRect) previously spanned x=15..225
// (width 210). For the TOP row, the corners of that rectangle
// fell outside the visible round area of the screen and were
// clipped. The card width below was reduced to 190px
// (x=25..215) which keeps every corner, on every row, safely
// inside the round bezel. Text start x was nudged in slightly
// to match the new card padding.
void drawForecast() {
tft.fillScreen(BLACK);
drawHeader("3-DAY FORECAST", CYAN);
const char* labels[] = {
"TODAY",
"TOMORROW",
"DAY 3"
};
// Card geometry (UI fix: narrower so it never touches
// the round bezel, even on the top row).
const int CARD_X = 25;
const int CARD_W = 190;
for (int i = 0; i < 3; i++) {
int y = 62 + i * 48;
// Card
tft.drawRoundRect(CARD_X, y - 5, CARD_W, 40, 8, DARK_GRAY);
// Day
tft.setCursor(CARD_X + 8, y + 4);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(labels[i]);
// Temperature
tft.setCursor(CARD_X + 65, y + 4);
tft.print(weather.dailyTempMin[i], 0);
tft.print("/");
tft.print(weather.dailyTempMax[i], 0);
tft.print("C");
// Rain
tft.setCursor(CARD_X + 120, y + 4);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.dailyRainChance[i]);
tft.print("%");
// Weather
tft.setCursor(CARD_X + 155, y + 4);
tft.setTextColor(weatherColor(weather.dailyWeatherCode[i]));
int code = weather.dailyWeatherCode[i];
if (code == 0) tft.print("SUN");
else if (code <= 3) tft.print("CLD");
else if (code >= 95) tft.print("STM");
else
tft.print("RAIN");
}
drawFooter();
}
// ===== PAGE 8 - SYSTEM =====
void drawSystem() {
tft.fillScreen(BLACK);
drawHeader("SYSTEM", CYAN);
// WIFI
tft.setCursor(25, 57);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("WIFI");
tft.setCursor(125, 57);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// RSSI
tft.setCursor(25, 82);
tft.setTextColor(WHITE);
tft.print("RSSI");
tft.setCursor(125, 82);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(CYAN);
tft.print(WiFi.RSSI());
tft.print(" dBm");
} else {
tft.print("--");
}
// API
tft.setCursor(25, 107);
tft.setTextColor(WHITE);
tft.print("API");
tft.setCursor(125, 107);
if (apiOnline) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// LOCATION
tft.setCursor(25, 132);
tft.setTextColor(WHITE);
tft.print("LOCATION");
tft.setCursor(125, 132);
tft.setTextColor(CYAN);
tft.print(LOCATION_NAME);
// TEMP
tft.setCursor(25, 157);
tft.setTextColor(WHITE);
tft.print("TEMP");
tft.setCursor(125, 157);
tft.print(weather.temperature, 1);
tft.print(" C");
// STATUS
tft.setCursor(25, 182);
tft.setTextColor(WHITE);
tft.print("STATUS");
tft.setCursor(125, 182);
if (weather.valid) {
tft.setTextColor(GREEN);
tft.print("READY");
} else {
tft.setTextColor(RED);
tft.print("NO DATA");
}
drawFooter();
}
// ===== RENDER PAGE =====
void renderPage() {
// Rain animation must be initialized
// only when entering the page.
rainInitialized = false;
switch (currentPage) {
case PAGE_HOME:
drawHome();
break;
case PAGE_TEMP:
drawTemperature();
break;
case PAGE_HUMIDITY:
drawHumidity();
break;
case PAGE_WIND:
drawWind();
break;
case PAGE_RAIN:
drawRain();
break;
case PAGE_HOURLY:
drawHourly();
break;
case PAGE_FORECAST:
drawForecast();
break;
case PAGE_SYSTEM:
drawSystem();
break;
}
}
// ===== WEATHER API URL =====
String getWeatherURL() {
String url = "https://api.open-meteo.com/v1/forecast";
url += "?latitude=" + String(LATITUDE, 4);
url += "&longitude=" + String(LONGITUDE, 4);
url +=
"¤t="
"temperature_2m,"
"relative_humidity_2m,"
"apparent_temperature,"
"weather_code,"
"wind_speed_10m,"
"wind_direction_10m,"
"pressure_msl,"
"is_day";
url +=
"&hourly="
"temperature_2m,"
"precipitation_probability,"
"weather_code";
url +=
"&daily="
"temperature_2m_max,"
"temperature_2m_min,"
"precipitation_probability_max,"
"weather_code,"
"sunrise,"
"sunset,"
"uv_index_max";
url += "&timezone=" TIMEZONE;
url += "&forecast_days=3";
url += "&temperature_unit=celsius";
url += "&wind_speed_unit=kmh";
return url;
}
// ===== PARSE WEATHER =====
bool parseWeather(String payload) {
JsonDocument doc;
DeserializationError error = deserializeJson(doc, payload);
if (error) {
Serial.print("JSON ERROR: ");
Serial.println(error.c_str());
return false;
}
// CURRENT
JsonObject current = doc["current"];
if (current.isNull()) {
Serial.println("CURRENT DATA MISSING");
return false;
}
weather.temperature = current["temperature_2m"] | 0.0;
weather.humidity = current["relative_humidity_2m"] | 0.0;
weather.feelsLike = current["apparent_temperature"] | 0.0;
weather.weatherCode = current["weather_code"] | 0;
weather.windSpeed = current["wind_speed_10m"] | 0.0;
weather.windDirection = current["wind_direction_10m"] | 0.0;
weather.pressure = current["pressure_msl"] | 0.0;
int isDay = current["is_day"] | 1;
weather.isDay = (isDay == 1);
// HOURLY
JsonArray hourlyTime = doc["hourly"]["time"];
JsonArray hourlyTemp = doc["hourly"]["temperature_2m"];
JsonArray hourlyRain = doc["hourly"]["precipitation_probability"];
JsonArray hourlyCode = doc["hourly"]["weather_code"];
struct tm timeinfo;
int currentHour = 0;
if (getLocalTime(&timeinfo, 1000)) {
currentHour = timeinfo.tm_hour;
}
for (int i = 0; i < 12; i++) {
int index = currentHour + i;
// Safety check
if (index >= hourlyTemp.size()) {
weather.hourlyTemp[i] = weather.temperature;
weather.hourlyRainChance[i] = 0;
weather.hourlyWeatherCode[i] = weather.weatherCode;
weather.hourlyTime[i] = "--:--";
continue;
}
weather.hourlyTemp[i] = hourlyTemp[index] | weather.temperature;
weather.hourlyRainChance[i] = hourlyRain[index] | 0;
weather.hourlyWeatherCode[i] = hourlyCode[index] | weather.weatherCode;
// Extract HH:MM
// Example:
// 2026-09-11T14:00
//
// Result:
// 14:00
String fullTime = hourlyTime[index] | "";
if (fullTime.length() >= 16) {
weather.hourlyTime[i] = fullTime.substring(11, 16);
} else {
weather.hourlyTime[i] = "--:--";
}
}
weather.currentRainChance = weather.hourlyRainChance[0];
// DAILY
JsonArray dailyMax = doc["daily"]["temperature_2m_max"];
JsonArray dailyMin = doc["daily"]["temperature_2m_min"];
JsonArray dailyRain = doc["daily"]["precipitation_probability_max"];
JsonArray dailyCode = doc["daily"]["weather_code"];
JsonArray dailyDate = doc["daily"]["time"];
JsonArray dailySunrise = doc["daily"]["sunrise"];
JsonArray dailySunset = doc["daily"]["sunset"];
JsonArray dailyUV = doc["daily"]["uv_index_max"];
for (int i = 0; i < 3; i++) {
weather.dailyTempMax[i] = dailyMax[i] | 0.0;
weather.dailyTempMin[i] = dailyMin[i] | 0.0;
weather.dailyRainChance[i] = dailyRain[i] | 0;
weather.dailyWeatherCode[i] = dailyCode[i] | 0;
weather.dailyDate[i] = dailyDate[i] | "";
weather.dailyUV[i] = dailyUV[i] | 0.0;
}
if (dailySunrise.size() > 0) {
weather.sunrise = dailySunrise[0] | "";
}
if (dailySunset.size() > 0) {
weather.sunset = dailySunset[0] | "";
}
if (dailyUV.size() > 0) {
weather.uvIndex = dailyUV[0] | 0.0;
}
weather.valid = true;
return true;
}
// ===== FETCH WEATHER =====
bool fetchWeather() {
if (WiFi.status() != WL_CONNECTED) {
Serial.println("WIFI NOT CONNECTED");
apiOnline = false;
screenDirty = true;
return false;
}
Serial.println();
Serial.println("================================");
Serial.println("FETCHING WEATHER");
Serial.println("================================");
isFetching = true;
// Loading screen is shown only once.
drawLoadingScreen("FETCHING WEATHER...");
WiFiClientSecure client;
// Prototype / testing mode.
client.setInsecure();
HTTPClient http;
String url = getWeatherURL();
Serial.println(url);
if (!http.begin(client, url)) {
Serial.println("HTTP BEGIN FAILED");
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
http.setTimeout(15000);
int httpCode = http.GET();
Serial.print("HTTP CODE: ");
Serial.println(httpCode);
if (httpCode <= 0) {
Serial.print("HTTP ERROR: ");
Serial.println(http.errorToString(httpCode));
http.end();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
if (httpCode != HTTP_CODE_OK) {
Serial.println("API ERROR");
http.end();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
String payload = http.getString();
Serial.print("PAYLOAD SIZE: ");
Serial.println(payload.length());
bool result = parseWeather(payload);
http.end();
isFetching = false;
if (result) {
apiOnline = true;
lastApiUpdate = millis();
Serial.println("WEATHER UPDATED");
Serial.print("Temperature: ");
Serial.println(weather.temperature);
Serial.print("Humidity: ");
Serial.println(weather.humidity);
Serial.print("Weather: ");
Serial.println(weatherDescription(weather.weatherCode));
Serial.print("Wind: ");
Serial.println(weather.windSpeed);
Serial.print("Rain Chance: ");
Serial.println(weather.currentRainChance);
screenDirty = true;
return true;
}
apiOnline = false;
screenDirty = true;
return false;
}
// ===== LOADING SCREEN =====
void drawLoadingScreen(String message) {
tft.fillScreen(BLACK);
drawCenteredText("SMART WEATHER", 48, 2, CYAN);
drawCenteredText("STATION", 73, 2, WHITE);
// Loading ring
for (int i = 0; i < 12; i++) {
float angle = i * 2.0 * PI / 12.0;
int x = CENTER_X + cos(angle) * 42;
int y = CENTER_Y + sin(angle) * 42;
uint16_t color = (i == 0) ? CYAN : DARK_GRAY;
tft.fillCircle(x, y, 4, color);
}
drawCenteredText(message, 182, 1, WHITE);
}
// ===== WIFI CONNECT =====
bool connectWiFi() {
Serial.println();
Serial.println("CONNECTING TO WIFI...");
tft.fillScreen(BLACK);
drawCenteredText("CONNECTING", 26, 2, CYAN);
drawWifiIcon(CENTER_X, 95, 0);
drawCenteredText("WI-FI", 145, 2, WHITE);
drawCenteredText(WIFI_SSID, 178, 1, GRAY);
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
WiFi.setTxPower(WIFI_POWER_8_5dBm);
unsigned long start = millis();
int iconFrame = 0;
while (WiFi.status() != WL_CONNECTED && millis() - start < 15000) {
drawWifiIcon(CENTER_X, 95, iconFrame % 4);
iconFrame++;
delay(250);
Serial.print(".");
}
Serial.println();
if (WiFi.status() == WL_CONNECTED) {
wifiOnline = true;
wifiConnecting = false;
drawWifiIcon(CENTER_X, 95, 3);
Serial.println("WIFI CONNECTED");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
Serial.print("RSSI: ");
Serial.print(WiFi.RSSI());
Serial.println(" dBm");
return true;
}
wifiOnline = false;
Serial.println("WIFI CONNECTION FAILED");
return false;
}
// ===== START WIFI RECONNECT =====
void startWiFiReconnect() {
Serial.println("START WIFI RECONNECT");
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
WiFi.setTxPower(WIFI_POWER_8_5dBm);
wifiConnecting = true;
wifiConnectStart = millis();
}
// ===== HANDLE WIFI =====
void handleWiFi() {
wl_status_t status = WiFi.status();
// Connected
if (status == WL_CONNECTED) {
if (!wifiOnline) {
Serial.println("WIFI CONNECTED");
screenDirty = true;
}
wifiOnline = true;
wifiConnecting = false;
return;
}
wifiOnline = false;
// Currently connecting
if (wifiConnecting) {
if (millis() - wifiConnectStart > WIFI_CONNECT_TIMEOUT) {
Serial.println("WIFI CONNECT TIMEOUT");
WiFi.disconnect(true);
wifiConnecting = false;
lastWifiRetry = millis();
}
return;
}
// Start another attempt
if (millis() - lastWifiRetry >= WIFI_RETRY_INTERVAL) {
lastWifiRetry = millis();
startWiFiReconnect();
}
}
// ===== NTP TIME =====
void setupTime() {
// The offset comes from USER CONFIGURATION.
configTime(
GMT_OFFSET_SEC,
DST_OFFSET_SEC,
"pool.ntp.org",
"time.nist.gov",
"time.google.com"
);
Serial.println("SYNCING TIME...");
struct tm timeinfo;
if (getLocalTime(&timeinfo, 10000)) {
Serial.println("TIME SYNCED");
Serial.println(&timeinfo, "%Y-%m-%d %H:%M:%S");
} else {
Serial.println("TIME SYNC FAILED");
}
}
// ===== BUTTON HANDLER =====
void handleButton() {
button.loop(); // MUST call the loop() function first
// The moment the button goes down, remember when it happened.
if (button.isPressed())
buttonPressStart = millis();
// The action is chosen when the button comes back up.
if (button.isReleased()) {
unsigned long duration = millis() - buttonPressStart;
if (duration >= VERY_LONG_PRESS_TIME) {
// VERY LONG PRESS -> back to the home page
currentPage = PAGE_HOME;
screenDirty = true;
Serial.println("VERY LONG PRESS -> HOME");
} else if (duration >= LONG_PRESS_TIME) {
// LONG PRESS -> ask the weather API for fresh data
pendingRefresh = true;
Serial.println("LONG PRESS -> REFRESH");
} else {
// SHORT PRESS -> next page
currentPage = (Page)((currentPage + 1) % PAGE_COUNT);
screenDirty = true;
Serial.print("SHORT PRESS -> PAGE ");
Serial.println(currentPage + 1);
}
}
}
// ===== PROCESS MANUAL REFRESH =====
void handleManualRefresh() {
if (!pendingRefresh) return;
pendingRefresh = false;
fetchWeather();
}
// ===== AUTO API UPDATE =====
void handleApiUpdate() {
if (!weather.valid) {
return;
}
if (millis() - lastApiUpdate >= API_UPDATE_INTERVAL) {
fetchWeather();
}
}
// ===== CLOCK =====
String getTimeString() {
struct tm timeinfo;
if (!getLocalTime(&timeinfo, 10)) {
return "--:--";
}
char buffer[10];
strftime(buffer, sizeof(buffer), "%H:%M", &timeinfo);
return String(buffer);
}
// ===== HANDLE CLOCK =====
void handleClock() {
if (currentPage != PAGE_HOME) {
return;
}
if (millis() - lastClockUpdate < CLOCK_UPDATE_INTERVAL) {
return;
}
lastClockUpdate = millis();
if (weather.valid && !isFetching) {
drawHomeClock();
}
}
// ===== SETUP =====
void setup() {
Serial.begin(115200);
delay(500);
Serial.println();
Serial.println("================================");
Serial.println("SMART WEATHER STATION");
Serial.println(LOCATION_NAME);
Serial.println("================================");
// BUTTON
// ezButton already set the pin to INPUT_PULLUP in its constructor.
button.setDebounceTime(BUTTON_DEBOUNCE);
// TFT
tft.begin();
tft.setRotation(2);
tft.fillScreen(BLACK);
// BOOT SCREEN
drawCenteredText("SMART WEATHER", 65, 2, CYAN);
drawCenteredText("STATION", 92, 2, WHITE);
drawCenteredText(LOCATION_NAME, 135, 2, YELLOW);
delay(1500);
// WIFI
if (connectWiFi()) {
setupTime();
delay(500);
fetchWeather();
} else {
tft.fillScreen(BLACK);
drawCenteredText("WIFI ERROR", 82, 2, RED);
drawCenteredText("CHECK SETTINGS", 120, 1, WHITE);
drawCenteredText("RETRYING...", 150, 1, GRAY);
delay(1500);
}
screenDirty = true;
}
// ===== LOOP =====
void loop() {
// Input
handleButton();
// WiFi
handleWiFi();
// Manual refresh
handleManualRefresh();
// Automatic API update
handleApiUpdate();
// Clock
handleClock();
// Static page rendering
if (screenDirty && !isFetching) {
renderPage();
screenDirty = false;
}
// Rain animation
updateRainAnimation();
}
Detailed Instructions
- New to ESP32 C3 Mini? Complete our Getting Started with ESP32 C3 Mini tutorial first to set up your development environment.
- Set up Arduino IDE: If you are new to ESP32 C3 Super Mini, refer to the tutorial on how to set up the environment for ESP32 C3 Super Mini in the Arduino IDE.
- Wire the components: Connect the round TFT display and the push button to ESP32 C3 Super Mini according to the wiring diagram above.
- Connect USB cable: Connect the ESP32 C3 Super Mini board to your computer using a USB Type-C cable.
- Open Arduino IDE: Launch the Arduino IDE on your computer.
- Select board and port: Choose ESP32 C3 Super Mini board and its corresponding COM port.
- Install the display library: Type "DIYables TFT Round" in the Library Manager search box, find the library by DIYables, then click Install. Accept the dependencies when the IDE offers them.
- Search for DIYables TFT Round created by DIYables.io and click the Install button.
1
void setup() {
- Install the JSON library: Type "ArduinoJson" in the search box, find the library by Benoit Blanchon, then click Install.
- Search for ArduinoJson created by Benoit Blanchon
and click the Install button.
1
void setup() {
- Install the button library: Type "ezButton" in the search box, find the library by ArduinoGetStarted, then click Install.
- Search for ezButton created by ArduinoGetStarted.com and click the Install button.
1
void setup() {
- Copy the code: Copy the above weather station code and paste it into Arduino IDE.
- Set your WiFi: Replace WIFI_SSID and WIFI_PASSWORD with your own network name and password.
- Set your city: Replace LATITUDE, LONGITUDE, LOCATION_NAME, TIMEZONE and GMT_OFFSET_SEC with the values of your own city.
- Upload the code: Click the Upload button to compile and upload code to ESP32 C3 Super Mini.
- Open Serial Monitor: Set the baud rate to 115200 to watch the connection and the weather values.
- Observe the result: The screen shows a boot screen, then a WiFi screen, then the weather. Press the button to step through the pages.
- Pro Tip: The sketch is large. If the IDE reports that it does not fit, open Tools and choose a partition scheme with a bigger application area.
8
Serial.println("Hello World!");
Message (Enter to send message to 'ESP32C3 Dev Module' on 'COM15')
New Line
9600 baud
================================
SMART WEATHER STATION
SEOUL
================================
CONNECTING TO WIFI...
....
WIFI CONNECTED
IP: 192.168.0.176
RSSI: -61 dBm
SYNCING TIME...
TIME SYNCED
2026-09-22 16:40:08
================================
FETCHING WEATHER
================================
https://api.open-meteo.com/v1/forecast?latitude=37.5665&longitude=126.9780¤t=...
HTTP CODE: 200
PAYLOAD SIZE: 1754
WEATHER UPDATED
Temperature: 27.30
Humidity: 49.00
Weather: CLEAR
Wind: 2.10
Rain Chance: 6
SHORT PRESS -> PAGE 2
LONG PRESS -> REFRESH
VERY LONG PRESS -> HOME
Line-by-line Code Explanation
The above ESP32 C3 Super Mini code contains line-by-line explanation. Please read the comments in the code!
How to Change the Location
Seoul is the city shipped with the sketch. Five lines at the top control it:
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
#define TIMEZONE "Asia%2FSeoul"
#define GMT_OFFSET_SEC (9 * 3600)
- LATITUDE and LONGITUDE mark your city. Any map website gives them.
- LOCATION_NAME is the label drawn on the screen. Keep it short for the round display.
- TIMEZONE goes into a web address, so / must be written as %2F. Europe/Berlin becomes Europe%2FBerlin.
- GMT_OFFSET_SEC feeds the NTP clock. Berlin in winter is UTC+1, so (1 * 3600).
- DST_OFFSET_SEC adds summer time. Use 3600 where it applies, otherwise 0.
Applications and Project Ideas
Use your ESP32 C3 Super Mini weather station in these practical projects:
- Build a desk clock that swaps between time and weather every few seconds
- Mount the round display in a wooden frame as a wall weather dial
- Add a buzzer that beeps when the rain chance for the next hour passes 70%
- Drive an RGB LED that changes color with the outside temperature
- Track two cities and switch between them with a second button
- Log the readings to an SD card to build your own temperature history
- Turn on a smart plug through MQTT when the forecast shows a cold night
Challenge Yourself
Take your ESP32 C3 Super Mini weather station further:
- Easy: Change the refresh time from 10 minutes to 30 minutes to save WiFi traffic
- Easy: Swap the temperature unit from Celsius to Fahrenheit in getWeatherURL()
- Medium: Add a ninth page that shows sunrise and sunset, which the code already parses
- Medium: Make the home page background change color with the temperature
- Advanced: Add a second button so one moves forward and the other moves back
- Advanced: Cache the last good answer in flash so the station shows data right after a reboot
Troubleshooting
- The screen stays black. Check SCL on GPIO4 and SDA on GPIO6, and make sure the module is powered from 3.3V.
- WiFi never connects. The ESP32 C3 Super Mini only joins 2.4 GHz networks. The onboard antenna is small, so keep the board away from metal.
- HTTP CODE is negative. The HTTPS connection failed. Check that the board really has Internet access.
- The sketch does not fit. Pick a partition scheme with a larger application area under Tools.
- The clock shows --:--. The NTP sync did not finish. Some networks block UDP port 123.
