Arduino Nano - SSD1309 OLED Display
An OLED (Organic Light-Emitting Diode) display offers self-emitting pixels that deliver deep blacks, high contrast, and wide viewing angles — making it a great upgrade over traditional LCDs. The SSD1309 is the driver IC commonly found on 2.42-inch (sometimes labeled 2.4-inch) 128×64 I2C OLED modules.
In this step-by-step guide you will learn how to connect and program the SSD1309 OLED 128×64 with an Arduino Nano board using the DIYables_OLED_SSD1309 library. Specifically, we will cover:
- Wiring the 2.42-inch SSD1309 OLED to Arduino Nano via I2C
- Printing text and numbers on the screen
- Centering text both vertically and horizontally
- Drawing geometric shapes (lines, rectangles, circles, triangles, rounded rectangles)
- Rendering monochrome bitmap images
- Hardware scrolling in four directions
- Adjusting contrast and dimming the display
- Using custom external fonts from the Adafruit GFX font collection
Hardware Preparation
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (30 sensors/displays) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Overview of the SSD1309 2.42-Inch OLED Display
The SSD1309 is a single-chip CMOS OLED driver IC designed for 128×64 dot-matrix panels. It is register-compatible with the widely-used SSD1306, so many existing code examples carry over with minimal changes. The key hardware differences are:
- No built-in charge pump — the SSD1309 requires an external VCC rail, though virtually all breakout boards (including 2.42-inch and 2.4-inch modules) ship with an onboard boost converter, so this is transparent to you.
- Higher voltage tolerance — the SSD1309 accepts up to 16 V VCC, whereas the SSD1306 is limited to roughly 4.2 V.
The 2.42 inch (2.4 inch) OLED module commonly uses the SSD1309 driver and features a 128×64 pixel resolution with I2C interface. Panel color (white, blue, yellow, green, or dual-zone) is determined by the physical OLED material and is not software-controllable.
This tutorial communicates with the display over the I2C bus, which only requires two signal wires (SDA and SCL) and can share the bus with other I2C peripherals.
SSD1309 OLED Pinout (I2C Module)
- GND pin: This should be connected to the ground of the Arduino Nano.
- VCC pin: This is the power supply for the display which should be connected to the 5V.
- SCL pin: This is a serial clock pin for I2C interface. Connect to A5.
- SDA pin: This is a serial data pin for I2C interface. Connect to A4.
※ NOTE THAT:
- The pins of the OLED module can differ depending on the manufacturer and type. Please use the labels printed on the OLED module. Please take a close look!
- This tutorial uses the OLED display that is driven by the SSD1309 I2C driver. We have tested it with the OLED display from DIYables and it works perfectly.
Wiring Diagram

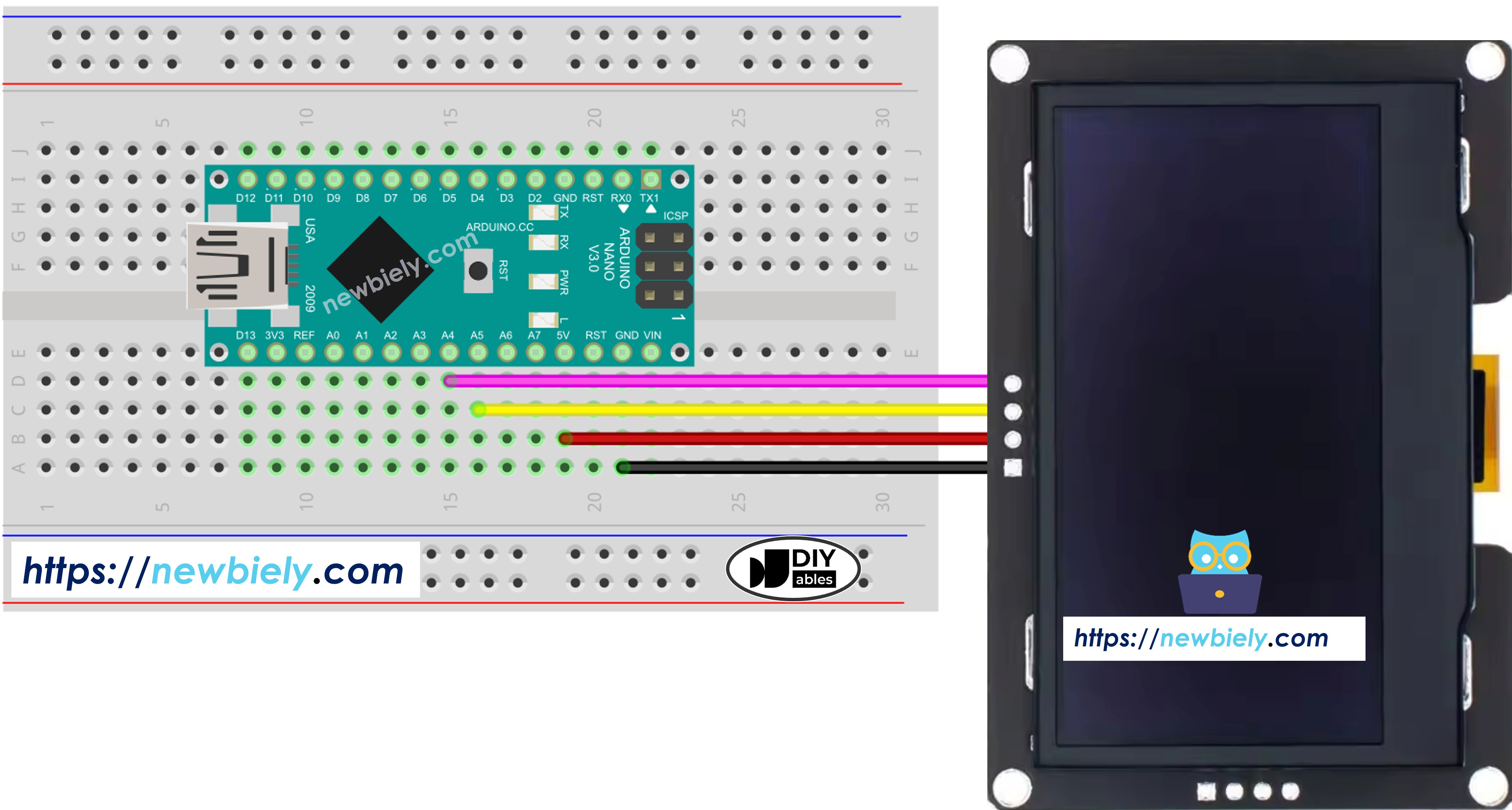

- Wiring diagram between Arduino Nano and SSD1309 OLED 128x64
This image is created using Fritzing. Click to enlarge image
See The best way to supply power to the Arduino Nano and other components.
The wiring table between Arduino Nano and SSD1309 OLED display:
| OLED Module | Arduino Nano |
|---|---|
| VCC | 5V |
| GND | GND |
| SDA | A4 |
| SCL | A5 |
How to Program Arduino Nano for SSD1309 OLED
Install the DIYables_OLED_SSD1309 Library
The DIYables_OLED_SSD1309 library is specifically tailored for SSD1309 displays and extends Adafruit_GFX for richer graphics support.

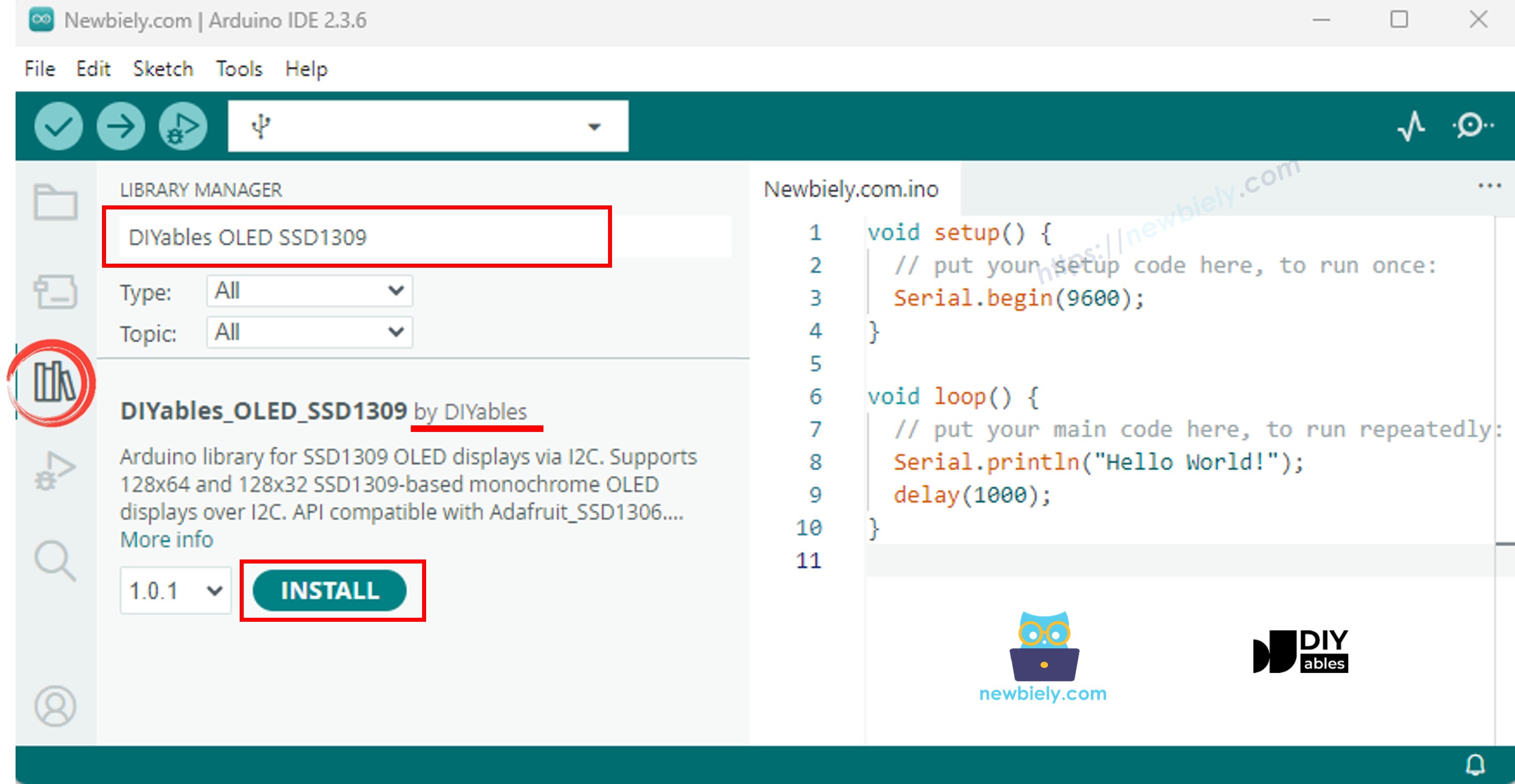

- Click to the Libraries icon on the left bar of the Arduino IDE.
- Search for DIYables_OLED_SSD1309, then look for the DIYables OLED SSD1309 library by DIYables
- Click Install button to install DIYables_OLED_SSD1309 library.

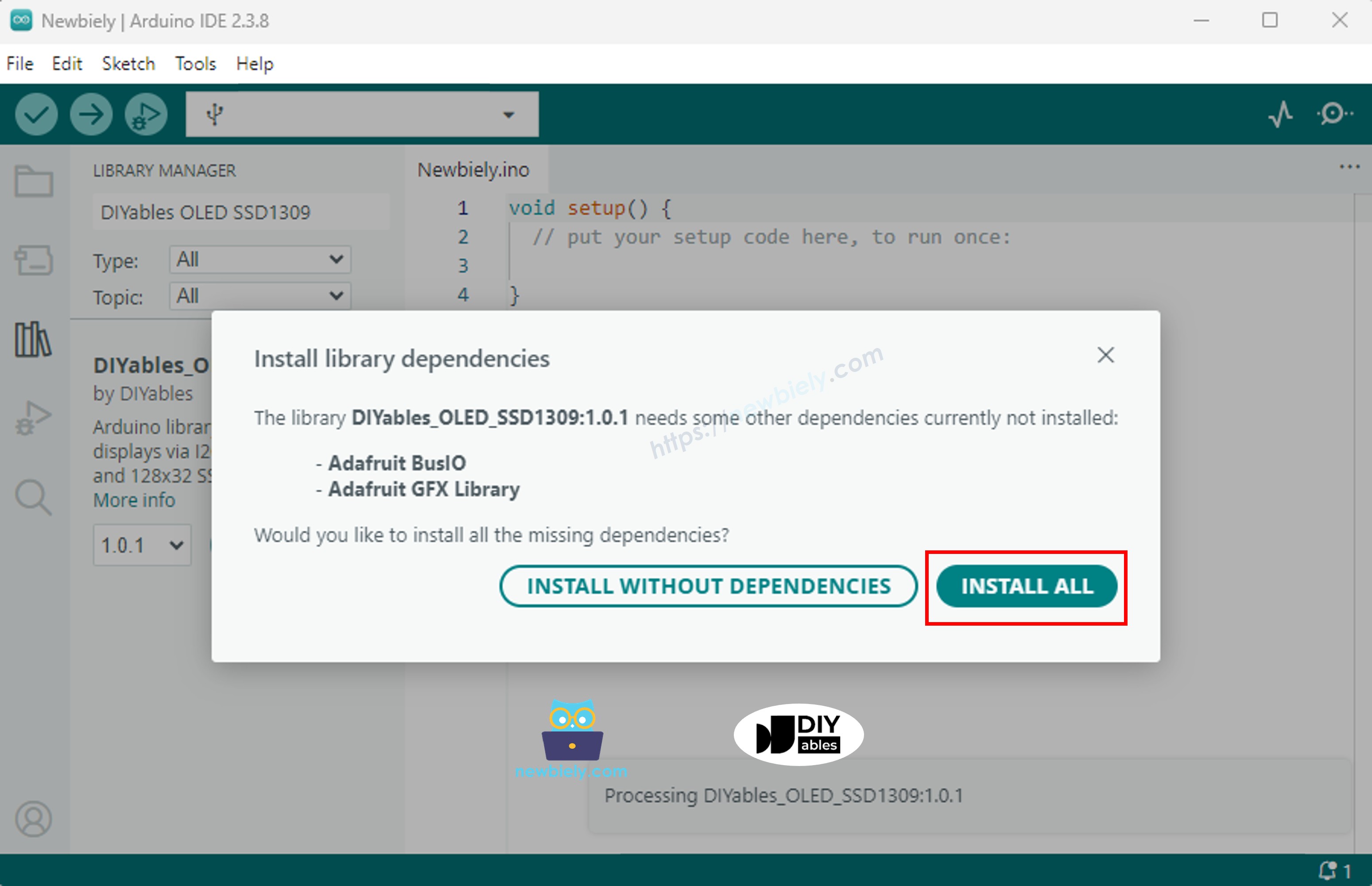

- You will be asked to install dependencies for the library
- Install all dependencies by clicking on Install All button.
Programming Steps
- Include the required libraries
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
- Define the screen dimensions
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
- Declare the display object
#define OLED_RESET -1 // Reset pin not used on most I2C modules
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
- Initialize the OLED in setup()
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;); // halt
}
- Display content
display.clearDisplay();
display.setTextSize(2);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 20);
display.println(F("Hello Nano"));
display.display(); // push buffer to screen
Arduino Nano Code — Hello World on SSD1309 OLED
The simplest starting point: print a few lines of text at different sizes.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Hello World
* Prints text in two sizes on the 2.42 inch 128x64 I2C OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.setTextSize(1); // 6x8 pixels per character
display.setTextColor(SSD1309_PIXEL_ON); // turn pixels on
display.setCursor(0, 0);
display.println(F("Hello, World!"));
display.println();
display.setTextSize(2); // 12x16 pixels per character
display.println(F("DIYables"));
display.setTextSize(1);
display.println();
display.println(F("SSD1309 OLED 128x64"));
display.display(); // push buffer to screen
}
void loop() { }
Arduino Nano Code — Display Text on SSD1309 OLED
The following example demonstrates more text features — multiple sizes, number formatting, and the F() macro for saving RAM.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Display Text
* Displays text in various sizes and formats on the 2.42" SSD1309 OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
// Various text sizes
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println(F("Size 1 - DIYables"));
display.setTextSize(2);
display.println(F("Size 2"));
display.setTextSize(3);
display.println(F("Sz3"));
display.display();
delay(3000);
// Number formatting
display.clearDisplay();
display.setTextSize(1);
display.setCursor(0, 0);
int value = 42;
float pi = 3.14159;
display.print(F("Integer: "));
display.println(value);
display.print(F("Float: "));
display.println(pi, 2); // 2 decimal places
display.print(F("Hex: 0x"));
display.println(value, HEX);
display.print(F("Binary: 0b"));
display.println(value, BIN);
display.display();
}
void loop() { }
Useful Display Functions Reference
Below is a quick-reference list of the most frequently used functions when working with the SSD1309 OLED through the DIYables library:
- oled.clearDisplay() — wipe the frame buffer (all pixels off).
- oled.display() — transfer the buffer to the OLED so changes become visible.
- oled.drawPixel(x, y, color) — set or clear an individual pixel.
- oled.setTextSize(n) — scale the font by factor *n* (1 = 6×8, 2 = 12×16, …, up to 8).
- oled.setCursor(x, y) — move the text cursor to pixel coordinates *(x, y)*.
- oled.setTextColor(SSD1309_PIXEL_ON) — text foreground only (background is transparent).
- oled.setTextColor(SSD1309_PIXEL_OFF, SSD1309_PIXEL_ON) — text with an explicit background colour.
- oled.println("message") — print a string and advance to the next line.
- oled.println(number) — print an integer in decimal.
- oled.println(number, HEX) — print an integer in hexadecimal.
- oled.startscrollright(start, stop) — hardware-scroll right between page *start* and page *stop*.
- oled.startscrollleft(start, stop) — hardware-scroll left.
- oled.startscrolldiagright(start, stop) — hardware-scroll diagonally right.
- oled.startscrolldiagleft(start, stop) — hardware-scroll diagonally left.
- oled.stopscroll() — halt any active hardware scroll.
- oled.setContrast(value) — adjust display brightness (0–255).
- oled.dim(true/false) — quickly dim the display to minimum or restore the previous contrast.
- oled.invertDisplay(true/false) — hardware-level colour inversion (on pixels ↔ off pixels).
How to Vertically and Horizontally Center Text on the SSD1309 OLED
Arduino Nano Code — Draw Shapes on SSD1309 OLED
Because the DIYables_OLED_SSD1309 library extends Adafruit_GFX, you get a complete set of shape-drawing primitives: pixels, lines, rectangles, filled rectangles, circles, filled circles, triangles, filled triangles, and rounded rectangles. The sketch below cycles through all of them with animated demos.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Draw Shapes
* Demonstrates drawing pixels, lines, rectangles, circles, and triangles on the 2.42" OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.display();
}
void loop() {
// Draw pixels
display.clearDisplay();
for (int i = 0; i < 20; i++) {
display.drawPixel(random(SCREEN_WIDTH), random(SCREEN_HEIGHT), SSD1309_PIXEL_ON);
}
display.display();
delay(2000);
// Draw lines
display.clearDisplay();
for (int y = 0; y < SCREEN_HEIGHT; y += 8) {
display.drawLine(0, 0, SCREEN_WIDTH - 1, y, SSD1309_PIXEL_ON);
}
display.display();
delay(2000);
// Draw rectangles
display.clearDisplay();
display.drawRect(10, 10, 40, 30, SSD1309_PIXEL_ON); // outline
display.fillRect(60, 10, 40, 30, SSD1309_PIXEL_ON); // filled
display.drawRoundRect(10, 45, 40, 15, 5, SSD1309_PIXEL_ON); // rounded corners
display.display();
delay(2000);
// Draw circles
display.clearDisplay();
display.drawCircle(32, 32, 20, SSD1309_PIXEL_ON); // outline
display.fillCircle(96, 32, 20, SSD1309_PIXEL_ON); // filled
display.display();
delay(2000);
// Draw triangles
display.clearDisplay();
display.drawTriangle(20, 10, 10, 50, 30, 50, SSD1309_PIXEL_ON); // outline
display.fillTriangle(90, 10, 70, 50, 110, 50, SSD1309_PIXEL_ON); // filled
display.display();
delay(2000);
}
Arduino Nano Code — Hardware Scrolling on SSD1309 OLED
The SSD1309 has a built-in scrolling engine that shifts the display contents without any CPU load. The DIYables library exposes four scroll directions: right, left, diagonal-right, and diagonal-left. Each takes a start page and stop page parameter (pages are 8-pixel-high horizontal strips numbered 0–7 on a 64-pixel-tall display).
※ NOTE THAT:
Always call display() to push your content to the OLED before starting a scroll. Avoid drawing new content while scrolling is active — call stopscroll() first.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Scroll Text
* Demonstrates all four hardware scroll directions on the 2.42" OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.setTextSize(2);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(10, 24);
display.println(F("DIYables"));
display.display();
delay(2000);
}
void loop() {
// Scroll right across all pages
display.startscrollright(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Scroll left
display.startscrollleft(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Diagonal scroll right
display.startscrolldiagright(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
// Diagonal scroll left
display.startscrolldiagleft(0x00, 0x07);
delay(3000);
display.stopscroll();
delay(500);
}
Arduino Nano Code — Display Bitmap Image on SSD1309 OLED
To display a bitmap on the SSD1309 OLED you must first convert your image into a C byte array. Use the free image2cpp online tool for this conversion:
- Upload your image file (PNG, JPG, BMP, etc.).
- Set the canvas size to 128×64 (or smaller).
- Choose Arduino code as the output format.
- Copy the generated array into your sketch.
The example below alternates between a 16×16 heart icon and a full-width DIYables logo:
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Display Bitmap Image
* Shows a 16x16 heart icon and 128x64 DIYables logo on the 2.42" OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
// 16x16 heart icon bitmap
const unsigned char heart_icon[] PROGMEM = {
0x00, 0x00, 0x0c, 0x30, 0x1e, 0x78, 0x3f, 0xfc, 0x7f, 0xfe, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0x7f, 0xfe, 0x3f, 0xfc, 0x1f, 0xf8, 0x0f, 0xf0, 0x03, 0xc0, 0x00, 0x00
};
// 128x64 DIYables logo bitmap
const unsigned char diyables_logo[] PROGMEM = {
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff,
0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xff,
0xff, 0xff, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff,
0xff, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xc1, 0xff, 0xe0, 0x7f, 0xf0, 0x1f, 0xfc, 0x03, 0x00, 0x7f,
0xff, 0xff, 0xfc, 0x00, 0x1f, 0xff, 0xf7, 0xff, 0xf9, 0xff, 0xfc, 0x7f, 0xff, 0x0f, 0x80, 0x3f,
0xff, 0xff, 0xf8, 0x00, 0x3f, 0xff, 0xff, 0xff, 0xfd, 0xff, 0xfe, 0xff, 0xff, 0x9f, 0xc0, 0x1f,
0xff, 0xff, 0xf8, 0x00, 0x7f, 0x80, 0xff, 0x00, 0x7f, 0xc0, 0x3f, 0xf0, 0x0f, 0xfc, 0x00, 0x1f,
0xff, 0xff, 0xf0, 0x00, 0xfe, 0x00, 0x7f, 0x00, 0x3f, 0x80, 0x1f, 0xe0, 0x07, 0xf8, 0x00, 0x0f,
0xff, 0xff, 0xe0, 0x01, 0xfc, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x0f,
0xff, 0xff, 0xe0, 0x03, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x07,
0xff, 0xff, 0xc0, 0x07, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x03,
0xff, 0xff, 0xc0, 0x0f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x03,
0xff, 0xff, 0x80, 0x0f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x01,
0xff, 0xff, 0x80, 0x1f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x01,
0xff, 0xff, 0x00, 0x3f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xff, 0x00, 0x3f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xfe, 0x00, 0x7f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xfe, 0x00, 0x7f, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xfc, 0x00, 0xff, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xfc, 0x00, 0xff, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xfc, 0x01, 0xff, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xf8, 0x01, 0xff, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xf8, 0x03, 0xff, 0xf8, 0x00, 0x3e, 0x00, 0x1f, 0x00, 0x0f, 0xc0, 0x03, 0xf0, 0x00, 0x00,
0xff, 0xf0, 0x03, 0xff, 0xfc, 0x00, 0x7e, 0x00, 0x1f, 0x80, 0x1f, 0xe0, 0x07, 0xf8, 0x00, 0x00,
0xff, 0xf0, 0x07, 0xff, 0x7f, 0x80, 0xff, 0x00, 0x7f, 0xc0, 0x3f, 0xf0, 0x0f, 0xfc, 0x00, 0x00,
0xff, 0xf0, 0x07, 0xfe, 0x3f, 0xff, 0xff, 0xff, 0xfd, 0xff, 0xfe, 0xff, 0xff, 0x9f, 0xc0, 0x00,
0xff, 0xe0, 0x0f, 0xfc, 0x1f, 0xff, 0xf7, 0xff, 0xf9, 0xff, 0xfc, 0x7f, 0xff, 0x0f, 0x80, 0x00,
0xff, 0xe0, 0x0f, 0xf8, 0x07, 0xff, 0xc1, 0xff, 0xe0, 0x7f, 0xf0, 0x1f, 0xfc, 0x03, 0x00, 0x00,
0xff, 0xe0, 0x1f, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0xff, 0xc0, 0x1f, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0xff, 0xc0, 0x3f, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0xff, 0xc0, 0x3f, 0x80, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0xff, 0x80, 0x7f, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0x80, 0x7f, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0x80, 0xfe, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0x00, 0xfc, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0x01, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xff, 0x01, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xfe, 0x03, 0xe0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xfe, 0x07, 0xc0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xfc, 0x0f, 0x80, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xf8, 0x1f, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xf0, 0x3e, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xe0, 0x7c, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0xc0, 0xf8, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0x81, 0xf0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
0x03, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff
};
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.display();
}
void loop() {
// Display small heart icon centered
display.clearDisplay();
display.drawBitmap((SCREEN_WIDTH - 16) / 2, (SCREEN_HEIGHT - 16) / 2, heart_icon, 16, 16, SSD1309_PIXEL_ON);
display.display();
delay(3000);
// Display full-screen DIYables logo
display.clearDisplay();
display.drawBitmap(0, 0, diyables_logo, SCREEN_WIDTH, SCREEN_HEIGHT, SSD1309_PIXEL_ON);
display.display();
delay(3000);
// Invert display
display.invertDisplay(true);
delay(2000);
display.invertDisplay(false);
delay(1000);
}
※ NOTE THAT:
- The bitmap dimensions must not exceed the screen resolution (128×64 for the 2.42 inch module).
Arduino Nano Code — Contrast and Dim on SSD1309 OLED
The SSD1309 supports 256 levels of contrast (0–255). The DIYables library provides setContrast() for fine-grained control and dim() for a quick toggle between minimum brightness and the previously-configured level.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – Contrast & Dim
* Sweeps contrast from 0→255→0 then toggles dim mode on the 2.42" OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
// Draw a test pattern so the contrast changes are visible
display.clearDisplay();
display.fillRect(0, 0, 64, 32, SSD1309_PIXEL_ON);
display.fillRect(64, 32, 64, 32, SSD1309_PIXEL_ON);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_INVERSE);
display.setCursor(16, 28);
display.println(F("Contrast Demo"));
display.display();
delay(2000);
}
void loop() {
// Ramp up
for (int c = 0; c <= 255; c += 5) {
display.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Ramp down
for (int c = 255; c >= 0; c -= 5) {
display.setContrast((uint8_t)c);
delay(30);
}
delay(1000);
// Quick dim toggle
display.dim(true); // minimum brightness
delay(2000);
display.dim(false); // restore
delay(2000);
}
Arduino Nano Code — Custom External Fonts on SSD1309 OLED
The Adafruit GFX library ships with dozens of scalable FreeFont typefaces (Serif, Sans, Mono — each in Regular, Bold, Italic, and four sizes). You can activate any of them on the SSD1309 display by including the corresponding header and calling setFont().
※ NOTE THAT:
- When an external font is active, the cursor Y coordinate refers to the text baseline, not the top-left corner. This is different from the built-in 5×7 font.
- External fonts are stored in flash (PROGMEM). On memory-limited AVR boards (Arduino Nano = 32 KB flash), use them sparingly.
/*
* This Arduino Nano code was developed by newbiely.com
*
* This Arduino Nano code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-nano/arduino-nano-ssd1309-oled-display
*/
/*
* DIYables OLED SSD1309 – External Fonts
* Cycles through three FreeFont typefaces on the 2.42" SSD1309 OLED with Arduino Nano.
*/
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <DIYables_OLED_SSD1309.h>
#include <Fonts/FreeSerif9pt7b.h>
#include <Fonts/FreeSansBold12pt7b.h>
#include <Fonts/FreeMono9pt7b.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C
DIYables_OLED_SSD1309 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
void setup() {
Serial.begin(9600);
if (!display.begin(SSD1309_SWITCHCAPVCC, SCREEN_ADDRESS)) {
Serial.println(F("SSD1309 allocation failed"));
for (;;);
}
display.clearDisplay();
display.display();
}
void loop() {
// ── Built-in 5×7 font ──
display.clearDisplay();
display.setFont(NULL);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 0);
display.println(F("Built-in 5x7 font"));
display.println();
display.setTextSize(2);
display.println(F("DIYables"));
display.display();
delay(3000);
// ── FreeSerif 9pt ──
display.clearDisplay();
display.setFont(&FreeSerif9pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 14); // Y = baseline
display.println(F("FreeSerif 9pt"));
display.setCursor(0, 38);
display.println(F("DIYables OLED"));
display.setCursor(0, 58);
display.println(F("Hello World!"));
display.display();
delay(3000);
// ── FreeSansBold 12pt ──
display.clearDisplay();
display.setFont(&FreeSansBold12pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 20);
display.println(F("SansBold"));
display.setCursor(0, 52);
display.println(F("DIYables"));
display.display();
delay(3000);
// ── FreeMono 9pt ──
display.clearDisplay();
display.setFont(&FreeMono9pt7b);
display.setTextSize(1);
display.setTextColor(SSD1309_PIXEL_ON);
display.setCursor(0, 14);
display.println(F("FreeMono 9pt"));
display.setCursor(0, 34);
display.println(F("0123456789"));
display.setCursor(0, 54);
display.println(F("!@#$%^&*()"));
display.display();
delay(3000);
}
SSD1309 OLED Troubleshooting with Arduino Nano
If nothing appears on the 2.42 inch SSD1309 OLED after uploading your sketch, work through these checks:
- Verify wiring — confirm SDA, SCL, VCC and GND are connected to the correct Arduino Nano pins.
- Confirm the driver chip — this library is designed for the SSD1309. If your module uses a different controller (e.g. SH1106), it will not respond correctly.
- Check the I2C address — most SSD1309 modules default to 0x3C, but some use 0x3D. Run the I2C scanner sketch below to detect the actual address:
// I2C address scanner — prints every detected device to the Serial Monitor
#include <Wire.h>
void setup()
{
Wire.begin();
Serial.begin(9600);
Serial.println("I2C Scanner");
}
void loop()
{
byte error, address;
int nDevices = 0;
Serial.println("Scanning...");
for (address = 1; address < 127; address++)
{
Wire.beginTransmission(address);
error = Wire.endTransmission();
if (error == 0)
{
Serial.print("I2C device found at address 0x");
if (address < 16)
Serial.print("0");
Serial.print(address, HEX);
Serial.println(" !");
nDevices++;
}
else if (error == 4)
{
Serial.print("Unknown error at address 0x");
if (address < 16)
Serial.print("0");
Serial.println(address, HEX);
}
}
if (nDevices == 0)
Serial.println("No I2C devices found");
else
Serial.println("done");
delay(5000);
}
Expected Serial Monitor output when the SSD1309 is detected:
COM6
Scanning...
I2C device found at address 0x3C !
done
Autoscroll
Clear output
9600 baud
Newline
- Ensure display() is called — the SSD1309 uses a frame buffer. Drawing functions only modify the buffer in RAM; nothing appears on screen until you call oled.display().
- Check power supply — the 2.42 inch module draws more current than smaller OLEDs. Ensure your power source can deliver sufficient current (typically 20–40 mA at full brightness).
Video Tutorial
Wrap Up
This guide has covered all the essentials for using the 2.42-inch SSD1309 OLED display (128×64) with Arduino Nano, including:
- Hardware connections and I2C wiring
- Text and number display with multiple sizes
- Shape drawing (rectangles, circles, triangles)
- Bitmap image rendering
- Hardware scrolling in four directions
- Contrast and brightness control
- Custom external fonts
The DIYables_OLED_SSD1309 library simplifies SSD1309 programming by providing high-level functions for text, graphics, and display control while leveraging Adafruit GFX for extended drawing capabilities.
For more Arduino Nano projects and tutorials, visit arduinogetstarted.com
