Arduino UNO R4 - Smart Weather Station
In this guide, we will learn how to build a smart weather station with the Arduino UNO R4 WiFi and a 1.28 inch round TFT LCD display. The station gets the live weather from the Internet. It does not need any temperature or humidity sensor. In detail, we will learn:
- How to connect the round TFT LCD display and a push button to the Arduino UNO R4.
- How to make the Arduino UNO R4 read live weather data from the free Open-Meteo API over HTTPS.
- How to write a program for the Arduino UNO R4 to show the weather on eight round screen pages.
- How to move between the pages with only one button.
Hardware Preparation
You need only one of the two button parts. See the wiring section for both options.
Or you can buy the following kits:
| 1 | × | DIYables STEM V4 IoT Starter Kit (Arduino included) | |
| 1 | × | DIYables STEM V4B IoT Starter Kit (Arduino included) | |
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
※ NOTE THAT:
This project needs the Arduino UNO R4 WiFi. The Arduino UNO R4 Minima has no WiFi, so it cannot reach the weather API.
Overview of the Smart Weather Station
A normal weather station uses a sensor to measure the air around it. This one works in another way. The Arduino UNO R4 asks a weather service on the Internet, and the service sends back the weather for your city. Because of that, the station can also show things that a small sensor cannot measure, such as the rain chance for the next hours and the forecast for the next days.
The station has eight pages. One push button moves between them:
- HOME - the weather icon, the temperature, the sky description, and a clock.
- TEMP - the temperature and the "feels like" temperature.
- HUMIDITY - the humidity as a ring and as a number.
- WIND - the wind speed and the wind direction as a compass.
- RAIN - the rain chance with a small rain animation.
- NEXT HOURS - the temperature and rain chance for the next hours.
- FORECAST - the highest and lowest temperature for the next 3 days.
- SYSTEM - the WiFi state, the signal level, and the API state.
The Arduino UNO R4 asks for new weather every 10 minutes. Between two updates, the clock on the home page keeps running.
Overview of the Open-Meteo Weather API
Open-Meteo is a free weather service. It is a good fit for a small board like the Arduino UNO R4:
- No API key: you do not need to sign up or paste a key into the code.
- Free for personal use: no cost for a small project like this one.
- Plain JSON: the answer is a short JSON text that the Arduino UNO R4 can read.
- Any place: you choose the place with a latitude and a longitude.
The Arduino UNO R4 sends one HTTPS request and gets back one answer of about 1.8 KB. The answer holds the weather now, the next 12 hours, and the next 3 days.
※ NOTE THAT:
The answer also carries the local time of the place you asked for. The code takes the time from there, so the station shows a clock without an NTP client and without an RTC module.
Wiring Diagram
The 1.28 inch round TFT LCD display uses the hardware SPI pins of the Arduino UNO R4. These pins are fixed: D13 is the clock and D11 is the data line.
| TFT LCD Pin | Arduino UNO R4 | Description |
|---|---|---|
| VCC | 5V | Power supply |
| GND | GND | Ground |
| SCL | D13 | SPI Clock (fixed pin) |
| SDA | D11 | SPI MOSI (fixed pin) |
| DC | D9 | Data/Command |
| CS | D10 | Chip Select |
| RST | D8 | Reset |
For the button you can pick one of two parts. Both work the same way in the project. Only one line of code is different.

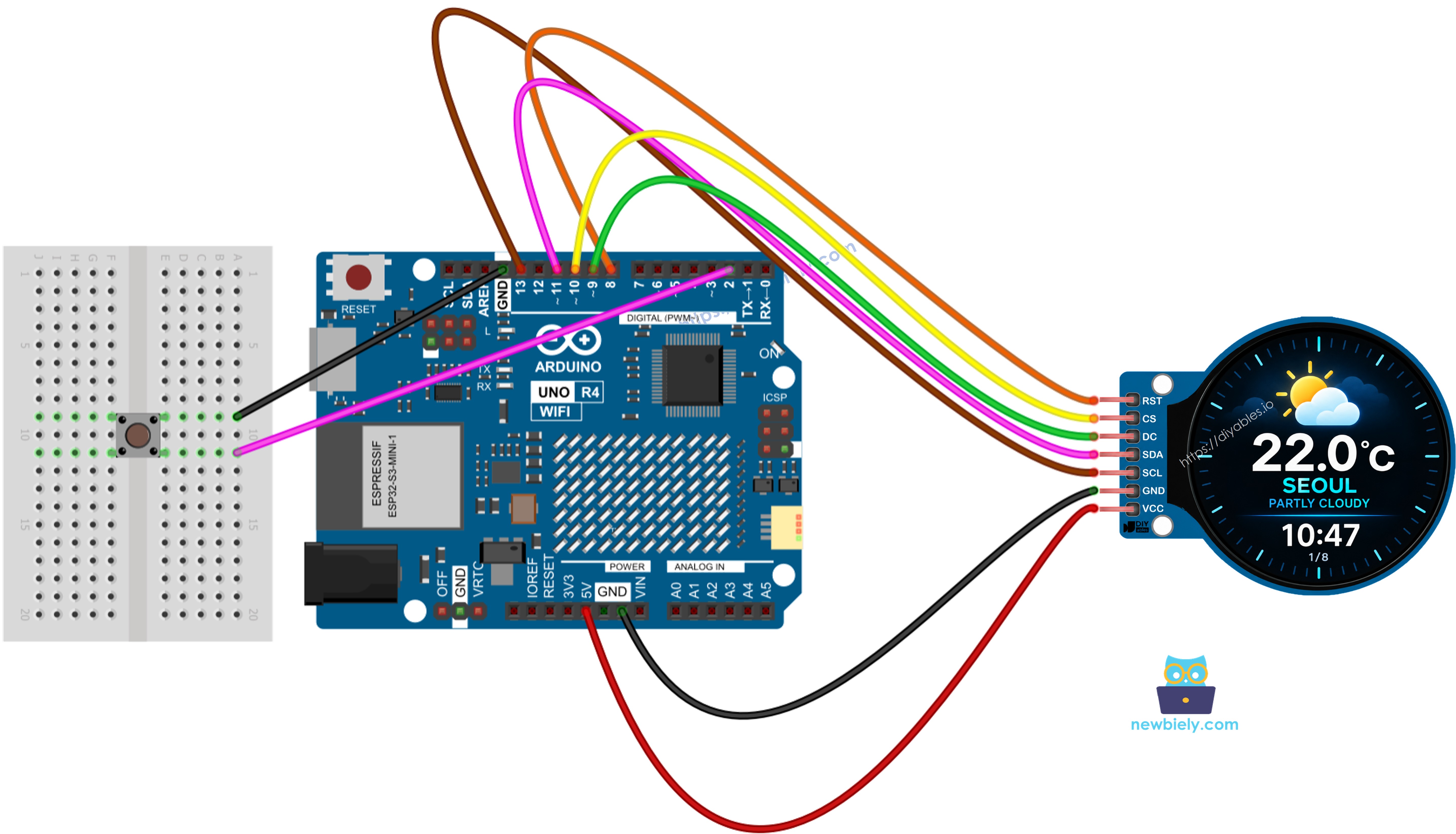

Wiring with a Push Button
A push button has two pins and no resistor. It connects D2 to GND when you press it. The Arduino UNO R4 turns on its own internal pull-up resistor, so you do not need to add any resistor.
This image is created using Fritzing. Click to enlarge image
| Button Pin | Arduino UNO R4 | Description |
|---|---|---|
| Pin 1 | D2 | Button input with internal pull-up |
| Pin 2 | GND | Ground |
This is what the code uses by default:
ezButton button(PIN_BUTTON);

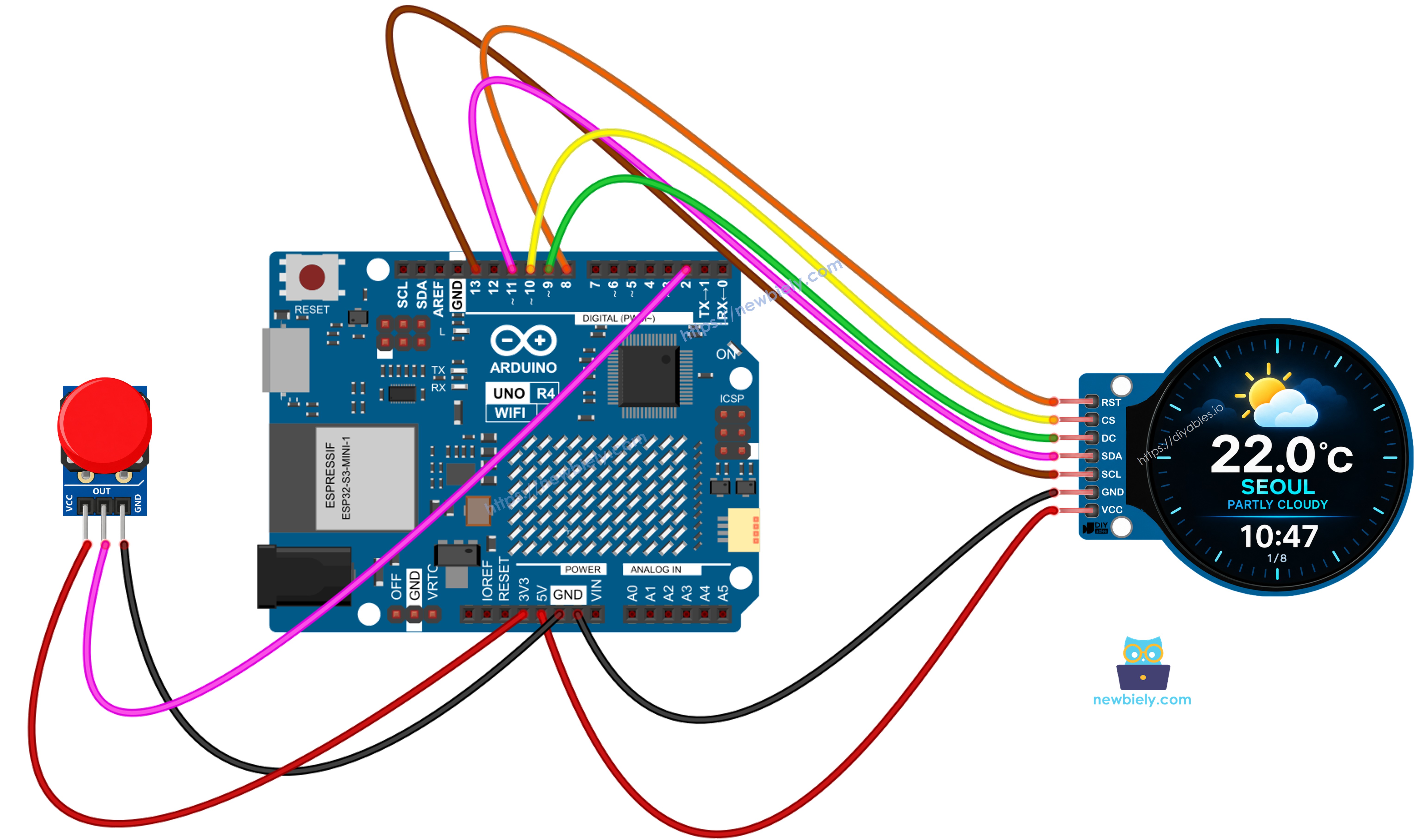

Wiring with a Button Module
A button module has three pins and its own resistor on the board. It needs power, and its OUT pin goes to D2. The module gives LOW when you do not press, and HIGH when you press.
This image is created using Fritzing. Click to enlarge image
See The best way to supply power to the Arduino Uno R4 and other components.
| Button Module Pin | Arduino UNO R4 | Description |
|---|---|---|
| VCC | 5V | Power supply |
| GND | GND | Ground |
| OUT | D2 | Button signal, LOW when free, HIGH when pressed |
The module already has a resistor, so the internal one must not be used. Change one line in the code:
ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
How To Program For the Smart Weather Station
Include the five libraries.
#include <WiFiS3.h>
#include <ArduinoHttpClient.h>
#include <ArduinoJson.h>
#include <DIYables_TFT_Round.h>
#include <ezButton.h>
Create the display object with the reset, data/command, and chip select pins.
DIYables_TFT_GC9A01_Round tft(8, 9, 10);
Set your WiFi name, your WiFi password, and your place.
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
Start the display and the WiFi.
tft.begin();
tft.setRotation(2);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
Open an HTTPS connection to the weather server. On the Arduino UNO R4, WiFiSSLClient does the HTTPS part. The root certificates are already inside the WiFi firmware, so you do not need to paste a certificate into the code.
WiFiSSLClient sslClient;
HttpClient http(sslClient, "api.open-meteo.com", 443);
Send the request and read the answer.
http.get(path);
int statusCode = http.responseStatusCode();
String payload = http.responseBody();
Read the JSON answer. The Arduino UNO R4 has only 32 KB of RAM, so a filter is used. The filter keeps the three blocks that the code needs and drops the rest.
JsonDocument filter;
filter["current"] = true;
filter["hourly"] = true;
filter["daily"] = true;
JsonDocument doc;
deserializeJson(doc, payload, DeserializationOption::Filter(filter));
Take one value out of the answer.
float temperature = doc["current"]["temperature_2m"] | 0.0;
Draw it on the round display.
tft.setTextSize(3);
tft.setTextColor(DIYables_TFT::colorRGB(255, 255, 255));
tft.setCursor(80, 100);
tft.print(temperature, 1);
Arduino UNO R4 Code - Smart Weather Station
/*
* This Arduino UNO R4 code was developed by newbiely.com
*
* This Arduino UNO R4 code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/arduino-uno-r4/arduino-uno-r4-smart-weather-station
*/
/*
============================================================
SMART WEATHER STATION
Arduino UNO R4 WiFi + GC9A01 Round TFT + Push Button
Location:
Seoul, South Korea (change it in USER CONFIGURATION)
Weather API:
Open-Meteo (free, no API key needed)
------------------------------------------------------------
GC9A01 Round TFT -> Arduino UNO R4
VCC -> 5V
GND -> GND
SCL -> D13 (hardware SPI clock, fixed)
SDA -> D11 (hardware SPI MOSI, fixed)
RST -> D8
DC -> D9
CS -> D10
Button
D2 -> BUTTON -> GND
------------------------------------------------------------
BUTTON
Short press -> Next page
Long press -> Refresh weather
Very long press -> Back to home page
------------------------------------------------------------
This sketch needs the Arduino UNO R4 WiFi.
The UNO R4 Minima has no WiFi, so it cannot read the API.
============================================================
*/
#include <WiFiS3.h>
#include <ArduinoHttpClient.h>
#include <ArduinoJson.h>
#include <DIYables_TFT_Round.h>
#include <ezButton.h>
// ===== USER CONFIGURATION =====
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
// Time zone name for the API, URL-encoded.
// "/" must be written as "%2F".
#define TIMEZONE "Asia%2FSeoul"
// ===== API SERVER =====
const char API_HOST[] = "api.open-meteo.com";
const int API_PORT = 443;
// ===== PIN CONFIGURATION =====
// SCK (D13) and MOSI (D11) are the hardware SPI pins of the
// Arduino UNO R4. They are fixed and are not listed here.
#define PIN_BUTTON 2
#define PIN_RST 8
#define PIN_DC 9
#define PIN_CS 10
// ===== TIMING =====
const unsigned long API_UPDATE_INTERVAL = 10UL * 60UL * 1000UL;
const unsigned long WIFI_RETRY_INTERVAL = 10UL * 1000UL;
const unsigned long WIFI_CONNECT_TIMEOUT = 15UL * 1000UL;
const unsigned long BUTTON_DEBOUNCE = 40;
const unsigned long LONG_PRESS_TIME = 600;
const unsigned long VERY_LONG_PRESS_TIME = 2000;
const unsigned long RAIN_ANIMATION_INTERVAL = 90;
const unsigned long CLOCK_UPDATE_INTERVAL = 1000;
// ===== TFT =====
DIYables_TFT_GC9A01_Round tft(PIN_RST, PIN_DC, PIN_CS);
// ===== SCREEN =====
const int SCREEN_W = 240;
const int SCREEN_H = 240;
const int CENTER_X = 120;
const int CENTER_Y = 120;
// ===== COLORS =====
#define BLACK DIYables_TFT::colorRGB(0, 0, 0)
#define WHITE DIYables_TFT::colorRGB(255, 255, 255)
#define CYAN DIYables_TFT::colorRGB(0, 220, 255)
#define BLUE DIYables_TFT::colorRGB(40, 120, 255)
#define LIGHT_BLUE DIYables_TFT::colorRGB(90, 190, 255)
#define GREEN DIYables_TFT::colorRGB(60, 230, 130)
#define YELLOW DIYables_TFT::colorRGB(255, 210, 60)
#define ORANGE DIYables_TFT::colorRGB(255, 150, 40)
#define RED DIYables_TFT::colorRGB(255, 70, 70)
#define PURPLE DIYables_TFT::colorRGB(180, 100, 255)
#define GRAY DIYables_TFT::colorRGB(125, 125, 135)
#define DARK_GRAY DIYables_TFT::colorRGB(42, 42, 52)
#define DARK_BLUE DIYables_TFT::colorRGB(12, 18, 48)
// ===== PAGE =====
enum Page {
PAGE_HOME = 0,
PAGE_TEMP,
PAGE_HUMIDITY,
PAGE_WIND,
PAGE_RAIN,
PAGE_HOURLY,
PAGE_FORECAST,
PAGE_SYSTEM,
PAGE_COUNT
};
Page currentPage = PAGE_HOME;
// ===== WEATHER DATA =====
// The Arduino UNO R4 has only 32 KB of RAM, so short text is
// kept in fixed char arrays instead of String objects.
struct WeatherData {
bool valid = false;
float temperature = 0;
float humidity = 0;
float feelsLike = 0;
float windSpeed = 0;
float windDirection = 0;
float pressure = 0;
int weatherCode = 0;
bool isDay = true;
int currentRainChance = 0;
float uvIndex = 0;
// "HH:MM"
char sunrise[6] = "--:--";
char sunset[6] = "--:--";
// NEXT HOURS
float hourlyTemp[12];
int hourlyRainChance[12];
int hourlyWeatherCode[12];
// "HH:MM"
char hourlyTime[12][6];
// DAILY
// "YYYY-MM-DD"
char dailyDate[3][11];
float dailyTempMax[3];
float dailyTempMin[3];
int dailyRainChance[3];
int dailyWeatherCode[3];
float dailyUV[3];
};
WeatherData weather;
// ===== SOFTWARE CLOCK =====
// The Arduino UNO R4 has no NTP client in this sketch.
// Instead, the local time that comes with the weather answer
// is stored, then millis() moves the clock forward.
// Seconds after midnight at the moment of the last answer.
long clockBaseSecond = -1;
unsigned long clockBaseMillis = 0;
// ===== SYSTEM STATE =====
bool apiOnline = false;
bool wifiOnline = false;
bool screenDirty = true;
bool isFetching = false;
bool pendingRefresh = false;
unsigned long lastApiUpdate = 0;
unsigned long lastWifiRetry = 0;
unsigned long wifiConnectStart = 0;
unsigned long lastRainAnimation = 0;
unsigned long lastClockUpdate = 0;
bool wifiConnecting = false;
// ===== BUTTON =====
// ezButton handles the debouncing, so the sketch only has to
// measure how long the button was held down.
//
// The line below is for a BARE push button wired to GND. ezButton then
// uses the internal pull-up resistor of the board, and the pin reads LOW
// while the button is held down.
ezButton button(PIN_BUTTON);
// If you use a BUTTON MODULE instead, the module carries its own resistor
// on the board, so the internal one must not be used. Comment the line
// above and use this line instead:
// ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
unsigned long buttonPressStart = 0;
// ===== RAIN ANIMATION =====
const int RAIN_DROP_COUNT = 16;
int rainX[RAIN_DROP_COUNT];
int rainY[RAIN_DROP_COUNT];
bool rainInitialized = false;
const int RAIN_AREA_X = 30;
const int RAIN_AREA_Y = 125;
const int RAIN_AREA_W = 180;
const int RAIN_AREA_H = 78;
// ===== WEATHER DESCRIPTION =====
String weatherDescription(int code) {
switch (code) {
case 0:
return "CLEAR";
case 1:
return "MAINLY CLEAR";
case 2:
return "PARTLY CLOUDY";
case 3:
return "OVERCAST";
case 45:
case 48:
return "FOG";
case 51:
case 53:
case 55:
return "DRIZZLE";
case 56:
case 57:
return "FREEZING DRIZZLE";
case 61:
case 63:
case 65:
return "RAIN";
case 66:
case 67:
return "FREEZING RAIN";
case 71:
case 73:
case 75:
return "SNOW";
case 77:
return "SNOW GRAINS";
case 80:
case 81:
case 82:
return "SHOWERS";
case 85:
case 86:
return "SNOW SHOWERS";
case 95:
return "THUNDERSTORM";
case 96:
case 99:
return "STORM";
default:
return "UNKNOWN";
}
}
// ===== WEATHER COLOR =====
uint16_t weatherColor(int code) {
if (code == 0) return YELLOW;
if (code == 1 || code == 2) return CYAN;
if (code == 3) return GRAY;
if (code >= 51 && code <= 67) return BLUE;
if (code >= 80 && code <= 82) return LIGHT_BLUE;
if (code >= 95) return RED;
return WHITE;
}
// ===== WIND DIRECTION =====
String windDirectionText(float degrees) {
const char* directions[] = {
"N",
"NE",
"E",
"SE",
"S",
"SW",
"W",
"NW"
};
int index = (int)((degrees + 22.5) / 45.0);
index %= 8;
return directions[index];
}
// ===== CENTER TEXT =====
void drawCenteredText(String text, int y, int size, uint16_t color) {
tft.setTextSize(size);
tft.setTextColor(color);
int width = text.length() * 6 * size;
int x = CENTER_X - width / 2;
if (x < 0) x = 0;
tft.setCursor(x, y);
tft.print(text);
}
// ===== HEADER =====
void drawHeader(String title, uint16_t color) {
// Safe radius from screen center (slightly less than the
// physical 120px radius, to keep a small margin from the
// round bezel).
const float SAFE_RADIUS = 116.0;
int size = 2;
int width = title.length() * 6 * size;
int half = width / 2;
int y;
if (half >= SAFE_RADIUS) {
// Too wide even at the lowest safe position -> use a
// smaller font instead of clipping.
size = 1;
width = title.length() * 6 * size;
half = width / 2;
y = 14;
} else {
// Compute the minimum y (top of text) so the top corners
// of the text stay inside the round visible area.
float insideSpan = sqrt((SAFE_RADIUS * SAFE_RADIUS) - ((float)half * (float)half));
int minY = (int)(120.0 - insideSpan);
y = (minY > 14) ? minY : 14;
}
drawCenteredText(title, y, size, color);
int lineY = y + (size == 2 ? 16 : 8) + 6;
tft.drawLine(45, lineY, 195, lineY, DARK_GRAY);
}
// ===== FOOTER =====
void drawFooter() {
tft.drawLine(55, 214, 185, 214, DARK_GRAY);
drawCenteredText(String(currentPage + 1) + "/" + String(PAGE_COUNT), 220, 1, GRAY);
}
// ===== SUN ICON =====
void drawSun(int x, int y, int radius) {
tft.fillCircle(x, y, radius, YELLOW);
for (int i = 0; i < 8; i++) {
float angle = i * PI / 4.0;
int x1 = x + cos(angle) * (radius + 7);
int y1 = y + sin(angle) * (radius + 7);
int x2 = x + cos(angle) * (radius + 14);
int y2 = y + sin(angle) * (radius + 14);
tft.drawLine(x1, y1, x2, y2, YELLOW);
}
}
// ===== CLOUD ICON =====
void drawCloud(int x, int y) {
tft.fillCircle(x - 20, y, 15, LIGHT_BLUE);
tft.fillCircle(x, y - 8, 20, LIGHT_BLUE);
tft.fillCircle(x + 20, y, 15, LIGHT_BLUE);
tft.fillRoundRect(x - 35, y, 70, 20, 10, LIGHT_BLUE);
}
// ===== STATIC RAIN ICON =====
void drawRainIcon(int x, int y) {
drawCloud(x, y);
for (int i = 0; i < 5; i++) {
int dx = -24 + i * 12;
int dy = 28;
tft.drawLine(x + dx, y + dy, x + dx - 4, y + dy + 10, BLUE);
}
}
// ===== WEATHER ICON =====
void drawWeatherIcon(int code, int x, int y) {
if (code == 0) {
drawSun(x, y, 18);
}
else if (code <= 2) {
drawSun(x - 12, y - 7, 13);
drawCloud(x + 10, y + 10);
}
else if (code == 3) {
drawCloud(x, y);
}
else if ((code >= 51 && code <= 67) || (code >= 80 && code <= 82)) {
drawRainIcon(x, y);
}
else if (code >= 95) {
drawCloud(x, y);
tft.drawLine(x - 5, y + 28, x - 12, y + 43, YELLOW);
tft.drawLine(x + 10, y + 28, x + 3, y + 43, YELLOW);
} else {
drawCloud(x, y);
}
}
void drawWifiIcon(int cx, int cy, int level) {
const int radii[3] = { 14, 27, 40 };
for (int arc = 0; arc < 3; arc++) {
uint16_t color = (arc < level) ? CYAN : DARK_GRAY;
for (int deg = -150; deg <= -30; deg += 5) {
float angle = deg * PI / 180.0;
int x = cx + (int)(cos(angle) * radii[arc]);
int y = cy + (int)(sin(angle) * radii[arc]);
tft.fillCircle(x, y, 2, color);
}
}
// Base dot (the "device")
tft.fillCircle(cx, cy, 5, CYAN);
}
// ===== PAGE 1 - HOME =====
void drawHome() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
tft.fillScreen(bg);
if (!weather.valid) {
drawCenteredText("NO DATA", 90, 3, RED);
drawCenteredText("CHECK CONNECTION", 135, 1, WHITE);
drawFooter();
return;
}
// Weather icon
drawWeatherIcon(weather.weatherCode, CENTER_X, 65);
// Temperature
drawCenteredText(String(weather.temperature, 1) + " C", 112, 3, WHITE);
// Location
drawCenteredText(LOCATION_NAME, 153, 2, CYAN);
// Weather condition
drawCenteredText(weatherDescription(weather.weatherCode), 178, 1, weatherColor(weather.weatherCode));
// Clock area
drawHomeClock();
drawFooter();
}
// ===== HOME CLOCK =====
void drawHomeClock() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
// Only clear a small region.
// This prevents full-screen flicker.
tft.fillRect(82, 196, 76, 12, bg);
drawCenteredText(getTimeString(), 197, 1, GRAY);
}
// ===== PAGE 2 - TEMPERATURE =====
void drawTemperature() {
tft.fillScreen(BLACK);
drawHeader("TEMPERATURE", ORANGE);
int cx = 120;
int cy = 125;
int radius = 68;
int value = constrain((int)weather.temperature, 0, 40);
int filled = map(value, 0, 40, 0, 240);
// Temperature gauge
for (int i = 0; i < 240; i += 4) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? ORANGE : DARK_GRAY;
tft.fillCircle(x, y, 2, color);
}
// Main value
drawCenteredText(String(weather.temperature, 1), 101, 3, WHITE);
drawCenteredText("C", 138, 2, ORANGE);
drawCenteredText("FEELS " + String(weather.feelsLike, 1) + " C", 168, 1, CYAN);
drawFooter();
}
// ===== PAGE 3 - HUMIDITY =====
void drawHumidity() {
tft.fillScreen(BLACK);
drawHeader("HUMIDITY", BLUE);
int cx = 120;
int cy = 125;
int radius = 68;
int progress = constrain((int)weather.humidity, 0, 100);
int filled = map(progress, 0, 100, 0, 270);
for (int i = 0; i < 270; i += 3) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? BLUE : DARK_GRAY;
tft.fillCircle(x, y, 3, color);
}
drawCenteredText(String((int)weather.humidity) + "%", 105, 3, WHITE);
String comfort;
if (weather.humidity < 40) comfort = "DRY";
else if (weather.humidity < 70) comfort = "COMFORTABLE";
else if (weather.humidity < 85) comfort = "HUMID";
else
comfort = "VERY HUMID";
drawCenteredText(comfort, 153, 1, CYAN);
drawFooter();
}
// ===== PAGE 4 - WIND =====
void drawWind() {
tft.fillScreen(BLACK);
drawHeader("WIND", GREEN);
int cx = 120;
int cy = 104;
int radius = 49;
// Compass
tft.drawCircle(cx, cy, radius, DARK_GRAY);
drawCenteredText("N", 43, 1, WHITE);
drawCenteredText("S", 157, 1, WHITE);
tft.setCursor(62, 101);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("W");
tft.setCursor(172, 101);
tft.print("E");
// Direction arrow
float angle = weather.windDirection * PI / 180.0;
int x2 = cx + sin(angle) * 38;
int y2 = cy - cos(angle) * 38;
tft.drawLine(cx, cy, x2, y2, GREEN);
tft.fillCircle(cx, cy, 5, GREEN);
// Wind speed
drawCenteredText(String(weather.windSpeed, 1) + " km/h", 174, 2, WHITE);
drawCenteredText(windDirectionText(weather.windDirection), 198, 1, CYAN);
drawFooter();
}
// ===== PAGE 5 - RAIN =====
void drawRain() {
tft.fillScreen(BLACK);
drawHeader("RAIN", LIGHT_BLUE);
int rain = weather.currentRainChance;
// Static weather icon
if (rain >= 60) {
drawRainIcon(CENTER_X, 68);
} else {
drawCloud(CENTER_X, 73);
}
// Rain percentage
drawCenteredText(String(rain) + "%", 105, 3, WHITE);
drawCenteredText("RAIN CHANCE", 140, 1, LIGHT_BLUE);
// Status
if (rain >= 60) {
drawCenteredText("HIGH", 158, 1, RED);
}
else if (rain >= 30) {
drawCenteredText("MODERATE", 158, 1, YELLOW);
} else {
drawCenteredText("LOW", 158, 1, GREEN);
}
// Animation area
if (rain >= 20) {
initializeRainAnimation();
}
drawFooter();
}
// ===== INITIALIZE RAIN ANIMATION =====
void initializeRainAnimation() {
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y + random(RAIN_AREA_H);
}
rainInitialized = true;
}
// ===== UPDATE RAIN ANIMATION =====
void updateRainAnimation() {
if (currentPage != PAGE_RAIN) return;
if (weather.currentRainChance < 20) return;
if (millis() - lastRainAnimation < RAIN_ANIMATION_INTERVAL) {
return;
}
lastRainAnimation = millis();
uint16_t bg = BLACK;
// Erase old drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, bg);
}
// Move drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainY[i] += 5;
if (rainY[i] > RAIN_AREA_Y + RAIN_AREA_H) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y;
}
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, BLUE);
}
}
// ===== PAGE 6 - NEXT HOURS =====
void drawHourly() {
tft.fillScreen(BLACK);
drawHeader("NEXT HOURS", PURPLE);
for (int i = 0; i < 5; i++) {
int y = 52 + i * 31;
// Row separator
if (i > 0) {
tft.drawLine(25, y - 8, 215, y - 8, DARK_GRAY);
}
// Time
tft.setCursor(25, y);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTime[i]);
// Weather
int code = weather.hourlyWeatherCode[i];
String condition;
if (code == 0) condition = "SUN";
else if (code <= 3) condition = "CLOUD";
else if (code >= 95) condition = "STORM";
else
condition = "RAIN";
tft.setCursor(75, y);
tft.setTextColor(weatherColor(code));
tft.print(condition);
// Temperature
tft.setCursor(142, y);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTemp[i], 0);
tft.print("C");
// Rain
tft.setCursor(180, y);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.hourlyRainChance[i]);
tft.print("%");
}
drawFooter();
}
// ===== PAGE 7 - FORECAST =====
// UI FIX:
// The card border (drawRoundRect) previously spanned x=15..225
// (width 210). For the TOP row, the corners of that rectangle
// fell outside the visible round area of the screen and were
// clipped. The card width below was reduced to 190px
// (x=25..215) which keeps every corner, on every row, safely
// inside the round bezel. Text start x was nudged in slightly
// to match the new card padding.
void drawForecast() {
tft.fillScreen(BLACK);
drawHeader("3-DAY FORECAST", CYAN);
const char* labels[] = {
"TODAY",
"TOMORROW",
"DAY 3"
};
// Card geometry (UI fix: narrower so it never touches
// the round bezel, even on the top row).
const int CARD_X = 25;
const int CARD_W = 190;
for (int i = 0; i < 3; i++) {
int y = 62 + i * 48;
// Card
tft.drawRoundRect(CARD_X, y - 5, CARD_W, 40, 8, DARK_GRAY);
// Day
tft.setCursor(CARD_X + 8, y + 4);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(labels[i]);
// Temperature
tft.setCursor(CARD_X + 65, y + 4);
tft.print(weather.dailyTempMin[i], 0);
tft.print("/");
tft.print(weather.dailyTempMax[i], 0);
tft.print("C");
// Rain
tft.setCursor(CARD_X + 120, y + 4);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.dailyRainChance[i]);
tft.print("%");
// Weather
tft.setCursor(CARD_X + 155, y + 4);
tft.setTextColor(weatherColor(weather.dailyWeatherCode[i]));
int code = weather.dailyWeatherCode[i];
if (code == 0) tft.print("SUN");
else if (code <= 3) tft.print("CLD");
else if (code >= 95) tft.print("STM");
else
tft.print("RAIN");
}
drawFooter();
}
// ===== PAGE 8 - SYSTEM =====
void drawSystem() {
tft.fillScreen(BLACK);
drawHeader("SYSTEM", CYAN);
// WIFI
tft.setCursor(25, 57);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("WIFI");
tft.setCursor(125, 57);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// RSSI
tft.setCursor(25, 82);
tft.setTextColor(WHITE);
tft.print("RSSI");
tft.setCursor(125, 82);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(CYAN);
tft.print(WiFi.RSSI());
tft.print(" dBm");
} else {
tft.print("--");
}
// API
tft.setCursor(25, 107);
tft.setTextColor(WHITE);
tft.print("API");
tft.setCursor(125, 107);
if (apiOnline) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// LOCATION
tft.setCursor(25, 132);
tft.setTextColor(WHITE);
tft.print("LOCATION");
tft.setCursor(125, 132);
tft.setTextColor(CYAN);
tft.print(LOCATION_NAME);
// TEMP
tft.setCursor(25, 157);
tft.setTextColor(WHITE);
tft.print("TEMP");
tft.setCursor(125, 157);
tft.print(weather.temperature, 1);
tft.print(" C");
// STATUS
tft.setCursor(25, 182);
tft.setTextColor(WHITE);
tft.print("STATUS");
tft.setCursor(125, 182);
if (weather.valid) {
tft.setTextColor(GREEN);
tft.print("READY");
} else {
tft.setTextColor(RED);
tft.print("NO DATA");
}
drawFooter();
}
// ===== RENDER PAGE =====
void renderPage() {
// Rain animation must be initialized
// only when entering the page.
rainInitialized = false;
switch (currentPage) {
case PAGE_HOME:
drawHome();
break;
case PAGE_TEMP:
drawTemperature();
break;
case PAGE_HUMIDITY:
drawHumidity();
break;
case PAGE_WIND:
drawWind();
break;
case PAGE_RAIN:
drawRain();
break;
case PAGE_HOURLY:
drawHourly();
break;
case PAGE_FORECAST:
drawForecast();
break;
case PAGE_SYSTEM:
drawSystem();
break;
}
}
// ===== WEATHER API PATH =====
// ArduinoHttpClient keeps the host name apart from the path,
// so only the part after the host name is built here.
String getWeatherPath() {
String path = "/v1/forecast";
path += "?latitude=" + String(LATITUDE, 4);
path += "&longitude=" + String(LONGITUDE, 4);
path +=
"¤t="
"temperature_2m,"
"relative_humidity_2m,"
"apparent_temperature,"
"weather_code,"
"wind_speed_10m,"
"wind_direction_10m,"
"pressure_msl,"
"is_day";
path +=
"&hourly="
"temperature_2m,"
"precipitation_probability,"
"weather_code";
path +=
"&daily="
"temperature_2m_max,"
"temperature_2m_min,"
"precipitation_probability_max,"
"weather_code,"
"sunrise,"
"sunset,"
"uv_index_max";
path += "&timezone=" TIMEZONE;
path += "&forecast_days=3";
// Only the next 12 hours are asked for.
// The answer then starts at the current hour, and it stays
// small enough for the 32 KB RAM of the Arduino UNO R4.
path += "&forecast_hours=12";
path += "&temperature_unit=celsius";
path += "&wind_speed_unit=kmh";
return path;
}
// ===== COPY "HH:MM" OUT OF AN ISO TIME TEXT =====
// Input : 2026-09-18T14:00
// Output: 14:00
void copyClockText(const char* isoTime, char* out) {
if (isoTime != NULL && strlen(isoTime) >= 16) {
out[0] = isoTime[11];
out[1] = isoTime[12];
out[2] = ':';
out[3] = isoTime[14];
out[4] = isoTime[15];
out[5] = '\0';
return;
}
strcpy(out, "--:--");
}
// ===== SET THE SOFTWARE CLOCK FROM AN ISO TIME TEXT =====
void setClockFrom(const char* isoTime) {
if (isoTime == NULL || strlen(isoTime) < 16) {
return;
}
int hour = (isoTime[11] - '0') * 10 + (isoTime[12] - '0');
int minute = (isoTime[14] - '0') * 10 + (isoTime[15] - '0');
if (hour < 0 || hour > 23 || minute < 0 || minute > 59) {
return;
}
clockBaseSecond = (long)hour * 3600L + (long)minute * 60L;
clockBaseMillis = millis();
}
// ===== PARSE WEATHER =====
bool parseWeather(const String& payload) {
// A filter keeps only the three blocks that are used.
// The "..._units" blocks of the answer are dropped, so the
// document stays small in the RAM of the Arduino UNO R4.
JsonDocument filter;
filter["current"] = true;
filter["hourly"] = true;
filter["daily"] = true;
JsonDocument doc;
DeserializationError error = deserializeJson(doc, payload, DeserializationOption::Filter(filter));
if (error) {
Serial.print("JSON ERROR: ");
Serial.println(error.c_str());
return false;
}
// CURRENT
JsonObject current = doc["current"];
if (current.isNull()) {
Serial.println("CURRENT DATA MISSING");
return false;
}
weather.temperature = current["temperature_2m"] | 0.0;
weather.humidity = current["relative_humidity_2m"] | 0.0;
weather.feelsLike = current["apparent_temperature"] | 0.0;
weather.weatherCode = current["weather_code"] | 0;
weather.windSpeed = current["wind_speed_10m"] | 0.0;
weather.windDirection = current["wind_direction_10m"] | 0.0;
weather.pressure = current["pressure_msl"] | 0.0;
int isDay = current["is_day"] | 1;
weather.isDay = (isDay == 1);
// The answer carries the local time of the location.
// It is used to start the software clock.
const char* currentTime = current["time"] | "";
setClockFrom(currentTime);
// HOURLY
// "forecast_hours=12" makes the list start at the current
// hour, so index 0 is now and index 11 is 11 hours later.
JsonArray hourlyTime = doc["hourly"]["time"];
JsonArray hourlyTemp = doc["hourly"]["temperature_2m"];
JsonArray hourlyRain = doc["hourly"]["precipitation_probability"];
JsonArray hourlyCode = doc["hourly"]["weather_code"];
for (int i = 0; i < 12; i++) {
// Safety check
if (i >= (int)hourlyTemp.size()) {
weather.hourlyTemp[i] = weather.temperature;
weather.hourlyRainChance[i] = 0;
weather.hourlyWeatherCode[i] = weather.weatherCode;
strcpy(weather.hourlyTime[i], "--:--");
continue;
}
weather.hourlyTemp[i] = hourlyTemp[i] | weather.temperature;
weather.hourlyRainChance[i] = hourlyRain[i] | 0;
weather.hourlyWeatherCode[i] = hourlyCode[i] | weather.weatherCode;
copyClockText(hourlyTime[i] | "", weather.hourlyTime[i]);
}
weather.currentRainChance = weather.hourlyRainChance[0];
// DAILY
JsonArray dailyMax = doc["daily"]["temperature_2m_max"];
JsonArray dailyMin = doc["daily"]["temperature_2m_min"];
JsonArray dailyRain = doc["daily"]["precipitation_probability_max"];
JsonArray dailyCode = doc["daily"]["weather_code"];
JsonArray dailyDate = doc["daily"]["time"];
JsonArray dailySunrise = doc["daily"]["sunrise"];
JsonArray dailySunset = doc["daily"]["sunset"];
JsonArray dailyUV = doc["daily"]["uv_index_max"];
for (int i = 0; i < 3; i++) {
weather.dailyTempMax[i] = dailyMax[i] | 0.0;
weather.dailyTempMin[i] = dailyMin[i] | 0.0;
weather.dailyRainChance[i] = dailyRain[i] | 0;
weather.dailyWeatherCode[i] = dailyCode[i] | 0;
weather.dailyUV[i] = dailyUV[i] | 0.0;
const char* dateText = dailyDate[i] | "";
strncpy(weather.dailyDate[i], dateText, 10);
weather.dailyDate[i][10] = '\0';
}
if (dailySunrise.size() > 0) {
copyClockText(dailySunrise[0] | "", weather.sunrise);
}
if (dailySunset.size() > 0) {
copyClockText(dailySunset[0] | "", weather.sunset);
}
if (dailyUV.size() > 0) {
weather.uvIndex = dailyUV[0] | 0.0;
}
weather.valid = true;
return true;
}
// ===== FETCH WEATHER =====
bool fetchWeather() {
if (WiFi.status() != WL_CONNECTED) {
Serial.println("WIFI NOT CONNECTED");
apiOnline = false;
screenDirty = true;
return false;
}
Serial.println();
Serial.println("================================");
Serial.println("FETCHING WEATHER");
Serial.println("================================");
isFetching = true;
// Loading screen is shown only once.
drawLoadingScreen("FETCHING WEATHER...");
// WiFiSSLClient does the HTTPS part on the Arduino UNO R4.
// The root certificates live in the WiFi firmware, so there
// is no certificate to paste into this sketch.
WiFiSSLClient sslClient;
HttpClient http(sslClient, API_HOST, API_PORT);
http.setTimeout(15000);
http.setHttpResponseTimeout(15000);
String path = getWeatherPath();
Serial.print("GET https://");
Serial.print(API_HOST);
Serial.println(path);
int error = http.get(path);
if (error != 0) {
Serial.print("HTTP REQUEST FAILED: ");
Serial.println(error);
http.stop();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
int statusCode = http.responseStatusCode();
Serial.print("HTTP CODE: ");
Serial.println(statusCode);
if (statusCode != 200) {
Serial.println("API ERROR");
http.stop();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
// responseBody() also takes care of a chunked answer.
String payload = http.responseBody();
http.stop();
Serial.print("PAYLOAD SIZE: ");
Serial.println(payload.length());
bool result = parseWeather(payload);
// The text is not needed any more, so the RAM is given back
// before the screen is drawn.
payload = "";
isFetching = false;
if (result) {
apiOnline = true;
lastApiUpdate = millis();
Serial.println("WEATHER UPDATED");
Serial.print("Temperature: ");
Serial.println(weather.temperature);
Serial.print("Humidity: ");
Serial.println(weather.humidity);
Serial.print("Weather: ");
Serial.println(weatherDescription(weather.weatherCode));
Serial.print("Wind: ");
Serial.println(weather.windSpeed);
Serial.print("Rain Chance: ");
Serial.println(weather.currentRainChance);
screenDirty = true;
return true;
}
apiOnline = false;
screenDirty = true;
return false;
}
// ===== LOADING SCREEN =====
void drawLoadingScreen(String message) {
tft.fillScreen(BLACK);
drawCenteredText("SMART WEATHER", 48, 2, CYAN);
drawCenteredText("STATION", 73, 2, WHITE);
// Loading ring
for (int i = 0; i < 12; i++) {
float angle = i * 2.0 * PI / 12.0;
int x = CENTER_X + cos(angle) * 42;
int y = CENTER_Y + sin(angle) * 42;
uint16_t color = (i == 0) ? CYAN : DARK_GRAY;
tft.fillCircle(x, y, 4, color);
}
drawCenteredText(message, 182, 1, WHITE);
}
// ===== WIFI CONNECT =====
bool connectWiFi() {
Serial.println();
Serial.println("CONNECTING TO WIFI...");
tft.fillScreen(BLACK);
drawCenteredText("CONNECTING", 26, 2, CYAN);
drawWifiIcon(CENTER_X, 95, 0);
drawCenteredText("WI-FI", 145, 2, WHITE);
drawCenteredText(WIFI_SSID, 178, 1, GRAY);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
unsigned long start = millis();
int iconFrame = 0;
while (WiFi.status() != WL_CONNECTED && millis() - start < WIFI_CONNECT_TIMEOUT) {
drawWifiIcon(CENTER_X, 95, iconFrame % 4);
iconFrame++;
delay(250);
Serial.print(".");
}
Serial.println();
if (WiFi.status() == WL_CONNECTED) {
wifiOnline = true;
wifiConnecting = false;
drawWifiIcon(CENTER_X, 95, 3);
Serial.println("WIFI CONNECTED");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
Serial.print("RSSI: ");
Serial.print(WiFi.RSSI());
Serial.println(" dBm");
return true;
}
wifiOnline = false;
Serial.println("WIFI CONNECTION FAILED");
return false;
}
// ===== START WIFI RECONNECT =====
void startWiFiReconnect() {
Serial.println("START WIFI RECONNECT");
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
wifiConnecting = true;
wifiConnectStart = millis();
}
// ===== HANDLE WIFI =====
void handleWiFi() {
int status = WiFi.status();
// Connected
if (status == WL_CONNECTED) {
if (!wifiOnline) {
Serial.println("WIFI CONNECTED");
screenDirty = true;
}
wifiOnline = true;
wifiConnecting = false;
return;
}
wifiOnline = false;
// Currently connecting
if (wifiConnecting) {
if (millis() - wifiConnectStart > WIFI_CONNECT_TIMEOUT) {
Serial.println("WIFI CONNECT TIMEOUT");
WiFi.disconnect();
wifiConnecting = false;
lastWifiRetry = millis();
}
return;
}
// Start another attempt
if (millis() - lastWifiRetry >= WIFI_RETRY_INTERVAL) {
lastWifiRetry = millis();
startWiFiReconnect();
}
}
// ===== CHECK THE WIFI MODULE =====
bool checkWiFiModule() {
if (WiFi.status() == WL_NO_MODULE) {
Serial.println("WIFI MODULE NOT FOUND");
Serial.println("Use an Arduino UNO R4 WiFi board.");
return false;
}
Serial.print("WIFI FIRMWARE: ");
Serial.println(WiFi.firmwareVersion());
return true;
}
// ===== BUTTON HANDLER =====
void handleButton() {
button.loop(); // MUST call the loop() function first
// The moment the button goes down, remember when it happened.
if (button.isPressed())
buttonPressStart = millis();
// The action is chosen when the button comes back up.
if (button.isReleased()) {
unsigned long duration = millis() - buttonPressStart;
if (duration >= VERY_LONG_PRESS_TIME) {
// VERY LONG PRESS -> back to the home page
currentPage = PAGE_HOME;
screenDirty = true;
Serial.println("VERY LONG PRESS -> HOME");
} else if (duration >= LONG_PRESS_TIME) {
// LONG PRESS -> ask the weather API for fresh data
pendingRefresh = true;
Serial.println("LONG PRESS -> REFRESH");
} else {
// SHORT PRESS -> next page
currentPage = (Page)((currentPage + 1) % PAGE_COUNT);
screenDirty = true;
Serial.print("SHORT PRESS -> PAGE ");
Serial.println(currentPage + 1);
}
}
}
// ===== PROCESS MANUAL REFRESH =====
void handleManualRefresh() {
if (!pendingRefresh) return;
pendingRefresh = false;
fetchWeather();
}
// ===== AUTO API UPDATE =====
void handleApiUpdate() {
if (!weather.valid) {
return;
}
if (millis() - lastApiUpdate >= API_UPDATE_INTERVAL) {
fetchWeather();
}
}
// ===== CLOCK =====
// The clock starts from the local time that came with the
// weather answer, then millis() moves it forward.
String getTimeString() {
if (clockBaseSecond < 0) {
return "--:--";
}
unsigned long elapsed = (millis() - clockBaseMillis) / 1000UL;
long nowSecond = clockBaseSecond + (long)elapsed;
// Wrap around at midnight.
nowSecond %= 86400L;
int hour = nowSecond / 3600L;
int minute = (nowSecond % 3600L) / 60L;
char buffer[6];
sprintf(buffer, "%02d:%02d", hour, minute);
return String(buffer);
}
// ===== HANDLE CLOCK =====
void handleClock() {
if (currentPage != PAGE_HOME) {
return;
}
if (millis() - lastClockUpdate < CLOCK_UPDATE_INTERVAL) {
return;
}
lastClockUpdate = millis();
if (weather.valid && !isFetching) {
drawHomeClock();
}
}
// ===== SETUP =====
void setup() {
Serial.begin(9600);
delay(500);
Serial.println();
Serial.println("================================");
Serial.println("SMART WEATHER STATION");
Serial.println(LOCATION_NAME);
Serial.println("================================");
// BUTTON
// ezButton already set the pin to INPUT_PULLUP in its constructor.
button.setDebounceTime(BUTTON_DEBOUNCE);
// TFT
tft.begin();
tft.setRotation(2);
tft.fillScreen(BLACK);
// BOOT SCREEN
drawCenteredText("SMART WEATHER", 65, 2, CYAN);
drawCenteredText("STATION", 92, 2, WHITE);
drawCenteredText(LOCATION_NAME, 135, 2, YELLOW);
delay(1500);
// WIFI
if (!checkWiFiModule()) {
tft.fillScreen(BLACK);
drawCenteredText("NO WIFI MODULE", 100, 2, RED);
drawCenteredText("NEED UNO R4 WIFI", 135, 1, WHITE);
// Nothing else can be done without the WiFi module.
while (true) {
delay(1000);
}
}
if (connectWiFi()) {
delay(500);
fetchWeather();
} else {
tft.fillScreen(BLACK);
drawCenteredText("WIFI ERROR", 82, 2, RED);
drawCenteredText("CHECK SETTINGS", 120, 1, WHITE);
drawCenteredText("RETRYING...", 150, 1, GRAY);
delay(1500);
}
screenDirty = true;
}
// ===== LOOP =====
void loop() {
// Input
handleButton();
// WiFi
handleWiFi();
// Manual refresh
handleManualRefresh();
// Automatic API update
handleApiUpdate();
// Clock
handleClock();
// Static page rendering
if (screenDirty && !isFetching) {
renderPage();
screenDirty = false;
}
// Rain animation
updateRainAnimation();
}
Detailed Instructions
Follow these instructions step by step:
- If this is your first time using the Arduino Uno R4 WiFi, refer to the tutorial on setting up the environment for Arduino Uno R4 WiFi/Minima in the Arduino IDE.
- Wire the components according to the provided diagram.
- Connect the Arduino Uno R4 board to your computer using a USB cable.
- Launch the Arduino IDE on your computer.
- Select the appropriate Arduino Uno R4 board (Arduino Uno R4 WiFi) and COM port.
- Navigate to the Libraries icon on the left bar of the Arduino IDE.
- Search “DIYables TFT Round”, then find the DIYables_TFT_Round library by DIYables.
- Click Install button to install the library.
- You may be prompted to install additional library dependencies.
- Click Install All button to install all library dependencies.
- Search “ArduinoJson”, then find the ArduinoJson library by Benoit Blanchon and click Install.
- Search “ArduinoHttpClient”, then find the ArduinoHttpClient library by Arduino and click Install.
- Search “ezButton”, then find the ezButton library by ArduinoGetStarted and click Install.
- Copy the above code and paste it into the Arduino IDE editor.
- Change WIFI_SSID and WIFI_PASSWORD to your own WiFi name and password.
- Change LATITUDE, LONGITUDE, LOCATION_NAME and TIMEZONE to your own city. See the section below.
- Click the Upload button in Arduino IDE to upload the code to the Arduino UNO R4.
- Open the Serial Monitor in the Arduino IDE and set the baud rate to 9600.
- Wait a few seconds. The display shows the boot screen, then the WiFi screen, then the weather.
- Press the button to move to the next page.
- Check the result on the Serial Monitor.
8
Serial.println("Hello World!");
Message (Enter to send message to 'Arduino Uno R4 WiFi' on 'COM15')
New Line
9600 baud
================================
SMART WEATHER STATION
SEOUL
================================
WIFI FIRMWARE: 0.5.0
CONNECTING TO WIFI...
.....
WIFI CONNECTED
IP: 192.168.0.24
RSSI: -47 dBm
================================
FETCHING WEATHER
================================
GET https://api.open-meteo.com/v1/forecast?latitude=37.5665&longitude=126.9780¤t=...
HTTP CODE: 200
PAYLOAD SIZE: 1754
WEATHER UPDATED
Temperature: 24.60
Humidity: 55.00
Weather: PARTLY CLOUDY
Wind: 9.30
Rain Chance: 21
SHORT PRESS -> PAGE 2
SHORT PRESS -> PAGE 3
LONG PRESS -> REFRESH
VERY LONG PRESS -> HOME
How To Change the Location
The code comes with Seoul, South Korea. To show your own city, change four lines at the top of the code:
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
#define TIMEZONE "Asia%2FSeoul"
- LATITUDE and LONGITUDE: the position of your city. You can find them on any map website.
- LOCATION_NAME: the short name shown on the display. Keep it short so it fits on the round screen.
- TIMEZONE: the time zone name, for example Europe/Berlin or America/New_York. The / character must be written as %2F, because the name goes into a web address. So Europe/Berlin becomes Europe%2FBerlin.
※ NOTE THAT:
The temperature is in Celsius and the wind speed is in km/h. To change them, edit the temperature_unit and wind_speed_unit parts in the getWeatherPath() function. For example, use fahrenheit and mph.
Code Explanation
Check the explanations given in the source code comments for each line!
Troubleshooting
- The display stays black. Check the SCL and SDA wires. On the Arduino UNO R4, they must go to D13 and D11. These two pins cannot be moved to other pins.
- The screen shows "NO WIFI MODULE". You are using an Arduino UNO R4 Minima. This project needs the Arduino UNO R4 WiFi.
- The screen shows "WIFI ERROR". Check the WiFi name and the password. The Arduino UNO R4 WiFi only works with 2.4 GHz networks, not 5 GHz.
- The Serial Monitor shows an HTTP error. Update the WiFi firmware of your Arduino UNO R4 WiFi. An old firmware may not hold the right root certificate. See how to upgrade the firmware on Arduino UNO R4 WiFi.
- The clock is wrong. The clock uses the time that comes with the weather answer. Check that the TIMEZONE value matches your city.
