DIYables ESP32 WebApps Library

The DIYables ESP32 WebApps Library provides a set of ready-made browser-based interfaces for the Arduino Nano ESP32. Rather than writing HTML, JavaScript, and WebSocket code from scratch, you include the library, register the pages you need, and connect callbacks to your sketch logic.

The board runs an HTTP server and a WebSocket server simultaneously. Browsers open a page over HTTP, then switch to a WebSocket connection for all real-time updates. The library routes incoming messages to the correct registered page automatically.

You can interact with your Arduino Nano ESP32 through a browser on a smartphone or PC using three approaches:

Pre-built apps: Use any of the 11 provided applications with no web programming required
Customized apps: Modify the HTML, CSS, or JavaScript in the pre-built pages to fit your needs
Custom apps: Build your own pages by extending DIYablesWebAppPageBase

Key Features

Modular design — include only the pages your project needs

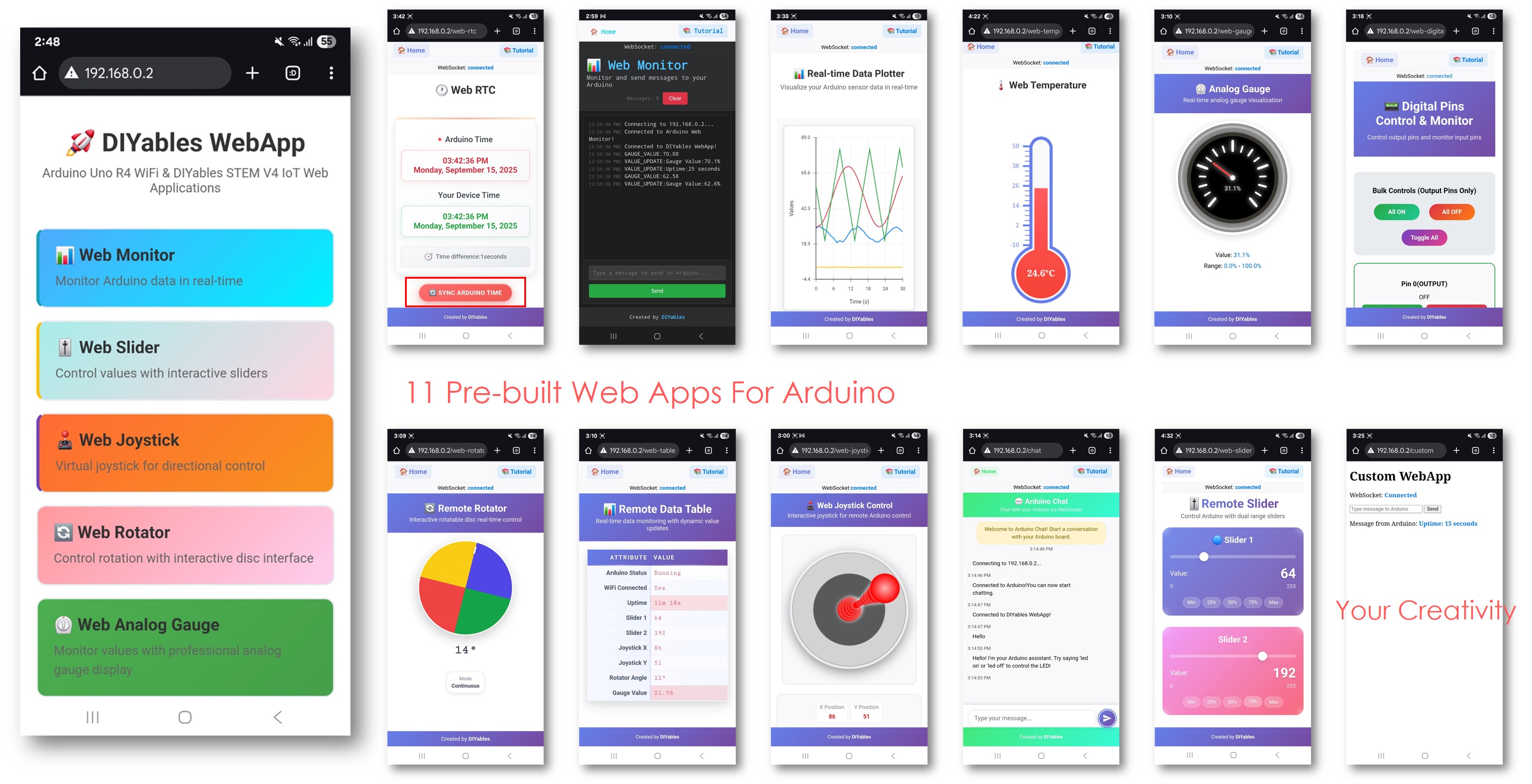

11 ready-to-use web applications covering monitoring, control, and visualization
Minified HTML/CSS/JS to minimize flash usage; unminified source provided for editing
Custom app template with WebSocket message routing built in
WebSocket-based real-time updates with automatic browser reconnection
Responsive layout — pages work on desktop, tablet, and mobile
Callback API — no polling; the library calls your code when events occur
Multiple pages active simultaneously on one server instance

Installation

Install the library through the Arduino IDE Library Manager:

Open Arduino IDE
Navigate to the Libraries icon on the left bar of the Arduino IDE.
Search "DIYables ESP32 WebApps", then find the DIYables ESP32 WebApps Library by DIYables
Click Install button to install the library.

Search for DIYables ESP32 WebApps created by DIYables and click the Install button.

Newbiely | Arduino IDE 2.3.8

──

☐

Library Manager

DIYables ESP32 WebApps

All

DIYables ESP32 WebApps by DIYables

A comprehensive library designed for ESP32 that provides multiple professional web applications including Web Monitor, Chat, Digital Pin Control, Sliders, Joystick, Analog Gauge, Rotator Control, and Temperature Display via WebSocket communication. Features modular architecture for memory efficiency, automatic config handling, and perfect for IoT projects, robotics, sensor monitoring, servo/stepper control, temperature monitoring, and remote ESP32 control. More info

1.0.1

INSTALL

Newbiely.ino

···

1 void setup() {

Output

Serial Monitor

Ln 1, Col 1

Arduino Nano ESP32 on COM15

You will be asked for installing some other library dependencies
Click Install All button to install all library dependencies.

Dependencies

DIYables_ESP32_WebServer — provides the underlying HTTP and WebSocket server

Available Web Applications

Home Page (`/`)

Central navigation page showing links to all registered applications. Displays connection status and updates automatically when apps are added or removed.

Web Monitor (`/webmonitor`)

Browser-based serial monitor with bidirectional text. Supports command input with history, message timestamps, and message counting.

Web Chat (`/webchat`)

Two-way messaging interface between the browser and the board. Each side can send and receive plain text messages.

Web Digital Pins (`/webdigitalpins`)

Control and read digital pins 0–13. Each pin is individually enabled in code as either WEB_PIN_INPUT or WEB_PIN_OUTPUT. The page shows only enabled pins and supports bulk operations.

Web Slider (`/webslider`)

Two independent sliders with a 0–255 range. Suitable for PWM duty cycle, brightness, speed, or any other 8-bit analog output.

Web Joystick (`/webjoystick`)

Virtual 2D joystick returning X/Y values in the range –100 to +100. Supports both touch and mouse input. Auto-return to center is configurable in code.

Web Analog Gauge (`/web-gauge`)

Circular gauge for real-time sensor monitoring. The range, units, and precision are set once in the constructor. Color-coded zones indicate operating regions.

Web Rotator (`/web-rotator`)

Rotatable disc for controlling servo or stepper position. Supports continuous (0–360°) and limited-range modes. Returns the current angle over WebSocket.

Web Temperature (`/web-temperature`)

Mercury-style thermometer visualization. The temperature range and unit (°C, °F, or K) are configured in the constructor. Updates in real time via WebSocket.

Web RTC (`/web-rtc`)

Real-time clock display. The browser can synchronize its local time to the board with one click. Shows the time difference between browser and board clocks.

Web Table (`/web-table`)

Two-column attribute-value table. Column names and row labels are defined in setup; values update at runtime without a page reload. Supports up to 20 rows by default.

Web Plotter (`/webplotter`)

Streaming line chart supporting up to 8 data series. The Y-axis auto-scales or uses fixed bounds. Title and axis labels are configurable.

Custom Web App Template (`/custom`)

Starting point for user-defined pages. The template handles WebSocket message routing, reconnection, and home page card registration. Modify the HTML, CSS, and message handlers for your use case.

URL Reference

\| Application \| URL Path \|
\|---\|---\|
\| Home Page \| / \|
\| Web Monitor \| /webmonitor \|
\| Web Chat \| /webchat \|
\| Web Digital Pins \| /webdigitalpins \|
\| Web Slider \| /webslider \|
\| Web Joystick \| /webjoystick \|
\| Web Analog Gauge \| /web-gauge \|
\| Web Rotator \| /web-rotator \|
\| Web Temperature \| /web-temperature \|
\| Web RTC \| /web-rtc \|
\| Web Table \| /web-table \|
\| Web Plotter \| /webplotter \|
\| Custom (template) \| /custom \|

Access any page at http://[board-ip][path] after the board connects to WiFi.

Modular Architecture

The library is structured so that each web application is an independent class. Only the classes you instantiate and register are compiled into your binary. If you do not call addApp(&joystickPage), that page's code does not run and its HTML does not occupy flash memory.

This example registers only a slider and a gauge page, omitting the rest:

DIYablesWebAppServer webAppsServer(80, 81); DIYablesHomePage homePage; DIYablesWebSliderPage webSliderPage; DIYablesWebAnalogGaugePage gaugePage(0.0, 100.0, "V"); void setup() { webAppsServer.addApp(&homePage); webAppsServer.addApp(&webSliderPage); webAppsServer.addApp(&gaugePage); webAppsServer.begin("WiFi_SSID", "password"); }

Pages can also be added or removed during runtime using addApp() and removeApp().

API Reference

Full class and method documentation: DIYables ESP32 WebApps Library API Reference

Example Tutorials

Advanced Usage

Runtime Page Management

Pages can be conditionally registered based on hardware presence or runtime state:

// Add dynamically when a sensor is detected if (sensorConnected && !webAppsServer.getApp("/webmonitor")) { webAppsServer.addApp(new DIYablesWebMonitorPage()); } // Remove a page to reclaim memory webAppsServer.removeApp("/chat"); // Retrieve a typed page pointer for direct method calls DIYablesWebDigitalPinsPage* pinsPage = webAppsServer.getWebDigitalPinsPage(); if (pinsPage) { pinsPage->enablePin(2, WEB_PIN_OUTPUT); }

Custom Pages

Extend DIYablesWebAppPageBase to create a page with any HTML and any WebSocket message format:

class MySensorDashboard : public DIYablesWebAppPageBase { public: MySensorDashboard() : DIYablesWebAppPageBase("/sensors") {} void handleHTTPRequest(WiFiClient& client) override { sendHTTPHeader(client); client.print("<h1>Sensor Dashboard</h1>"); client.print("<p>Temperature: " + String(getTemperature()) + " C</p>"); } void handleWebSocketMessage(WebSocket& ws, const String& message) override { if (message == "get_data") { sendWebSocketMessage(ws, "temp:" + String(getTemperature())); } } }; webAppsServer.addApp(new MySensorDashboard());

Troubleshooting

WiFi does not connect

Confirm the SSID and password are correct
The board supports 2.4 GHz networks only; 5 GHz networks are not supported
Check signal strength at the board's physical location

Browser cannot reach the page

Confirm the IP address printed in the Serial Monitor
Ensure the browser and board are on the same network
Disable VPN if active

WebSocket disconnects frequently

Check for webAppsServer.loop() being called on every iteration of loop()
Avoid blocking calls (delay(), slow I2C reads) that stall the event loop
Check available heap memory in the Serial Monitor

High memory usage

Remove any pages not needed by the project
Reduce setMaxSamples() on the plotter page
Reduce the maximum rows on the table page
