ESP8266 - Smart Weather Station
This tutorial instructs you how to use ESP8266 to build a smart weather station that reads the weather from an online service and shows it on a 1.28 inch round TFT LCD display. In detail, we will learn:
- How to connect ESP8266 to the round GC9A01 TFT LCD display and a push button
- How to program ESP8266 to request weather data from the Open-Meteo API over HTTPS
- How to keep the request inside the small memory of the ESP8266
- How to program ESP8266 to draw eight weather pages and switch between them with one button
We suggest:
- Reading the ESP8266 - HTTPS Request tutorial first if secure requests are new to you.
- Reading the ESP8266 - 1.28 Inch Round Circular TFT LCD Display Module tutorial to learn the display on its own.
Hardware Preparation
One button part is sufficient. Both the push button and the button module are wired in the section below.
| 1 | × | Recommended: Screw Terminal Expansion Board for ESP8266 |
Or you can buy the following kits:
| 1 | × | DIYables Sensor Kit (18 sensors/displays) |
Disclosure: Some of the links provided in this section are Amazon affiliate links. We may receive a commission for any purchases made through these links at no additional cost to you.
Additionally, some of these links are for products from our own brand, DIYables .
Additionally, some of these links are for products from our own brand, DIYables .
Overview of the Smart Weather Station
This weather station carries no temperature sensor. The ESP8266 joins your WiFi network, asks a weather service for the values of a chosen city, and paints the answer on the round screen. Because the data arrives from a web service, the station can also present values that a small sensor is unable to measure, such as the rain chance for the coming hours and a forecast for the next days.
The interface is divided into eight pages, and one push button walks through all of them.
| Page | Content |
|---|---|
| HOME | Weather icon, temperature, sky description, NTP clock |
| TEMP | Temperature together with the apparent temperature |
| HUMIDITY | Humidity presented as a ring and as a percentage |
| WIND | Wind speed and wind direction on a compass |
| RAIN | Rain chance with an animated rain effect |
| NEXT HOURS | Temperature and rain chance for the coming hours |
| FORECAST | Highest and lowest temperature across 3 days |
| SYSTEM | WiFi state, signal strength, API state, location |
The Memory Limit of the ESP8266
The ESP8266 is the most limited board that can run this project. Its heap is around 46 KB once the sketch has started, and an HTTPS connection alone claims roughly 20 KB of it for the BearSSL buffers. Two decisions in the code keep everything inside that budget:
| Decision | Effect |
|---|---|
| Request only 12 forecast hours | the answer shrinks from about 5 KB to about 1.8 KB |
| Apply an ArduinoJson filter | the "..._units" blocks are discarded before parsing |
| Free the payload after parsing | the text buffer returns to the heap before drawing |
| Build the TLS client on the heap | the large buffer disappears once the request ends |
※ NOTE THAT:
The code prints the free heap before and after each request. Watch those numbers on the Serial Monitor. If the value falls under about 12 KB, lower the forecast hours or reduce the number of daily entries.
Wiring Diagram
The GC9A01 display is driven through the hardware SPI bus of the ESP8266, where D5 carries the clock and D7 carries the data. These two pins are fixed and must not be moved.
| TFT LCD Pin | ESP8266 | Description |
|---|---|---|
| VCC | 3.3V | Power supply |
| GND | GND | Ground |
| SCL | D5 | SPI Clock, fixed pin |
| SDA | D7 | SPI MOSI, fixed pin |
| DC | D2 | Data/Command |
| CS | D8 | Chip Select |
| RST | D1 | Reset |
The button is read on D6. Either a plain push button or a button module may be fitted there, and the wiring for each is given below.

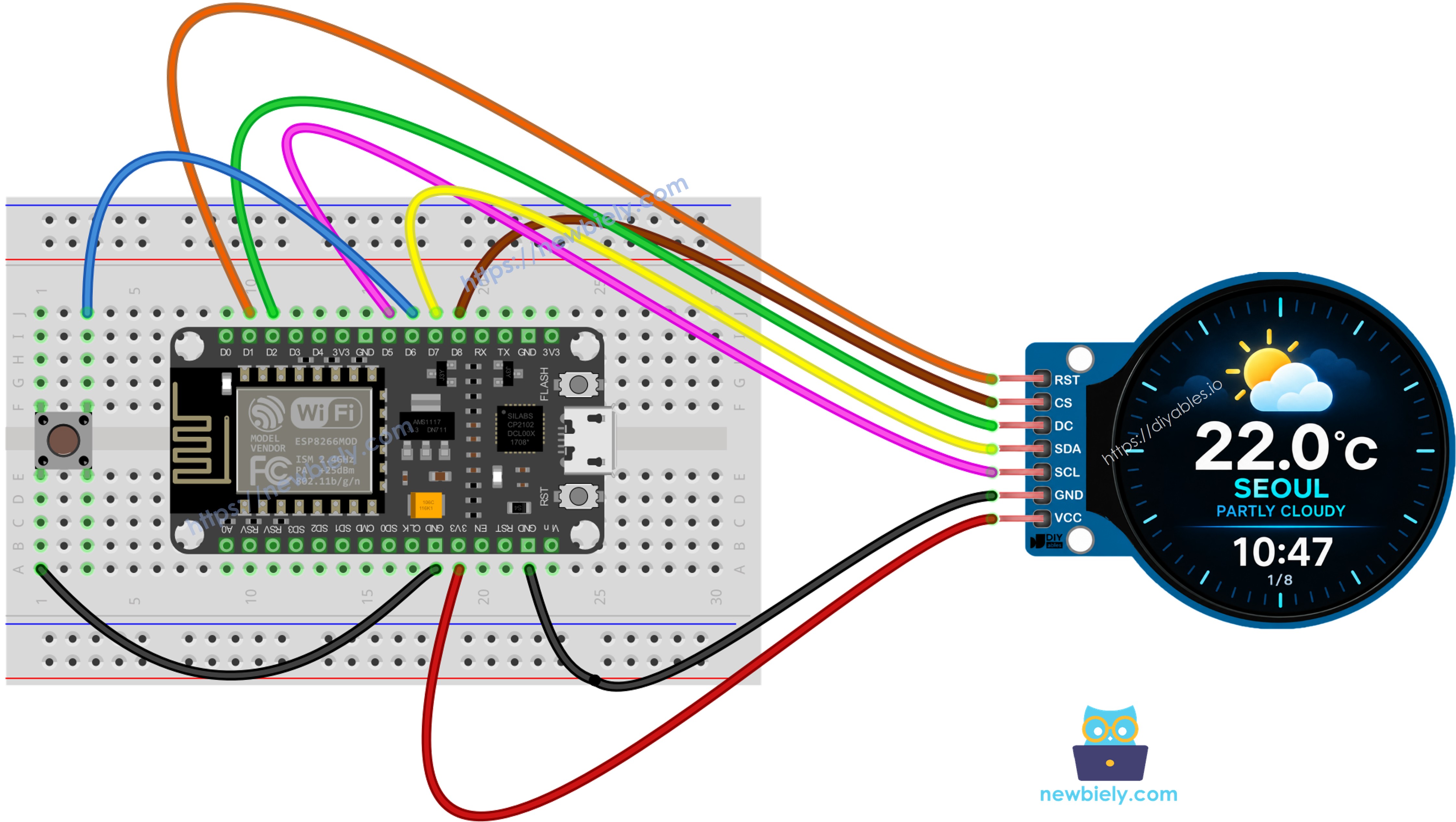

ESP8266 - Push Button Wiring
A plain push button carries no resistor. It must be connected between D6 and ground, and the internal pull-up resistor of the ESP8266 handles the rest, so no external resistor is required. The pin rests HIGH and is driven LOW while the button is held.
This image is created using Fritzing. Click to enlarge image
| Button Pin | ESP8266 | Description |
|---|---|---|
| Pin 1 | D6 | Button input with internal pull-up |
| Pin 2 | GND | Ground |
The supplied sketch is written for this arrangement.
ezButton button(PIN_BUTTON);

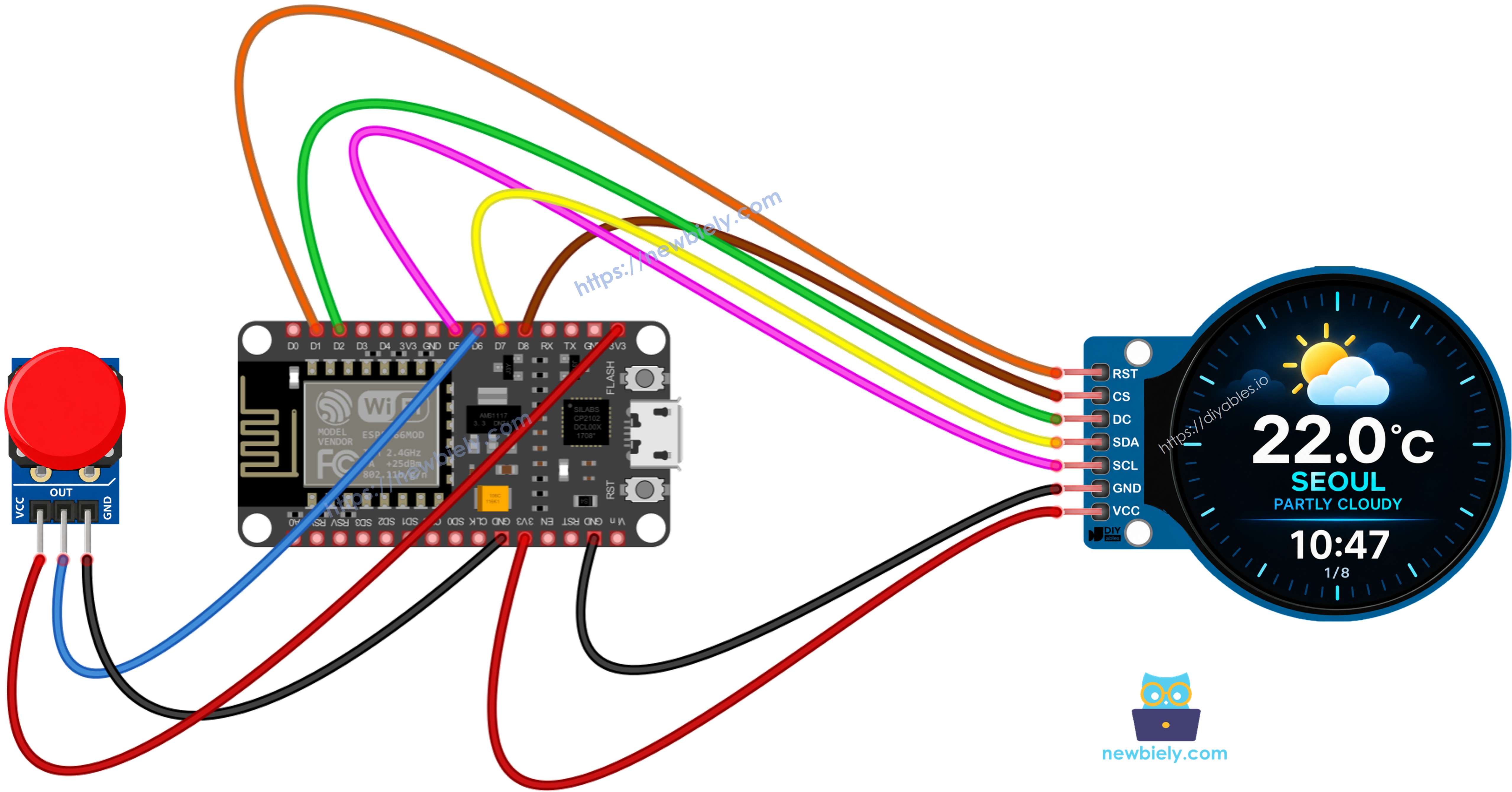

ESP8266 - Button Module Wiring
A button module carries a pull-down resistor on the board and must therefore be supplied with power. Its OUT pin is held LOW while the button is free and is driven HIGH while it is pressed, which is the reverse of the plain button.
This image is created using Fritzing. Click to enlarge image
See more in ESP8266's pinout and how to supply power to the ESP8266 and other components.
| Button Module Pin | ESP8266 | Description |
|---|---|---|
| VCC | 3.3V | Power supply |
| GND | GND | Ground |
| OUT | D6 | Signal, LOW at rest, HIGH when pressed |
The resistor on the module replaces the internal one, so the mode must be stated in the constructor.
ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
※ NOTE THAT:
The pin labels printed on ESP8266 boards vary between manufacturers. The D-numbers used above are the NodeMCU labels. Always compare them with the labels printed on your own board before wiring. Take a close look!
How To Program ESP8266 for the Weather Station
The first step is to include the libraries. The ESP8266 core supplies the network and time headers, while ArduinoJson, DIYables_TFT_Round, and ezButton are installed from the Library Manager.
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClientSecureBearSSL.h>
#include <ArduinoJson.h>
#include <time.h>
#include <DIYables_TFT_Round.h>
#include <ezButton.h>
Specify the ESP8266 pins that are connected to the display, then declare the display object.
#define PIN_RST D1
#define PIN_DC D2
#define PIN_CS D8
DIYables_TFT_GC9A01_Round tft(PIN_RST, PIN_DC, PIN_CS);
Specify the network credentials and the place to be observed.
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
The ESP8266 must be joined to the network before any request is attempted.
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
The clock is synchronised through NTP. A correct clock matters for HTTPS as well, because every certificate carries a start date and an end date.
configTime(GMT_OFFSET_SEC, DST_OFFSET_SEC, "pool.ntp.org", "time.nist.gov");
The ESP8266 core provides no getLocalTime() function, unlike the ESP32 core, so the system clock must be read directly.
time_t now = time(nullptr);
struct tm timeinfo;
localtime_r(&now, &timeinfo);
The secure client is created on the heap. Once the request has finished, the object is destroyed and its large TLS buffer is returned to the heap.
std::unique_ptr<BearSSL::WiFiClientSecure> client(new BearSSL::WiFiClientSecure);
client->setInsecure();
HTTPClient http;
http.begin(*client, url);
int httpCode = http.GET();
String payload = http.getString();
A filter is declared before parsing. Only the three blocks that are actually drawn are retained, which keeps the document small.
JsonDocument filter;
filter["current"] = true;
filter["hourly"] = true;
filter["daily"] = true;
JsonDocument doc;
deserializeJson(doc, payload, DeserializationOption::Filter(filter));
A single value is then extracted and rendered on the circular display.
float temperature = doc["current"]["temperature_2m"] | 0.0;
tft.setTextSize(3);
tft.setTextColor(DIYables_TFT::colorRGB(255, 255, 255));
tft.setCursor(80, 100);
tft.print(temperature, 1);
ESP8266 Code for Smart Weather Station
/*
* This ESP8266 NodeMCU code was developed by newbiely.com
*
* This ESP8266 NodeMCU code is made available for public use without any restriction
*
* For comprehensive instructions and wiring diagrams, please visit:
* https://newbiely.com/tutorials/esp8266/esp8266-smart-weather-station
*/
/*
============================================================
SMART WEATHER STATION
ESP8266 NodeMCU + GC9A01 Round TFT + Push Button
Location:
Seoul, South Korea (change it in USER CONFIGURATION)
Weather API:
Open-Meteo (free, no API key needed)
------------------------------------------------------------
GC9A01 Round TFT -> ESP8266
VCC -> 3.3V
GND -> GND
SCL -> D5 (hardware SPI clock, fixed)
SDA -> D7 (hardware SPI MOSI, fixed)
RST -> D1
DC -> D2
CS -> D8
Button
D6 -> BUTTON -> GND
------------------------------------------------------------
BUTTON
Short press -> Next page
Long press -> Refresh weather
Very long press -> Back to home page
------------------------------------------------------------
The ESP8266 has a small heap, and the HTTPS connection needs
a large part of it. Two steps keep the sketch inside the
free memory:
1. Only 12 hours of forecast are requested.
2. A JSON filter drops the parts that are not drawn.
============================================================
*/
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClientSecureBearSSL.h>
#include <ArduinoJson.h>
#include <time.h>
#include <DIYables_TFT_Round.h>
#include <ezButton.h>
// ===== USER CONFIGURATION =====
#define WIFI_SSID "YOUR_WIFI_SSID"
#define WIFI_PASSWORD "YOUR_WIFI_PASSWORD"
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
// Time zone name for the API, URL-encoded.
// "/" must be written as "%2F".
#define TIMEZONE "Asia%2FSeoul"
// Offset from UTC in seconds, used by the NTP clock.
// Seoul is UTC+9, so 9 * 3600.
#define GMT_OFFSET_SEC (9 * 3600)
// Extra offset for summer time. Use 3600 where it applies.
#define DST_OFFSET_SEC 0
// ===== PIN CONFIGURATION =====
// D5 (SCLK) and D7 (MOSI) are the hardware SPI pins of the
// ESP8266. The library drives them on its own, so they are
// not listed here.
#define PIN_BUTTON D6
#define PIN_RST D1
#define PIN_DC D2
#define PIN_CS D8
// ===== TIMING =====
const unsigned long API_UPDATE_INTERVAL = 10UL * 60UL * 1000UL;
const unsigned long WIFI_RETRY_INTERVAL = 10UL * 1000UL;
const unsigned long WIFI_CONNECT_TIMEOUT = 15UL * 1000UL;
const unsigned long BUTTON_DEBOUNCE = 40;
const unsigned long LONG_PRESS_TIME = 600;
const unsigned long VERY_LONG_PRESS_TIME = 2000;
const unsigned long RAIN_ANIMATION_INTERVAL = 90;
const unsigned long CLOCK_UPDATE_INTERVAL = 1000;
// ===== TFT =====
DIYables_TFT_GC9A01_Round tft(PIN_RST, PIN_DC, PIN_CS);
// ===== SCREEN =====
const int SCREEN_W = 240;
const int SCREEN_H = 240;
const int CENTER_X = 120;
const int CENTER_Y = 120;
// ===== COLORS =====
#define BLACK DIYables_TFT::colorRGB(0, 0, 0)
#define WHITE DIYables_TFT::colorRGB(255, 255, 255)
#define CYAN DIYables_TFT::colorRGB(0, 220, 255)
#define BLUE DIYables_TFT::colorRGB(40, 120, 255)
#define LIGHT_BLUE DIYables_TFT::colorRGB(90, 190, 255)
#define GREEN DIYables_TFT::colorRGB(60, 230, 130)
#define YELLOW DIYables_TFT::colorRGB(255, 210, 60)
#define ORANGE DIYables_TFT::colorRGB(255, 150, 40)
#define RED DIYables_TFT::colorRGB(255, 70, 70)
#define PURPLE DIYables_TFT::colorRGB(180, 100, 255)
#define GRAY DIYables_TFT::colorRGB(125, 125, 135)
#define DARK_GRAY DIYables_TFT::colorRGB(42, 42, 52)
#define DARK_BLUE DIYables_TFT::colorRGB(12, 18, 48)
// ===== PAGE =====
enum Page {
PAGE_HOME = 0,
PAGE_TEMP,
PAGE_HUMIDITY,
PAGE_WIND,
PAGE_RAIN,
PAGE_HOURLY,
PAGE_FORECAST,
PAGE_SYSTEM,
PAGE_COUNT
};
Page currentPage = PAGE_HOME;
// ===== WEATHER DATA =====
struct WeatherData {
bool valid = false;
float temperature = 0;
float humidity = 0;
float feelsLike = 0;
float windSpeed = 0;
float windDirection = 0;
float pressure = 0;
int weatherCode = 0;
bool isDay = true;
int currentRainChance = 0;
float uvIndex = 0;
String sunrise;
String sunset;
// NEXT HOURS
float hourlyTemp[12];
int hourlyRainChance[12];
int hourlyWeatherCode[12];
String hourlyTime[12];
// DAILY
String dailyDate[3];
float dailyTempMax[3];
float dailyTempMin[3];
int dailyRainChance[3];
int dailyWeatherCode[3];
float dailyUV[3];
};
WeatherData weather;
// ===== SYSTEM STATE =====
bool apiOnline = false;
bool wifiOnline = false;
bool screenDirty = true;
bool isFetching = false;
bool pendingRefresh = false;
unsigned long lastApiUpdate = 0;
unsigned long lastWifiRetry = 0;
unsigned long wifiConnectStart = 0;
unsigned long lastRainAnimation = 0;
unsigned long lastClockUpdate = 0;
bool wifiConnecting = false;
// ===== BUTTON =====
// ezButton handles the debouncing, so the sketch only has to
// measure how long the button was held down.
//
// The line below is for a BARE push button wired to GND. ezButton then
// uses the internal pull-up resistor of the board, and the pin reads LOW
// while the button is held down.
ezButton button(PIN_BUTTON);
// If you use a BUTTON MODULE instead, the module carries its own resistor
// on the board, so the internal one must not be used. Comment the line
// above and use this line instead:
// ezButton button(PIN_BUTTON, EXTERNAL_PULLDOWN);
unsigned long buttonPressStart = 0;
// ===== RAIN ANIMATION =====
const int RAIN_DROP_COUNT = 16;
int rainX[RAIN_DROP_COUNT];
int rainY[RAIN_DROP_COUNT];
bool rainInitialized = false;
const int RAIN_AREA_X = 30;
const int RAIN_AREA_Y = 125;
const int RAIN_AREA_W = 180;
const int RAIN_AREA_H = 78;
// ===== WEATHER DESCRIPTION =====
String weatherDescription(int code) {
switch (code) {
case 0:
return "CLEAR";
case 1:
return "MAINLY CLEAR";
case 2:
return "PARTLY CLOUDY";
case 3:
return "OVERCAST";
case 45:
case 48:
return "FOG";
case 51:
case 53:
case 55:
return "DRIZZLE";
case 56:
case 57:
return "FREEZING DRIZZLE";
case 61:
case 63:
case 65:
return "RAIN";
case 66:
case 67:
return "FREEZING RAIN";
case 71:
case 73:
case 75:
return "SNOW";
case 77:
return "SNOW GRAINS";
case 80:
case 81:
case 82:
return "SHOWERS";
case 85:
case 86:
return "SNOW SHOWERS";
case 95:
return "THUNDERSTORM";
case 96:
case 99:
return "STORM";
default:
return "UNKNOWN";
}
}
// ===== WEATHER COLOR =====
uint16_t weatherColor(int code) {
if (code == 0) return YELLOW;
if (code == 1 || code == 2) return CYAN;
if (code == 3) return GRAY;
if (code >= 51 && code <= 67) return BLUE;
if (code >= 80 && code <= 82) return LIGHT_BLUE;
if (code >= 95) return RED;
return WHITE;
}
// ===== WIND DIRECTION =====
String windDirectionText(float degrees) {
const char* directions[] = {
"N",
"NE",
"E",
"SE",
"S",
"SW",
"W",
"NW"
};
int index = (int)((degrees + 22.5) / 45.0);
index %= 8;
return directions[index];
}
// ===== CENTER TEXT =====
void drawCenteredText(String text, int y, int size, uint16_t color) {
tft.setTextSize(size);
tft.setTextColor(color);
int width = text.length() * 6 * size;
int x = CENTER_X - width / 2;
if (x < 0) x = 0;
tft.setCursor(x, y);
tft.print(text);
}
// ===== HEADER =====
void drawHeader(String title, uint16_t color) {
// Safe radius from screen center (slightly less than the
// physical 120px radius, to keep a small margin from the
// round bezel).
const float SAFE_RADIUS = 116.0;
int size = 2;
int width = title.length() * 6 * size;
int half = width / 2;
int y;
if (half >= SAFE_RADIUS) {
// Too wide even at the lowest safe position -> use a
// smaller font instead of clipping.
size = 1;
width = title.length() * 6 * size;
half = width / 2;
y = 14;
} else {
// Compute the minimum y (top of text) so the top corners
// of the text stay inside the round visible area.
float insideSpan = sqrt((SAFE_RADIUS * SAFE_RADIUS) - ((float)half * (float)half));
int minY = (int)(120.0 - insideSpan);
y = (minY > 14) ? minY : 14;
}
drawCenteredText(title, y, size, color);
int lineY = y + (size == 2 ? 16 : 8) + 6;
tft.drawLine(45, lineY, 195, lineY, DARK_GRAY);
}
// ===== FOOTER =====
void drawFooter() {
tft.drawLine(55, 214, 185, 214, DARK_GRAY);
drawCenteredText(String(currentPage + 1) + "/" + String(PAGE_COUNT), 220, 1, GRAY);
}
// ===== SUN ICON =====
void drawSun(int x, int y, int radius) {
tft.fillCircle(x, y, radius, YELLOW);
for (int i = 0; i < 8; i++) {
float angle = i * PI / 4.0;
int x1 = x + cos(angle) * (radius + 7);
int y1 = y + sin(angle) * (radius + 7);
int x2 = x + cos(angle) * (radius + 14);
int y2 = y + sin(angle) * (radius + 14);
tft.drawLine(x1, y1, x2, y2, YELLOW);
}
}
// ===== CLOUD ICON =====
void drawCloud(int x, int y) {
tft.fillCircle(x - 20, y, 15, LIGHT_BLUE);
tft.fillCircle(x, y - 8, 20, LIGHT_BLUE);
tft.fillCircle(x + 20, y, 15, LIGHT_BLUE);
tft.fillRoundRect(x - 35, y, 70, 20, 10, LIGHT_BLUE);
}
// ===== STATIC RAIN ICON =====
void drawRainIcon(int x, int y) {
drawCloud(x, y);
for (int i = 0; i < 5; i++) {
int dx = -24 + i * 12;
int dy = 28;
tft.drawLine(x + dx, y + dy, x + dx - 4, y + dy + 10, BLUE);
}
}
// ===== WEATHER ICON =====
void drawWeatherIcon(int code, int x, int y) {
if (code == 0) {
drawSun(x, y, 18);
}
else if (code <= 2) {
drawSun(x - 12, y - 7, 13);
drawCloud(x + 10, y + 10);
}
else if (code == 3) {
drawCloud(x, y);
}
else if ((code >= 51 && code <= 67) || (code >= 80 && code <= 82)) {
drawRainIcon(x, y);
}
else if (code >= 95) {
drawCloud(x, y);
tft.drawLine(x - 5, y + 28, x - 12, y + 43, YELLOW);
tft.drawLine(x + 10, y + 28, x + 3, y + 43, YELLOW);
} else {
drawCloud(x, y);
}
}
void drawWifiIcon(int cx, int cy, int level) {
const int radii[3] = { 14, 27, 40 };
for (int arc = 0; arc < 3; arc++) {
uint16_t color = (arc < level) ? CYAN : DARK_GRAY;
for (int deg = -150; deg <= -30; deg += 5) {
float angle = deg * PI / 180.0;
int x = cx + (int)(cos(angle) * radii[arc]);
int y = cy + (int)(sin(angle) * radii[arc]);
tft.fillCircle(x, y, 2, color);
}
}
// Base dot (the "device")
tft.fillCircle(cx, cy, 5, CYAN);
}
// ===== PAGE 1 - HOME =====
void drawHome() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
tft.fillScreen(bg);
if (!weather.valid) {
drawCenteredText("NO DATA", 90, 3, RED);
drawCenteredText("CHECK CONNECTION", 135, 1, WHITE);
drawFooter();
return;
}
// Weather icon
drawWeatherIcon(weather.weatherCode, CENTER_X, 65);
// Temperature
drawCenteredText(String(weather.temperature, 1) + " C", 112, 3, WHITE);
// Location
drawCenteredText(LOCATION_NAME, 153, 2, CYAN);
// Weather condition
drawCenteredText(weatherDescription(weather.weatherCode), 178, 1, weatherColor(weather.weatherCode));
// Clock area
drawHomeClock();
drawFooter();
}
// ===== HOME CLOCK =====
void drawHomeClock() {
uint16_t bg = weather.isDay ? BLACK : DARK_BLUE;
// Only clear a small region.
// This prevents full-screen flicker.
tft.fillRect(82, 196, 76, 12, bg);
drawCenteredText(getTimeString(), 197, 1, GRAY);
}
// ===== PAGE 2 - TEMPERATURE =====
void drawTemperature() {
tft.fillScreen(BLACK);
drawHeader("TEMPERATURE", ORANGE);
int cx = 120;
int cy = 125;
int radius = 68;
int value = constrain((int)weather.temperature, 0, 40);
int filled = map(value, 0, 40, 0, 240);
// Temperature gauge
for (int i = 0; i < 240; i += 4) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? ORANGE : DARK_GRAY;
tft.fillCircle(x, y, 2, color);
}
// Main value
drawCenteredText(String(weather.temperature, 1), 101, 3, WHITE);
drawCenteredText("C", 138, 2, ORANGE);
drawCenteredText("FEELS " + String(weather.feelsLike, 1) + " C", 168, 1, CYAN);
drawFooter();
}
// ===== PAGE 3 - HUMIDITY =====
void drawHumidity() {
tft.fillScreen(BLACK);
drawHeader("HUMIDITY", BLUE);
int cx = 120;
int cy = 125;
int radius = 68;
int progress = constrain((int)weather.humidity, 0, 100);
int filled = map(progress, 0, 100, 0, 270);
for (int i = 0; i < 270; i += 3) {
float angle = (-135.0 + i) * PI / 180.0;
int x = cx + cos(angle) * radius;
int y = cy + sin(angle) * radius;
uint16_t color = (i < filled) ? BLUE : DARK_GRAY;
tft.fillCircle(x, y, 3, color);
}
drawCenteredText(String((int)weather.humidity) + "%", 105, 3, WHITE);
String comfort;
if (weather.humidity < 40) comfort = "DRY";
else if (weather.humidity < 70) comfort = "COMFORTABLE";
else if (weather.humidity < 85) comfort = "HUMID";
else
comfort = "VERY HUMID";
drawCenteredText(comfort, 153, 1, CYAN);
drawFooter();
}
// ===== PAGE 4 - WIND =====
void drawWind() {
tft.fillScreen(BLACK);
drawHeader("WIND", GREEN);
int cx = 120;
int cy = 104;
int radius = 49;
// Compass
tft.drawCircle(cx, cy, radius, DARK_GRAY);
drawCenteredText("N", 43, 1, WHITE);
drawCenteredText("S", 157, 1, WHITE);
tft.setCursor(62, 101);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("W");
tft.setCursor(172, 101);
tft.print("E");
// Direction arrow
float angle = weather.windDirection * PI / 180.0;
int x2 = cx + sin(angle) * 38;
int y2 = cy - cos(angle) * 38;
tft.drawLine(cx, cy, x2, y2, GREEN);
tft.fillCircle(cx, cy, 5, GREEN);
// Wind speed
drawCenteredText(String(weather.windSpeed, 1) + " km/h", 174, 2, WHITE);
drawCenteredText(windDirectionText(weather.windDirection), 198, 1, CYAN);
drawFooter();
}
// ===== PAGE 5 - RAIN =====
void drawRain() {
tft.fillScreen(BLACK);
drawHeader("RAIN", LIGHT_BLUE);
int rain = weather.currentRainChance;
// Static weather icon
if (rain >= 60) {
drawRainIcon(CENTER_X, 68);
} else {
drawCloud(CENTER_X, 73);
}
// Rain percentage
drawCenteredText(String(rain) + "%", 105, 3, WHITE);
drawCenteredText("RAIN CHANCE", 140, 1, LIGHT_BLUE);
// Status
if (rain >= 60) {
drawCenteredText("HIGH", 158, 1, RED);
}
else if (rain >= 30) {
drawCenteredText("MODERATE", 158, 1, YELLOW);
} else {
drawCenteredText("LOW", 158, 1, GREEN);
}
// Animation area
if (rain >= 20) {
initializeRainAnimation();
}
drawFooter();
}
// ===== INITIALIZE RAIN ANIMATION =====
void initializeRainAnimation() {
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y + random(RAIN_AREA_H);
}
rainInitialized = true;
}
// ===== UPDATE RAIN ANIMATION =====
void updateRainAnimation() {
if (currentPage != PAGE_RAIN) return;
if (weather.currentRainChance < 20) return;
if (millis() - lastRainAnimation < RAIN_ANIMATION_INTERVAL) {
return;
}
lastRainAnimation = millis();
uint16_t bg = BLACK;
// Erase old drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, bg);
}
// Move drops
for (int i = 0; i < RAIN_DROP_COUNT; i++) {
rainY[i] += 5;
if (rainY[i] > RAIN_AREA_Y + RAIN_AREA_H) {
rainX[i] = RAIN_AREA_X + random(RAIN_AREA_W);
rainY[i] = RAIN_AREA_Y;
}
tft.drawLine(rainX[i], rainY[i], rainX[i] - 3, rainY[i] + 7, BLUE);
}
}
// ===== PAGE 6 - NEXT HOURS =====
void drawHourly() {
tft.fillScreen(BLACK);
drawHeader("NEXT HOURS", PURPLE);
for (int i = 0; i < 5; i++) {
int y = 52 + i * 31;
// Row separator
if (i > 0) {
tft.drawLine(25, y - 8, 215, y - 8, DARK_GRAY);
}
// Time
tft.setCursor(25, y);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTime[i]);
// Weather
int code = weather.hourlyWeatherCode[i];
String condition;
if (code == 0) condition = "SUN";
else if (code <= 3) condition = "CLOUD";
else if (code >= 95) condition = "STORM";
else
condition = "RAIN";
tft.setCursor(75, y);
tft.setTextColor(weatherColor(code));
tft.print(condition);
// Temperature
tft.setCursor(142, y);
tft.setTextColor(WHITE);
tft.print(weather.hourlyTemp[i], 0);
tft.print("C");
// Rain
tft.setCursor(180, y);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.hourlyRainChance[i]);
tft.print("%");
}
drawFooter();
}
// ===== PAGE 7 - FORECAST =====
// UI FIX:
// The card border (drawRoundRect) previously spanned x=15..225
// (width 210). For the TOP row, the corners of that rectangle
// fell outside the visible round area of the screen and were
// clipped. The card width below was reduced to 190px
// (x=25..215) which keeps every corner, on every row, safely
// inside the round bezel. Text start x was nudged in slightly
// to match the new card padding.
void drawForecast() {
tft.fillScreen(BLACK);
drawHeader("3-DAY FORECAST", CYAN);
const char* labels[] = {
"TODAY",
"TOMORROW",
"DAY 3"
};
// Card geometry (UI fix: narrower so it never touches
// the round bezel, even on the top row).
const int CARD_X = 25;
const int CARD_W = 190;
for (int i = 0; i < 3; i++) {
int y = 62 + i * 48;
// Card
tft.drawRoundRect(CARD_X, y - 5, CARD_W, 40, 8, DARK_GRAY);
// Day
tft.setCursor(CARD_X + 8, y + 4);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print(labels[i]);
// Temperature
tft.setCursor(CARD_X + 65, y + 4);
tft.print(weather.dailyTempMin[i], 0);
tft.print("/");
tft.print(weather.dailyTempMax[i], 0);
tft.print("C");
// Rain
tft.setCursor(CARD_X + 120, y + 4);
tft.setTextColor(LIGHT_BLUE);
tft.print(weather.dailyRainChance[i]);
tft.print("%");
// Weather
tft.setCursor(CARD_X + 155, y + 4);
tft.setTextColor(weatherColor(weather.dailyWeatherCode[i]));
int code = weather.dailyWeatherCode[i];
if (code == 0) tft.print("SUN");
else if (code <= 3) tft.print("CLD");
else if (code >= 95) tft.print("STM");
else
tft.print("RAIN");
}
drawFooter();
}
// ===== PAGE 8 - SYSTEM =====
void drawSystem() {
tft.fillScreen(BLACK);
drawHeader("SYSTEM", CYAN);
// WIFI
tft.setCursor(25, 57);
tft.setTextSize(1);
tft.setTextColor(WHITE);
tft.print("WIFI");
tft.setCursor(125, 57);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// RSSI
tft.setCursor(25, 82);
tft.setTextColor(WHITE);
tft.print("RSSI");
tft.setCursor(125, 82);
if (WiFi.status() == WL_CONNECTED) {
tft.setTextColor(CYAN);
tft.print(WiFi.RSSI());
tft.print(" dBm");
} else {
tft.print("--");
}
// API
tft.setCursor(25, 107);
tft.setTextColor(WHITE);
tft.print("API");
tft.setCursor(125, 107);
if (apiOnline) {
tft.setTextColor(GREEN);
tft.print("ONLINE");
} else {
tft.setTextColor(RED);
tft.print("OFFLINE");
}
// LOCATION
tft.setCursor(25, 132);
tft.setTextColor(WHITE);
tft.print("LOCATION");
tft.setCursor(125, 132);
tft.setTextColor(CYAN);
tft.print(LOCATION_NAME);
// TEMP
tft.setCursor(25, 157);
tft.setTextColor(WHITE);
tft.print("TEMP");
tft.setCursor(125, 157);
tft.print(weather.temperature, 1);
tft.print(" C");
// STATUS
tft.setCursor(25, 182);
tft.setTextColor(WHITE);
tft.print("STATUS");
tft.setCursor(125, 182);
if (weather.valid) {
tft.setTextColor(GREEN);
tft.print("READY");
} else {
tft.setTextColor(RED);
tft.print("NO DATA");
}
drawFooter();
}
// ===== RENDER PAGE =====
void renderPage() {
// Rain animation must be initialized
// only when entering the page.
rainInitialized = false;
switch (currentPage) {
case PAGE_HOME:
drawHome();
break;
case PAGE_TEMP:
drawTemperature();
break;
case PAGE_HUMIDITY:
drawHumidity();
break;
case PAGE_WIND:
drawWind();
break;
case PAGE_RAIN:
drawRain();
break;
case PAGE_HOURLY:
drawHourly();
break;
case PAGE_FORECAST:
drawForecast();
break;
case PAGE_SYSTEM:
drawSystem();
break;
}
}
// ===== WEATHER API URL =====
String getWeatherURL() {
String url = "https://api.open-meteo.com/v1/forecast";
url += "?latitude=" + String(LATITUDE, 4);
url += "&longitude=" + String(LONGITUDE, 4);
url +=
"¤t="
"temperature_2m,"
"relative_humidity_2m,"
"apparent_temperature,"
"weather_code,"
"wind_speed_10m,"
"wind_direction_10m,"
"pressure_msl,"
"is_day";
url +=
"&hourly="
"temperature_2m,"
"precipitation_probability,"
"weather_code";
url +=
"&daily="
"temperature_2m_max,"
"temperature_2m_min,"
"precipitation_probability_max,"
"weather_code,"
"sunrise,"
"sunset,"
"uv_index_max";
url += "&timezone=" TIMEZONE;
url += "&forecast_days=3";
// Only 12 hours are asked for. The answer then starts at the
// current hour and stays near 1.8 KB, which matters on the
// small heap of the ESP8266.
url += "&forecast_hours=12";
url += "&temperature_unit=celsius";
url += "&wind_speed_unit=kmh";
return url;
}
// ===== LOCAL TIME HELPER =====
// The ESP8266 core has no getLocalTime() like the ESP32, so
// the system clock is read directly here.
bool readLocalTime(struct tm* info) {
time_t now = time(nullptr);
// Before the NTP answer arrives, the clock sits near 1970.
if (now < 100000) {
return false;
}
localtime_r(&now, info);
return true;
}
// ===== PARSE WEATHER =====
bool parseWeather(const String& payload) {
// A filter keeps only the three blocks that are drawn.
// The "..._units" blocks are dropped, which saves a good
// part of the ESP8266 heap.
JsonDocument filter;
filter["current"] = true;
filter["hourly"] = true;
filter["daily"] = true;
JsonDocument doc;
DeserializationError error = deserializeJson(doc, payload, DeserializationOption::Filter(filter));
if (error) {
Serial.print("JSON ERROR: ");
Serial.println(error.c_str());
return false;
}
// CURRENT
JsonObject current = doc["current"];
if (current.isNull()) {
Serial.println("CURRENT DATA MISSING");
return false;
}
weather.temperature = current["temperature_2m"] | 0.0;
weather.humidity = current["relative_humidity_2m"] | 0.0;
weather.feelsLike = current["apparent_temperature"] | 0.0;
weather.weatherCode = current["weather_code"] | 0;
weather.windSpeed = current["wind_speed_10m"] | 0.0;
weather.windDirection = current["wind_direction_10m"] | 0.0;
weather.pressure = current["pressure_msl"] | 0.0;
int isDay = current["is_day"] | 1;
weather.isDay = (isDay == 1);
// HOURLY
// "forecast_hours=12" makes the list begin at the current
// hour, so index 0 is now and index 11 is 11 hours later.
JsonArray hourlyTime = doc["hourly"]["time"];
JsonArray hourlyTemp = doc["hourly"]["temperature_2m"];
JsonArray hourlyRain = doc["hourly"]["precipitation_probability"];
JsonArray hourlyCode = doc["hourly"]["weather_code"];
for (int i = 0; i < 12; i++) {
// Safety check
if (i >= (int)hourlyTemp.size()) {
weather.hourlyTemp[i] = weather.temperature;
weather.hourlyRainChance[i] = 0;
weather.hourlyWeatherCode[i] = weather.weatherCode;
weather.hourlyTime[i] = "--:--";
continue;
}
weather.hourlyTemp[i] = hourlyTemp[i] | weather.temperature;
weather.hourlyRainChance[i] = hourlyRain[i] | 0;
weather.hourlyWeatherCode[i] = hourlyCode[i] | weather.weatherCode;
// Extract HH:MM
// Example:
// 2026-09-22T14:00
//
// Result:
// 14:00
String fullTime = hourlyTime[i] | "";
if (fullTime.length() >= 16) {
weather.hourlyTime[i] = fullTime.substring(11, 16);
} else {
weather.hourlyTime[i] = "--:--";
}
}
weather.currentRainChance = weather.hourlyRainChance[0];
// DAILY
JsonArray dailyMax = doc["daily"]["temperature_2m_max"];
JsonArray dailyMin = doc["daily"]["temperature_2m_min"];
JsonArray dailyRain = doc["daily"]["precipitation_probability_max"];
JsonArray dailyCode = doc["daily"]["weather_code"];
JsonArray dailyDate = doc["daily"]["time"];
JsonArray dailySunrise = doc["daily"]["sunrise"];
JsonArray dailySunset = doc["daily"]["sunset"];
JsonArray dailyUV = doc["daily"]["uv_index_max"];
for (int i = 0; i < 3; i++) {
weather.dailyTempMax[i] = dailyMax[i] | 0.0;
weather.dailyTempMin[i] = dailyMin[i] | 0.0;
weather.dailyRainChance[i] = dailyRain[i] | 0;
weather.dailyWeatherCode[i] = dailyCode[i] | 0;
weather.dailyDate[i] = dailyDate[i] | "";
weather.dailyUV[i] = dailyUV[i] | 0.0;
}
if (dailySunrise.size() > 0) {
weather.sunrise = dailySunrise[0] | "";
}
if (dailySunset.size() > 0) {
weather.sunset = dailySunset[0] | "";
}
if (dailyUV.size() > 0) {
weather.uvIndex = dailyUV[0] | 0.0;
}
weather.valid = true;
return true;
}
// ===== FETCH WEATHER =====
bool fetchWeather() {
if (WiFi.status() != WL_CONNECTED) {
Serial.println("WIFI NOT CONNECTED");
apiOnline = false;
screenDirty = true;
return false;
}
Serial.println();
Serial.println("================================");
Serial.println("FETCHING WEATHER");
Serial.println("================================");
Serial.print("FREE HEAP BEFORE: ");
Serial.println(ESP.getFreeHeap());
isFetching = true;
// Loading screen is shown only once.
drawLoadingScreen("FETCHING WEATHER...");
// BearSSL does the HTTPS part on the ESP8266. The object is
// built on the heap and freed right after the request, so the
// large TLS buffer does not stay in memory.
std::unique_ptr<BearSSL::WiFiClientSecure> client(new BearSSL::WiFiClientSecure);
// Prototype / testing mode: the server certificate is not
// checked. It keeps the sketch short and saves memory.
client->setInsecure();
HTTPClient http;
String url = getWeatherURL();
Serial.println(url);
if (!http.begin(*client, url)) {
Serial.println("HTTP BEGIN FAILED");
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
http.setTimeout(15000);
int httpCode = http.GET();
Serial.print("HTTP CODE: ");
Serial.println(httpCode);
if (httpCode <= 0) {
Serial.print("HTTP ERROR: ");
Serial.println(http.errorToString(httpCode));
http.end();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
if (httpCode != HTTP_CODE_OK) {
Serial.println("API ERROR");
http.end();
isFetching = false;
apiOnline = false;
screenDirty = true;
return false;
}
String payload = http.getString();
http.end();
Serial.print("PAYLOAD SIZE: ");
Serial.println(payload.length());
bool result = parseWeather(payload);
// The text is not needed any more, so the heap is given back
// before the screen is drawn.
payload = "";
isFetching = false;
if (result) {
apiOnline = true;
lastApiUpdate = millis();
Serial.println("WEATHER UPDATED");
Serial.print("Temperature: ");
Serial.println(weather.temperature);
Serial.print("Humidity: ");
Serial.println(weather.humidity);
Serial.print("Weather: ");
Serial.println(weatherDescription(weather.weatherCode));
Serial.print("Wind: ");
Serial.println(weather.windSpeed);
Serial.print("Rain Chance: ");
Serial.println(weather.currentRainChance);
Serial.print("FREE HEAP AFTER: ");
Serial.println(ESP.getFreeHeap());
screenDirty = true;
return true;
}
apiOnline = false;
screenDirty = true;
return false;
}
// ===== LOADING SCREEN =====
void drawLoadingScreen(String message) {
tft.fillScreen(BLACK);
drawCenteredText("SMART WEATHER", 48, 2, CYAN);
drawCenteredText("STATION", 73, 2, WHITE);
// Loading ring
for (int i = 0; i < 12; i++) {
float angle = i * 2.0 * PI / 12.0;
int x = CENTER_X + cos(angle) * 42;
int y = CENTER_Y + sin(angle) * 42;
uint16_t color = (i == 0) ? CYAN : DARK_GRAY;
tft.fillCircle(x, y, 4, color);
}
drawCenteredText(message, 182, 1, WHITE);
}
// ===== WIFI CONNECT =====
bool connectWiFi() {
Serial.println();
Serial.println("CONNECTING TO WIFI...");
tft.fillScreen(BLACK);
drawCenteredText("CONNECTING", 26, 2, CYAN);
drawWifiIcon(CENTER_X, 95, 0);
drawCenteredText("WI-FI", 145, 2, WHITE);
drawCenteredText(WIFI_SSID, 178, 1, GRAY);
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
unsigned long start = millis();
int iconFrame = 0;
while (WiFi.status() != WL_CONNECTED && millis() - start < WIFI_CONNECT_TIMEOUT) {
drawWifiIcon(CENTER_X, 95, iconFrame % 4);
iconFrame++;
delay(250);
Serial.print(".");
}
Serial.println();
if (WiFi.status() == WL_CONNECTED) {
wifiOnline = true;
wifiConnecting = false;
drawWifiIcon(CENTER_X, 95, 3);
Serial.println("WIFI CONNECTED");
Serial.print("IP: ");
Serial.println(WiFi.localIP());
Serial.print("RSSI: ");
Serial.print(WiFi.RSSI());
Serial.println(" dBm");
return true;
}
wifiOnline = false;
Serial.println("WIFI CONNECTION FAILED");
return false;
}
// ===== START WIFI RECONNECT =====
void startWiFiReconnect() {
Serial.println("START WIFI RECONNECT");
WiFi.mode(WIFI_STA);
WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
wifiConnecting = true;
wifiConnectStart = millis();
}
// ===== HANDLE WIFI =====
void handleWiFi() {
wl_status_t status = WiFi.status();
// Connected
if (status == WL_CONNECTED) {
if (!wifiOnline) {
Serial.println("WIFI CONNECTED");
screenDirty = true;
}
wifiOnline = true;
wifiConnecting = false;
return;
}
wifiOnline = false;
// Currently connecting
if (wifiConnecting) {
if (millis() - wifiConnectStart > WIFI_CONNECT_TIMEOUT) {
Serial.println("WIFI CONNECT TIMEOUT");
WiFi.disconnect(true);
wifiConnecting = false;
lastWifiRetry = millis();
}
return;
}
// Start another attempt
if (millis() - lastWifiRetry >= WIFI_RETRY_INTERVAL) {
lastWifiRetry = millis();
startWiFiReconnect();
}
}
// ===== NTP TIME =====
// A correct clock also helps the HTTPS handshake, because a
// certificate carries a start date and an end date.
void setupTime() {
configTime(
GMT_OFFSET_SEC,
DST_OFFSET_SEC,
"pool.ntp.org",
"time.nist.gov",
"time.google.com"
);
Serial.println("SYNCING TIME...");
struct tm timeinfo;
unsigned long start = millis();
while (!readLocalTime(&timeinfo) && millis() - start < 10000) {
delay(250);
Serial.print(".");
}
Serial.println();
if (readLocalTime(&timeinfo)) {
Serial.println("TIME SYNCED");
char buffer[32];
strftime(buffer, sizeof(buffer), "%Y-%m-%d %H:%M:%S", &timeinfo);
Serial.println(buffer);
} else {
Serial.println("TIME SYNC FAILED");
}
}
// ===== BUTTON HANDLER =====
void handleButton() {
button.loop(); // MUST call the loop() function first
// The moment the button goes down, remember when it happened.
if (button.isPressed())
buttonPressStart = millis();
// The action is chosen when the button comes back up.
if (button.isReleased()) {
unsigned long duration = millis() - buttonPressStart;
if (duration >= VERY_LONG_PRESS_TIME) {
// VERY LONG PRESS -> back to the home page
currentPage = PAGE_HOME;
screenDirty = true;
Serial.println("VERY LONG PRESS -> HOME");
} else if (duration >= LONG_PRESS_TIME) {
// LONG PRESS -> ask the weather API for fresh data
pendingRefresh = true;
Serial.println("LONG PRESS -> REFRESH");
} else {
// SHORT PRESS -> next page
currentPage = (Page)((currentPage + 1) % PAGE_COUNT);
screenDirty = true;
Serial.print("SHORT PRESS -> PAGE ");
Serial.println(currentPage + 1);
}
}
}
// ===== PROCESS MANUAL REFRESH =====
void handleManualRefresh() {
if (!pendingRefresh) return;
pendingRefresh = false;
fetchWeather();
}
// ===== AUTO API UPDATE =====
void handleApiUpdate() {
if (!weather.valid) {
return;
}
if (millis() - lastApiUpdate >= API_UPDATE_INTERVAL) {
fetchWeather();
}
}
// ===== CLOCK =====
String getTimeString() {
struct tm timeinfo;
if (!readLocalTime(&timeinfo)) {
return "--:--";
}
char buffer[10];
strftime(buffer, sizeof(buffer), "%H:%M", &timeinfo);
return String(buffer);
}
// ===== HANDLE CLOCK =====
void handleClock() {
if (currentPage != PAGE_HOME) {
return;
}
if (millis() - lastClockUpdate < CLOCK_UPDATE_INTERVAL) {
return;
}
lastClockUpdate = millis();
if (weather.valid && !isFetching) {
drawHomeClock();
}
}
// ===== SETUP =====
void setup() {
Serial.begin(115200);
delay(500);
Serial.println();
Serial.println("================================");
Serial.println("SMART WEATHER STATION");
Serial.println(LOCATION_NAME);
Serial.println("================================");
Serial.print("FREE HEAP AT BOOT: ");
Serial.println(ESP.getFreeHeap());
// BUTTON
// ezButton already set the pin to INPUT_PULLUP in its constructor.
button.setDebounceTime(BUTTON_DEBOUNCE);
// TFT
tft.begin();
tft.setRotation(2);
tft.fillScreen(BLACK);
// BOOT SCREEN
drawCenteredText("SMART WEATHER", 65, 2, CYAN);
drawCenteredText("STATION", 92, 2, WHITE);
drawCenteredText(LOCATION_NAME, 135, 2, YELLOW);
delay(1500);
// WIFI
if (connectWiFi()) {
setupTime();
delay(500);
fetchWeather();
} else {
tft.fillScreen(BLACK);
drawCenteredText("WIFI ERROR", 82, 2, RED);
drawCenteredText("CHECK SETTINGS", 120, 1, WHITE);
drawCenteredText("RETRYING...", 150, 1, GRAY);
delay(1500);
}
screenDirty = true;
}
// ===== LOOP =====
void loop() {
// Input
handleButton();
// WiFi
handleWiFi();
// Manual refresh
handleManualRefresh();
// Automatic API update
handleApiUpdate();
// Clock
handleClock();
// Static page rendering
if (screenDirty && !isFetching) {
renderPage();
screenDirty = false;
}
// Rain animation
updateRainAnimation();
}
Detailed Instructions
Follow these instructions step by step:
- If this is your first time using the ESP8266, refer to the tutorial on setting up the environment for ESP8266 in the Arduino IDE.
- Wire the components as shown in the diagram.
- Connect the ESP8266 board to your computer using a USB cable.
- Open Arduino IDE on your computer.
- Select the correct ESP8266 board (e.g. NodeMCU 1.0 (ESP-12E Module)) and COM port.
- Navigate to the Libraries icon on the left bar of the Arduino IDE.
- Search “DIYables TFT Round”, then find the DIYables_TFT_Round library by DIYables.
- Click Install button to install the library.
- You will need to install additional library dependencies.
- Click the Install All button to install all required libraries.
- Search “ArduinoJson”, then find the ArduinoJson library by Benoit Blanchon.
- Click the Install button to add the library.
- Search “ezButton”, then find the ezButton library by ArduinoGetStarted.
- Click the Install button to add the library.
- Copy the code and open it in Arduino IDE.
- Replace WIFI_SSID and WIFI_PASSWORD with your own network name and password.
- Replace LATITUDE, LONGITUDE, LOCATION_NAME, TIMEZONE and GMT_OFFSET_SEC with the values of your own city.
- Click the Upload button in Arduino IDE to transfer the code to ESP8266.
- Open the Serial Monitor in Arduino IDE and set the baud rate to 115200.
- Wait while the boot screen, the WiFi screen, and then the weather appear.
- Press the button to move through the pages.
- Check the results on the Serial Monitor.
8
Serial.println("Hello World!");
Message (Enter to send message to 'Nodemcu 1.0 (ESP-12E Module)' on 'COM15')
New Line
9600 baud
================================
SMART WEATHER STATION
SEOUL
================================
FREE HEAP AT BOOT: 46512
CONNECTING TO WIFI...
.......
WIFI CONNECTED
IP: 192.168.1.58
RSSI: -66 dBm
SYNCING TIME...
....
TIME SYNCED
2026-09-22 18:05:31
================================
FETCHING WEATHER
================================
FREE HEAP BEFORE: 44120
https://api.open-meteo.com/v1/forecast?latitude=37.5665&longitude=126.9780¤t=...
HTTP CODE: 200
PAYLOAD SIZE: 1754
WEATHER UPDATED
Temperature: 19.40
Humidity: 72.00
Weather: SHOWERS
Wind: 16.50
Rain Chance: 54
FREE HEAP AFTER: 41864
SHORT PRESS -> PAGE 2
LONG PRESS -> REFRESH
VERY LONG PRESS -> HOME
Code Explanation
Check the explanations given in the source code comments for each line!
How To Change The Location
The sketch is delivered with Seoul, South Korea. Five definitions at the top of the code control the place:
#define LATITUDE 37.5665
#define LONGITUDE 126.9780
#define LOCATION_NAME "SEOUL"
#define TIMEZONE "Asia%2FSeoul"
#define GMT_OFFSET_SEC (9 * 3600)
- LATITUDE and LONGITUDE identify the city. Any map website supplies them.
- LOCATION_NAME is the label drawn on the screen. A short name suits the circular display.
- TIMEZONE is placed inside a web address, therefore the / character must be written as %2F. Europe/Berlin is written as Europe%2FBerlin.
- GMT_OFFSET_SEC is used by the NTP clock. Berlin in winter is UTC+1, which gives (1 * 3600).
- DST_OFFSET_SEC covers summer time. It must be set to 3600 where summer time applies, otherwise 0.
Additional Knowledge
It is worth comparing the ESP8266 with the ESP32 before choosing a board for this project.
| ESP8266 | ESP32 | |
|---|---|---|
| Free heap for the sketch | about 46 KB | about 280 KB |
| Forecast hours requested | 12, to save memory | 72, the full three days |
| JSON filter | required | optional |
| Local time function | written by hand | getLocalTime() is provided |
| CPU cores | 1 | 2 |
| Typical price | lower | higher |
It is evident that the ESP32 is far more comfortable for this project, because the memory pressure disappears entirely. The ESP8266 nevertheless remains a capable and cheaper option, provided the two memory savings described above are kept in place.
Troubleshooting
- The display remains black. The SCL and SDA wires must reach D5 and D7. Those two pins belong to the hardware SPI bus and cannot be relocated.
- The board restarts during the request. The heap ran out. Lower the forecast hours in getWeatherURL(), or request two daily entries instead of three.
- HTTP CODE is negative. The secure handshake failed. Confirm that the time was synchronised, because an incorrect clock makes every certificate appear invalid.
- WiFi never connects. The ESP8266 supports 2.4 GHz networks only. A network running exclusively on 5 GHz will never be joined.
- The clock displays --:--. The NTP answer did not arrive. UDP port 123 is blocked on some networks.
